mp-762197-2/RbAlH8N4/anharm

Space group: P4/n (85)
Link: Materials Project
Download: mp-762197-2.tar.gz

Equation of state

../../_images/fig_bm1274.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr2966.png — (a) Phonon dispersion with participation ratio and DOS

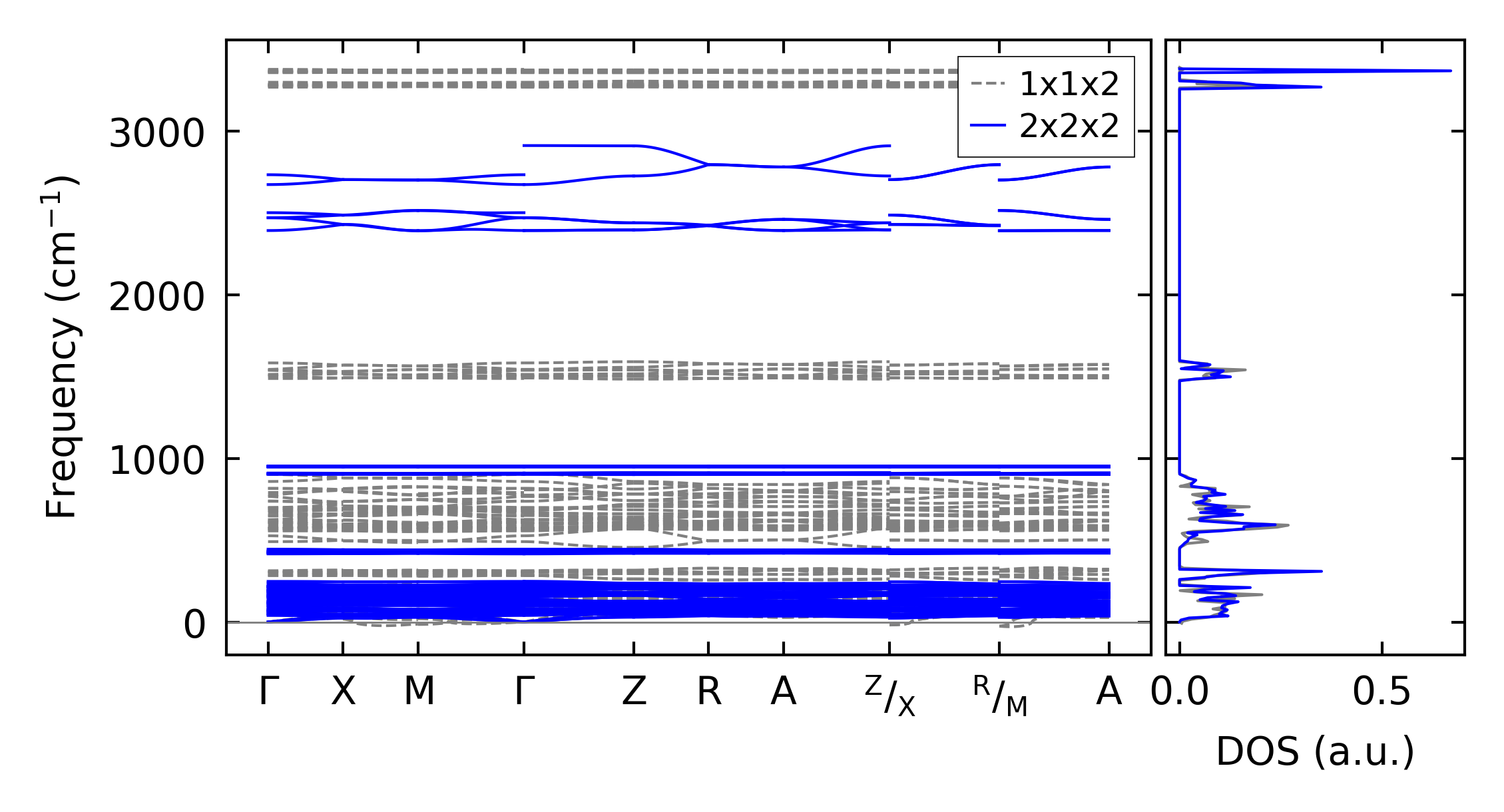

../../_images/fig_bandos3736.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo2966.png — (c) Thermodynamic properties

Grüneisen parameters

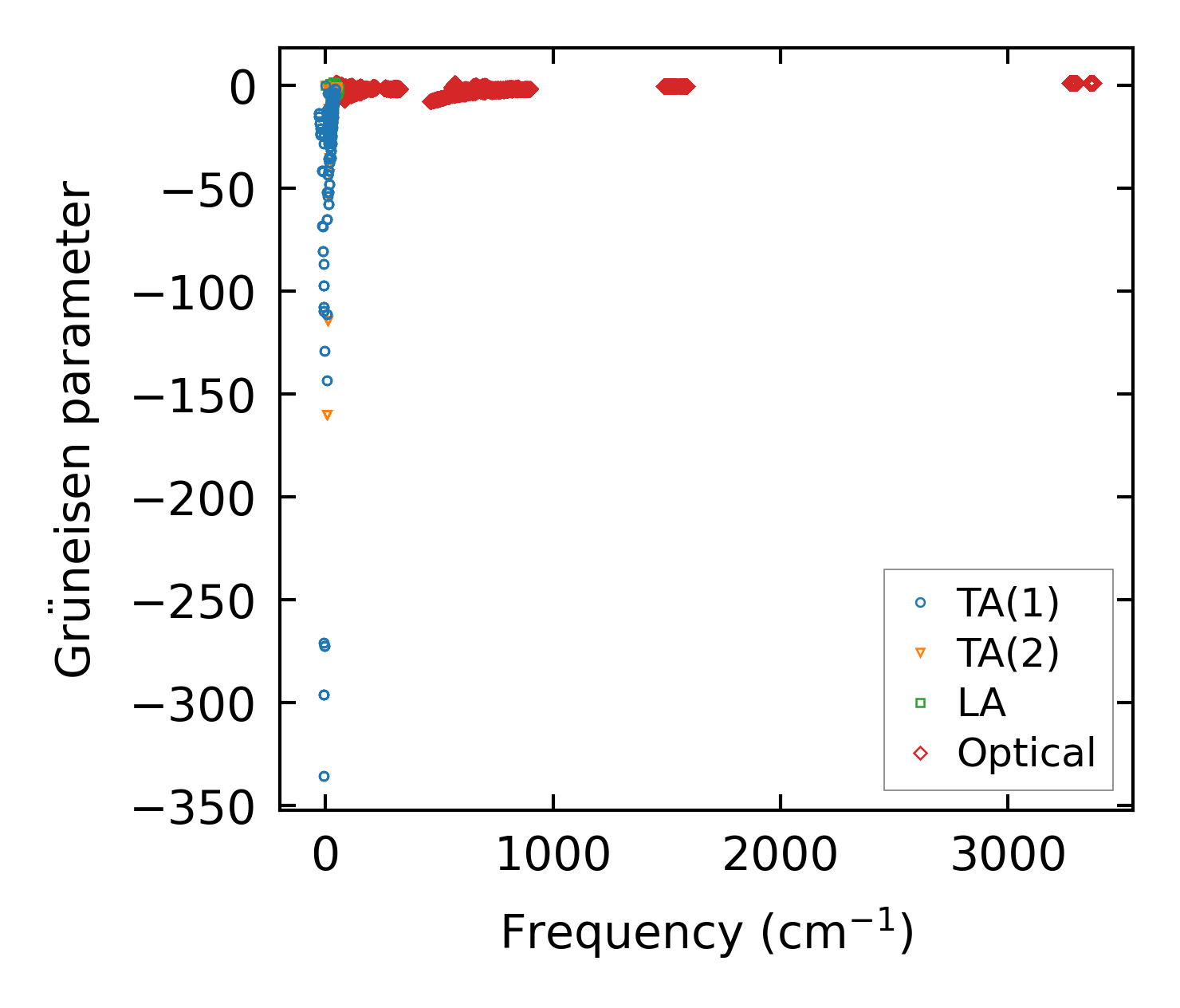

../../_images/fig_gru_all1437.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1437.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x14, supercell: 2x2x2

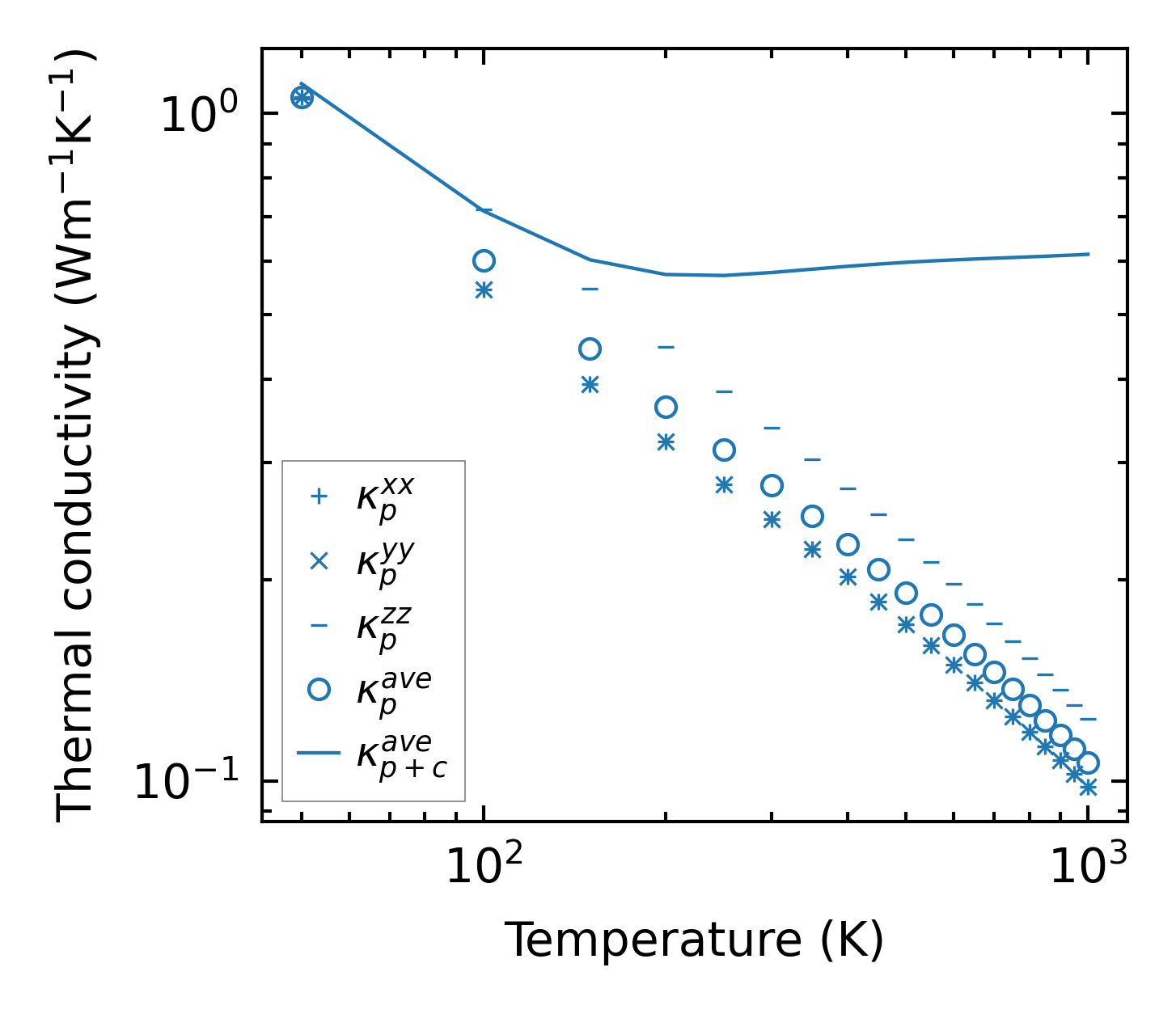

../../_images/fig_kappa2774.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1453.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

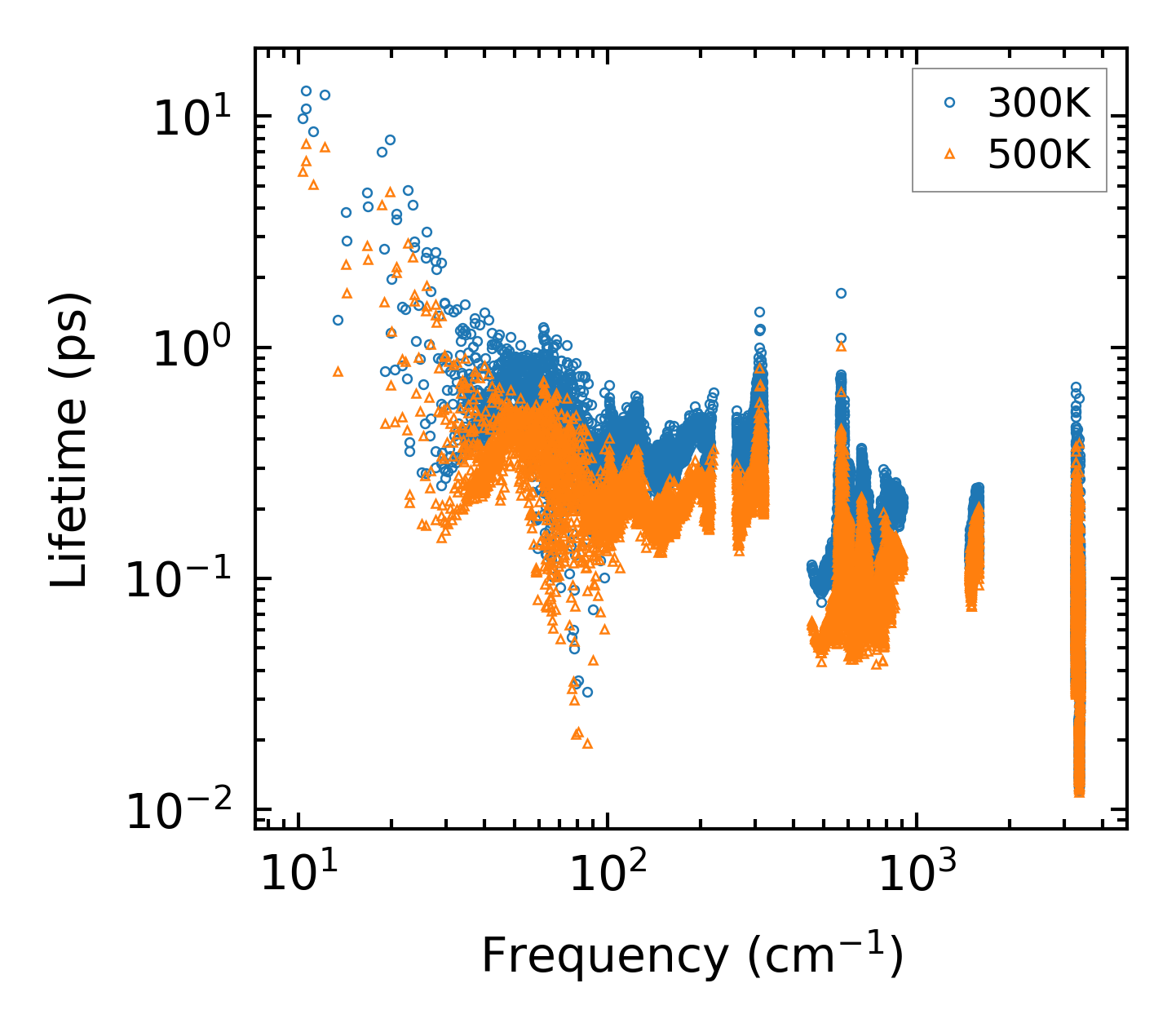

../../_images/fig_lifetime1427.png — (a) Phonon lifetime due to phonon-phonon scattering

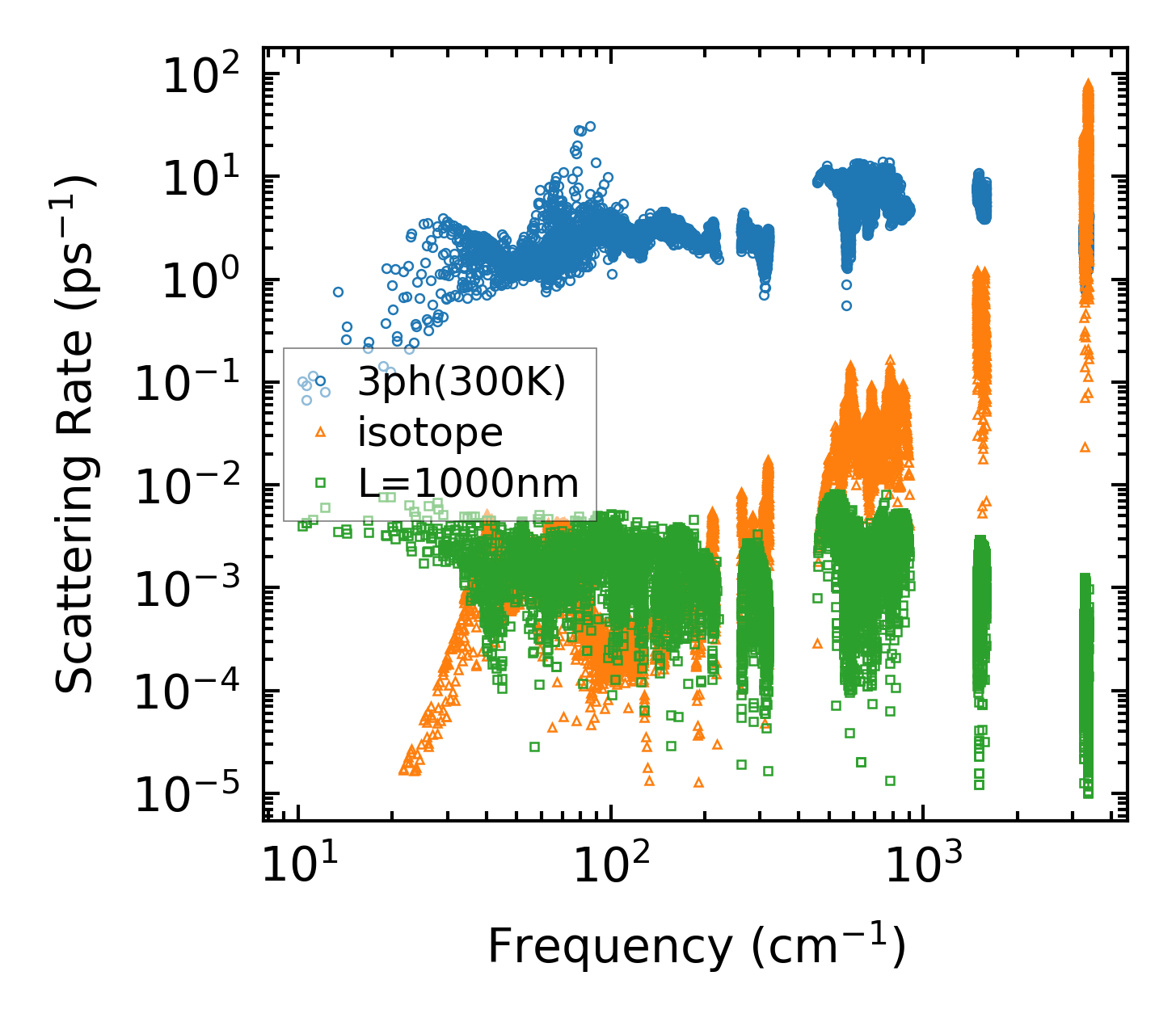

../../_images/fig_scat_rates1426.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

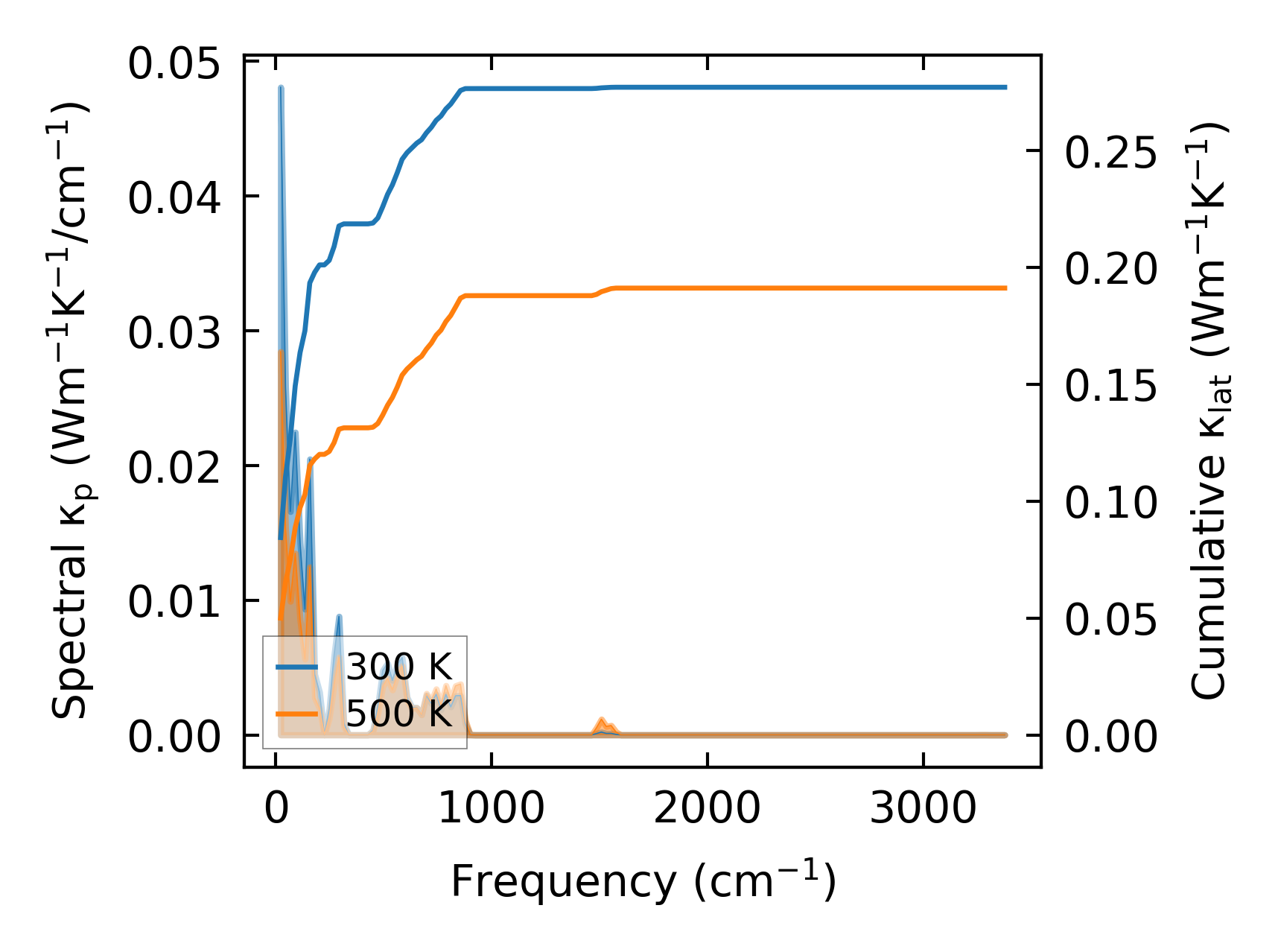

../../_images/fig_cumu_frequency1427.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

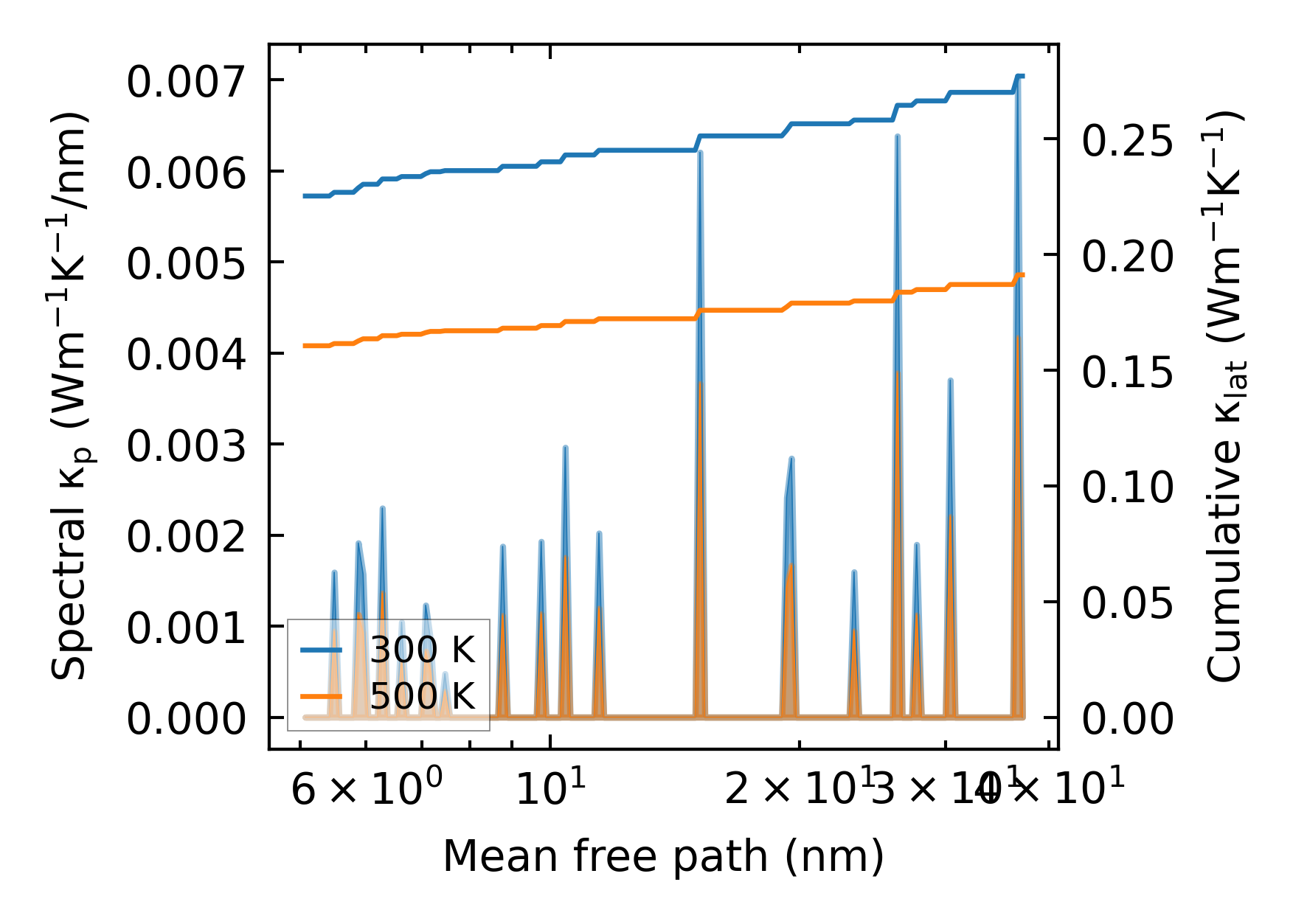

../../_images/fig_cumu_mfp1427.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc22786.png — (a) Force constants w.r.t atomic distance

Summary

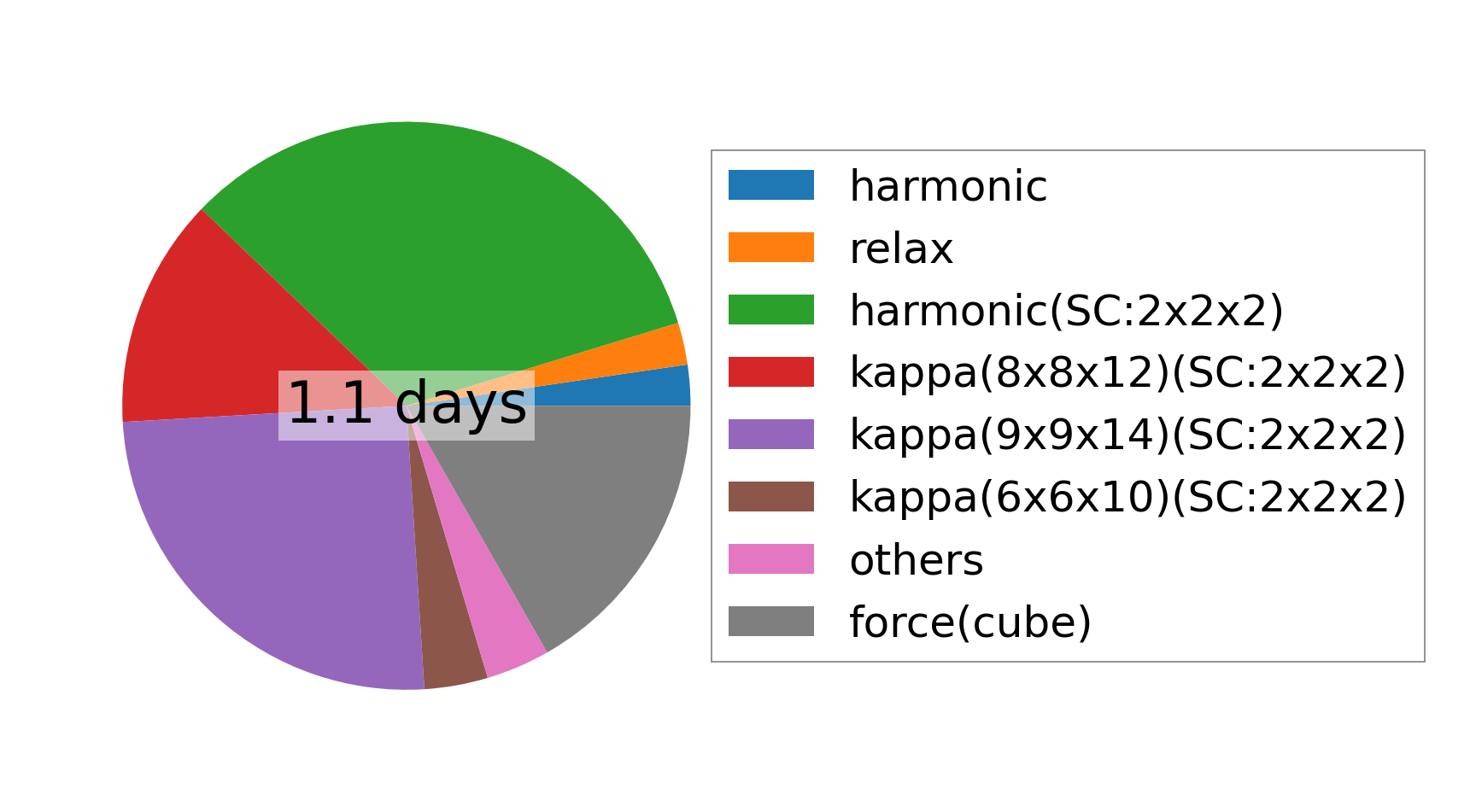

../../_images/fig_times5028.png — (a) Computation time
