mp-725059/CaI2O4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-725059.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4190.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4190.png — (b) Thermodynamic properties

Grüneisen parameters

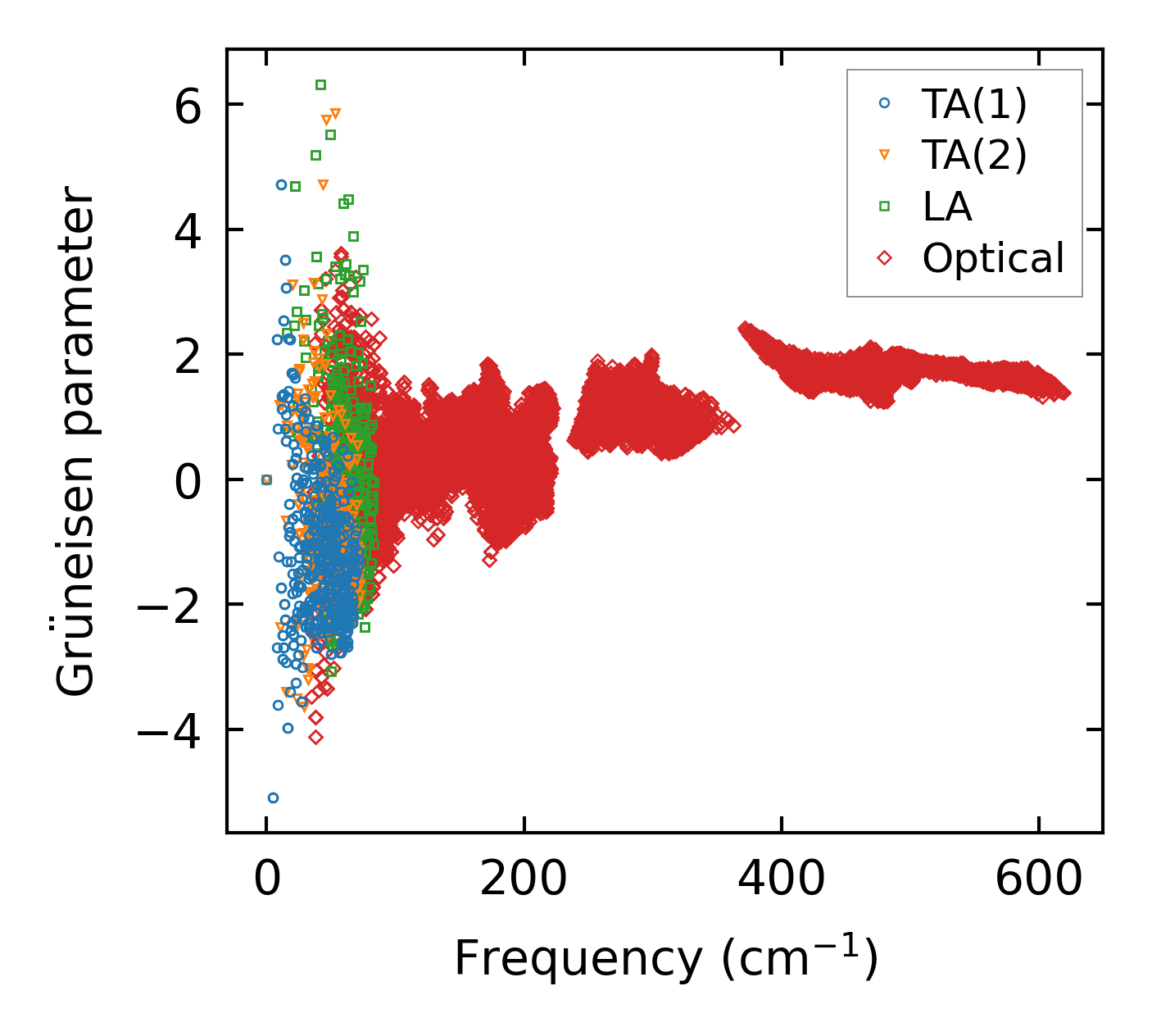

../../_images/fig_gru_all1833.png — (a) Grüneisen parameters

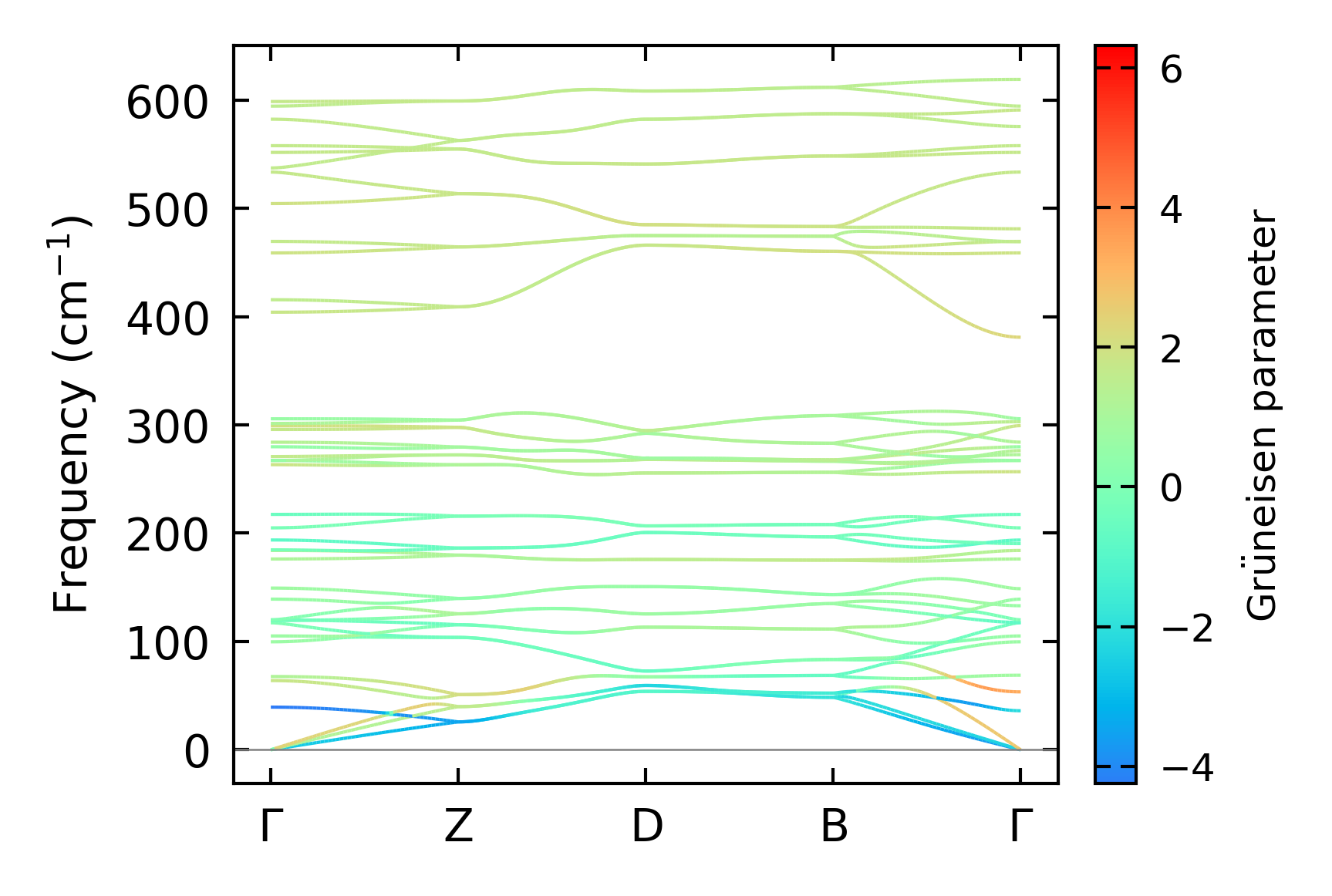

../../_images/fig_gruneisen1833.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x7x10, supercell: 2x2x2

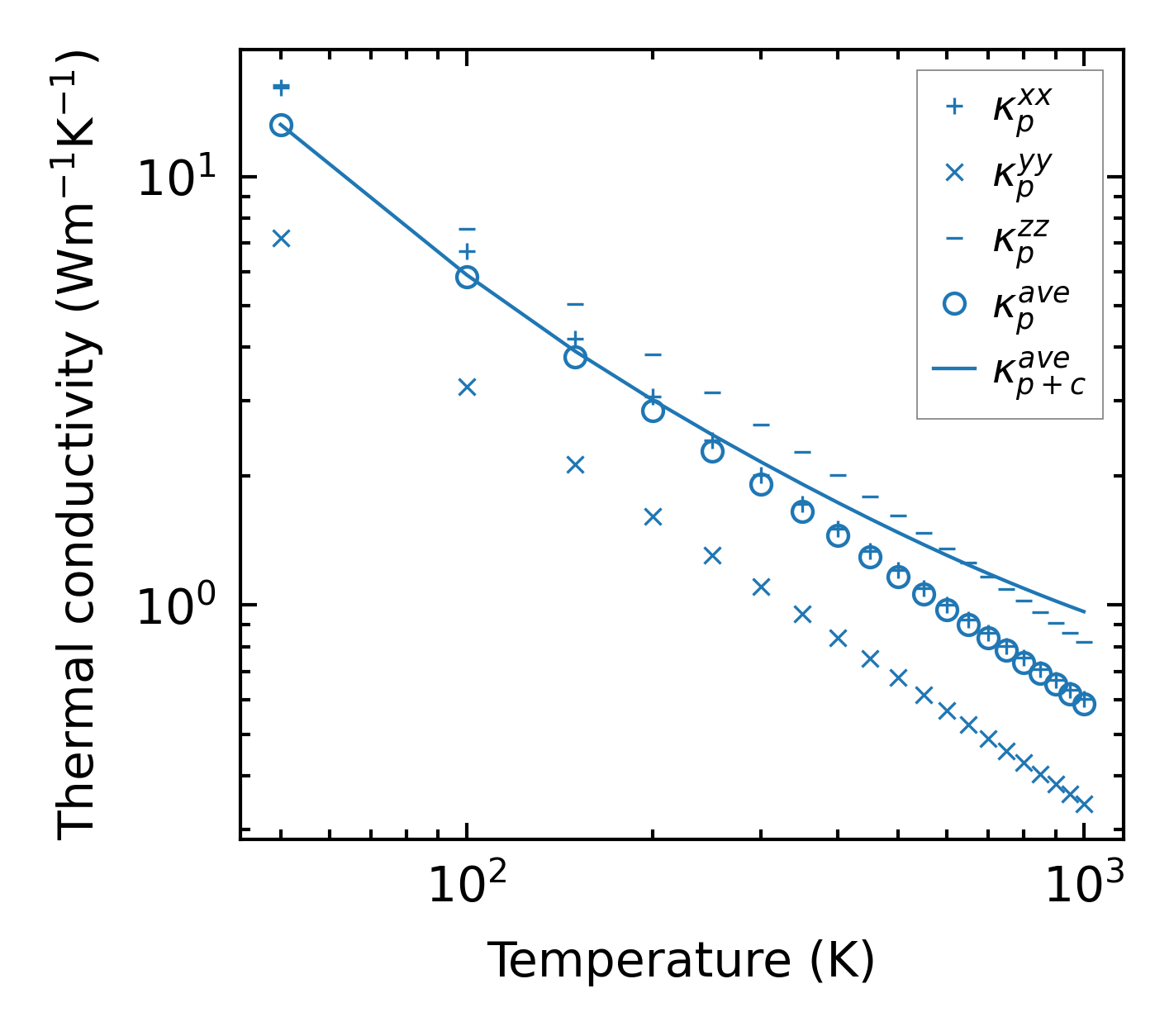

../../_images/fig_kappa3515.png — (a) Temperature-dependent lattice thermal conductivity

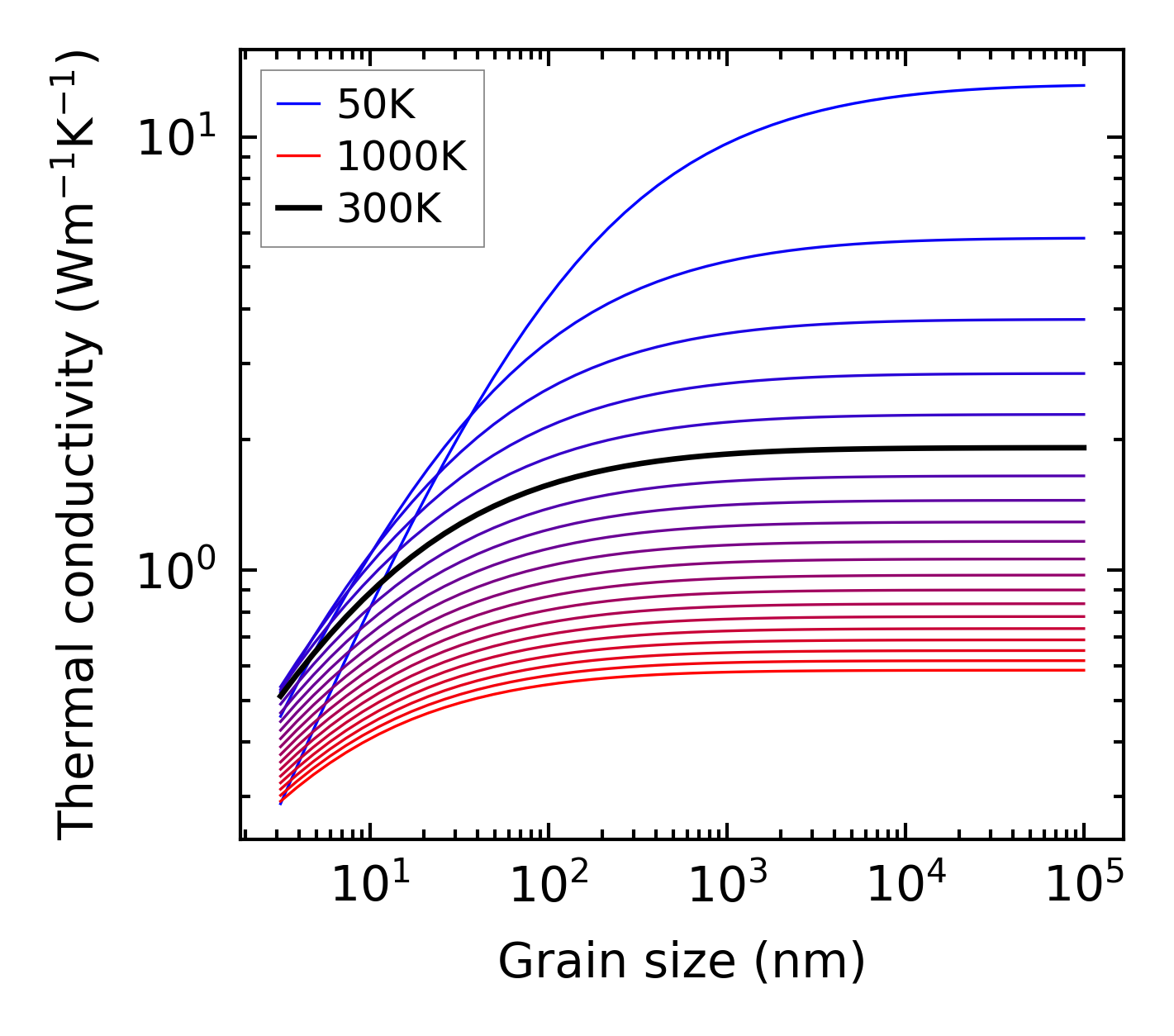

../../_images/fig_kappa_vs_grain_size1861.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

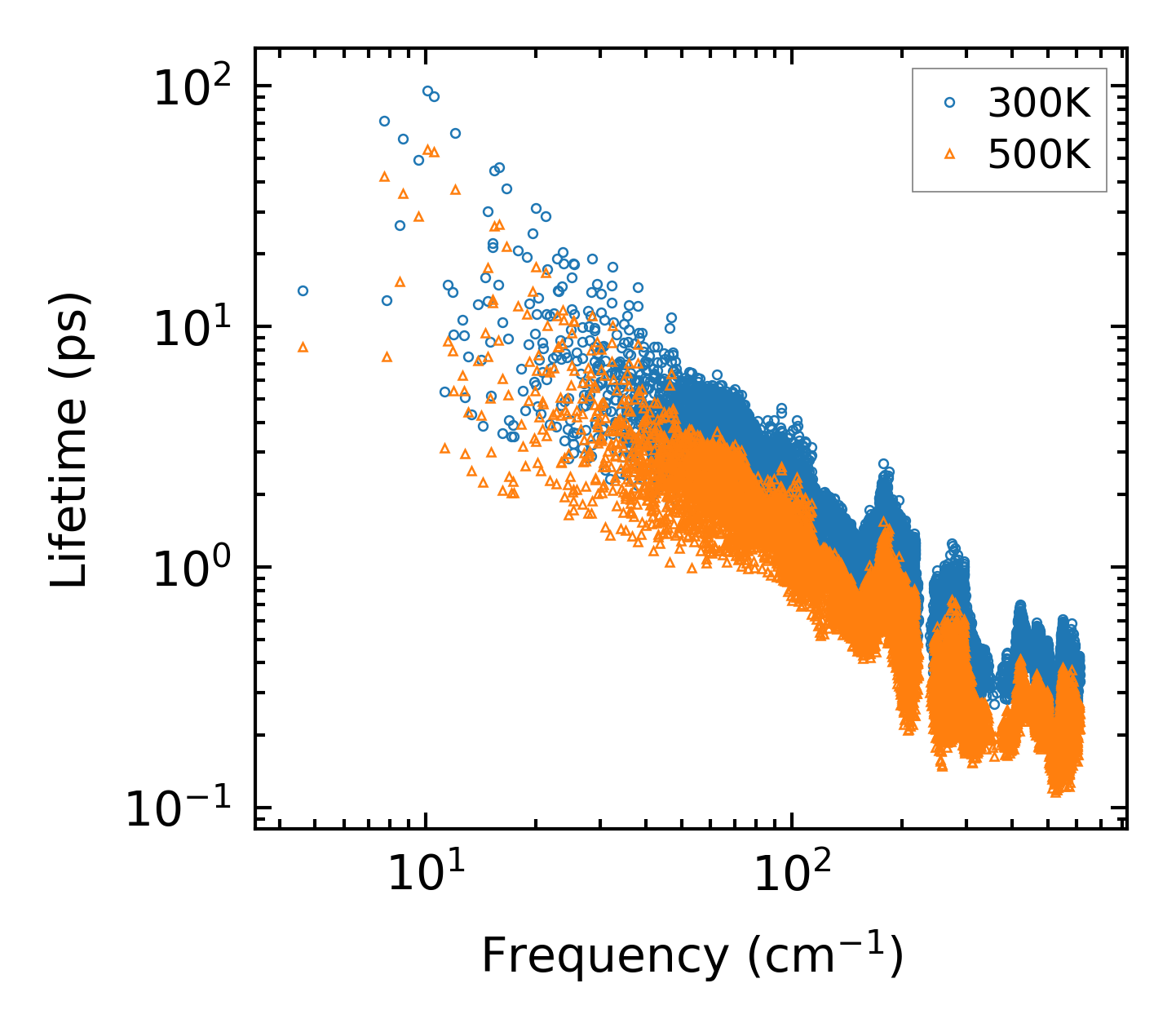

../../_images/fig_lifetime1823.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1822.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1823.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

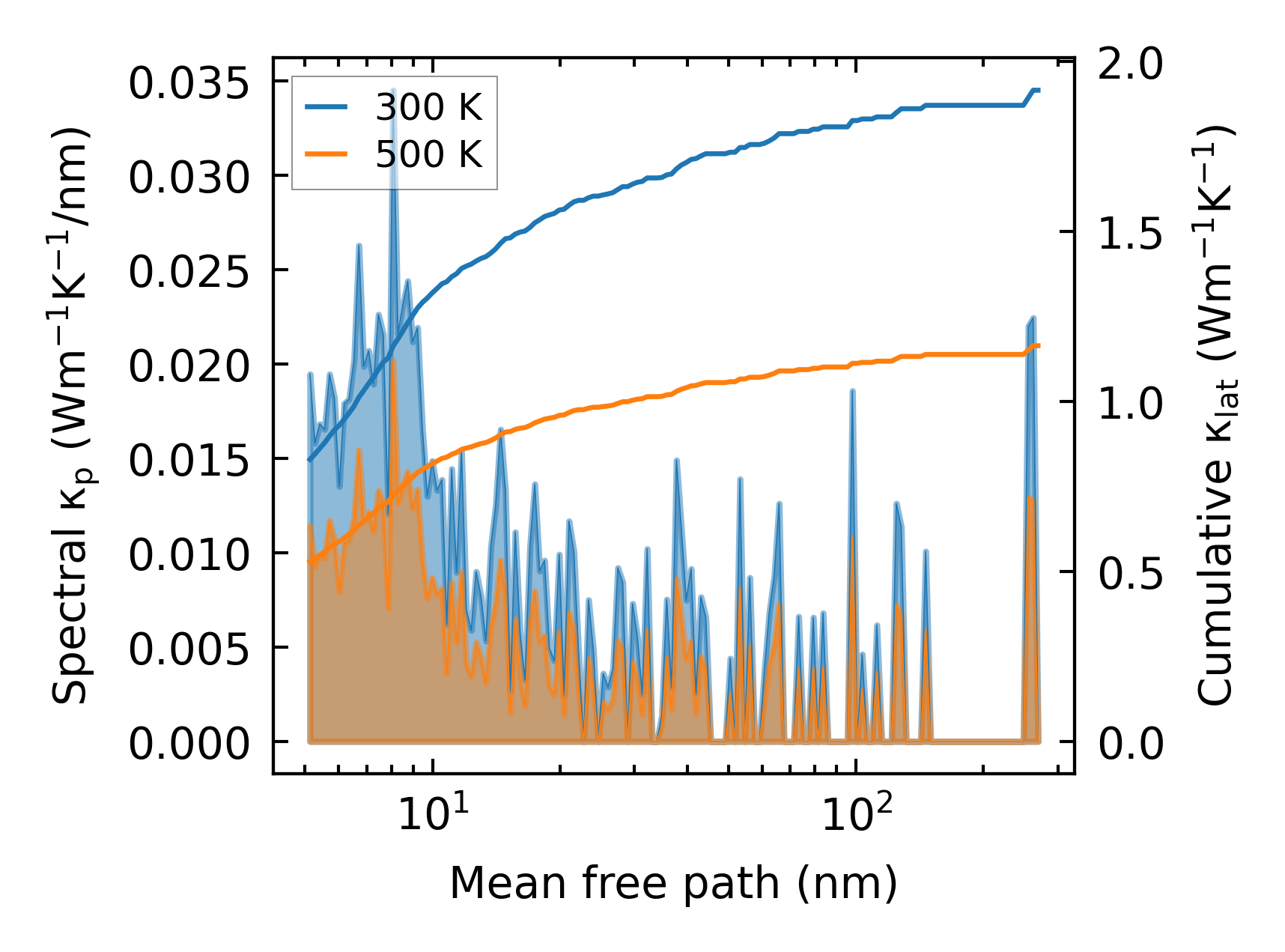

../../_images/fig_cumu_mfp1823.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

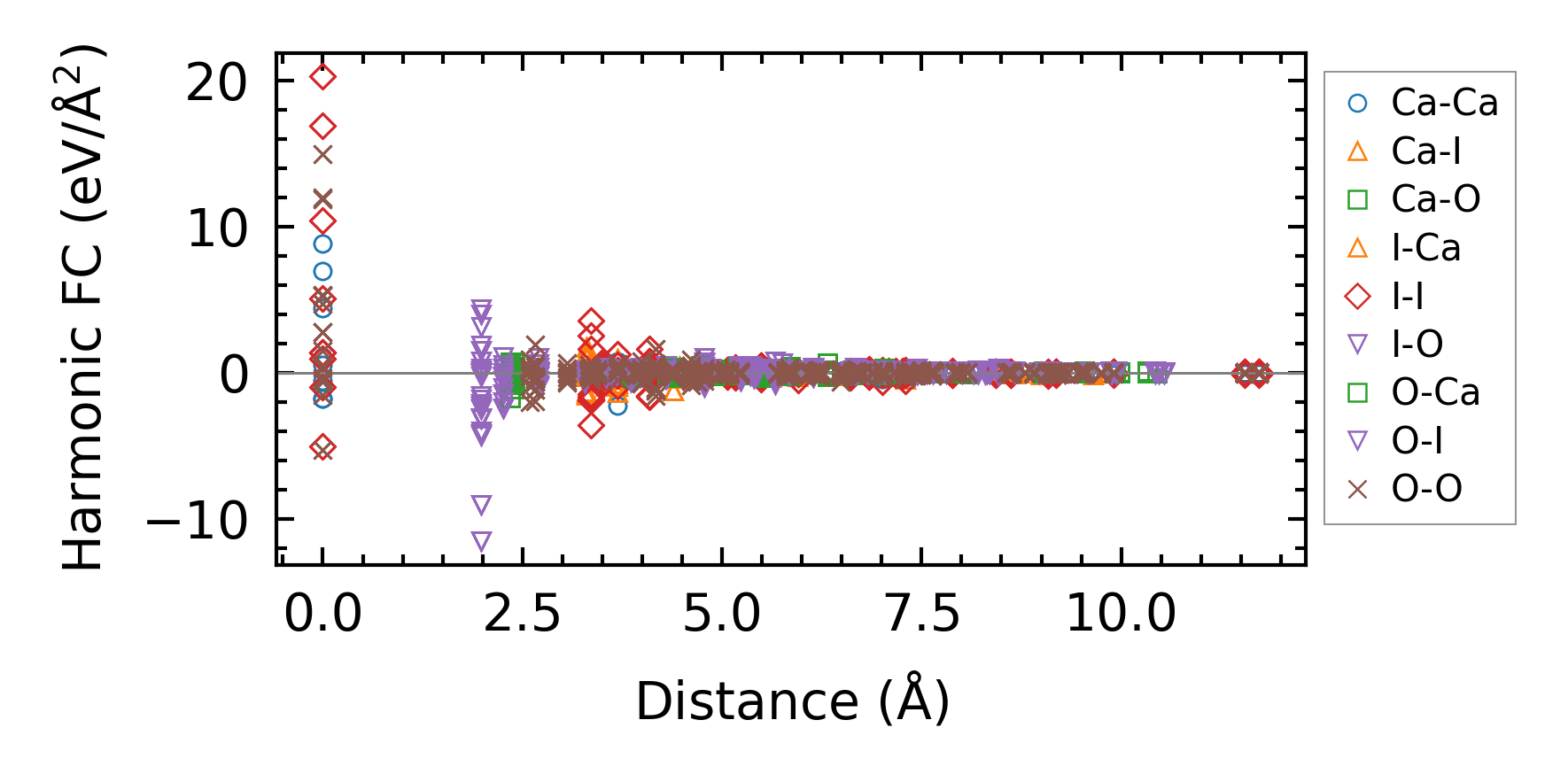

../../_images/fig_fc24003.png — (a) Force constants w.r.t atomic distance

Summary

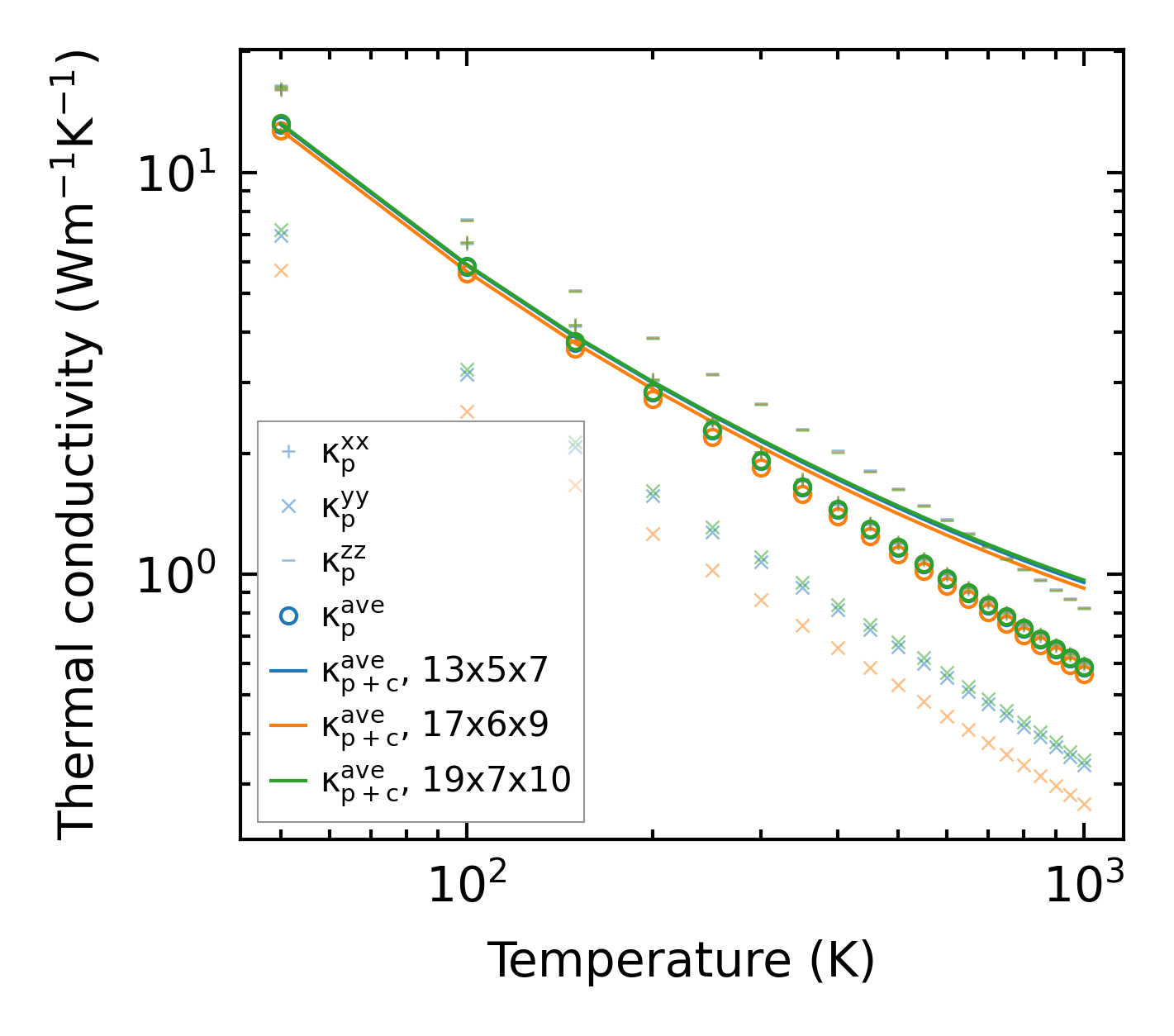

../../_images/fig_kappa3516.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times7368.png — (b) Computation time
