mp-723378/KAlH6O2F6/anharm

Space group: Pa-3 (205)
Link: Materials Project
Download: mp-723378.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4183.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4183.png — (b) Thermodynamic properties

Grüneisen parameters

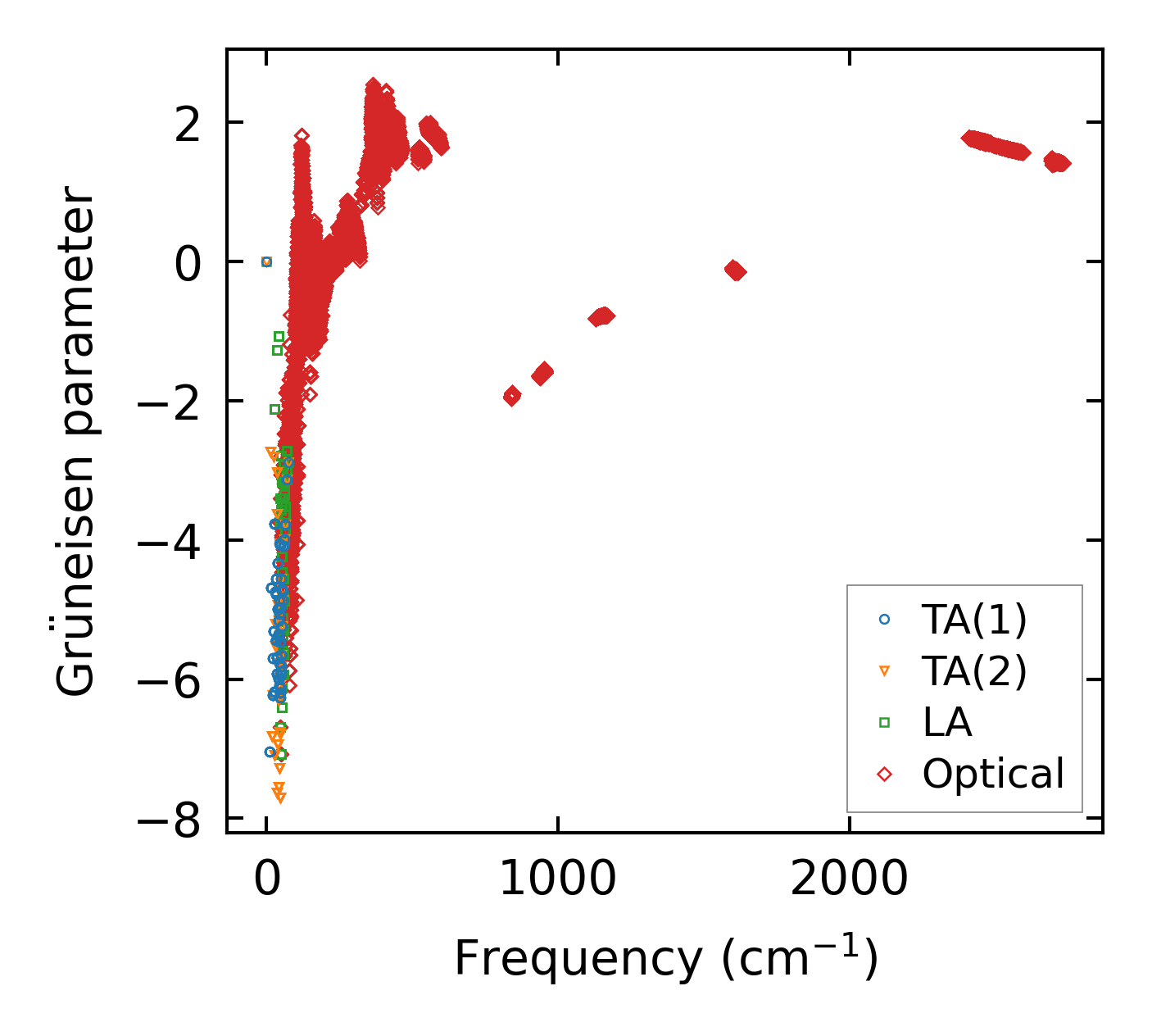

../../_images/fig_gru_all1831.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1831.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

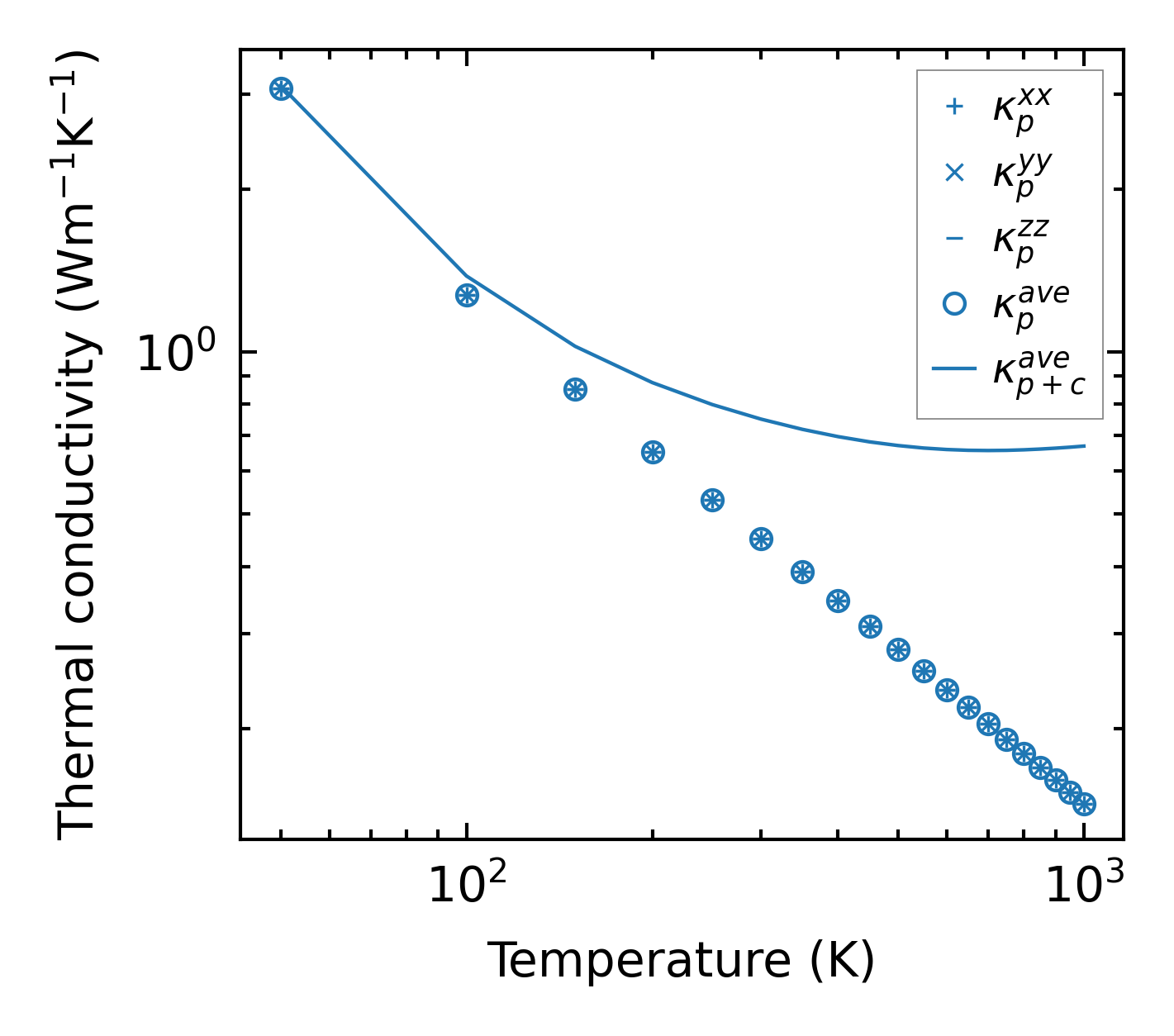

../../_images/fig_kappa3511.png — (a) Temperature-dependent lattice thermal conductivity

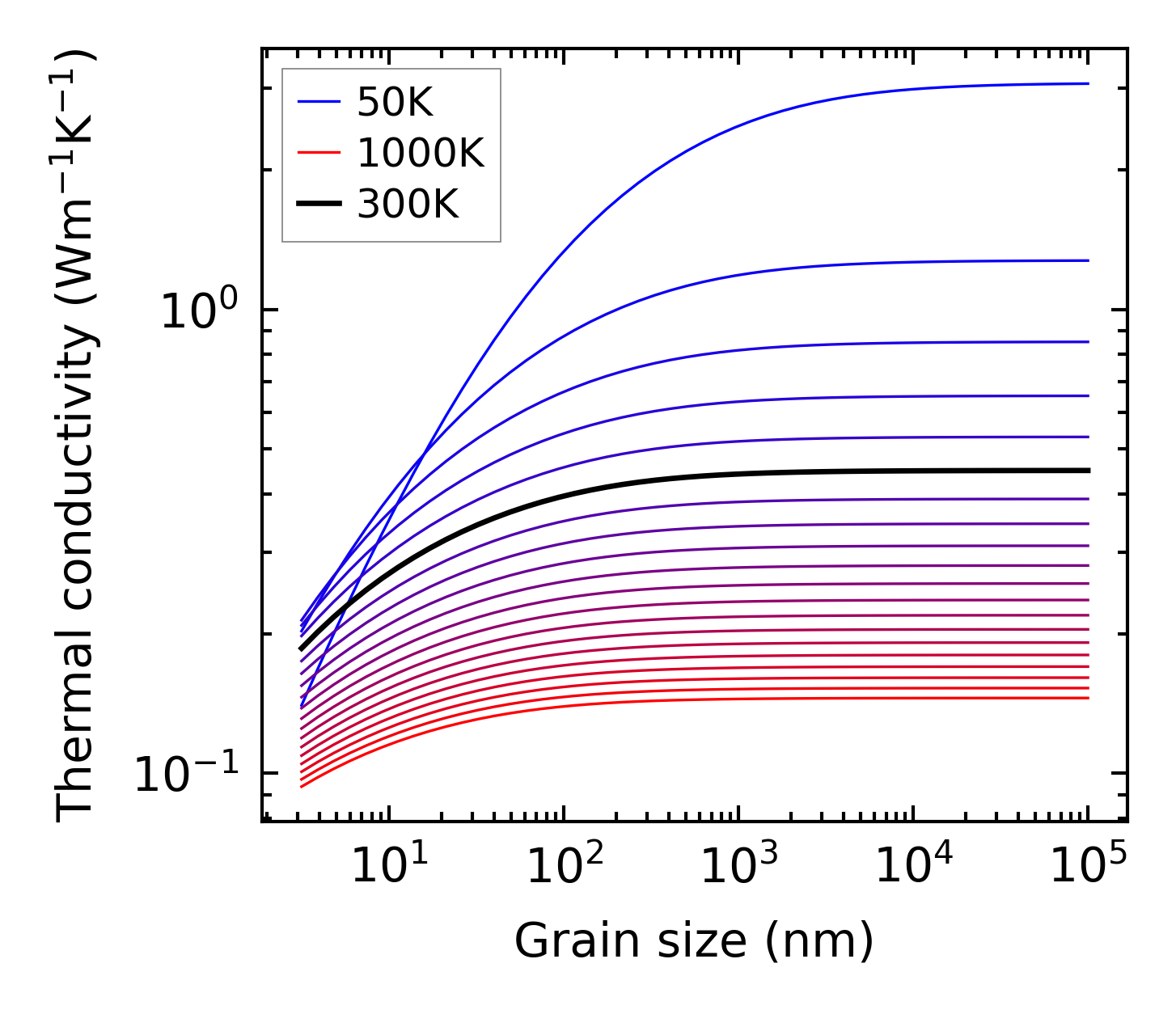

../../_images/fig_kappa_vs_grain_size1859.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

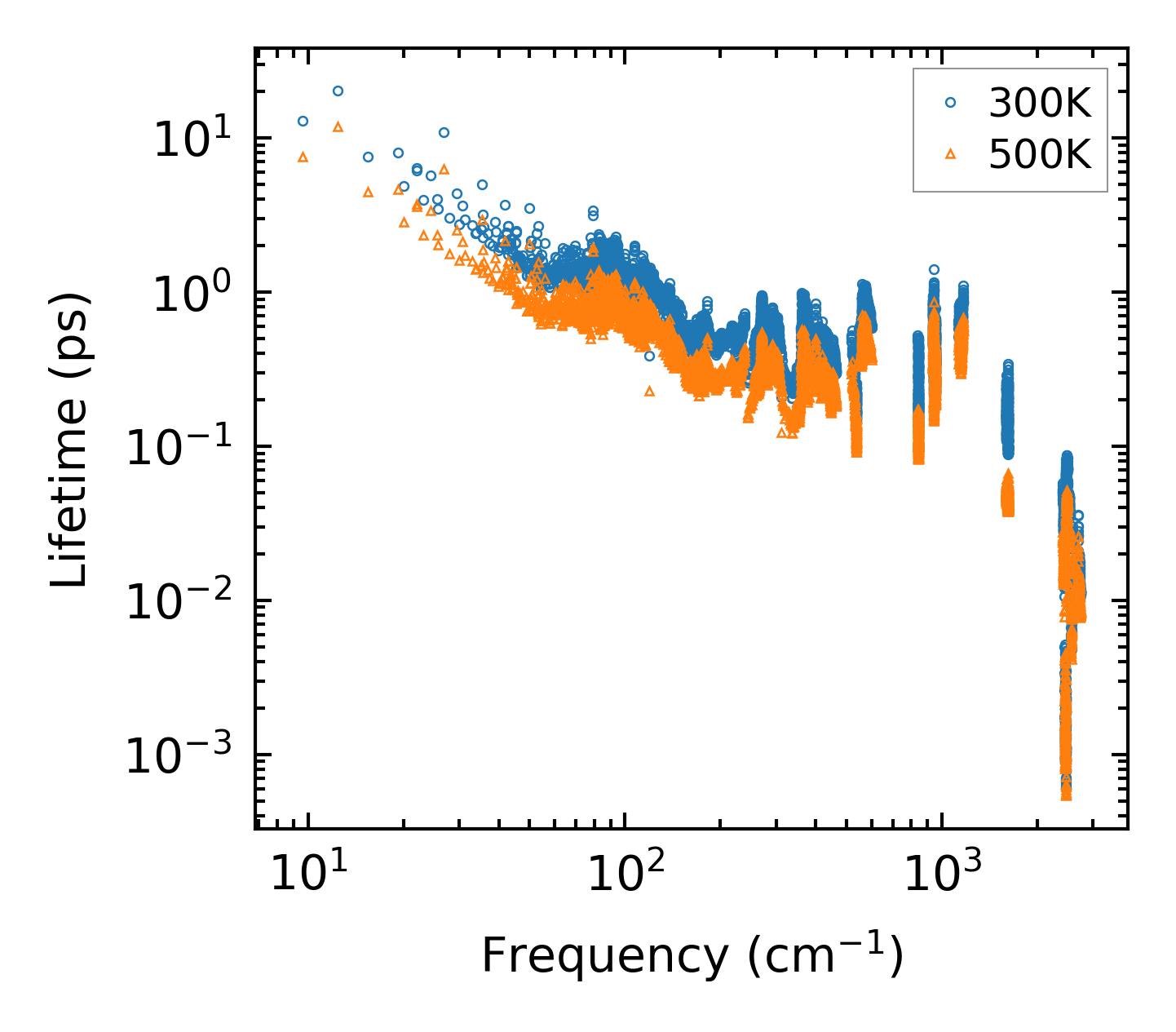

../../_images/fig_lifetime1821.png — (a) Phonon lifetime due to phonon-phonon scattering

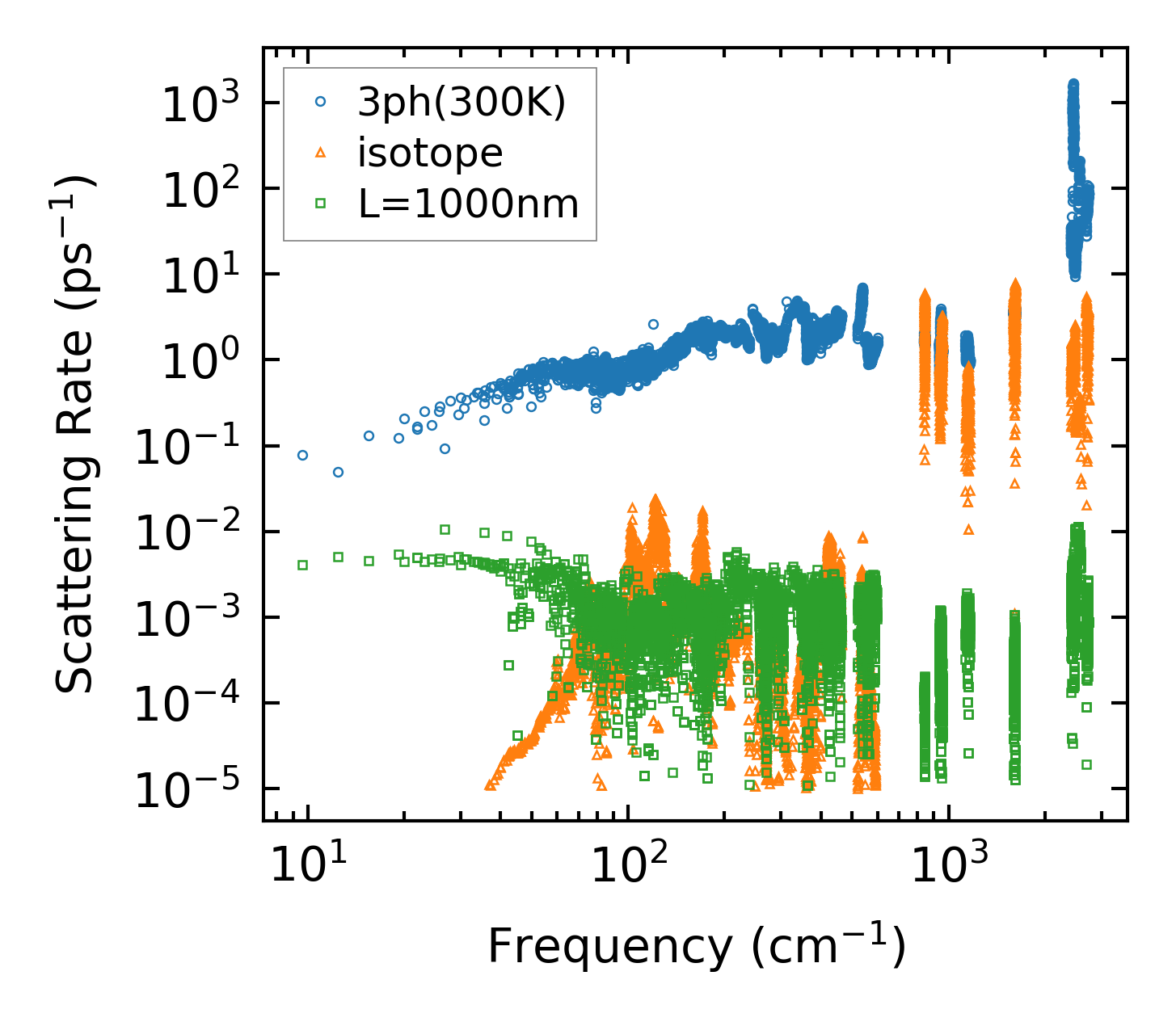

../../_images/fig_scat_rates1820.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1821.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

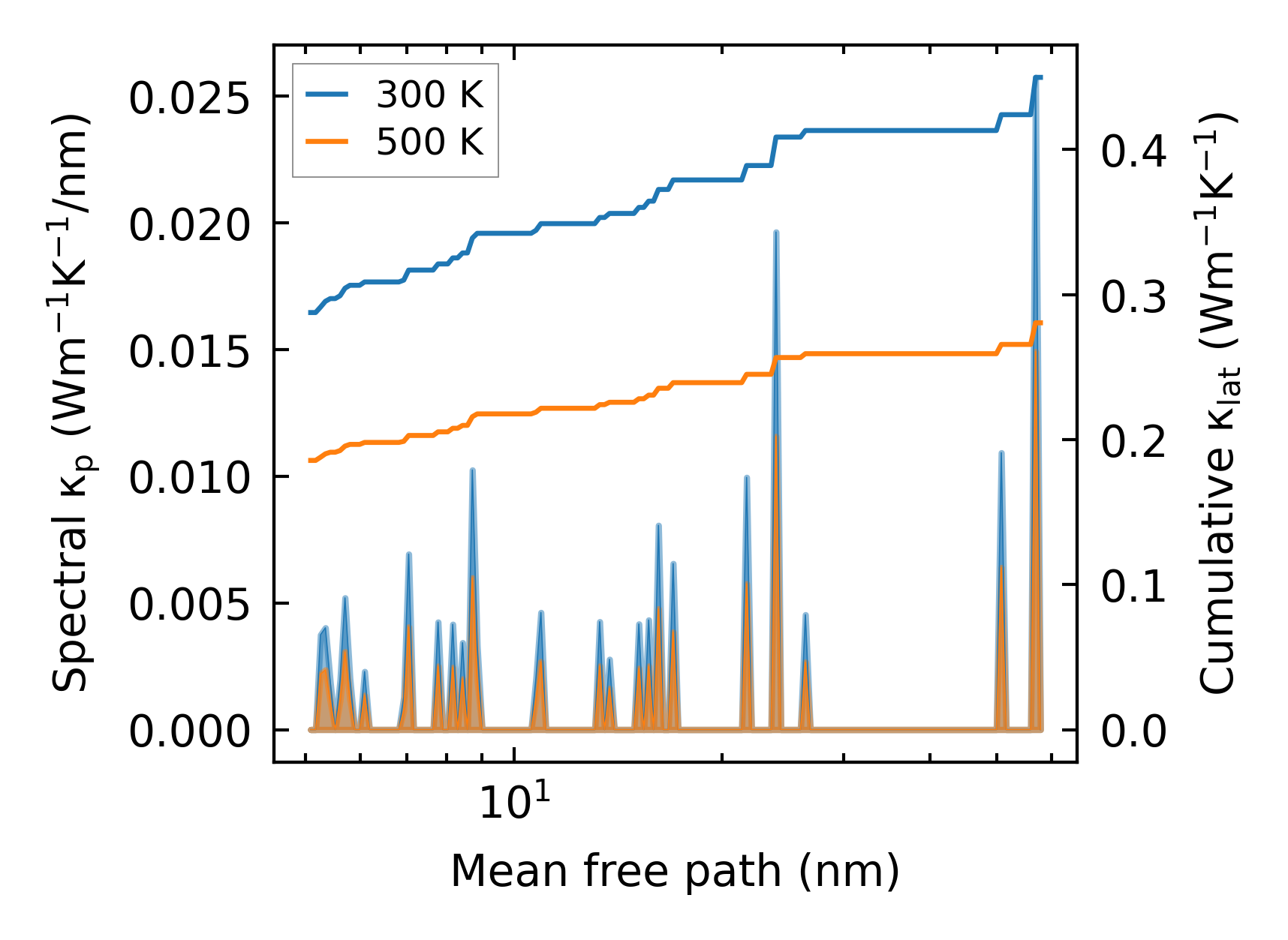

../../_images/fig_cumu_mfp1821.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

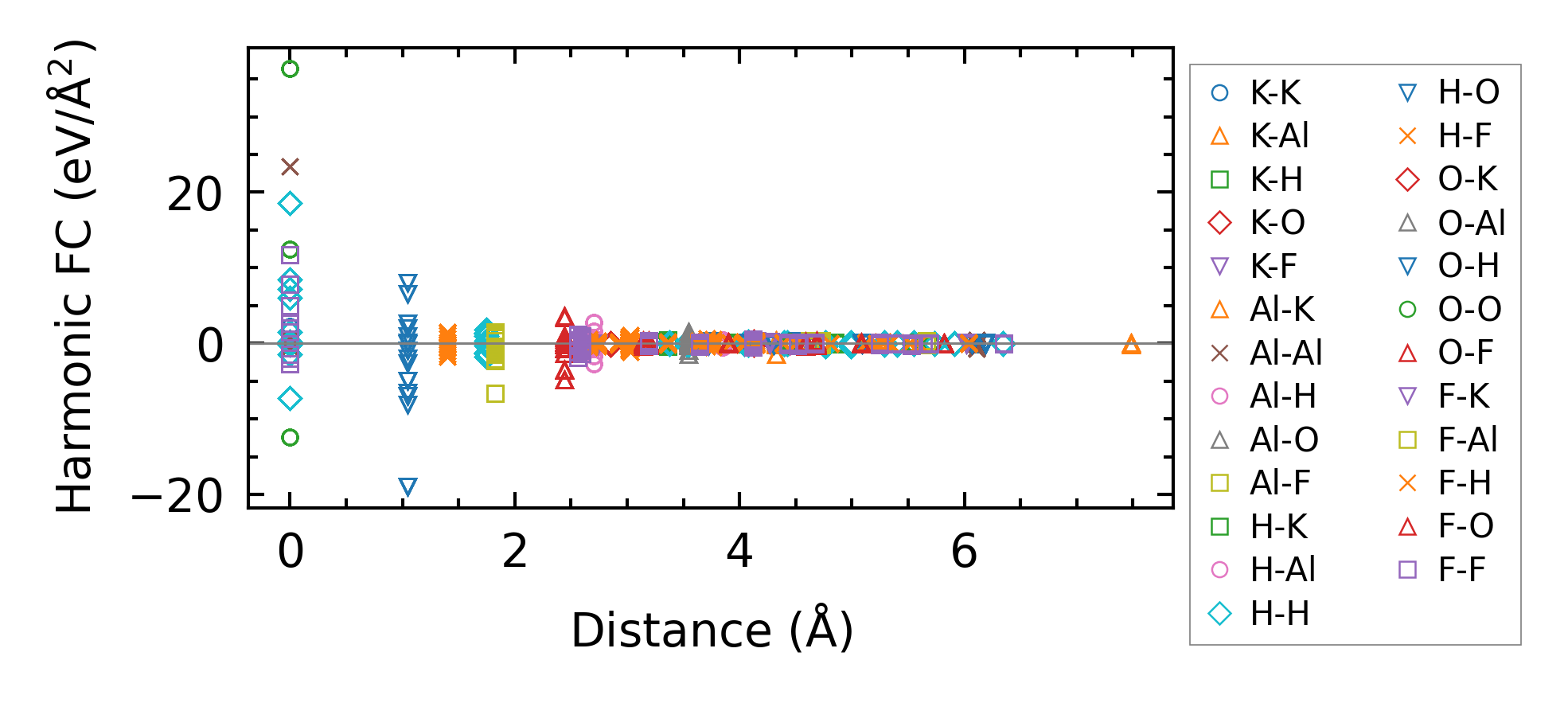

../../_images/fig_fc23996.png — (a) Force constants w.r.t atomic distance

Summary

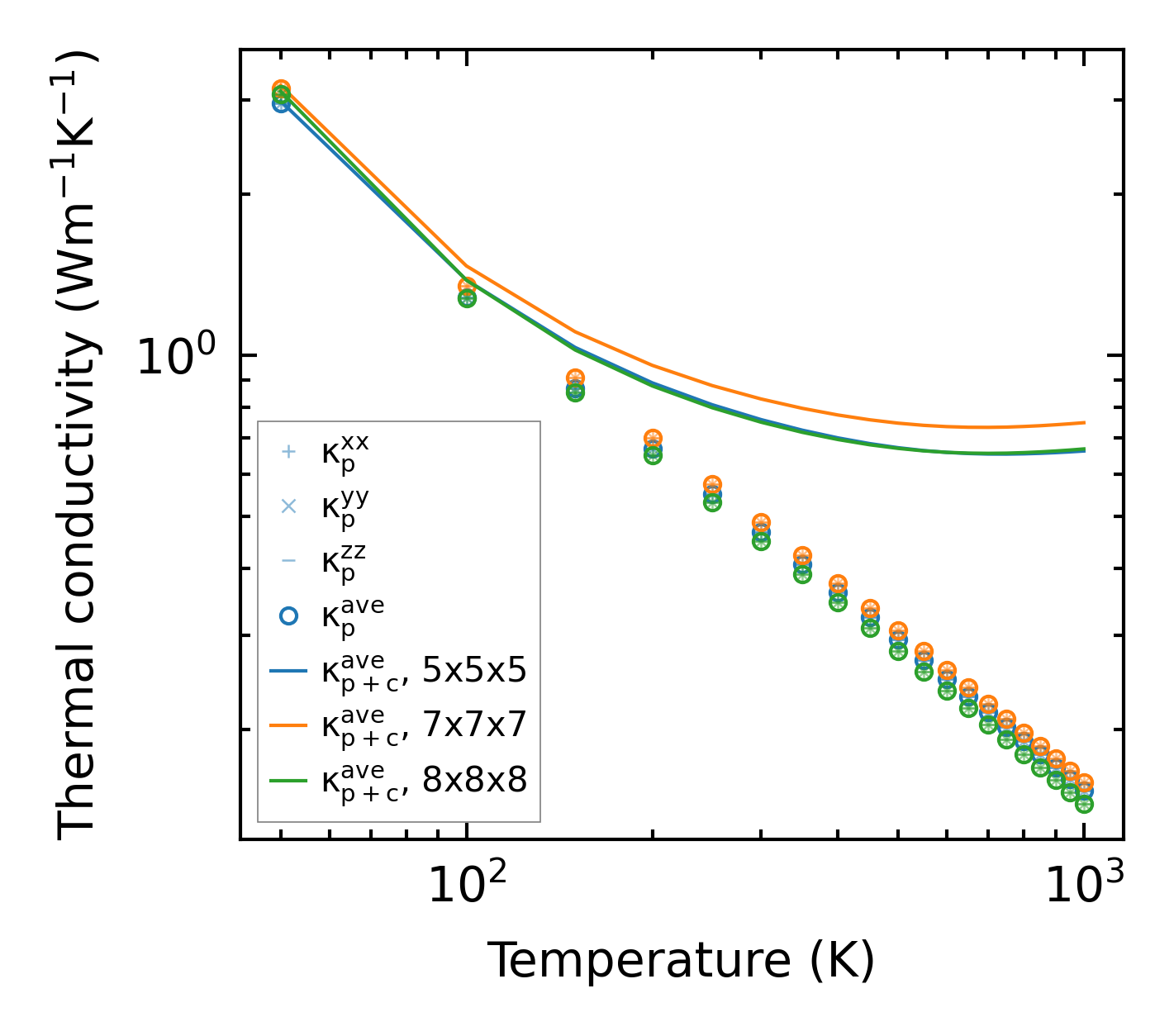

../../_images/fig_kappa3512.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times7355.png — (b) Computation time
