mp-665922/SrHgO2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-665922.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5356.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5356.png — (b) Thermodynamic properties

Grüneisen parameters

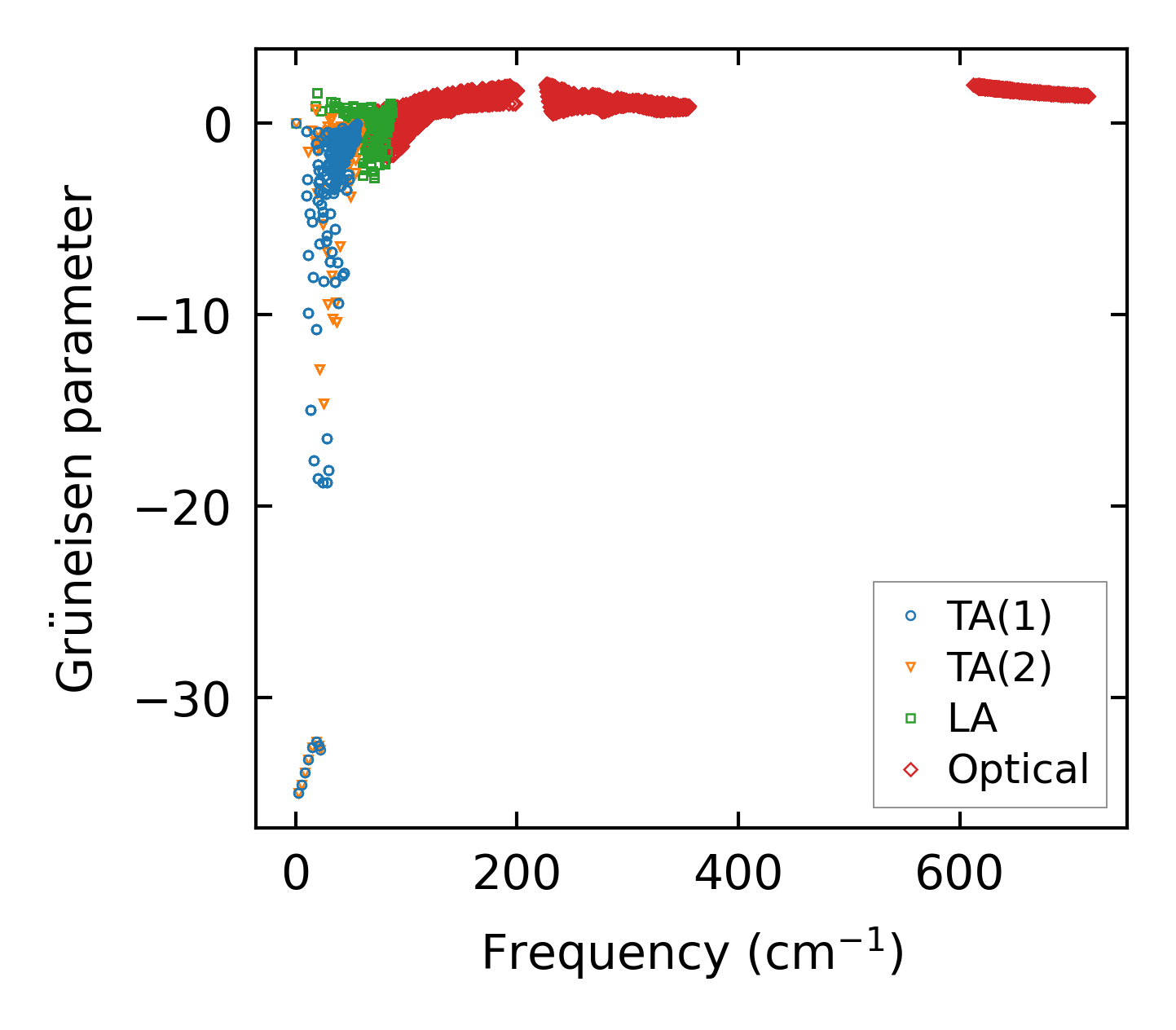

../../_images/fig_gru_all2229.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2229.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x16, supercell: 3x3x1

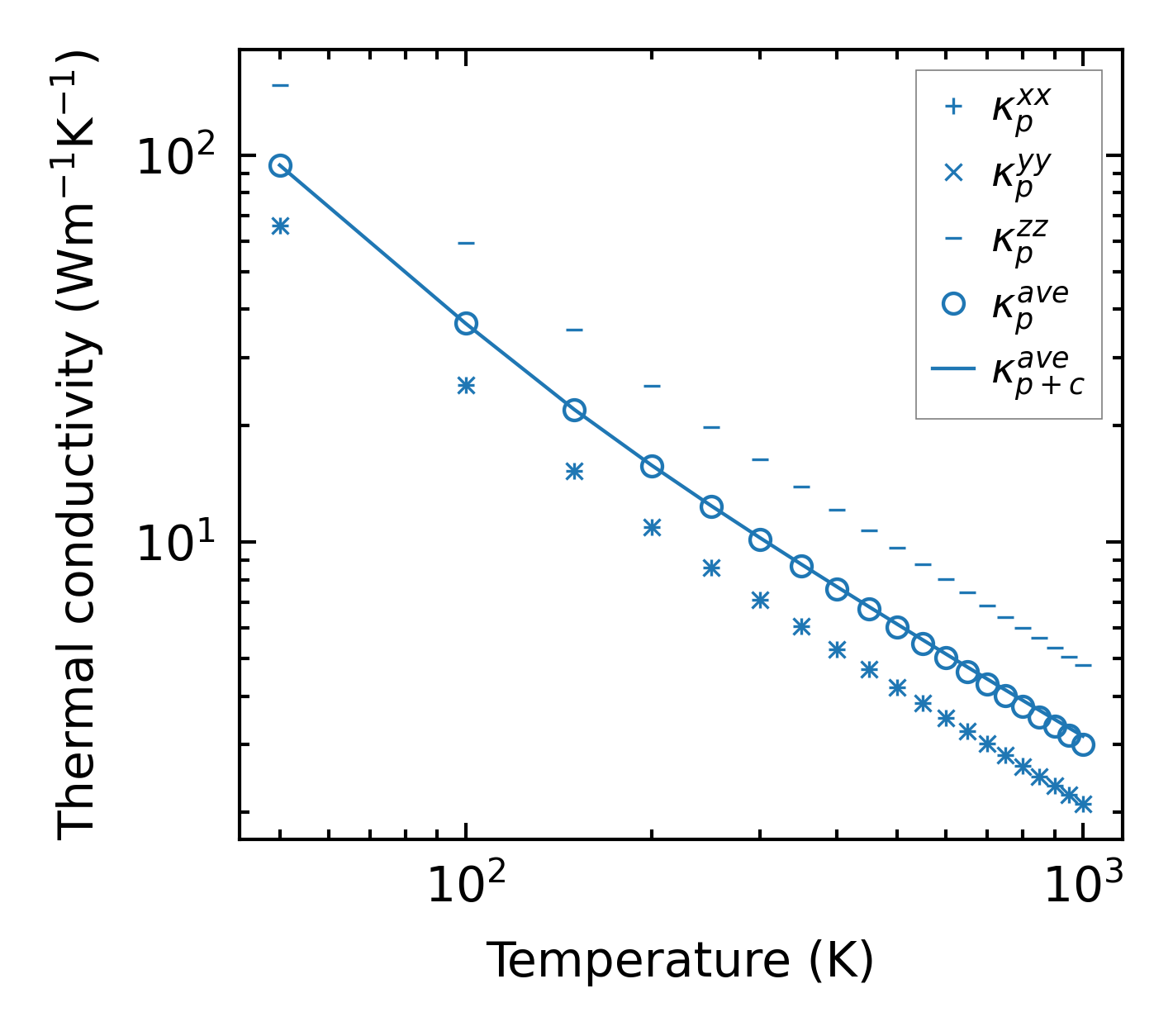

../../_images/fig_kappa4265.png — (a) Temperature-dependent lattice thermal conductivity

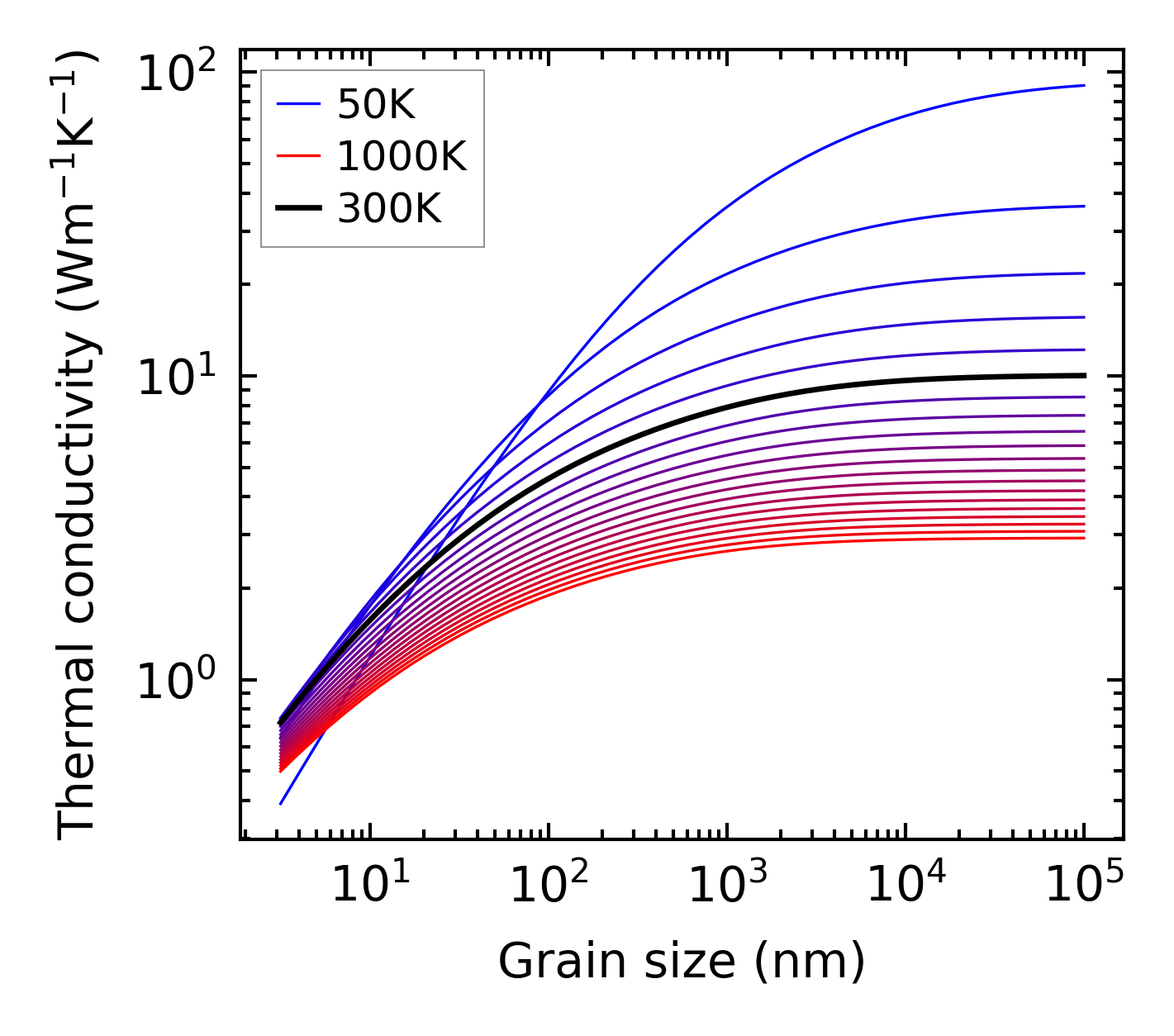

../../_images/fig_kappa_vs_grain_size2260.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

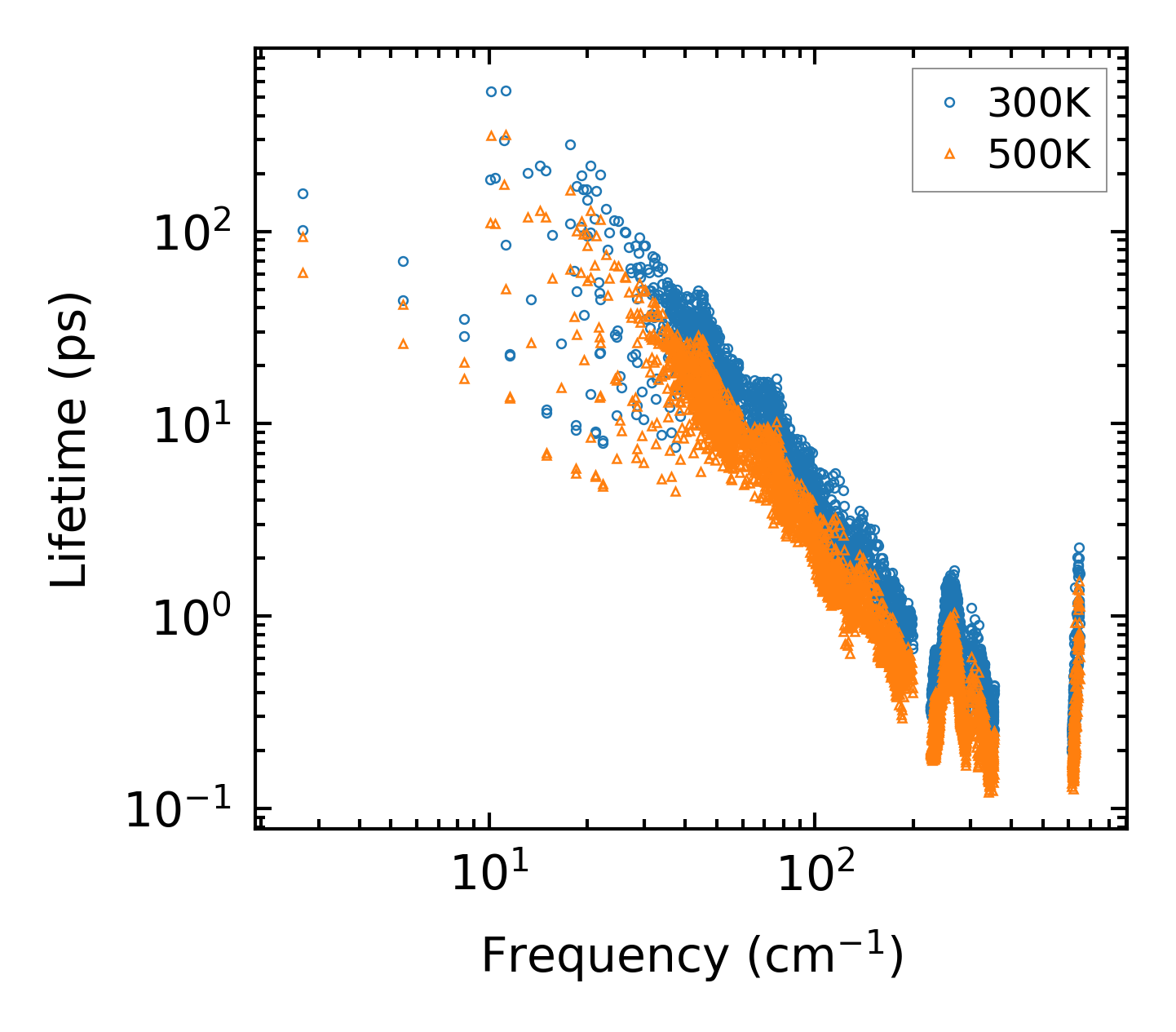

../../_images/fig_lifetime2215.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2214.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

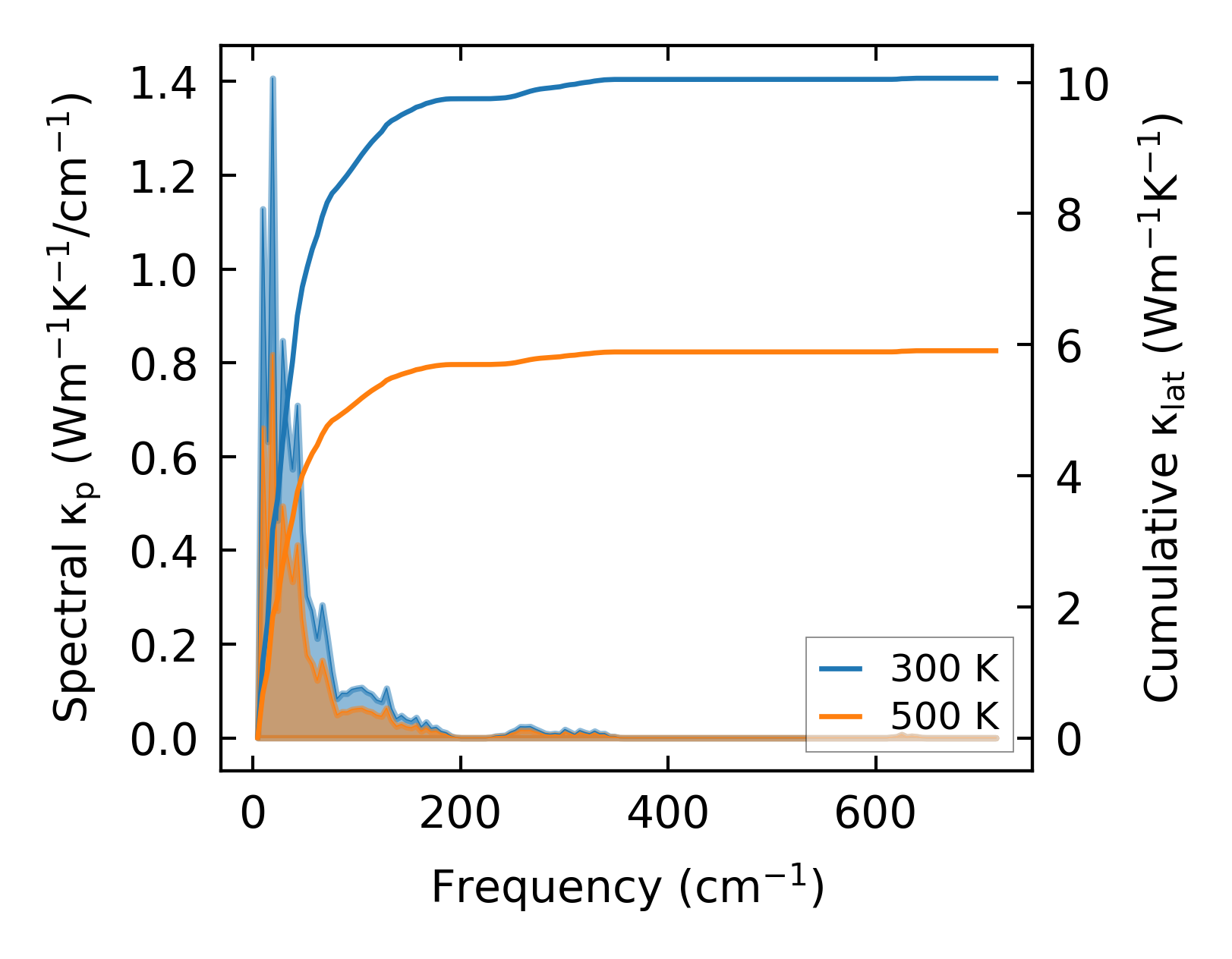

../../_images/fig_cumu_frequency2215.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

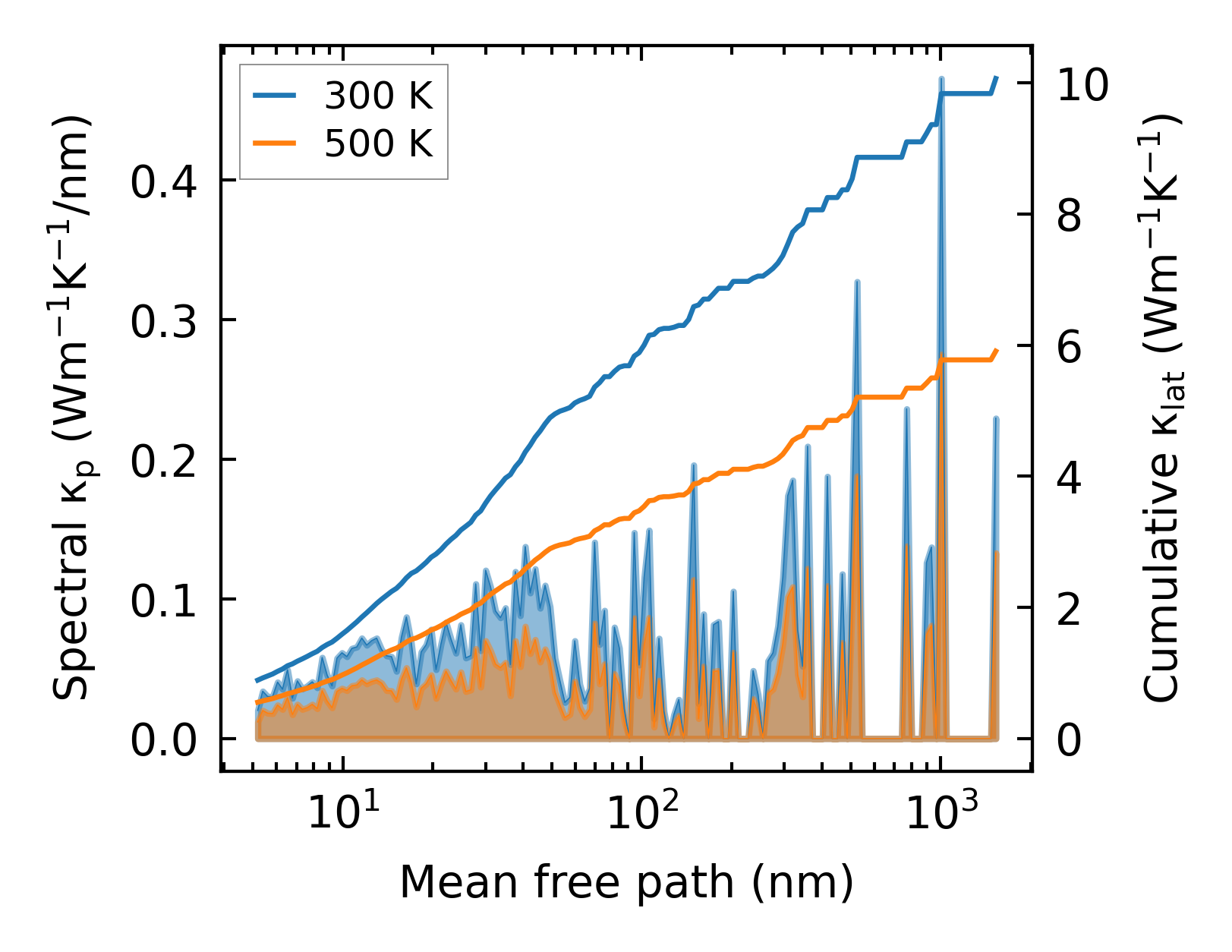

../../_images/fig_cumu_mfp2215.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

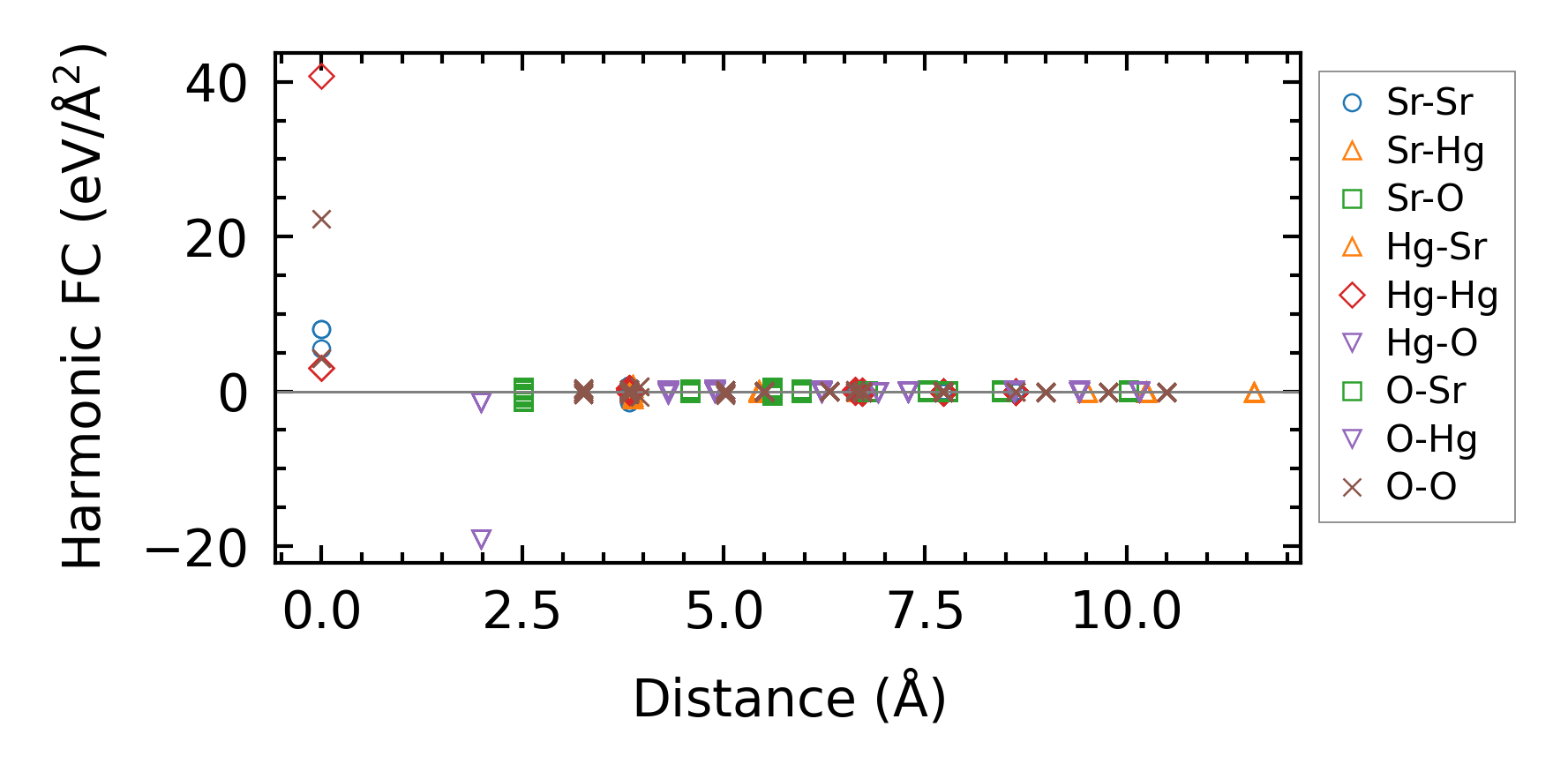

../../_images/fig_fc25161.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4266.png — (a) Temperature-dependent lattice thermal conductivity

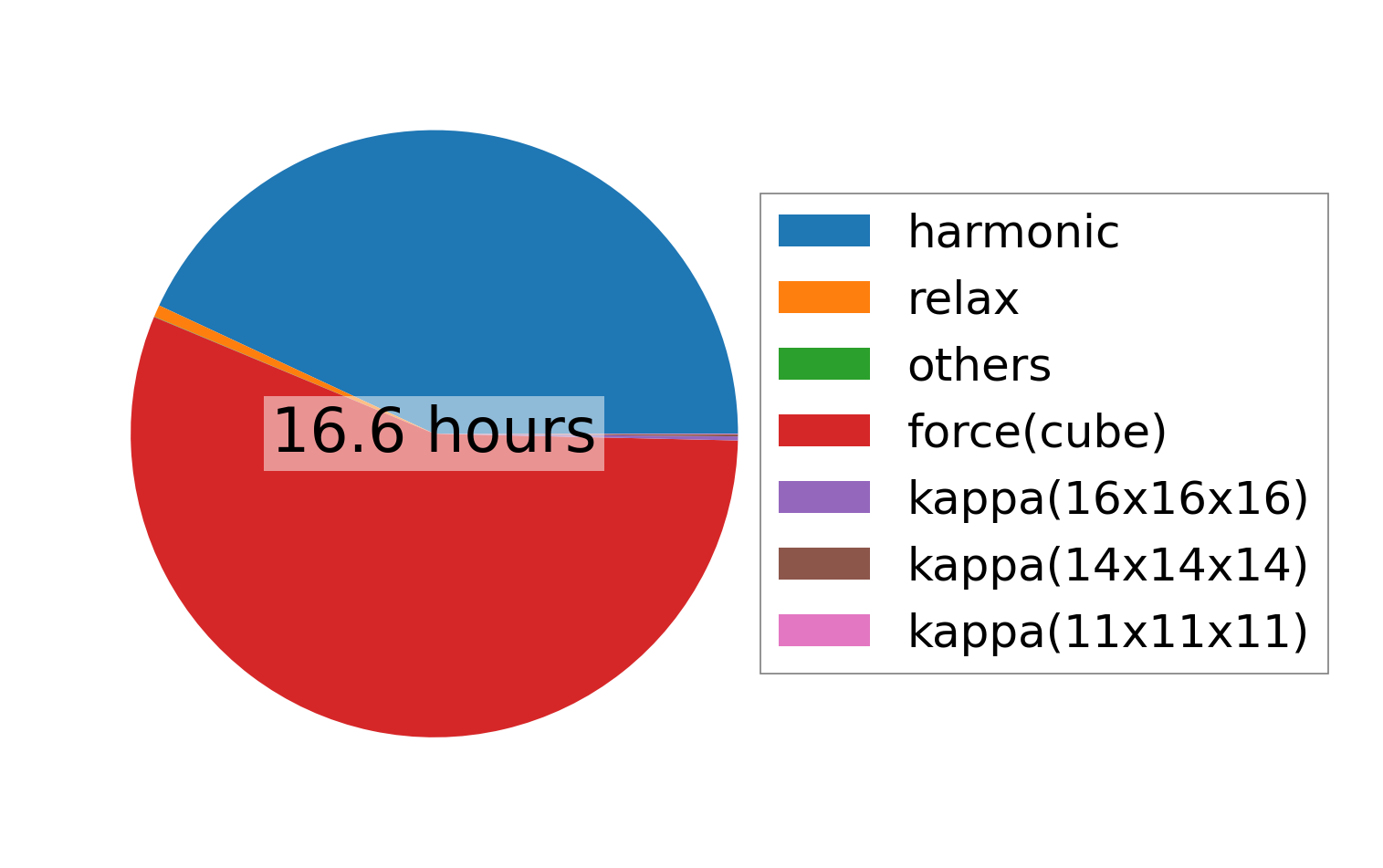

../../_images/fig_times9683.png — (b) Computation time
