mp-645172/CsAs2Se3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-645172.tar.gz

Harmonic properties

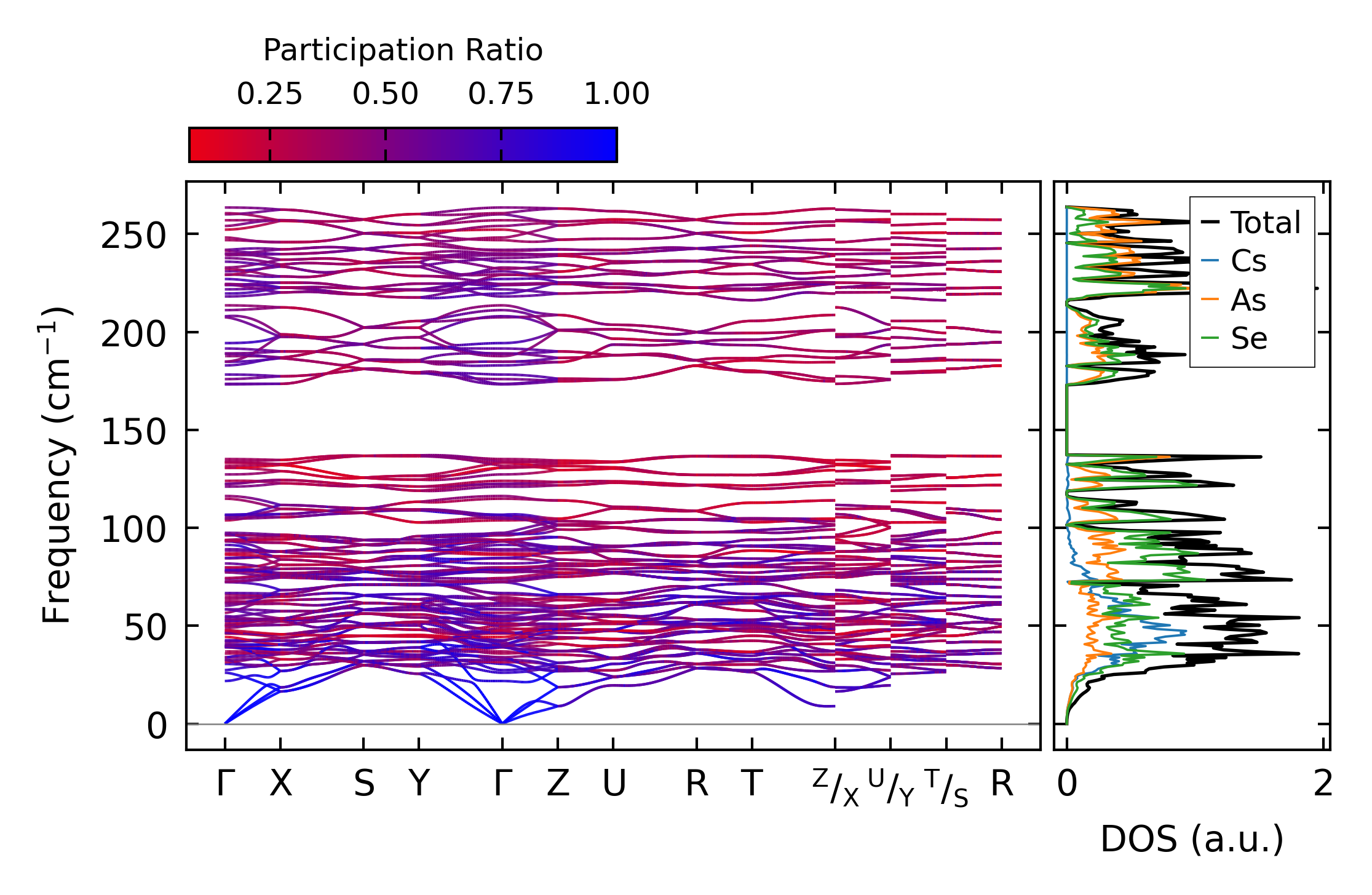

../../_images/fig_bandos_pr5579.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5579.png — (b) Thermodynamic properties

Grüneisen parameters

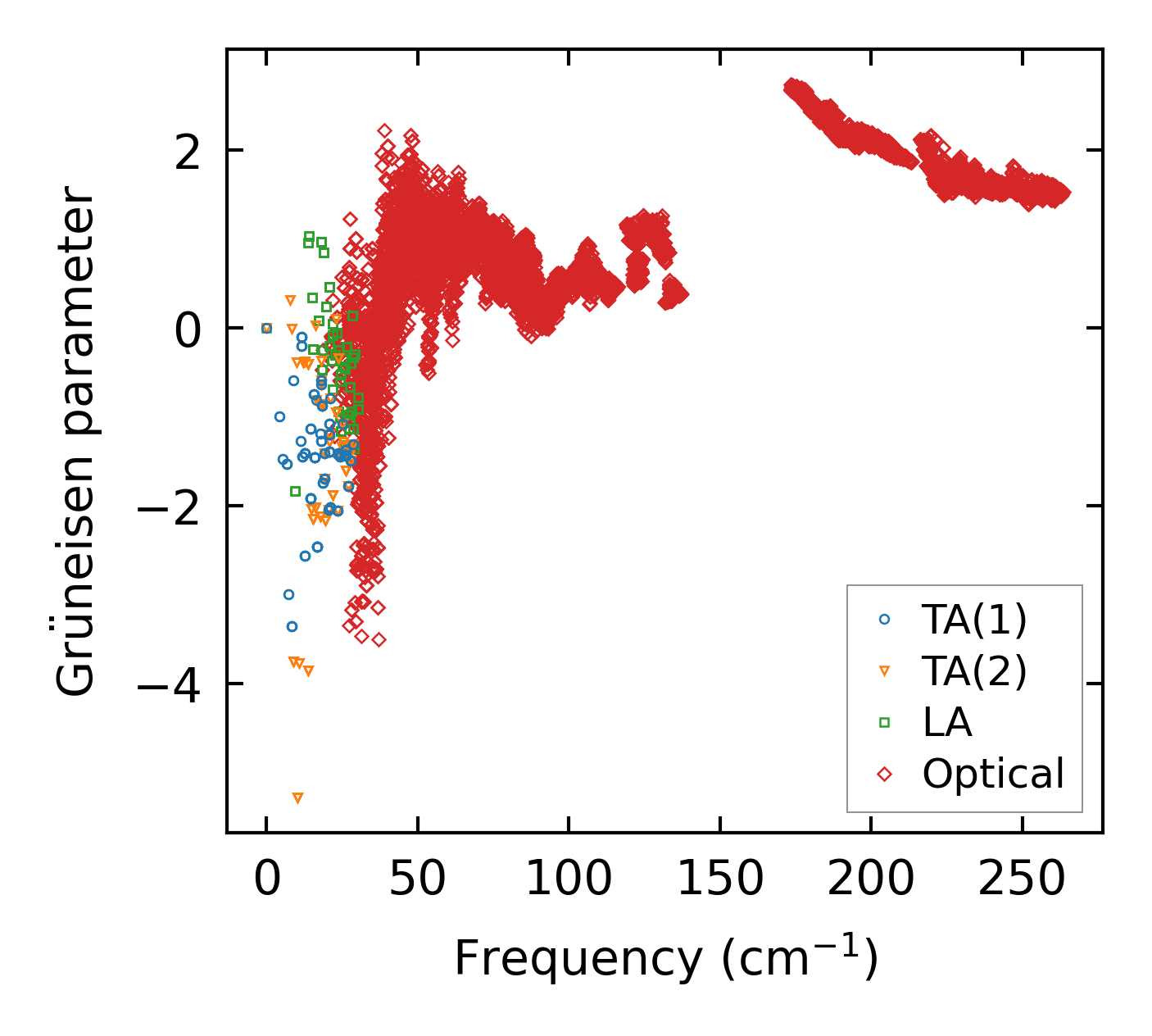

../../_images/fig_gru_all2334.png — (a) Grüneisen parameters

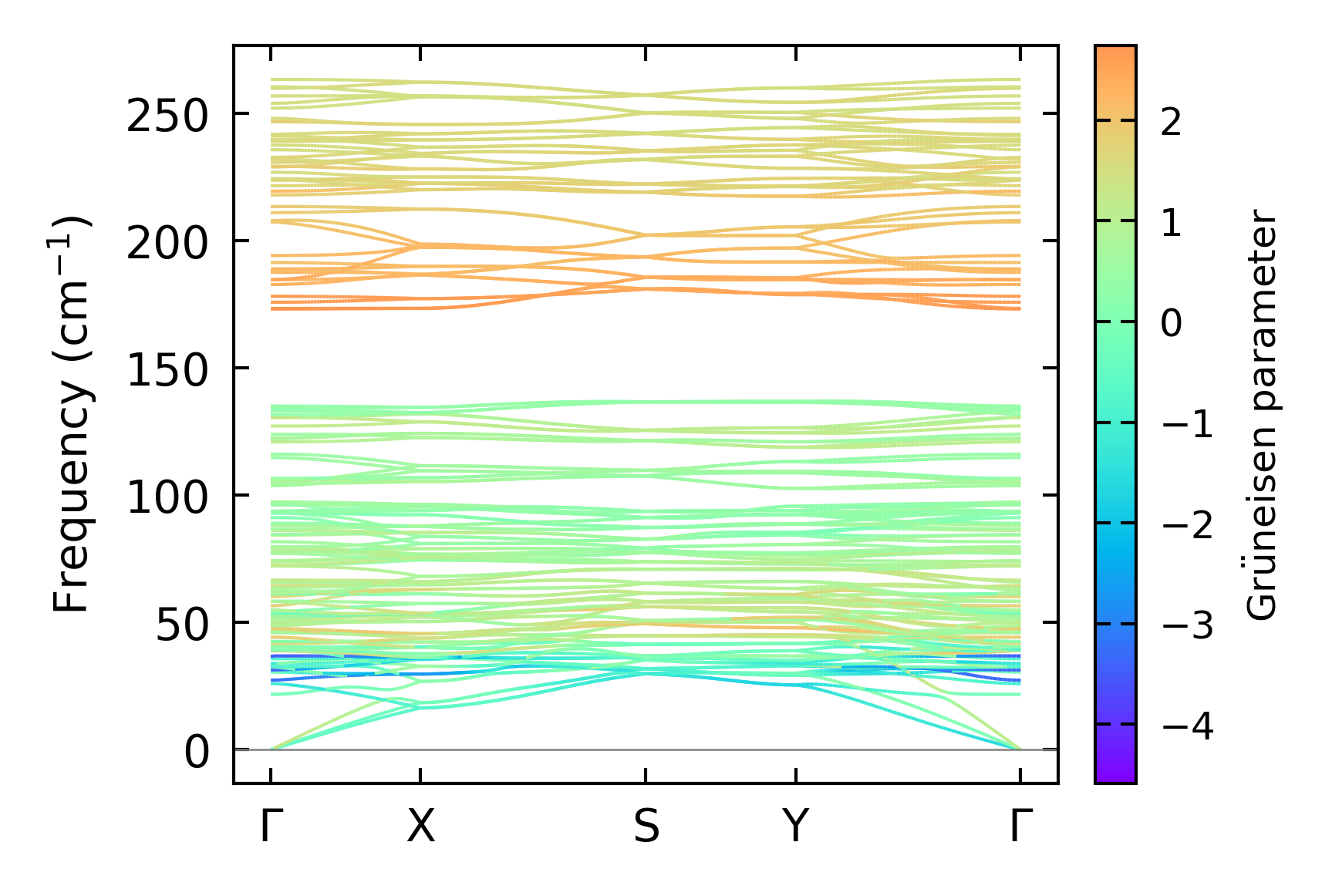

../../_images/fig_gruneisen2334.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x9x5, supercell: 1x2x1

../../_images/fig_kappa4462.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2364.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

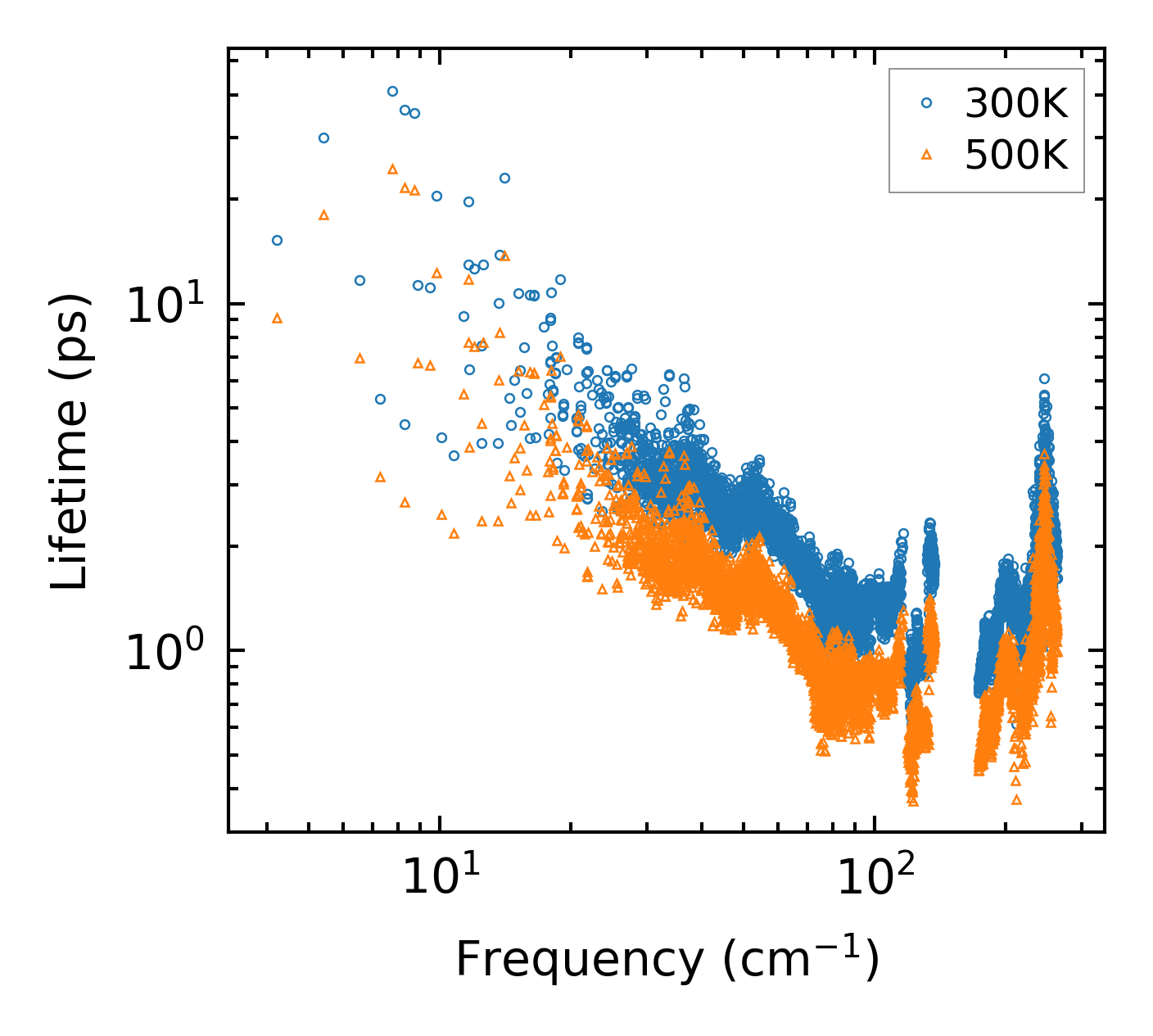

../../_images/fig_lifetime2319.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2318.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

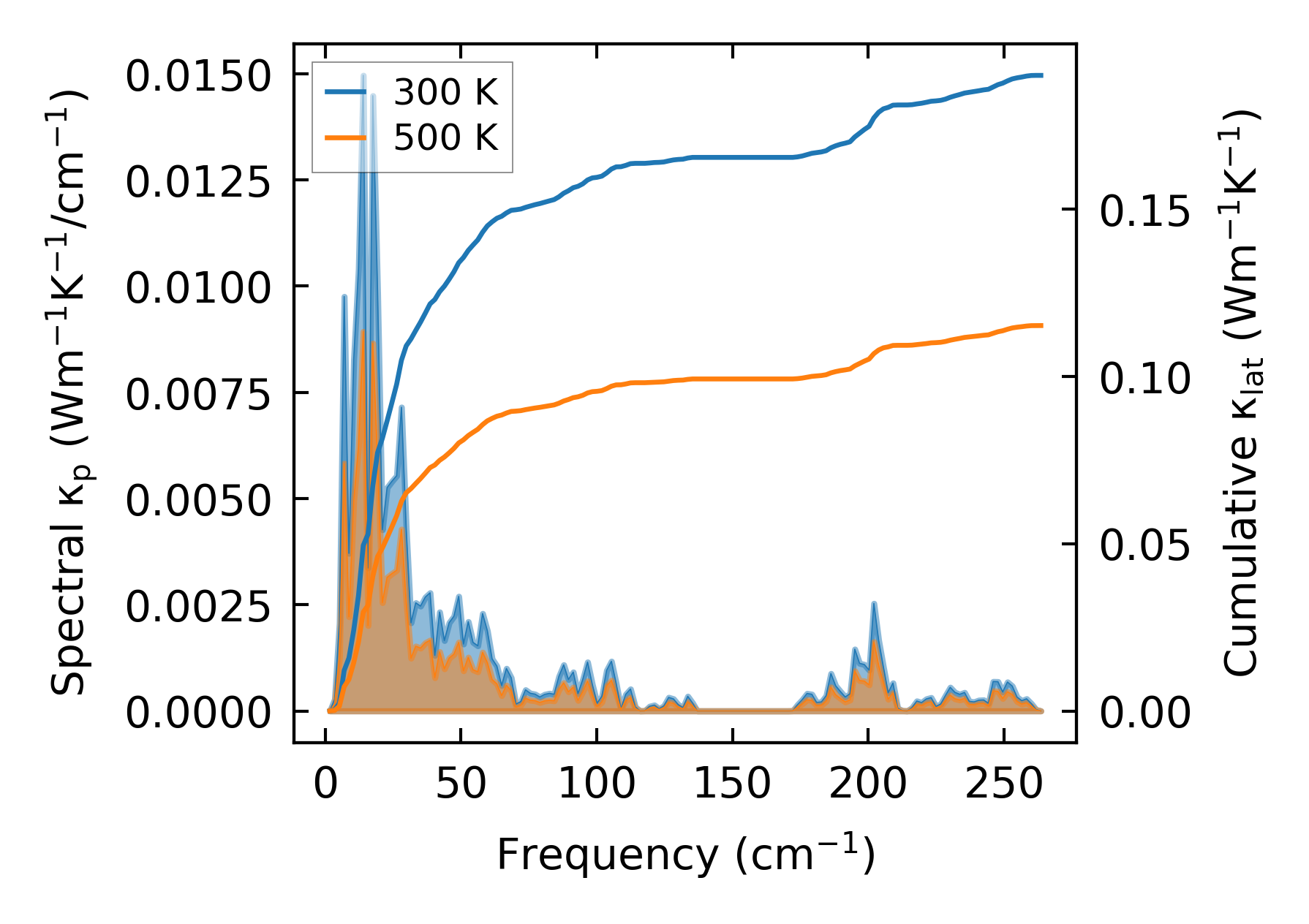

../../_images/fig_cumu_frequency2319.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

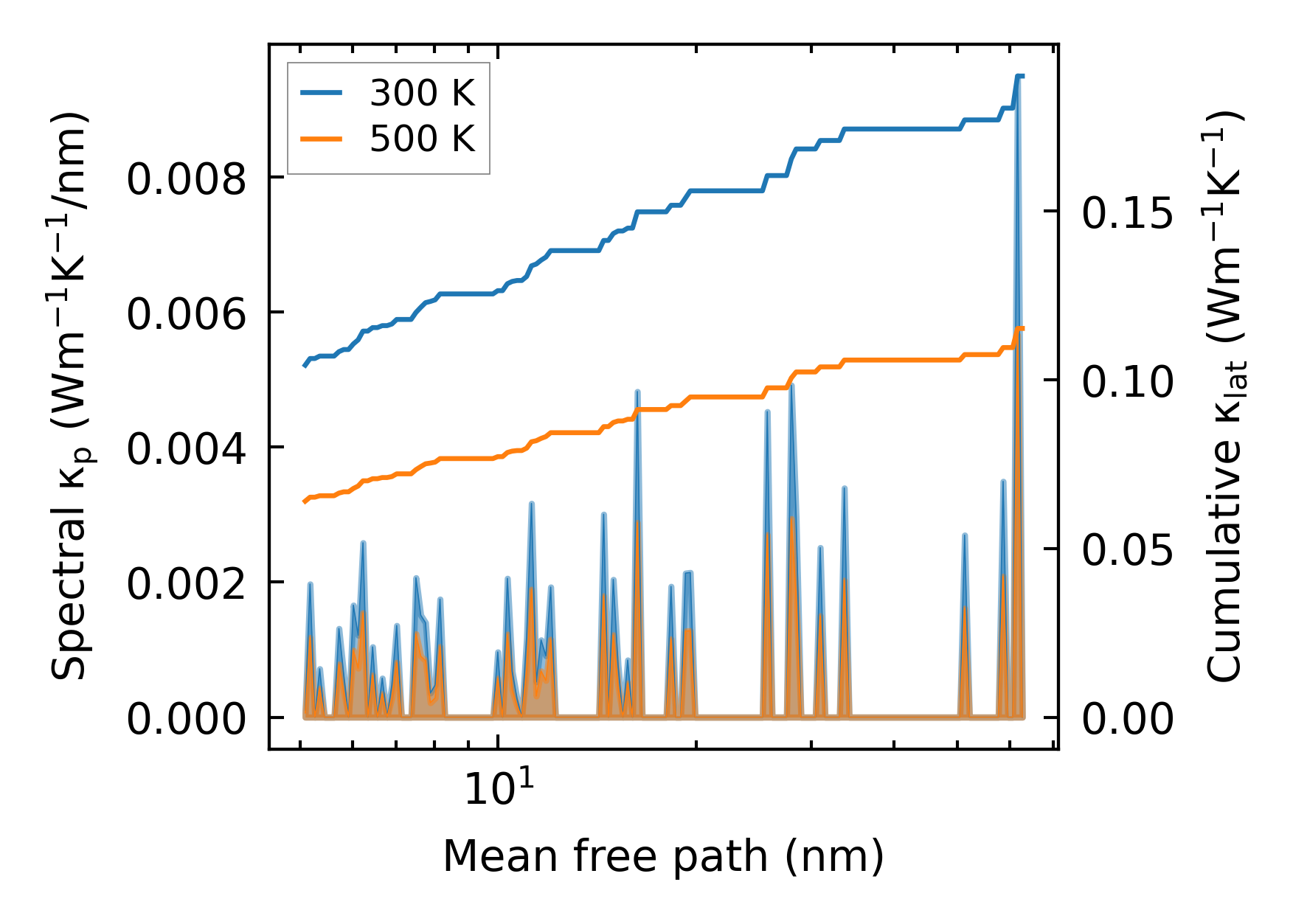

../../_images/fig_cumu_mfp2319.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

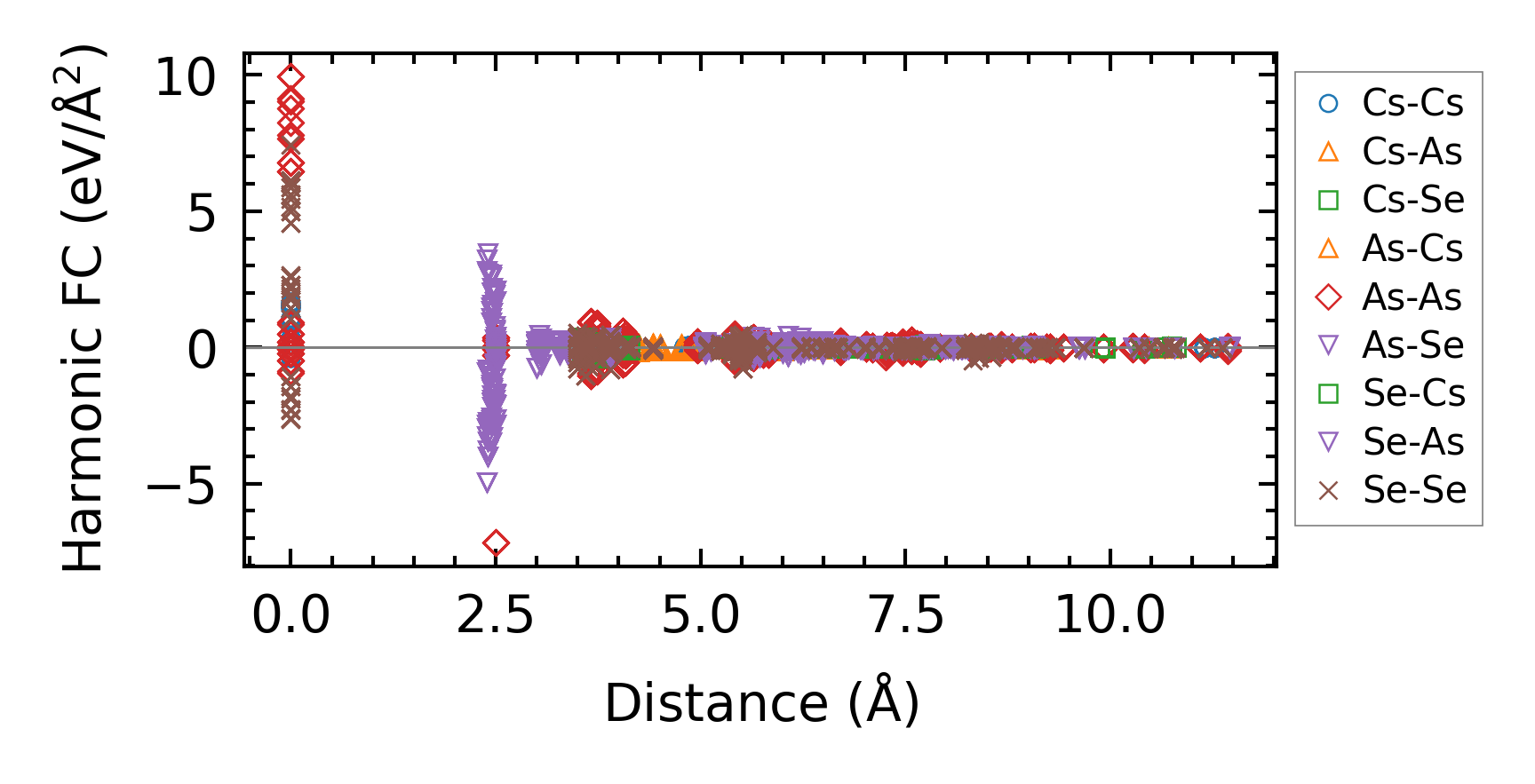

../../_images/fig_fc25380.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa4463.png — (a) Temperature-dependent lattice thermal conductivity

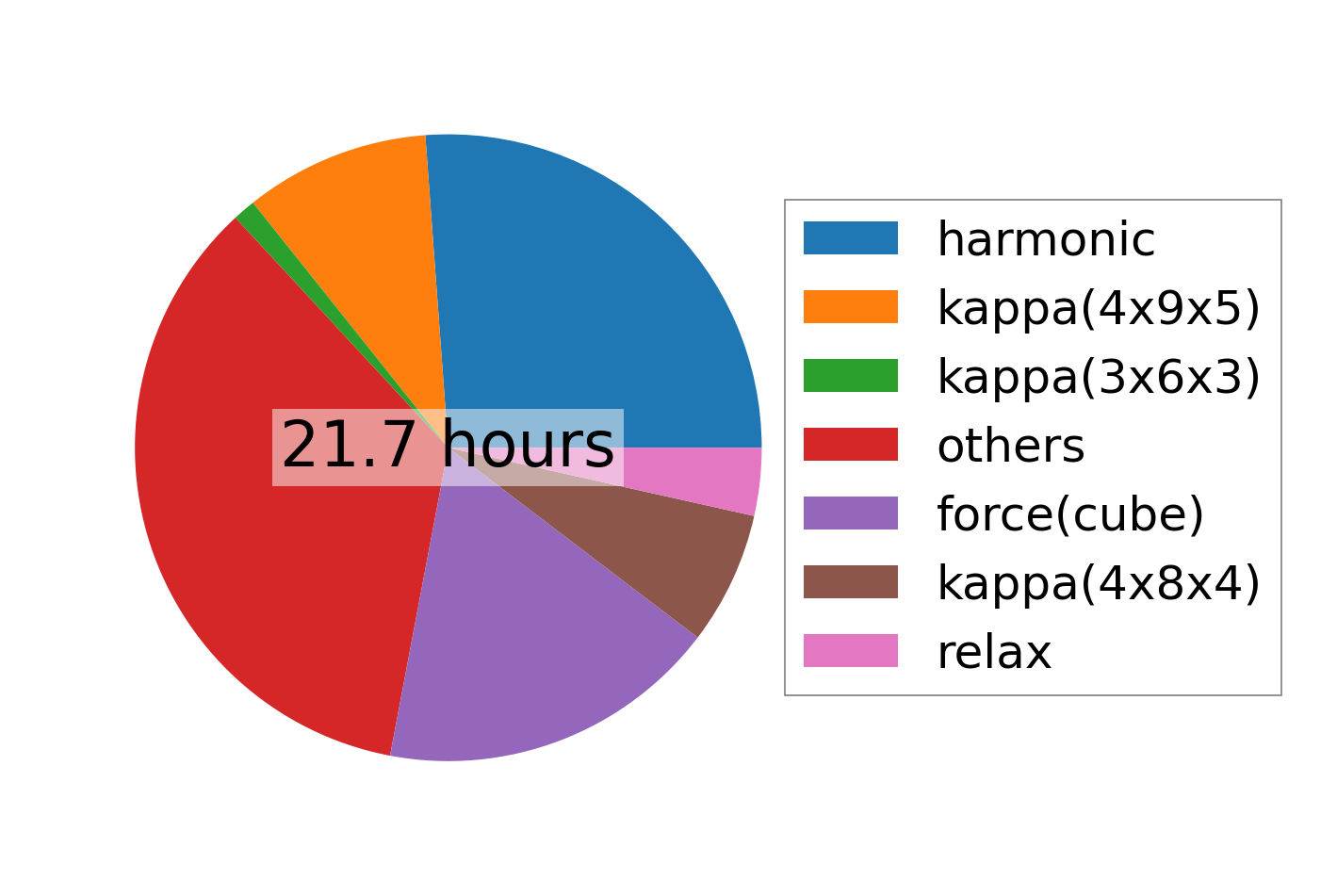

../../_images/fig_times10059.png — (b) Computation time
