mp-627016/BaH2O2/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-627016.tar.gz

Harmonic properties

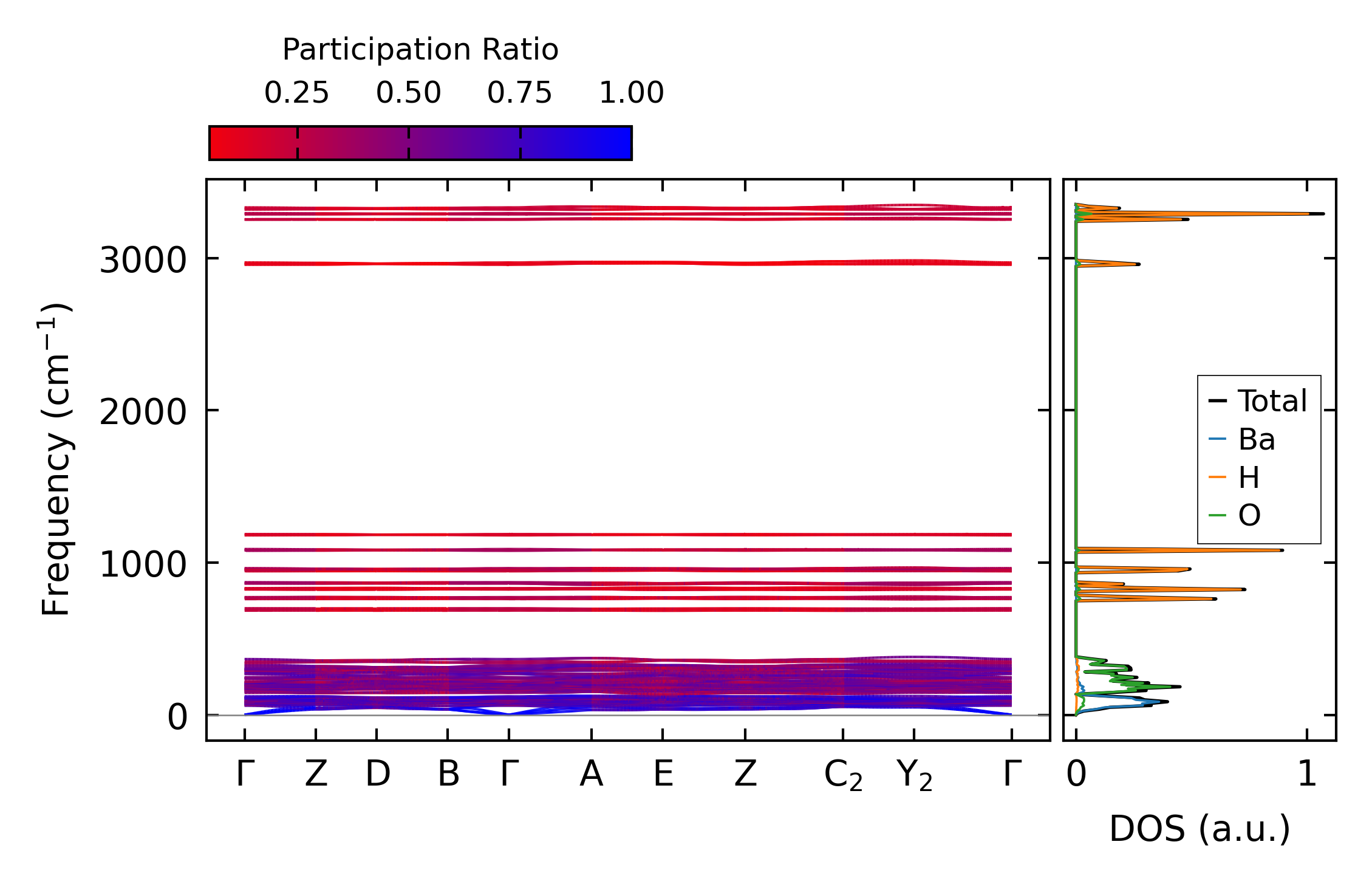

../../_images/fig_bandos_pr5817.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5817.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2399.png — (a) Grüneisen parameters

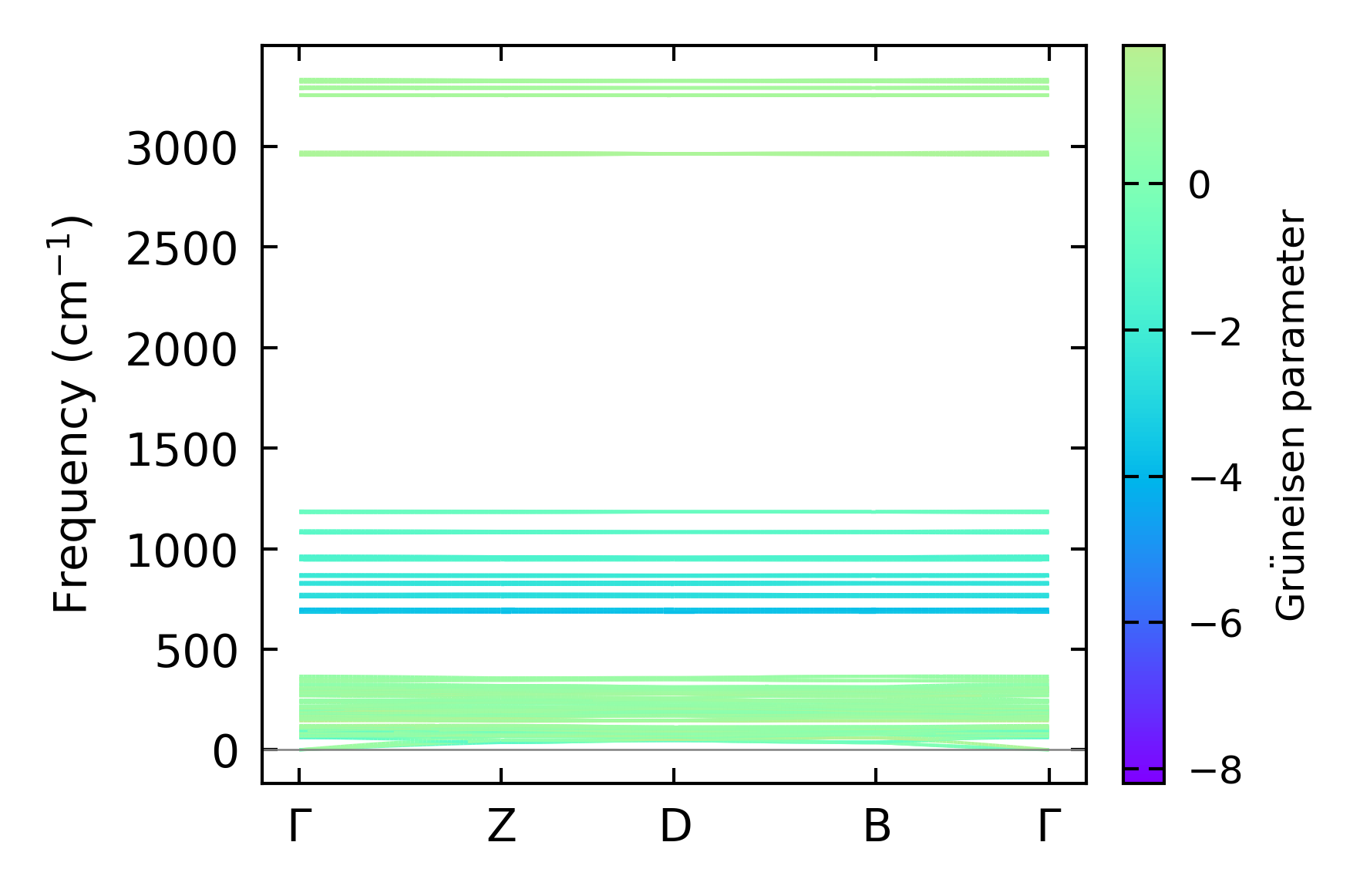

../../_images/fig_gruneisen2399.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x9x6, supercell: 2x1x1

../../_images/fig_kappa4572.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2430.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

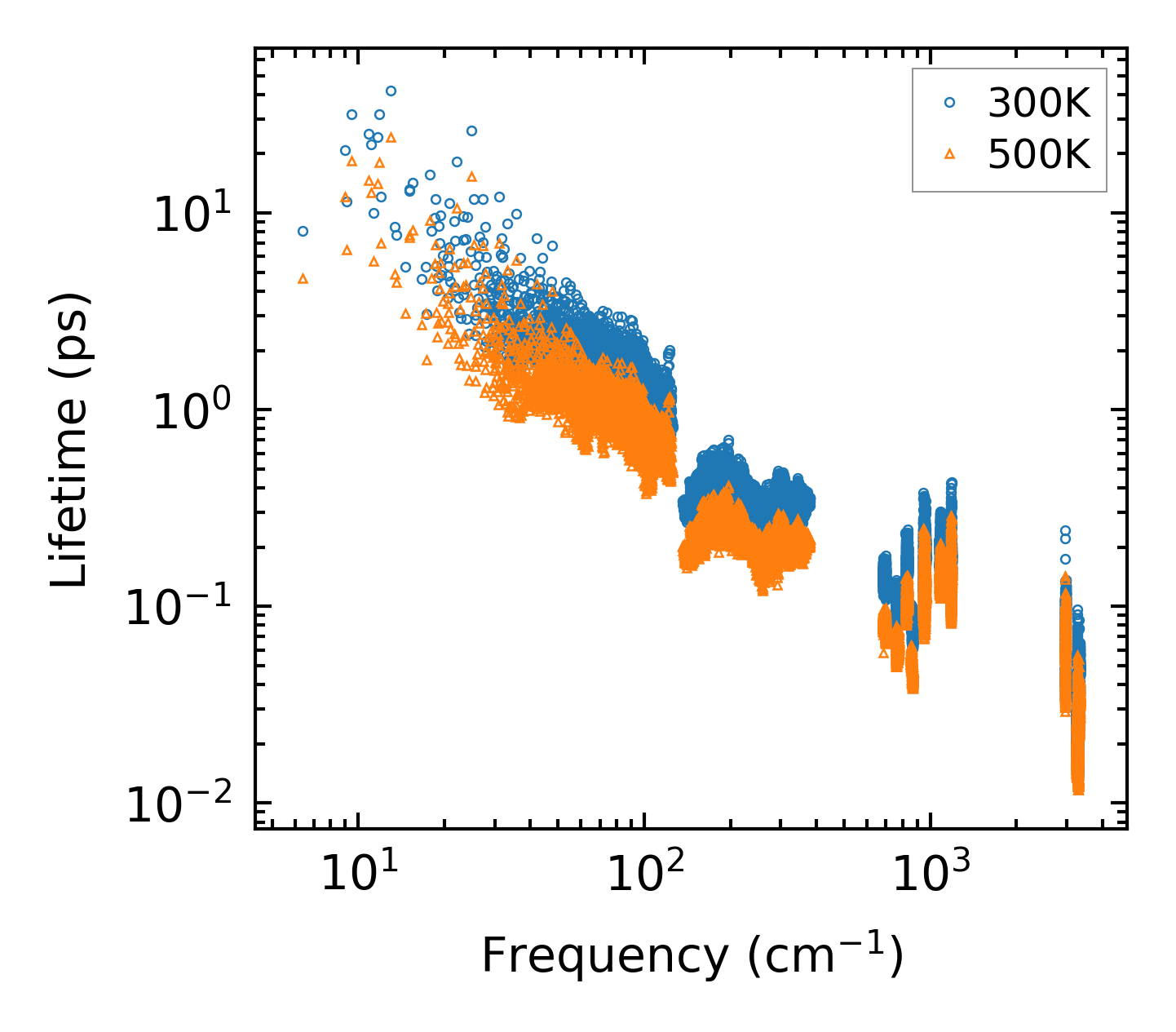

../../_images/fig_lifetime2383.png — (a) Phonon lifetime due to phonon-phonon scattering

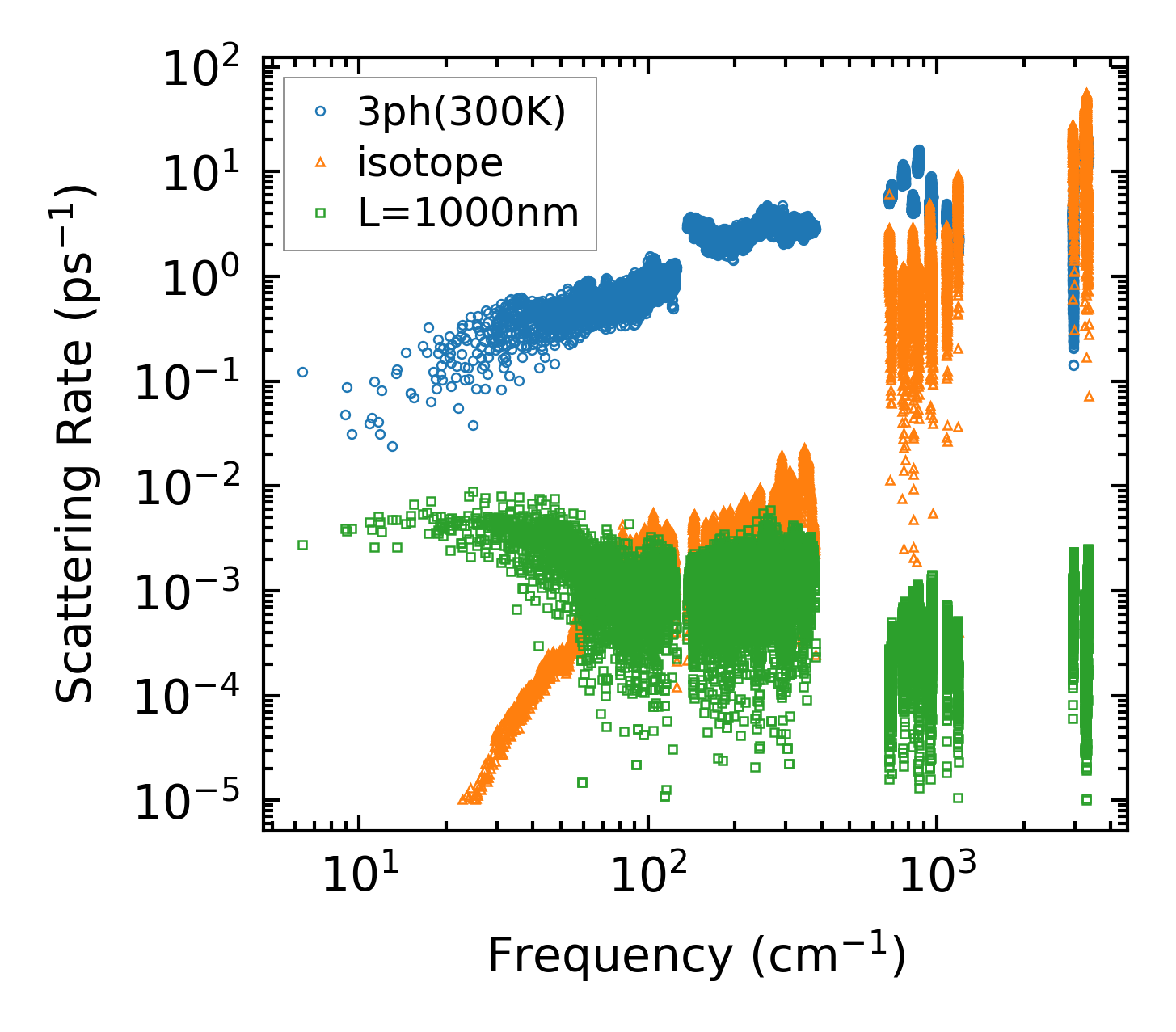

../../_images/fig_scat_rates2382.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2383.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

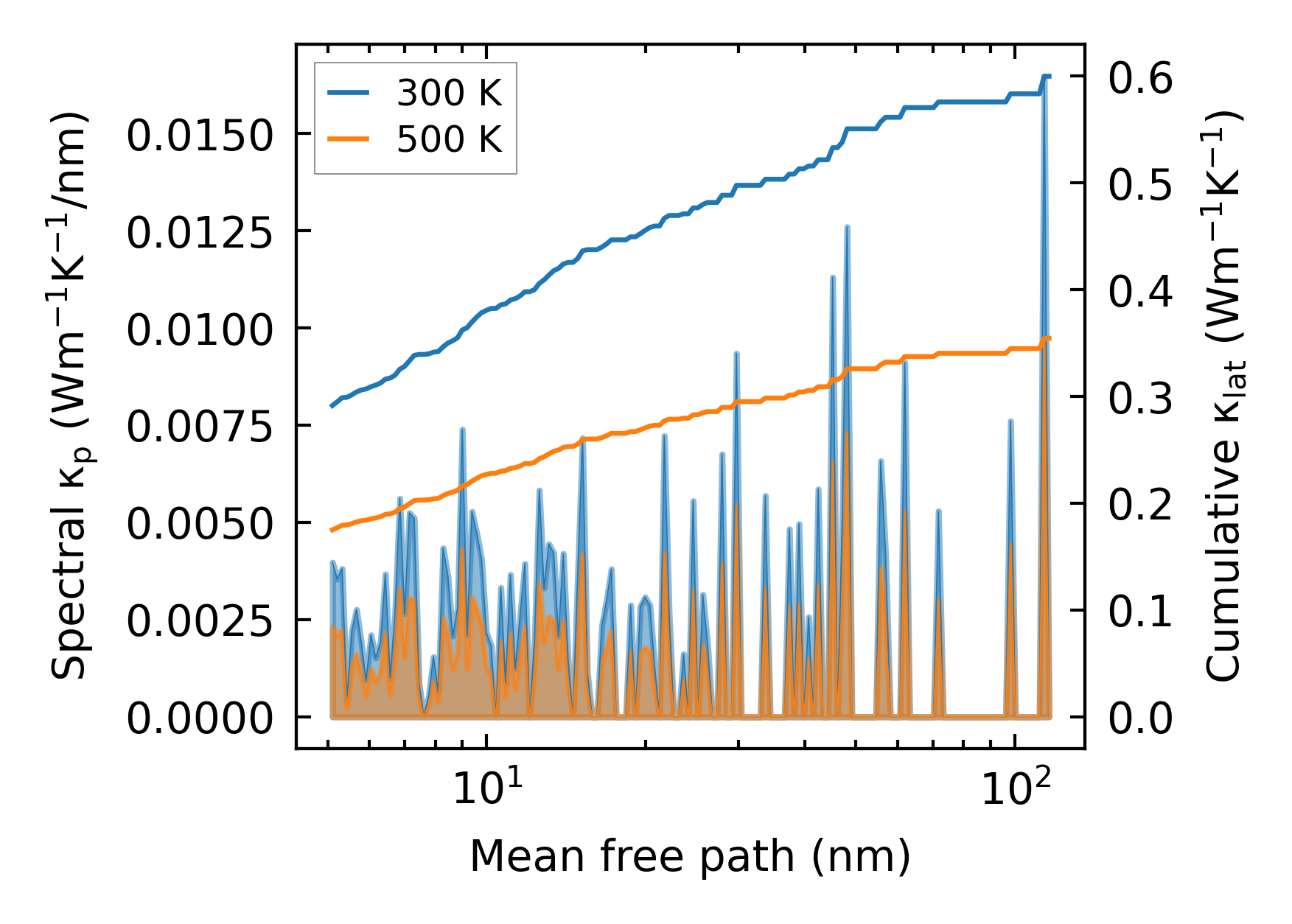

../../_images/fig_cumu_mfp2383.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

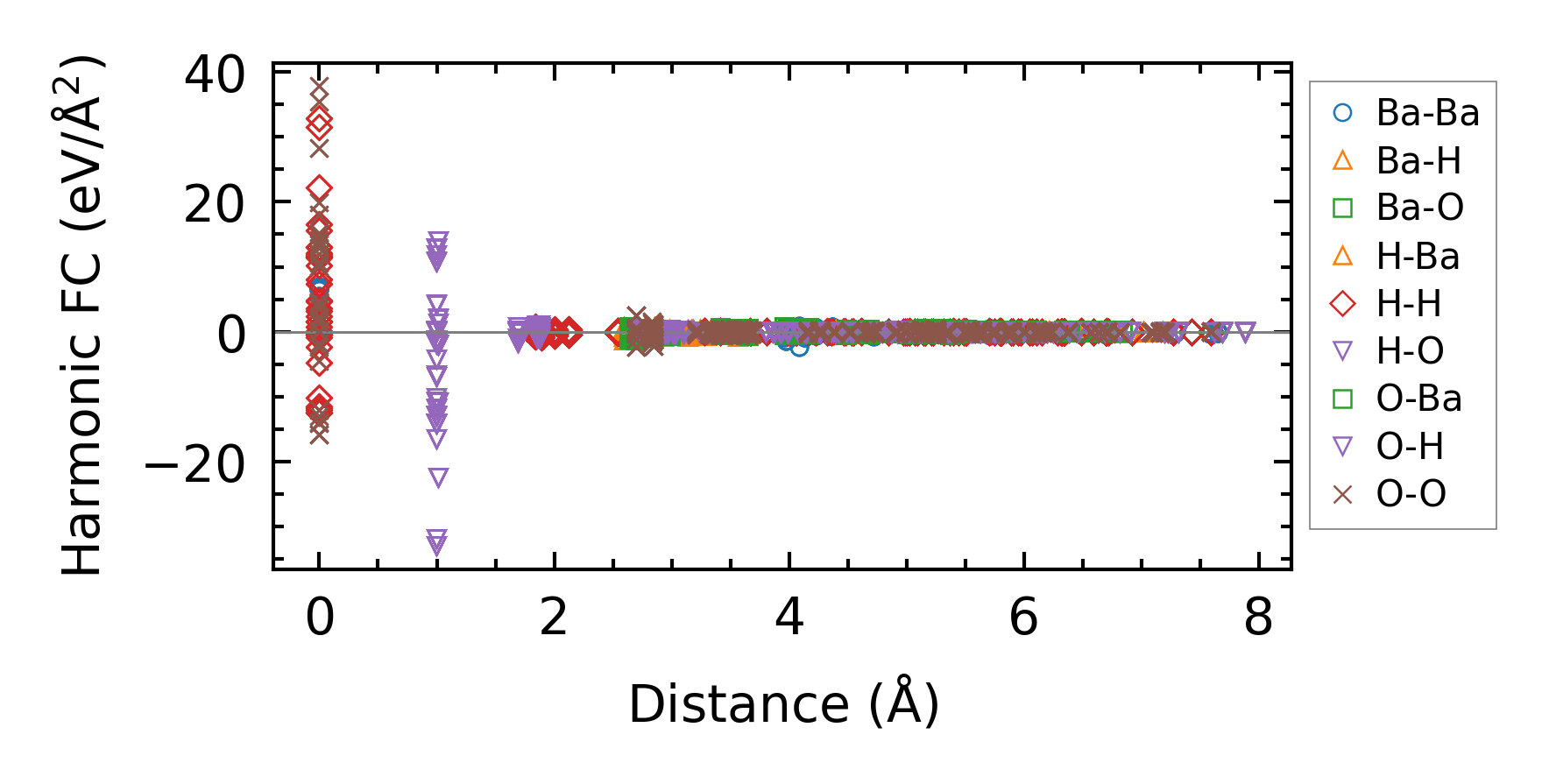

../../_images/fig_fc25613.png — (a) Force constants w.r.t atomic distance

Summary

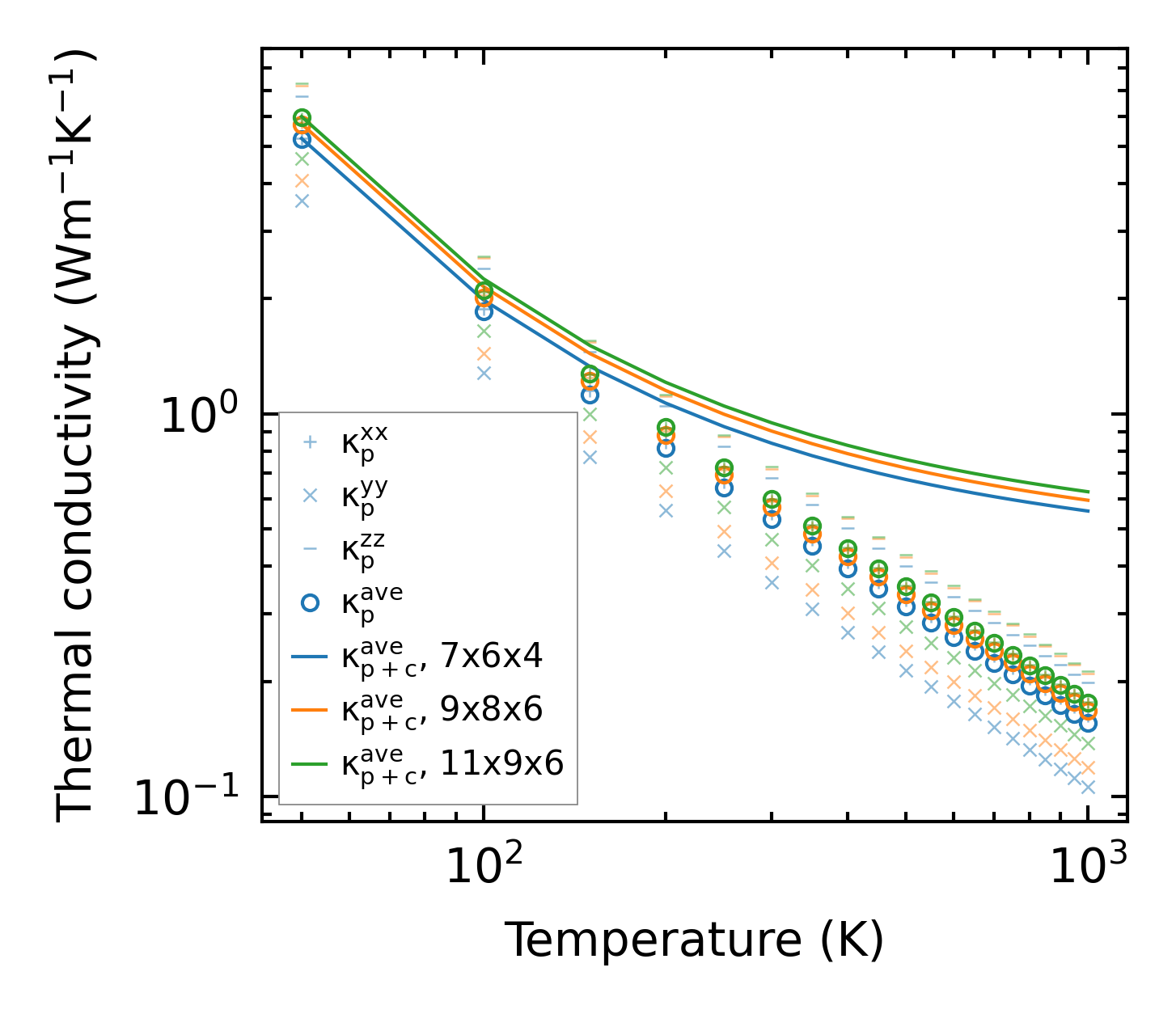

../../_images/fig_kappa4573.png — (a) Temperature-dependent lattice thermal conductivity

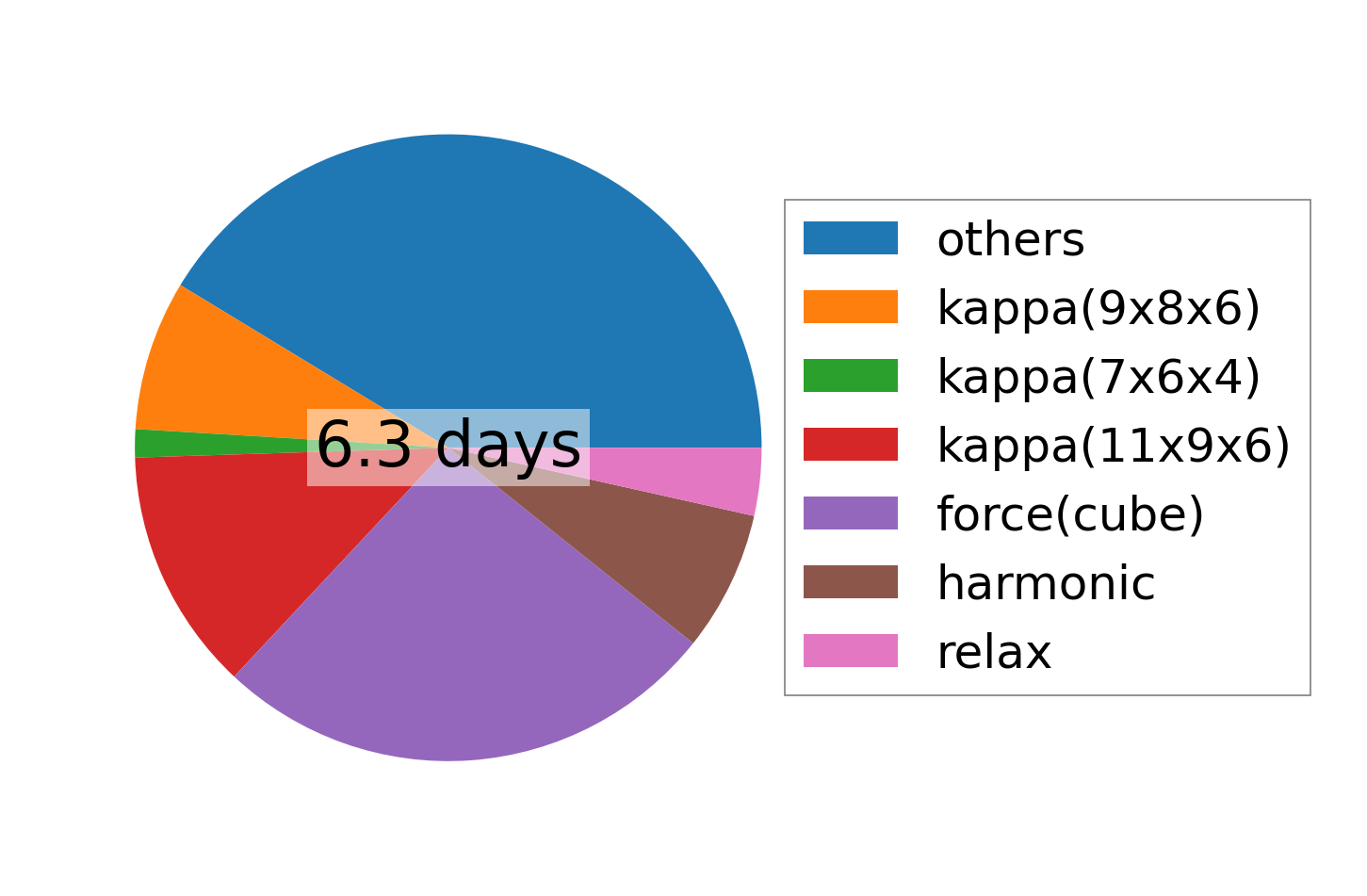

../../_images/fig_times10597.png — (b) Computation time
