mp-610491/BiSeCl/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-610491.tar.gz

Harmonic properties

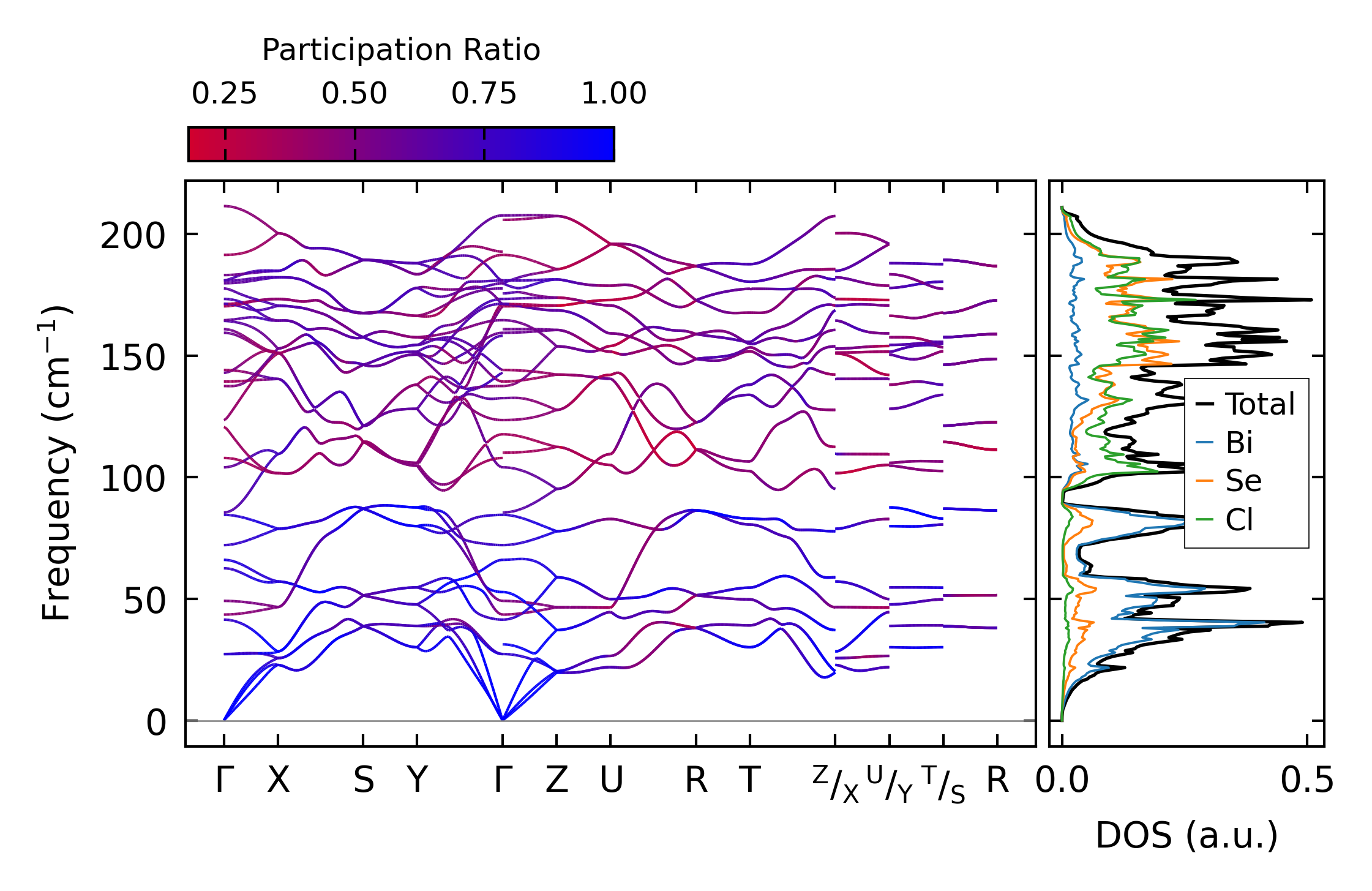

../../_images/fig_bandos_pr5989.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5989.png — (b) Thermodynamic properties

Grüneisen parameters

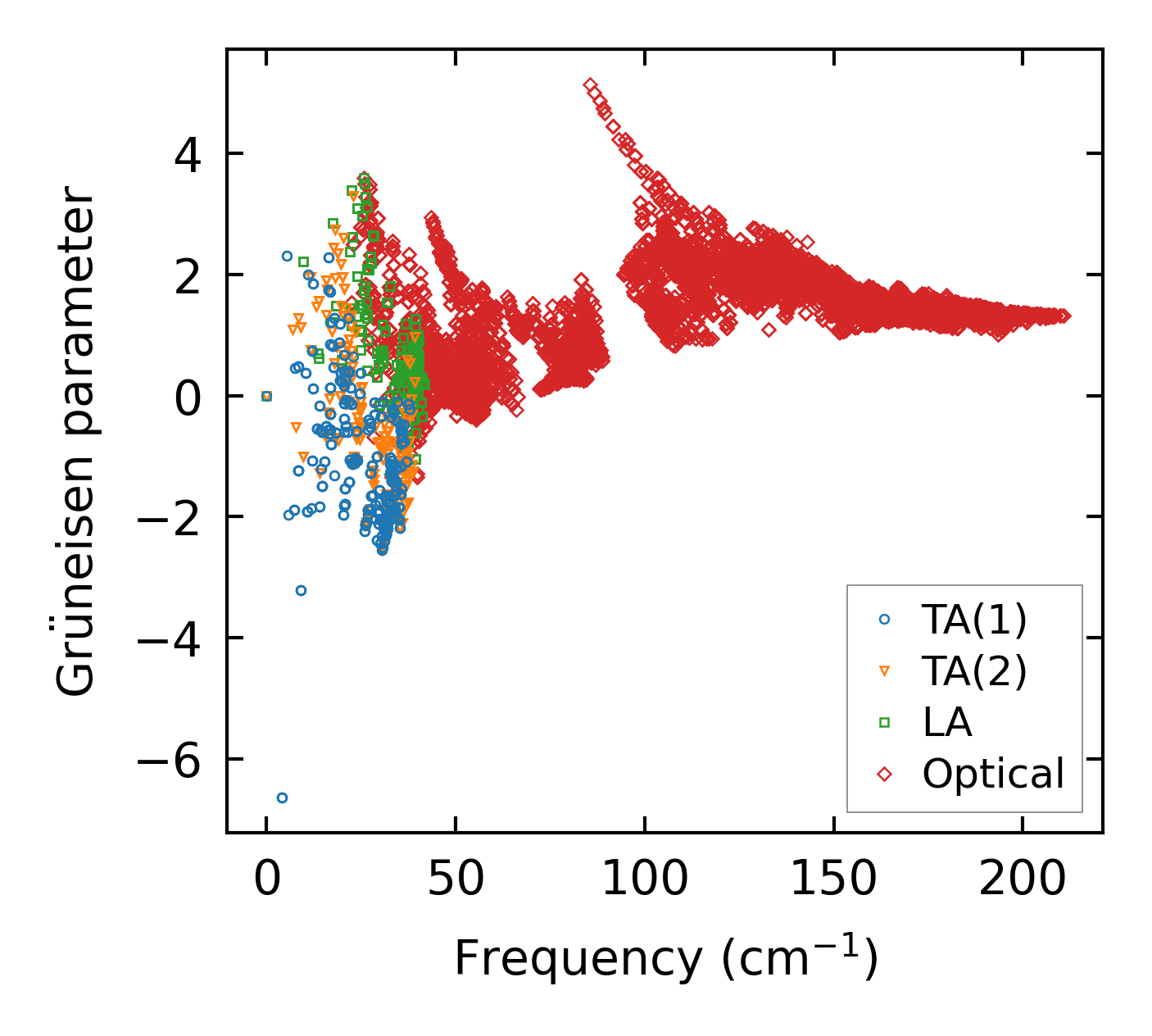

../../_images/fig_gru_all2438.png — (a) Grüneisen parameters

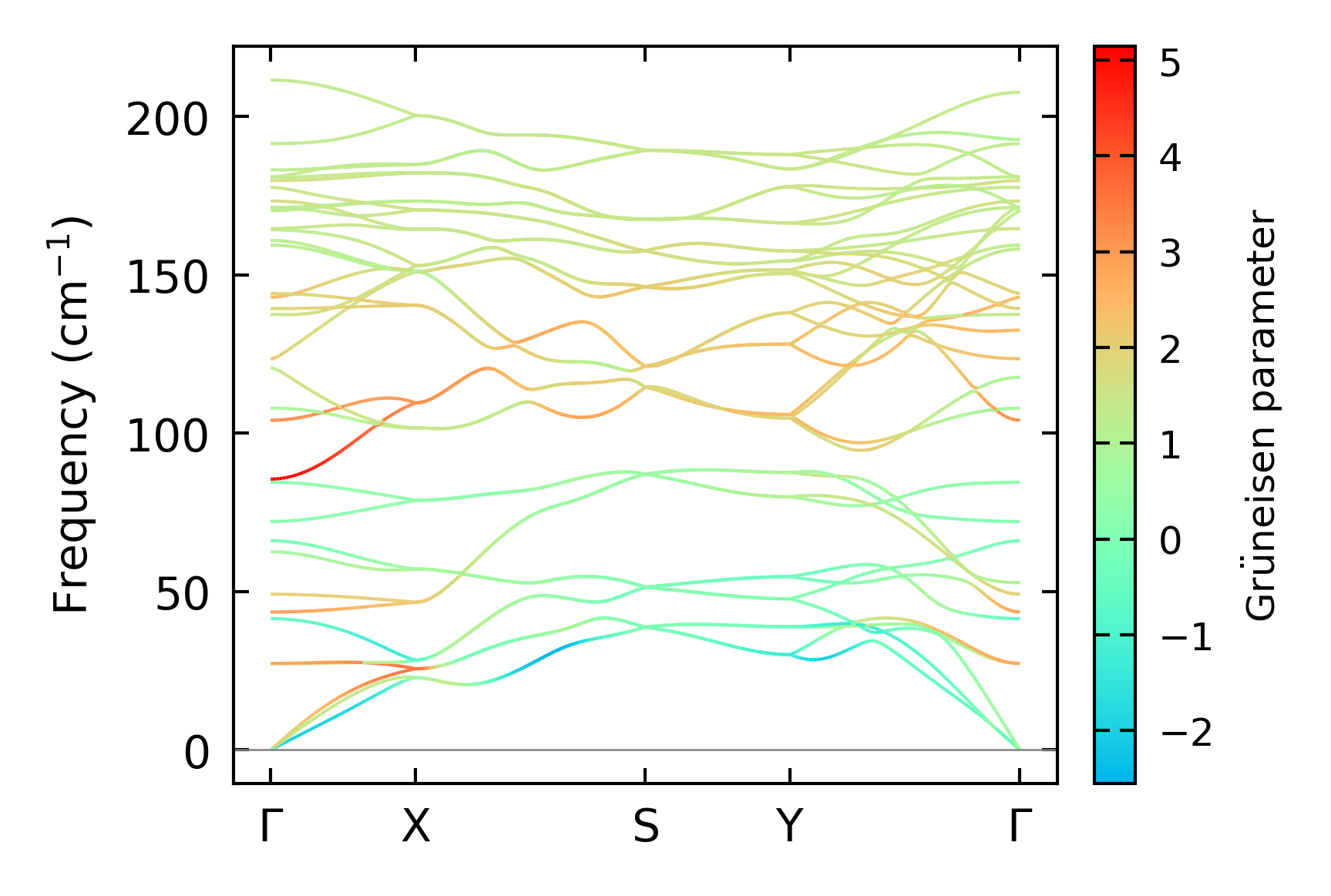

../../_images/fig_gruneisen2438.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x17x7, supercell: 2x3x2

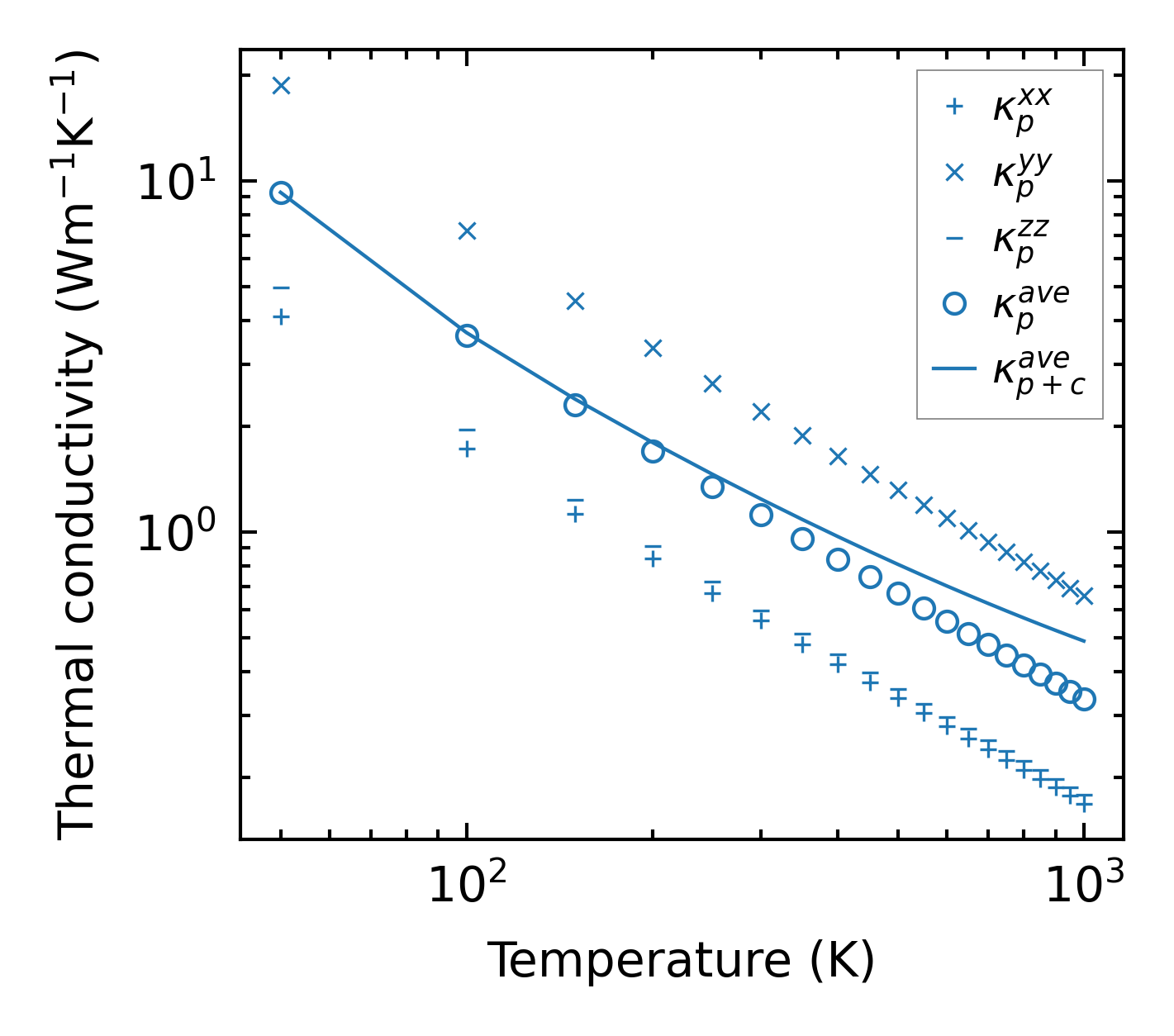

../../_images/fig_kappa4643.png — (a) Temperature-dependent lattice thermal conductivity

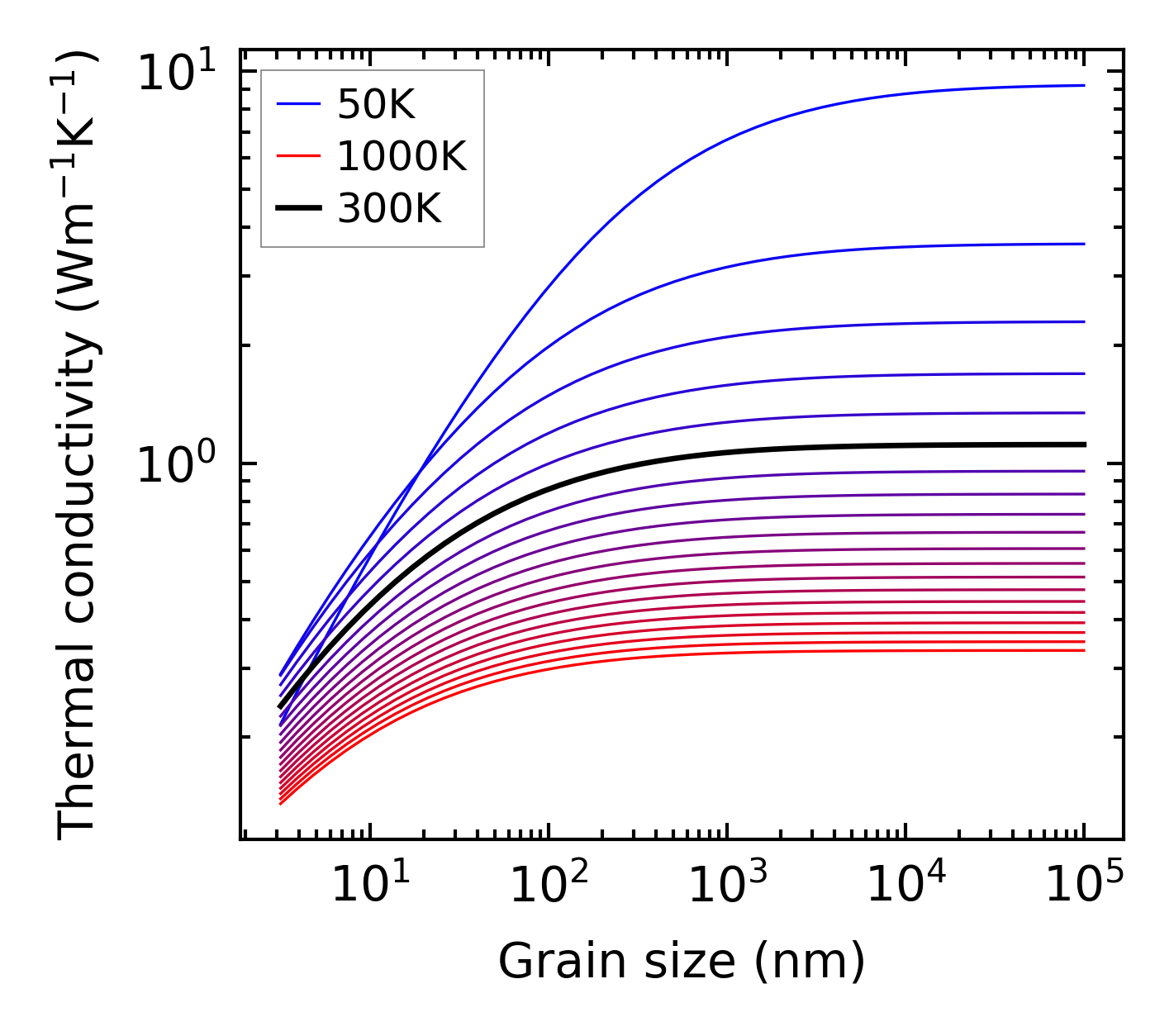

../../_images/fig_kappa_vs_grain_size2469.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

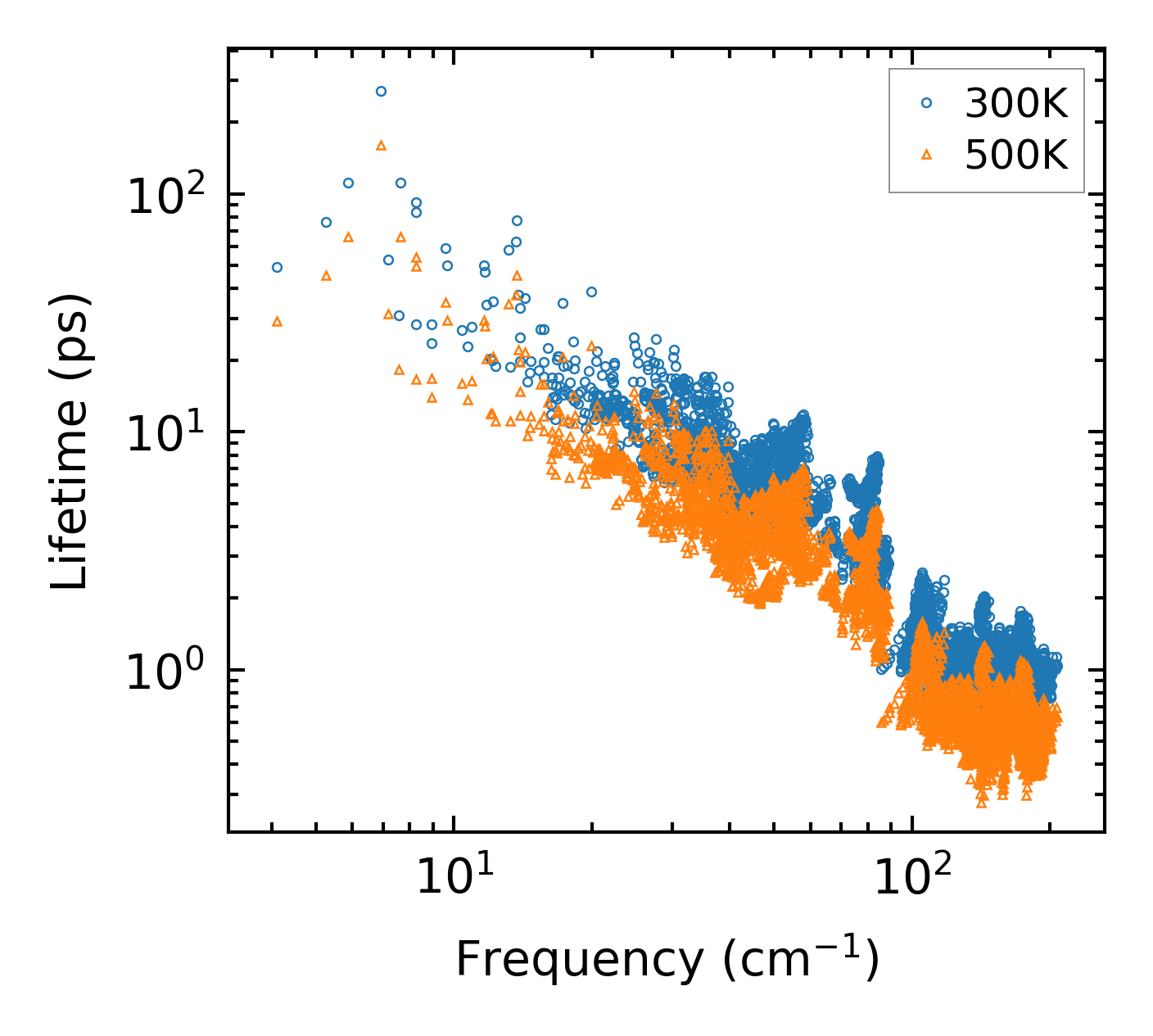

../../_images/fig_lifetime2421.png — (a) Phonon lifetime due to phonon-phonon scattering

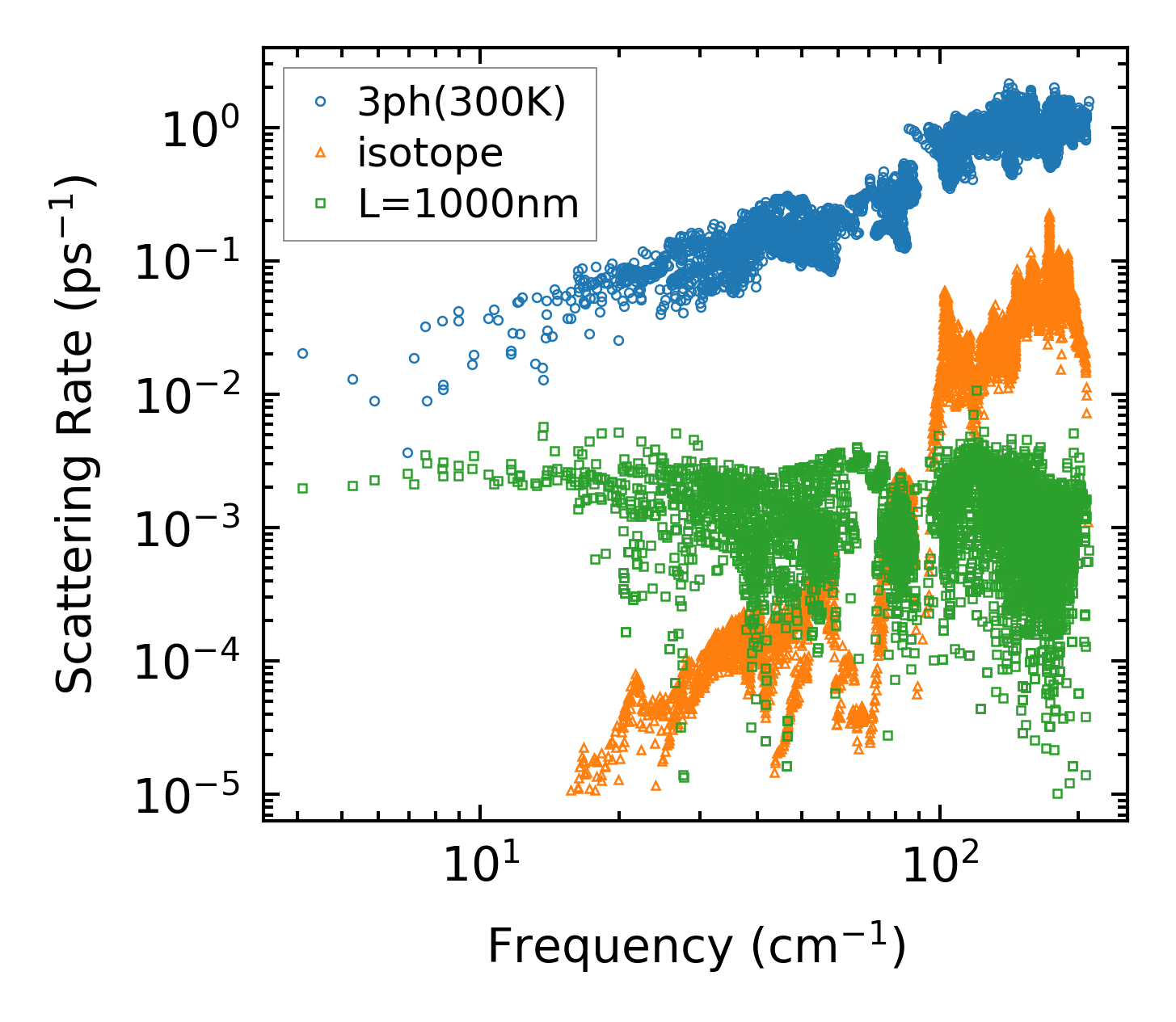

../../_images/fig_scat_rates2420.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

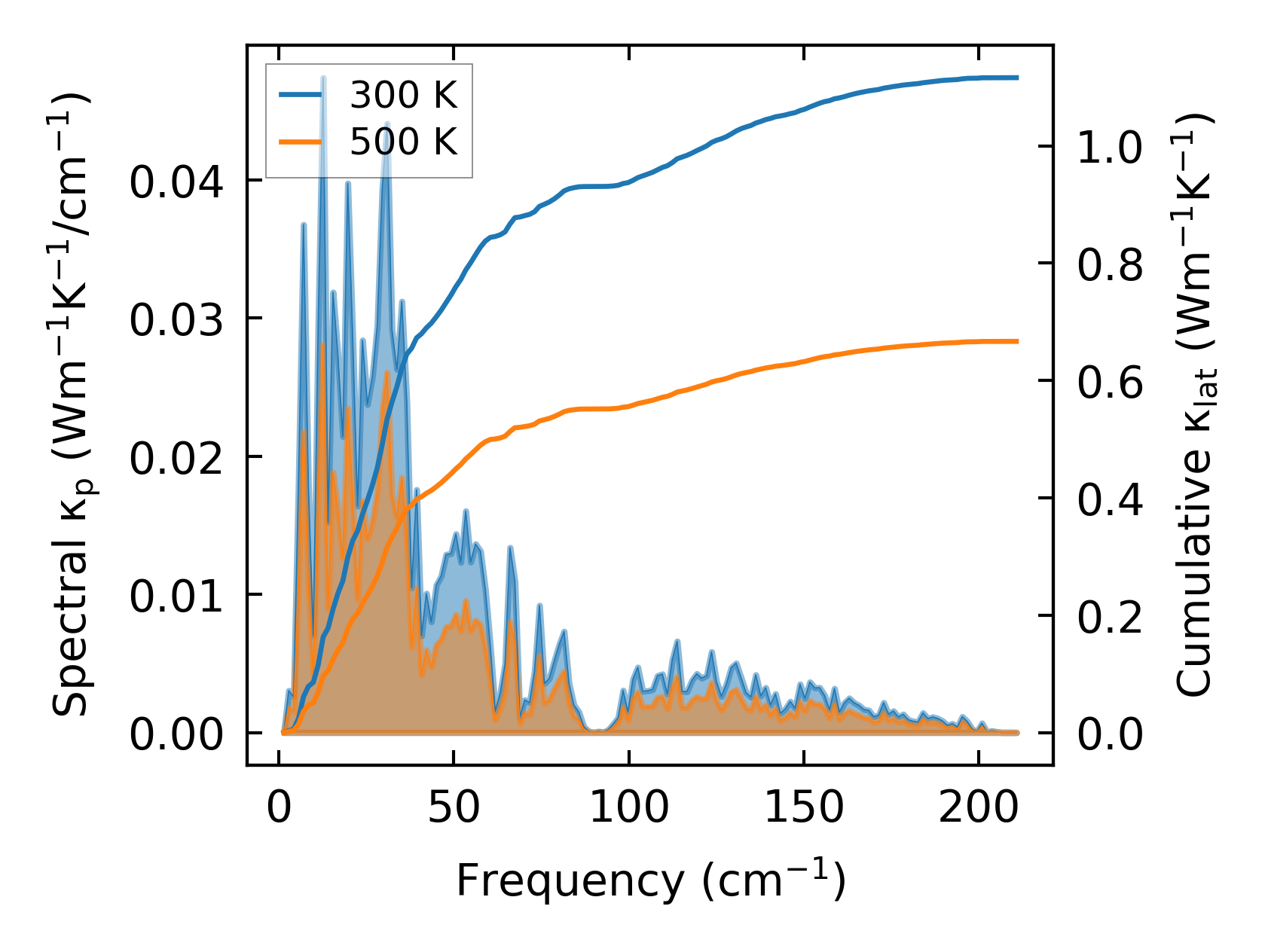

../../_images/fig_cumu_frequency2421.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

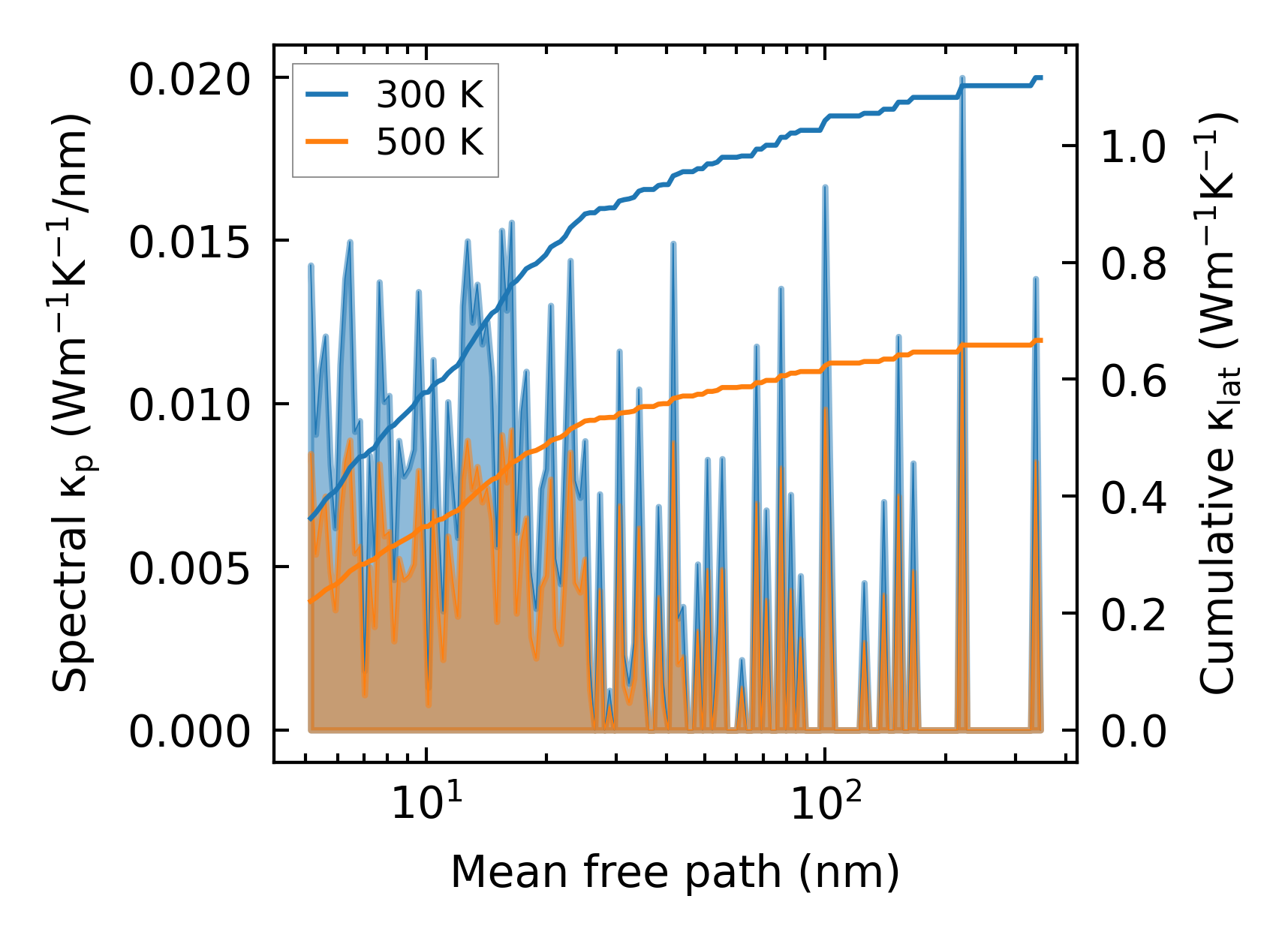

../../_images/fig_cumu_mfp2421.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

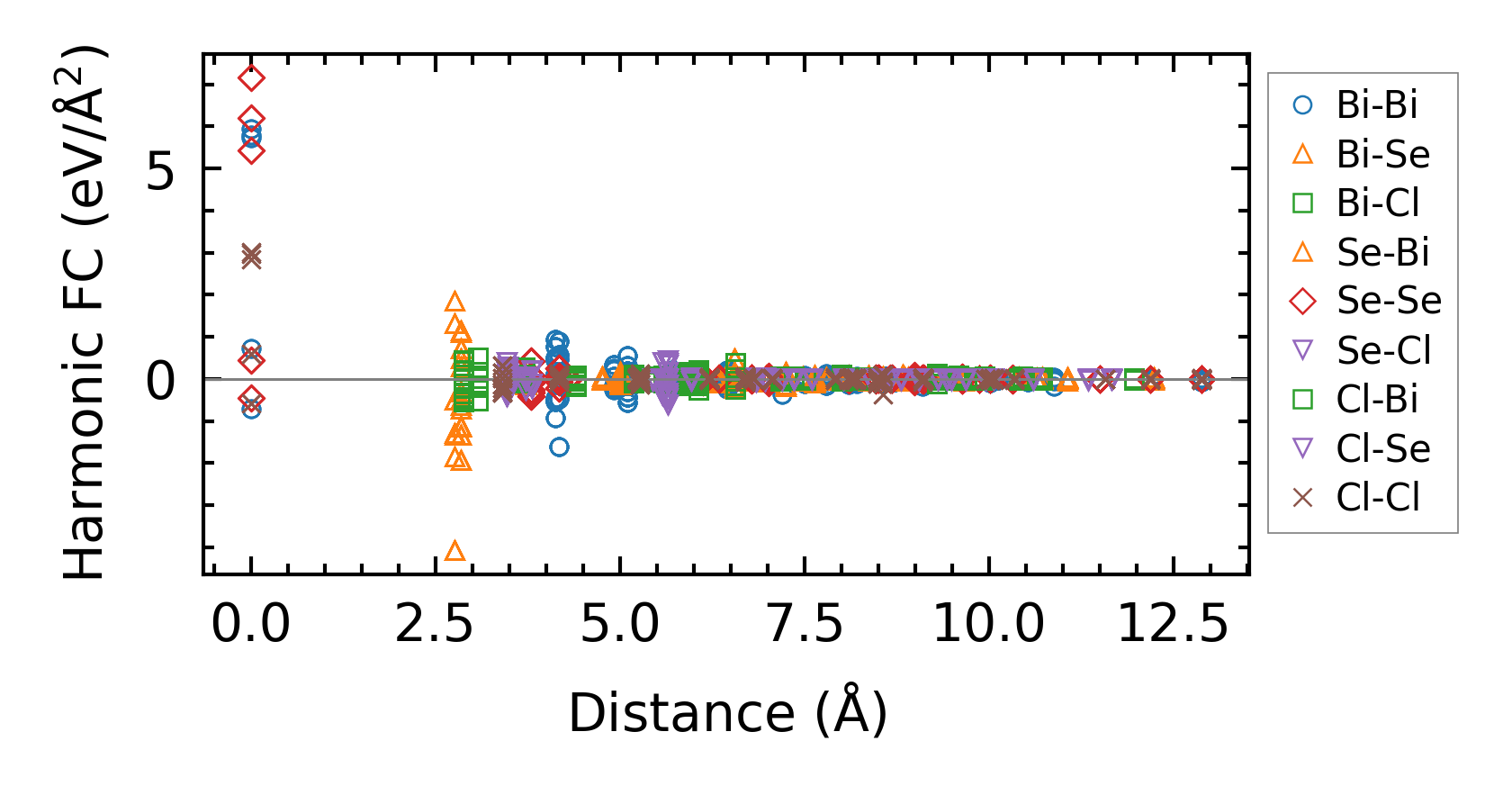

../../_images/fig_fc25783.png — (a) Force constants w.r.t atomic distance

Summary

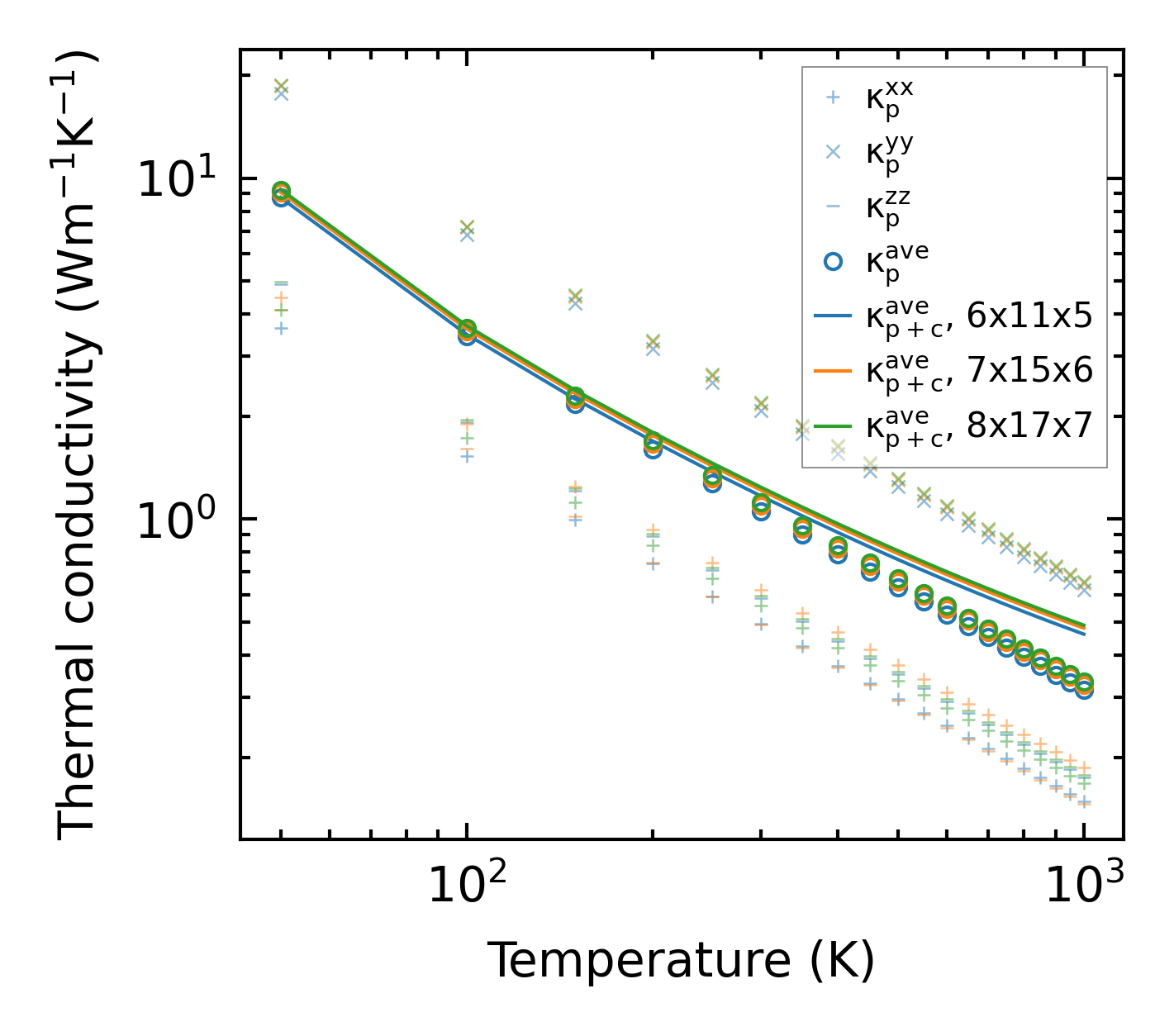

../../_images/fig_kappa4644.png — (a) Temperature-dependent lattice thermal conductivity

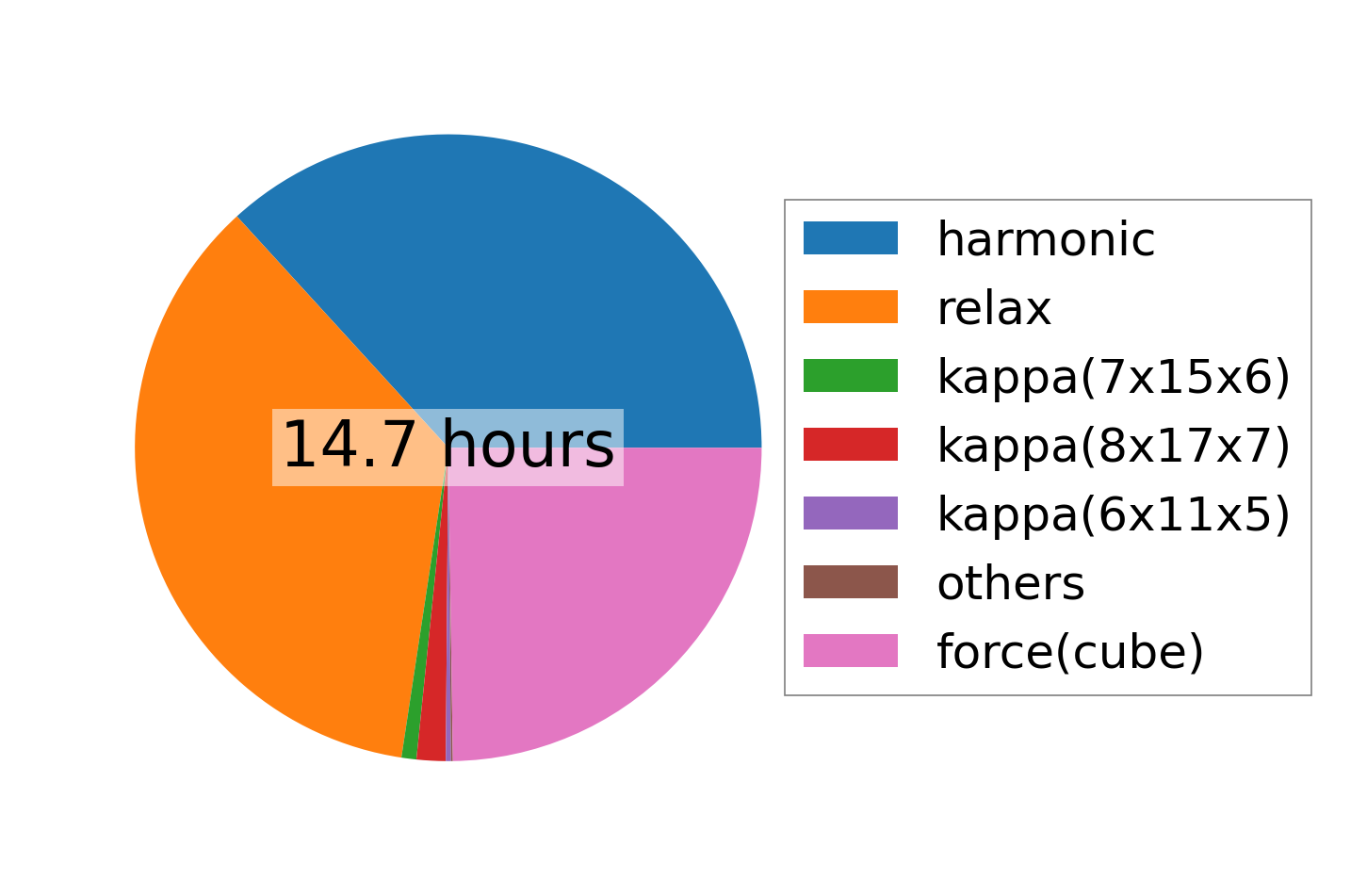

../../_images/fig_times10969.png — (b) Computation time
