mp-601867/Ba3Sn2P4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-601867.tar.gz

Harmonic properties

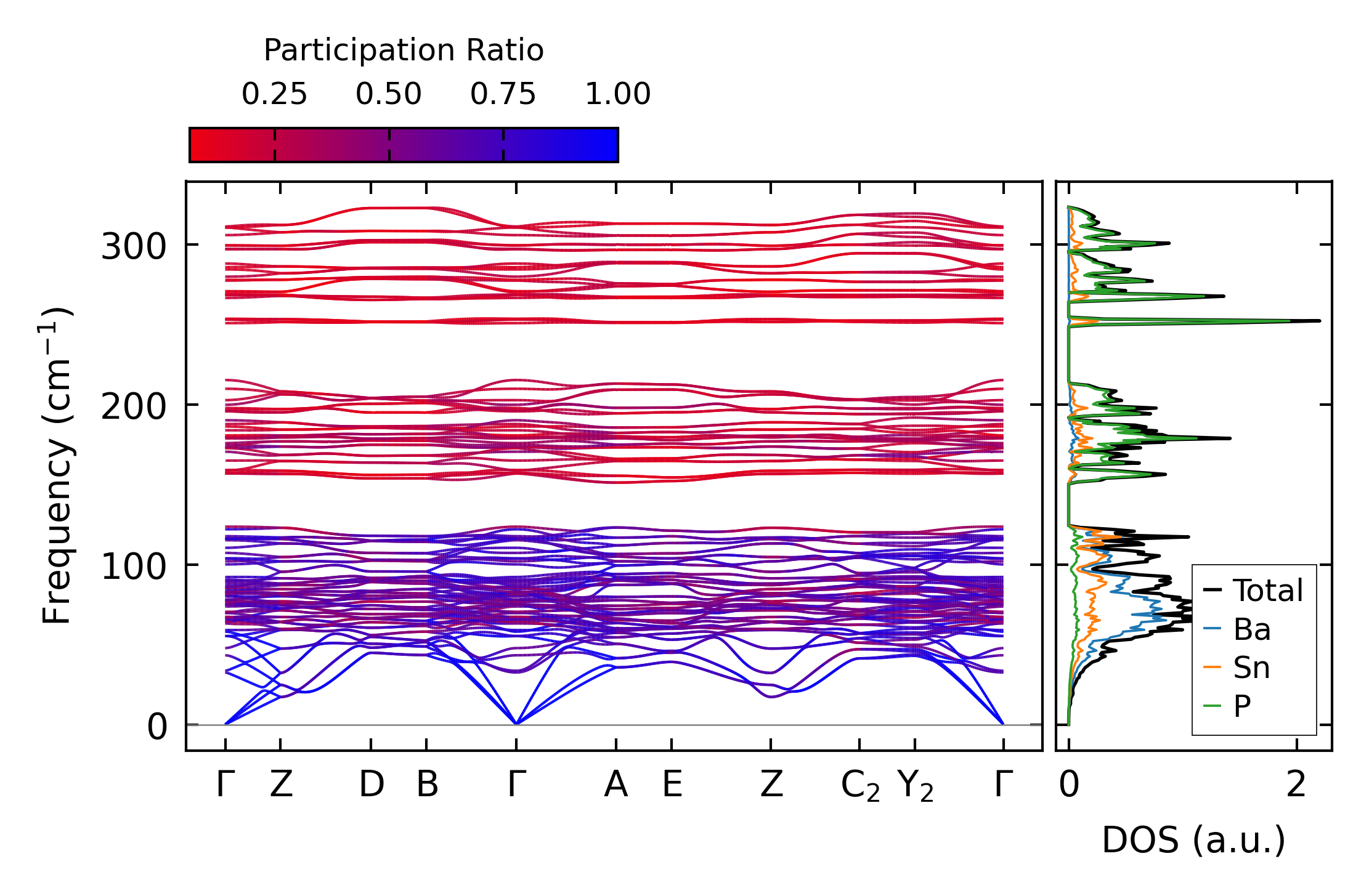

../../_images/fig_bandos_pr6257.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo6257.png — (b) Thermodynamic properties

Grüneisen parameters

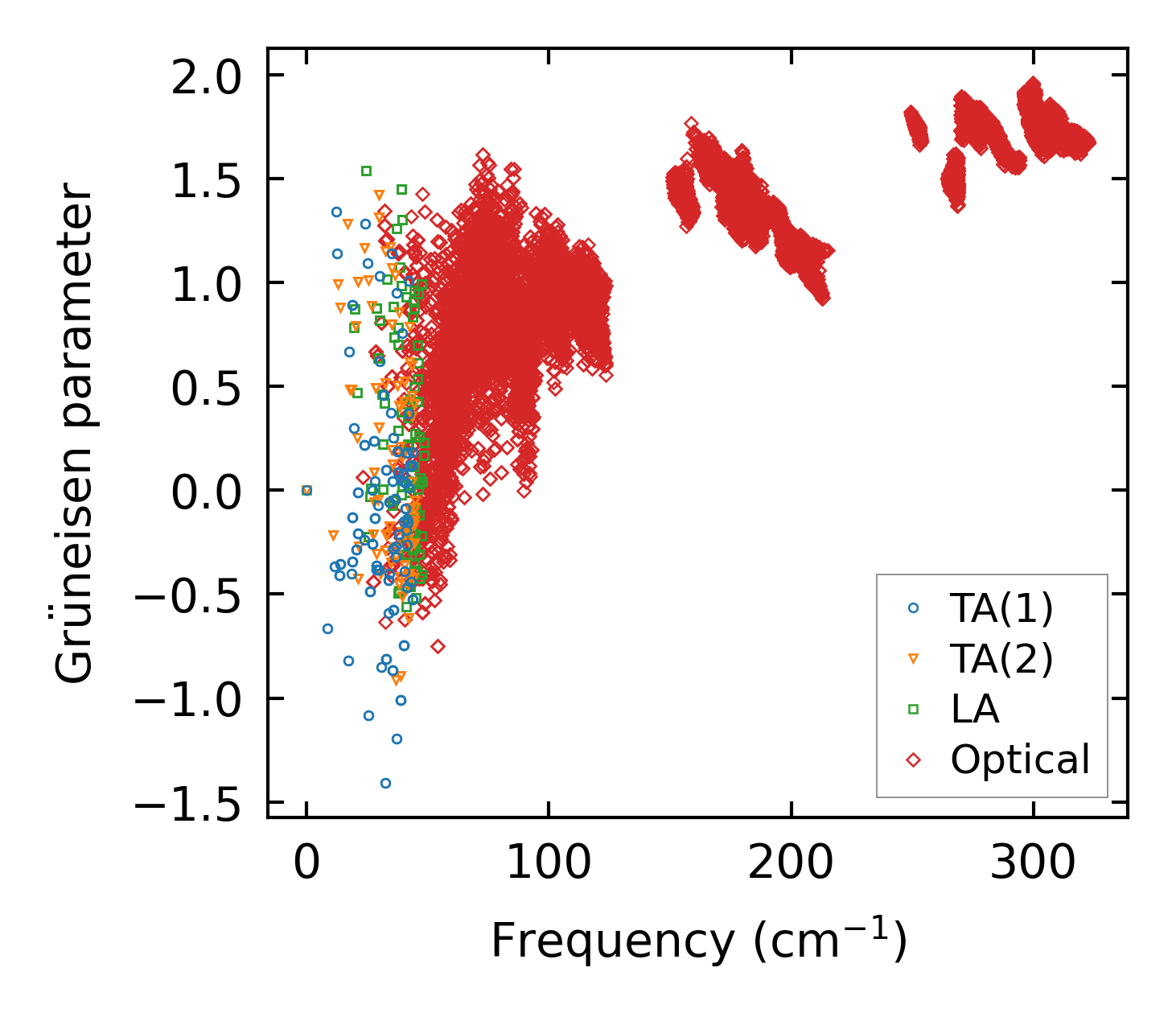

../../_images/fig_gru_all2551.png — (a) Grüneisen parameters

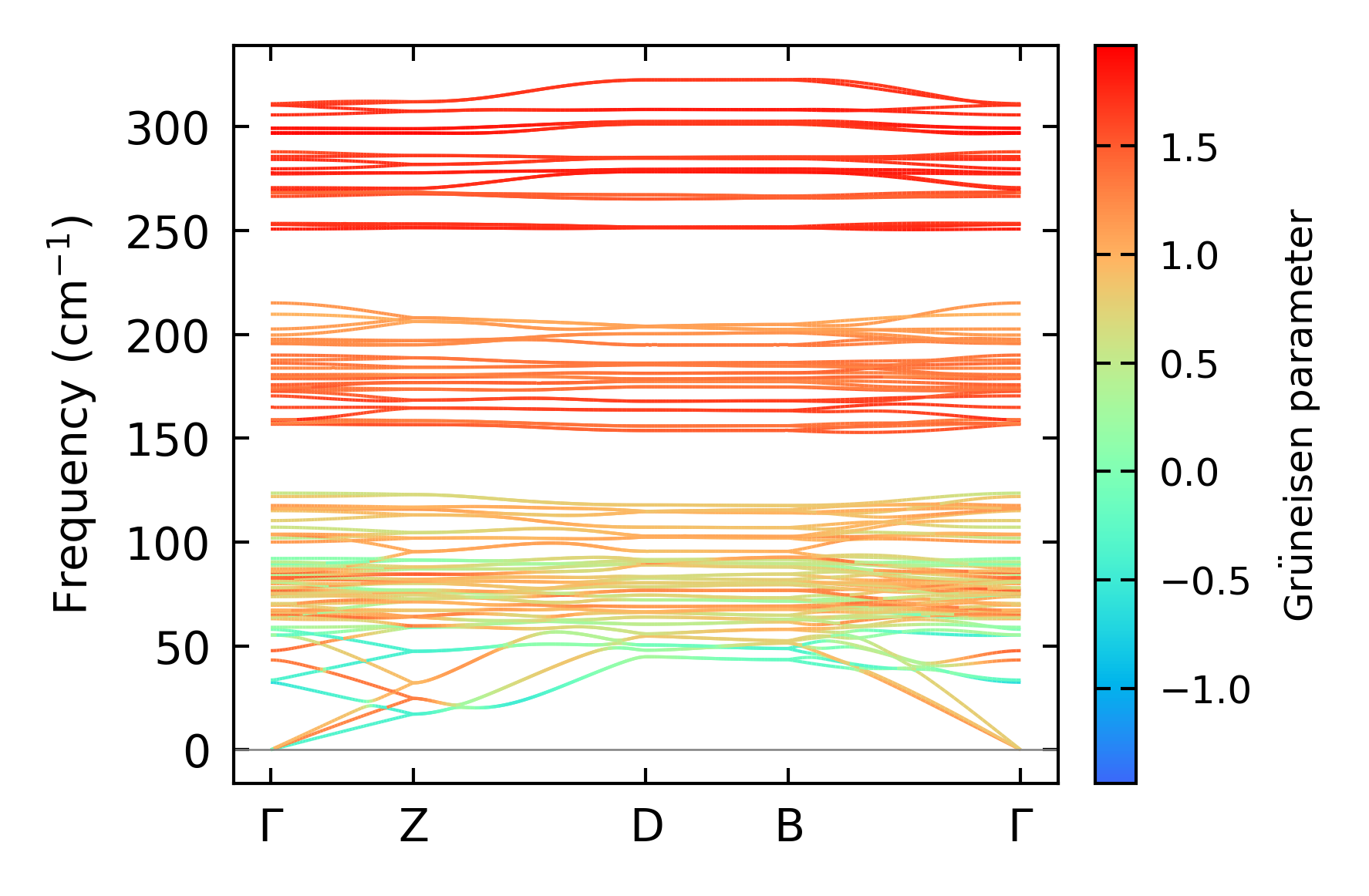

../../_images/fig_gruneisen2551.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x3x9, supercell: 2x1x2

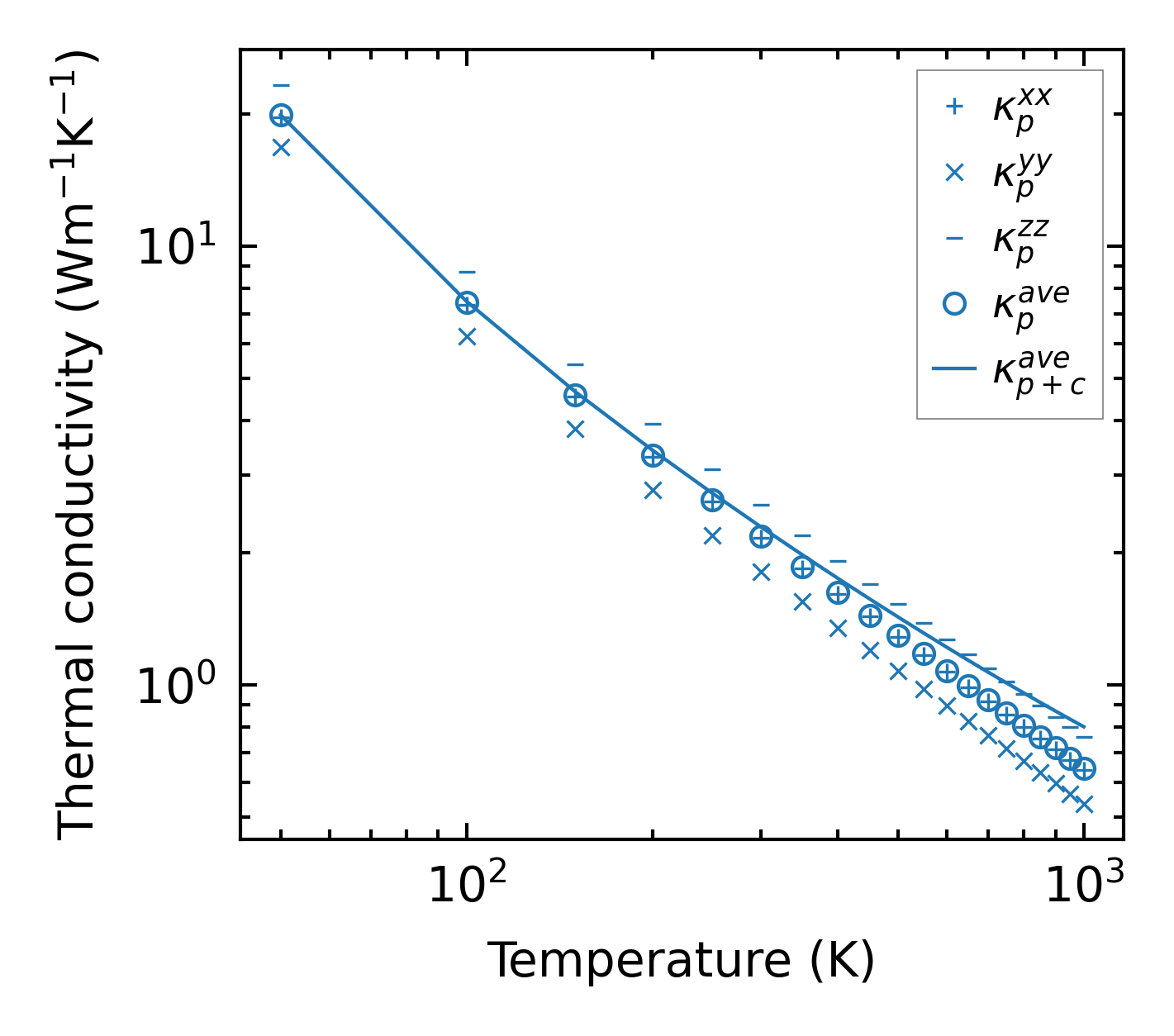

../../_images/fig_kappa4856.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2585.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

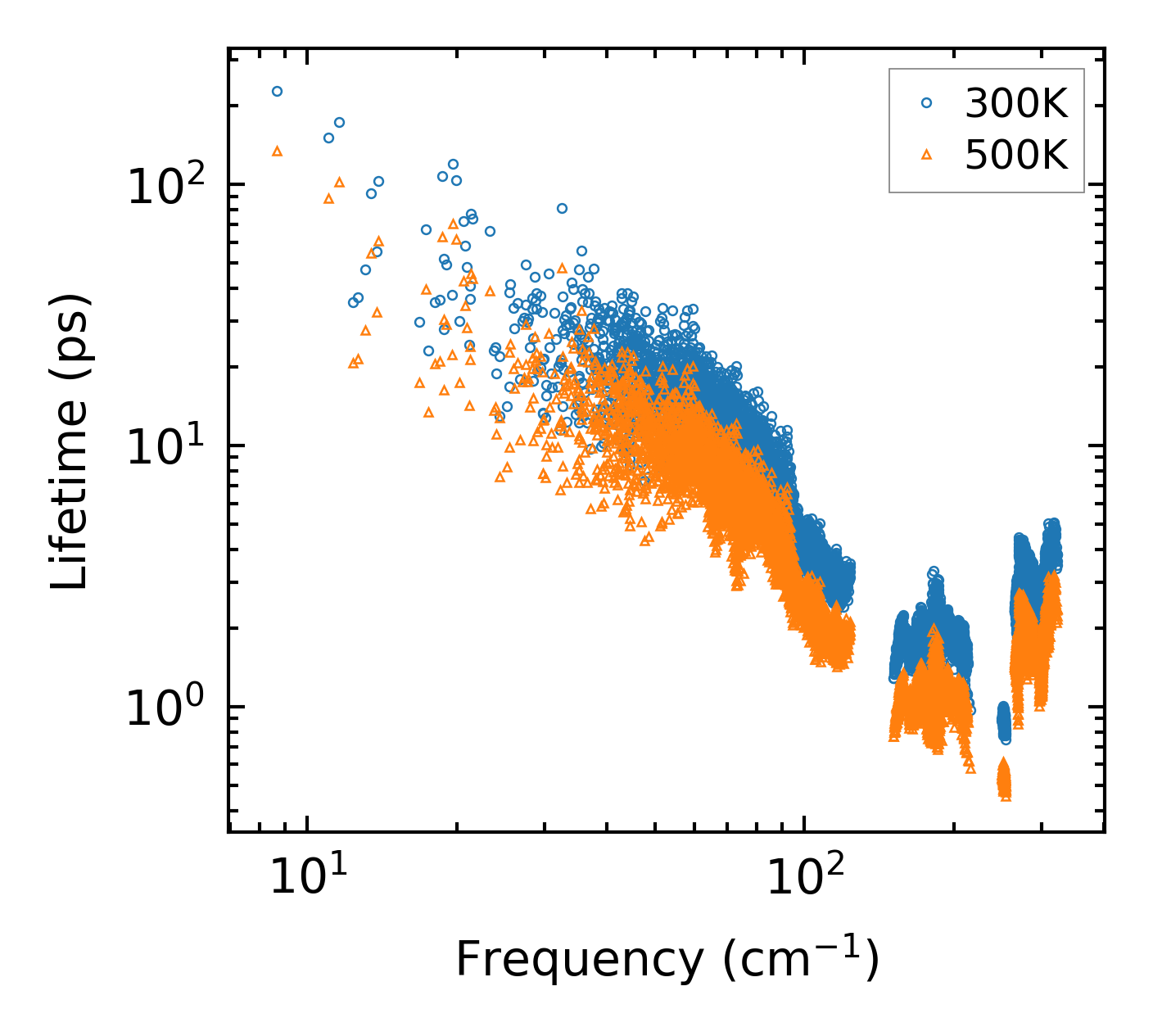

../../_images/fig_lifetime2532.png — (a) Phonon lifetime due to phonon-phonon scattering

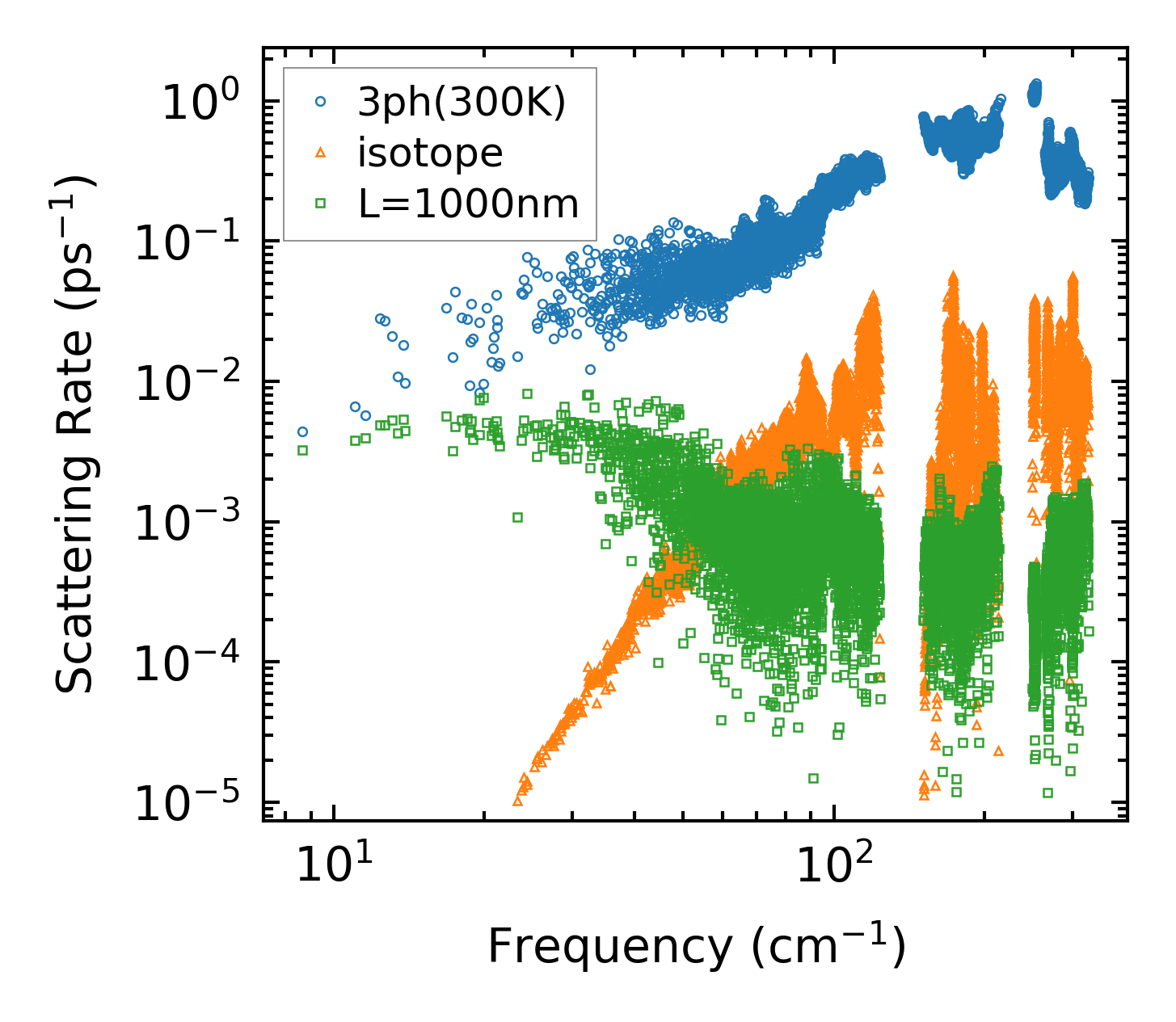

../../_images/fig_scat_rates2531.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

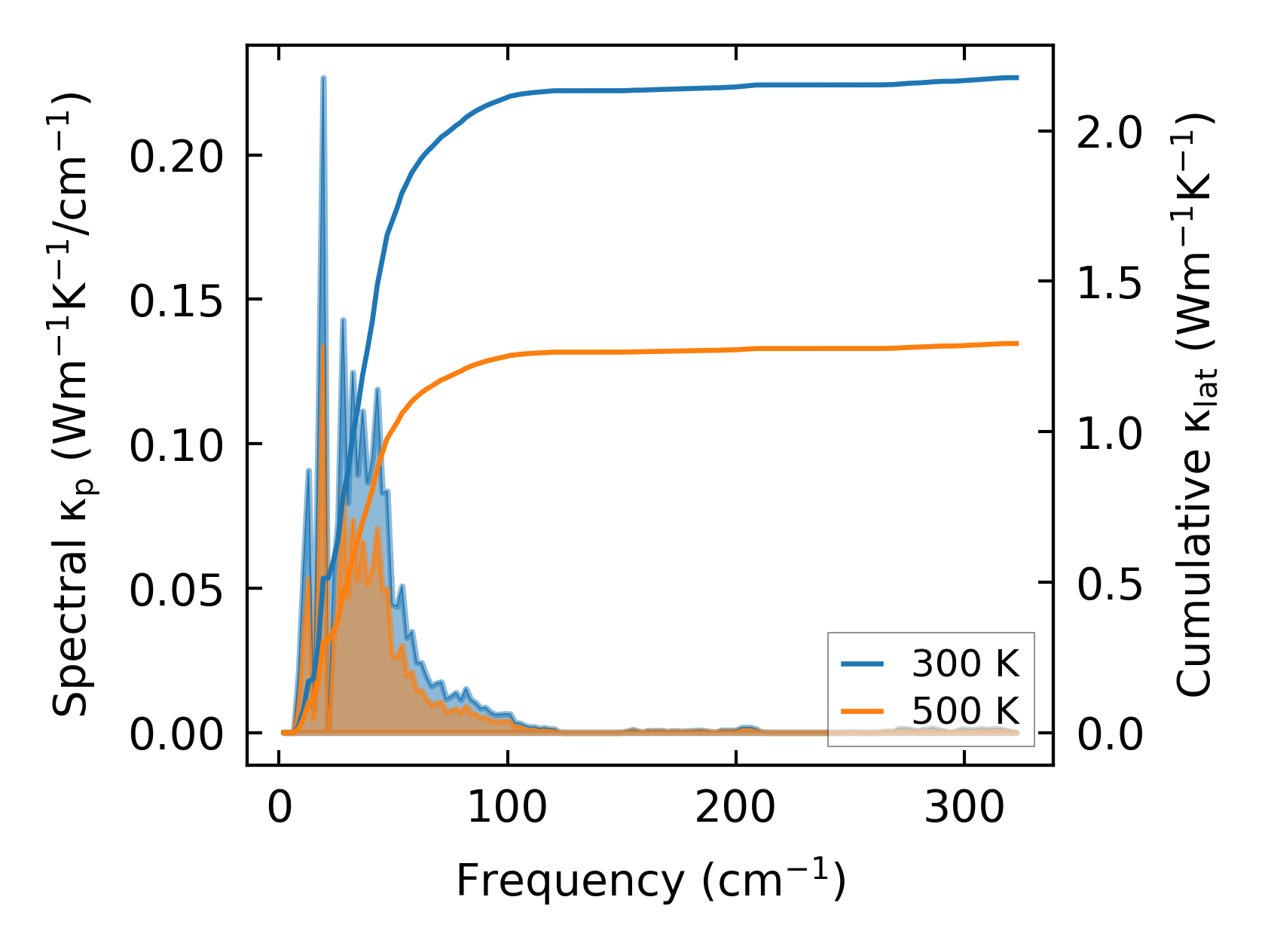

../../_images/fig_cumu_frequency2532.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

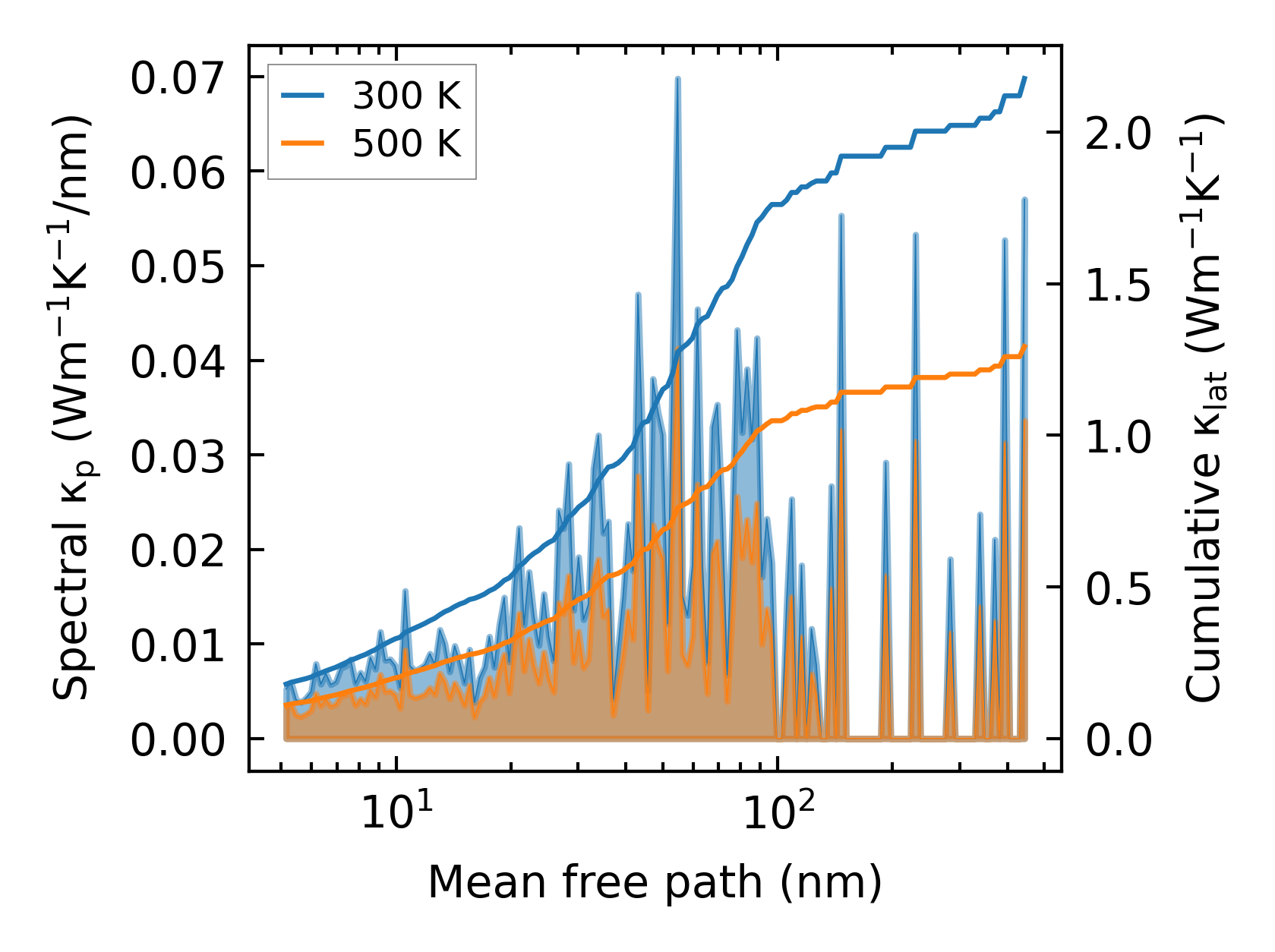

../../_images/fig_cumu_mfp2531.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

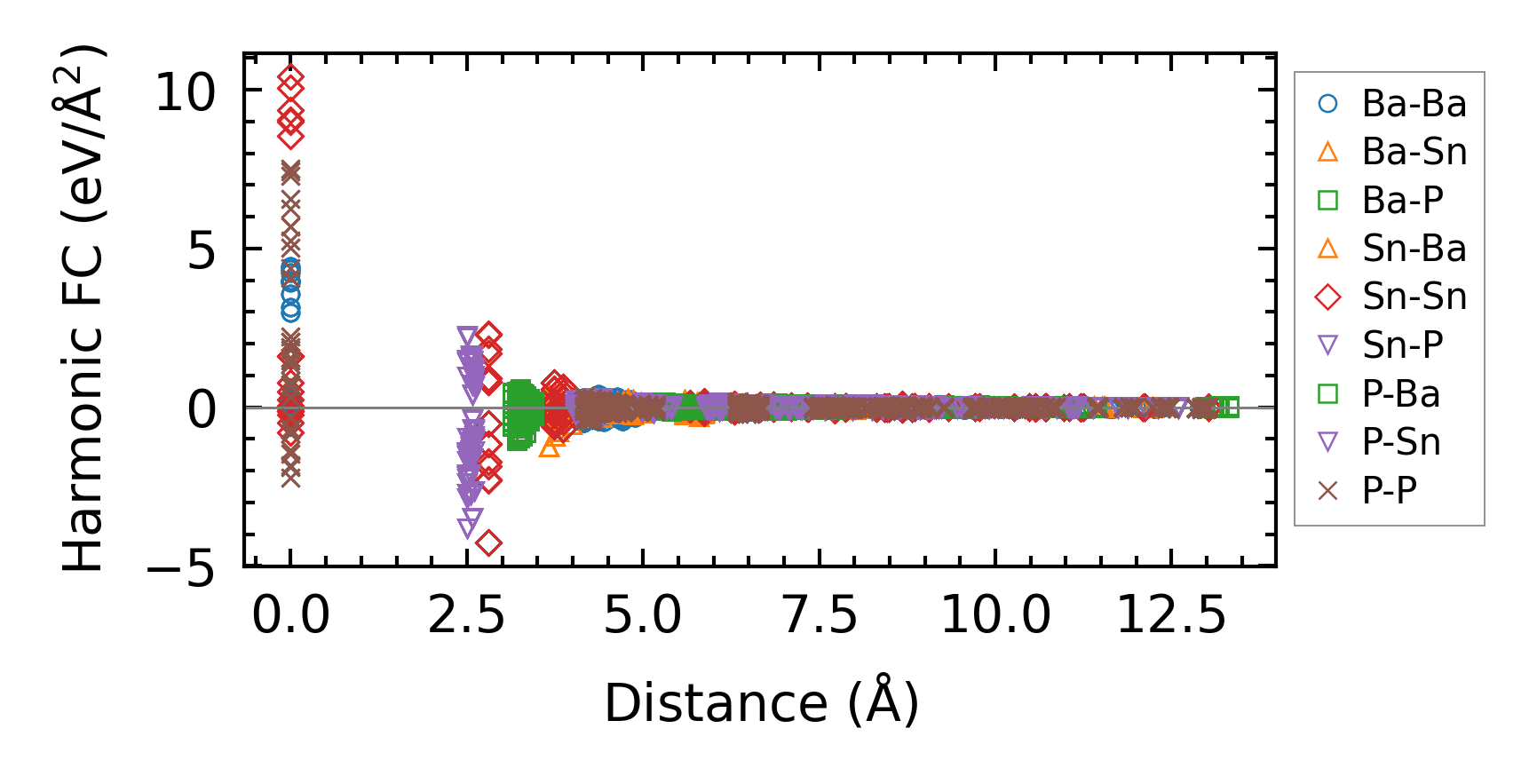

../../_images/fig_fc26047.png — (a) Force constants w.r.t atomic distance

Summary

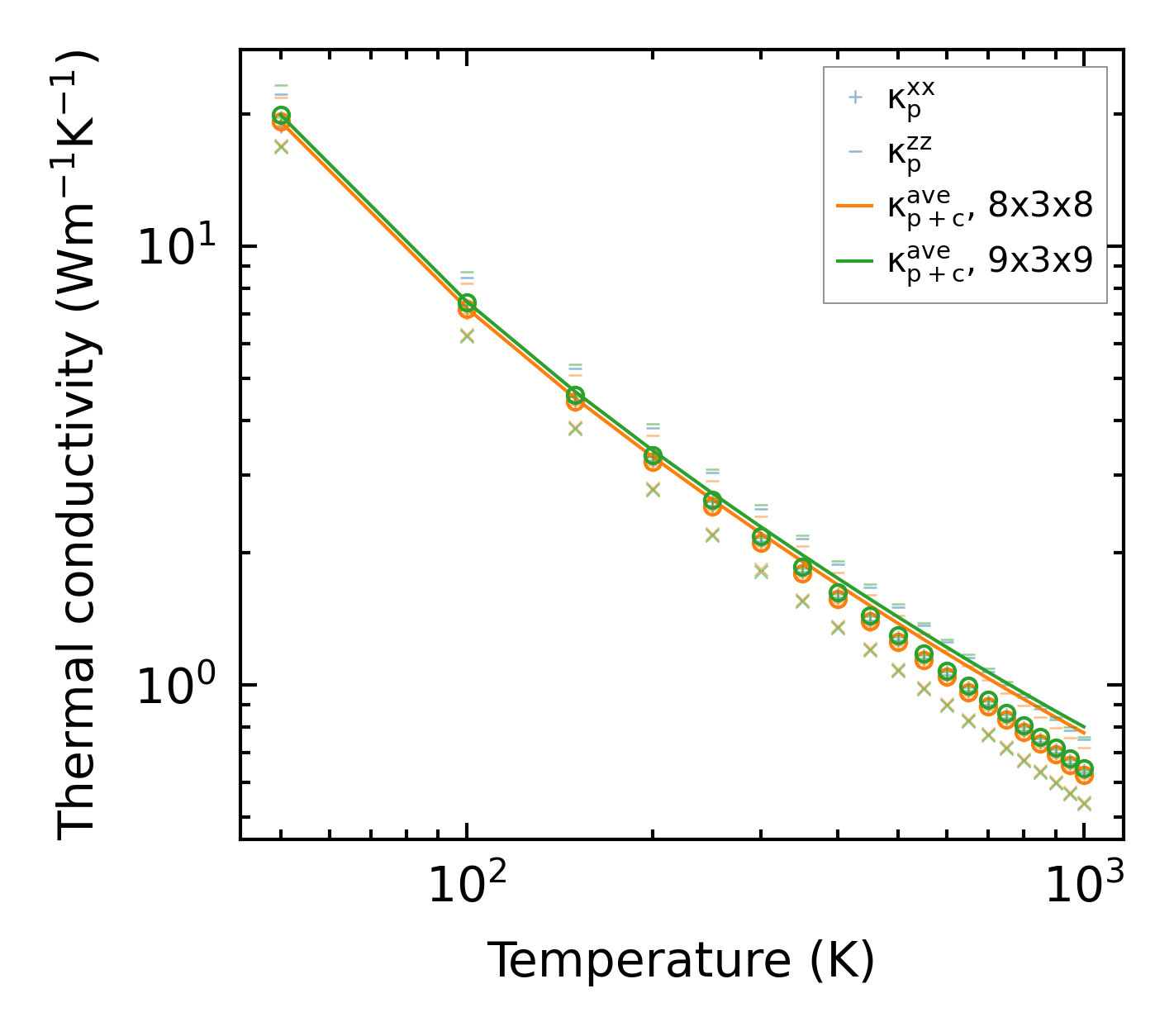

../../_images/fig_kappa4857.png — (a) Temperature-dependent lattice thermal conductivity

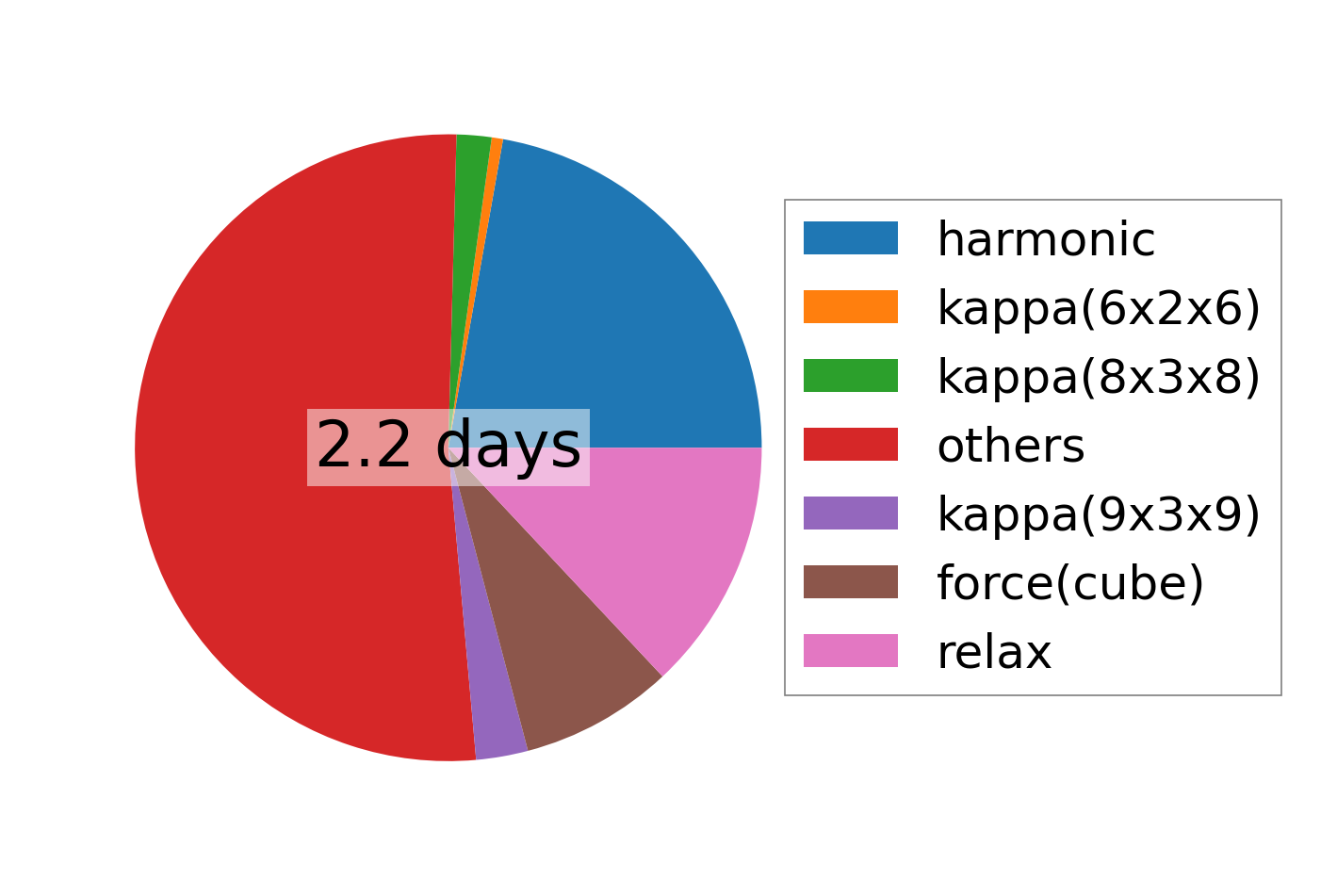

../../_images/fig_times11357.png — (b) Computation time
