mp-584429-2/CoP3O9/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-584429-2.tar.gz

Equation of state

../../_images/fig_bm3464.png — (a) Equation of state

Harmonic properties

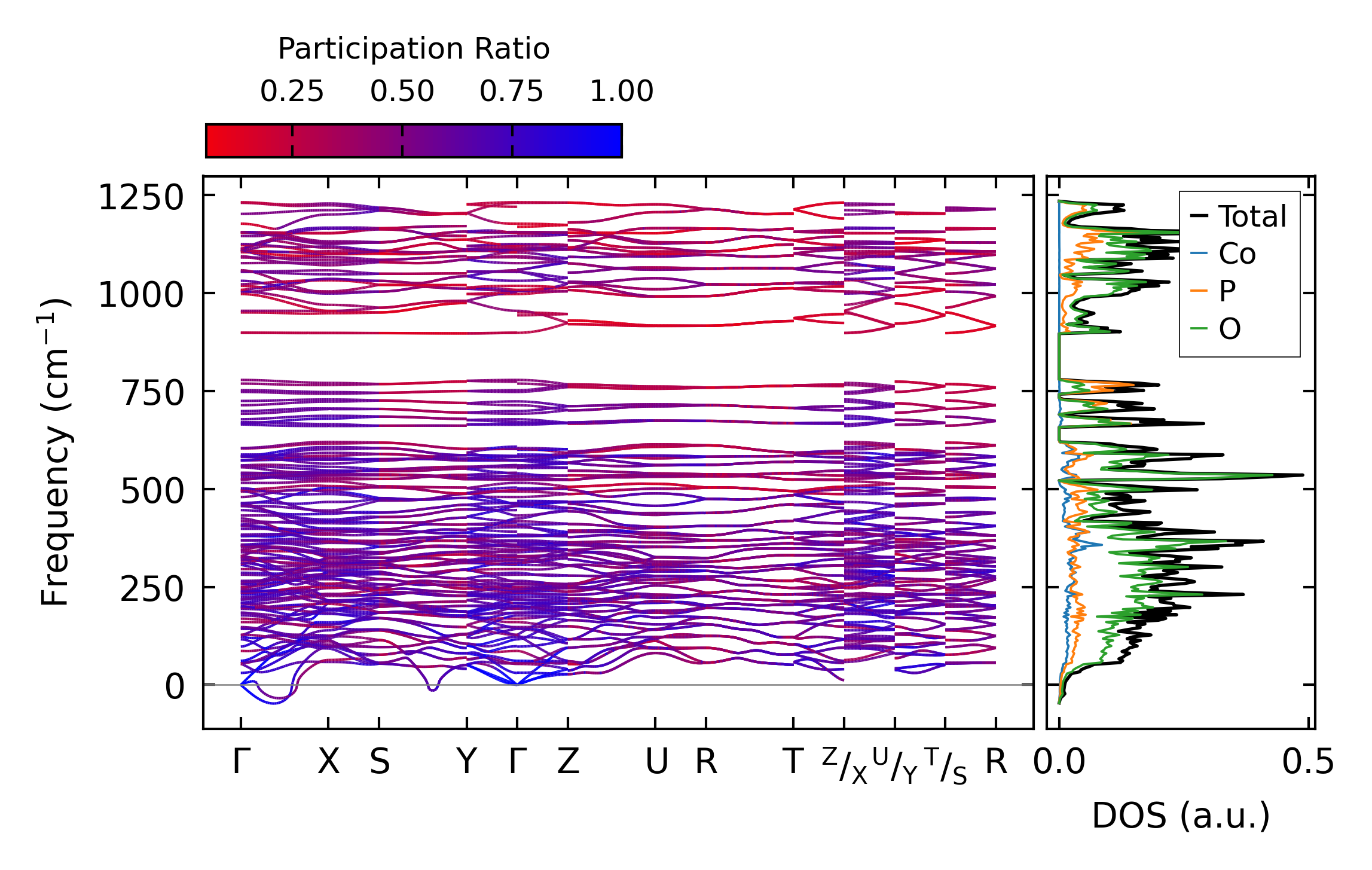

../../_images/fig_bandos_pr6525.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos9384.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo6525.png — (c) Thermodynamic properties

Grüneisen parameters

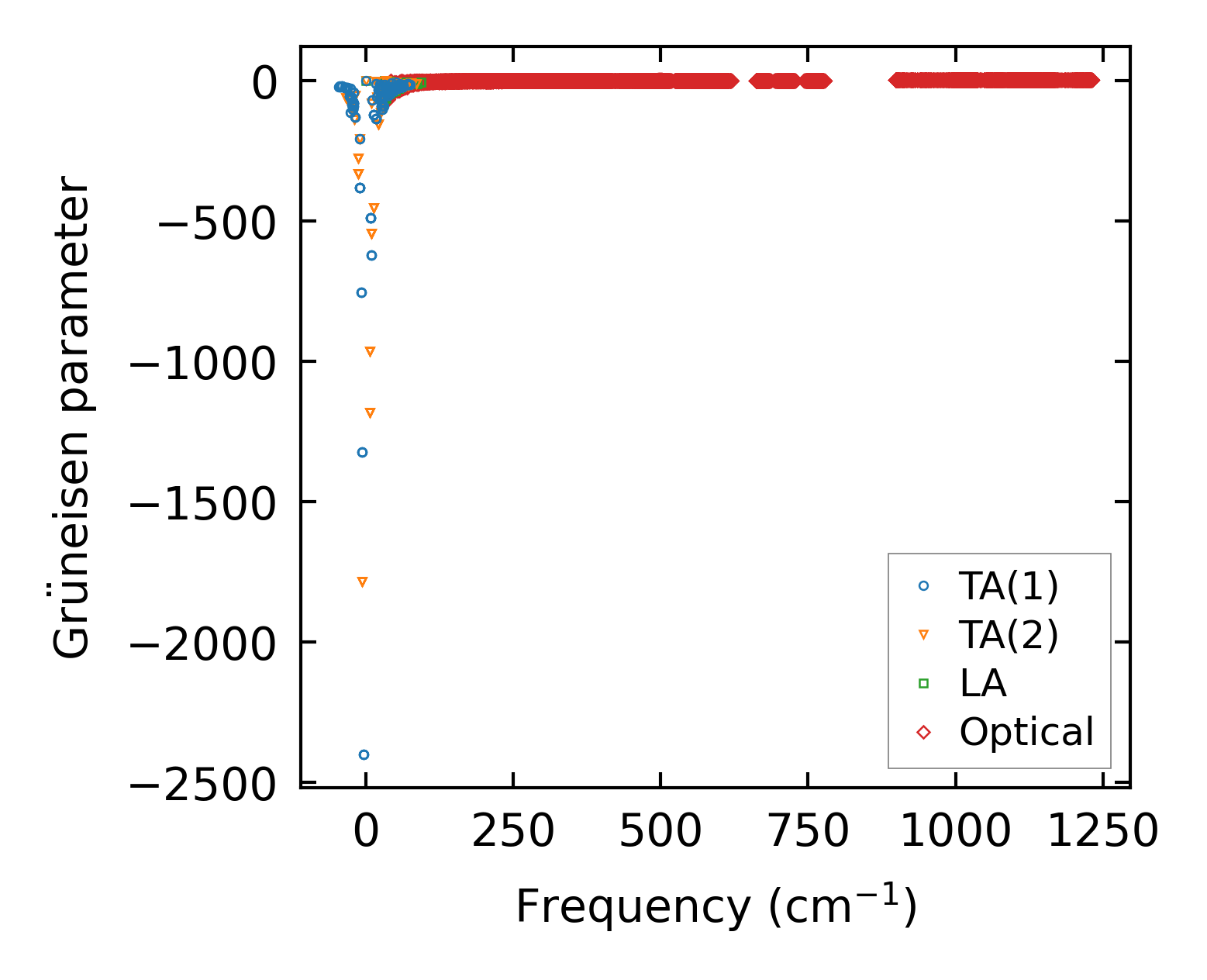

../../_images/fig_gru_all2676.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2676.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x1x1 — q-mesh: 14x6x5, supercell: 3x1x1

../../_images/fig_kappa5087.png — (a) Temperature-dependent lattice thermal conductivity

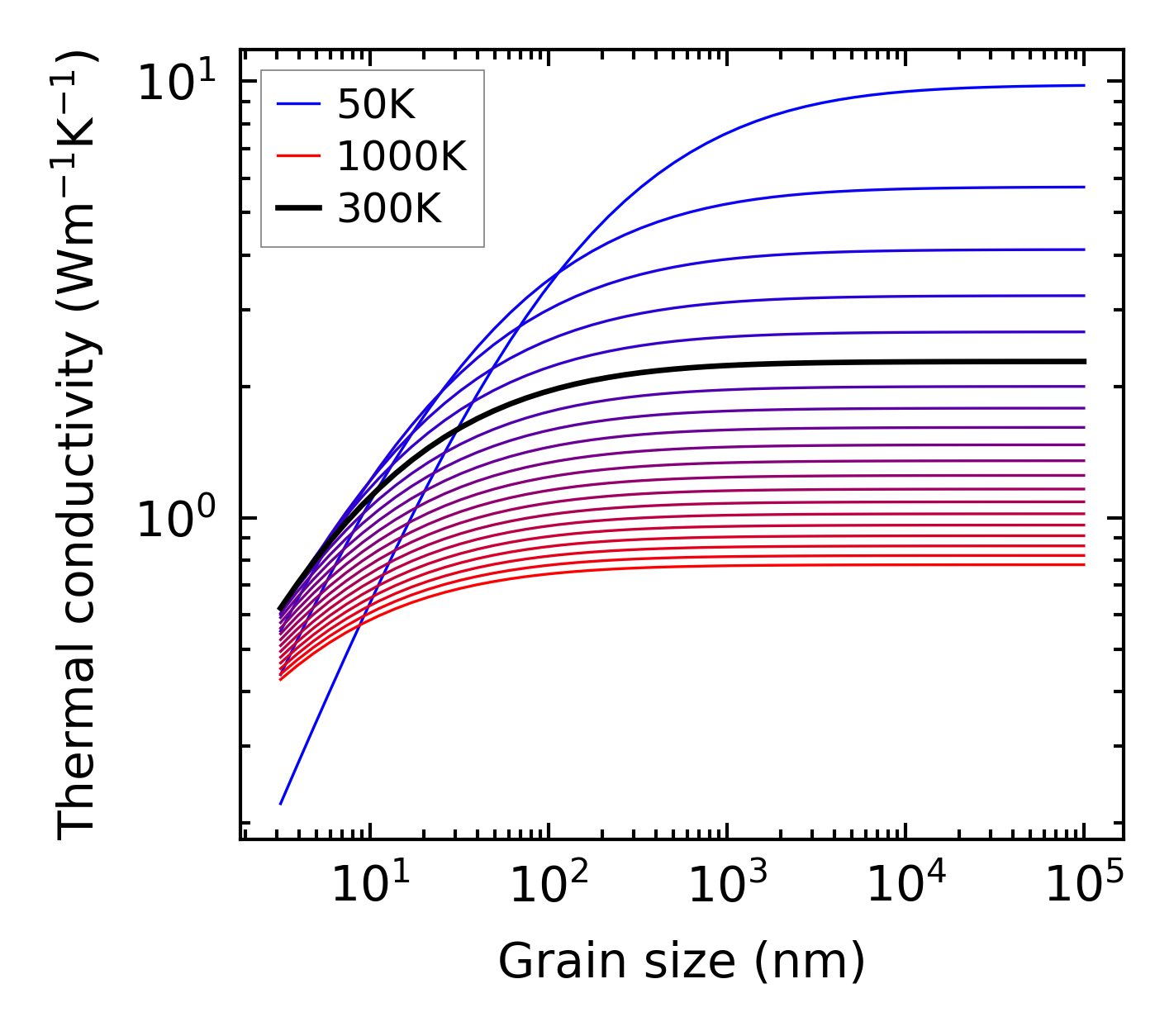

../../_images/fig_kappa_vs_grain_size2713.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

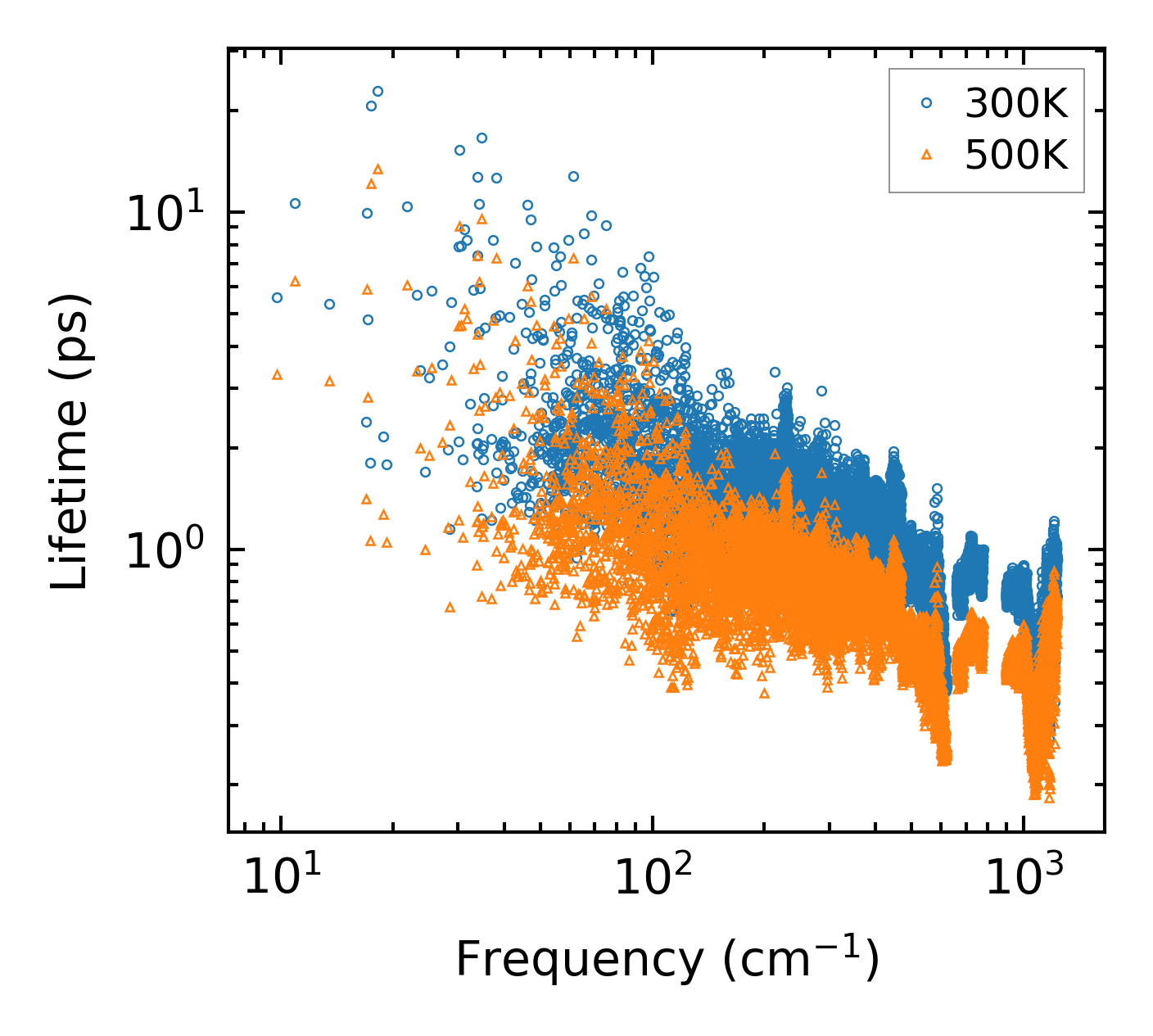

../../_images/fig_lifetime2652.png — (a) Phonon lifetime due to phonon-phonon scattering

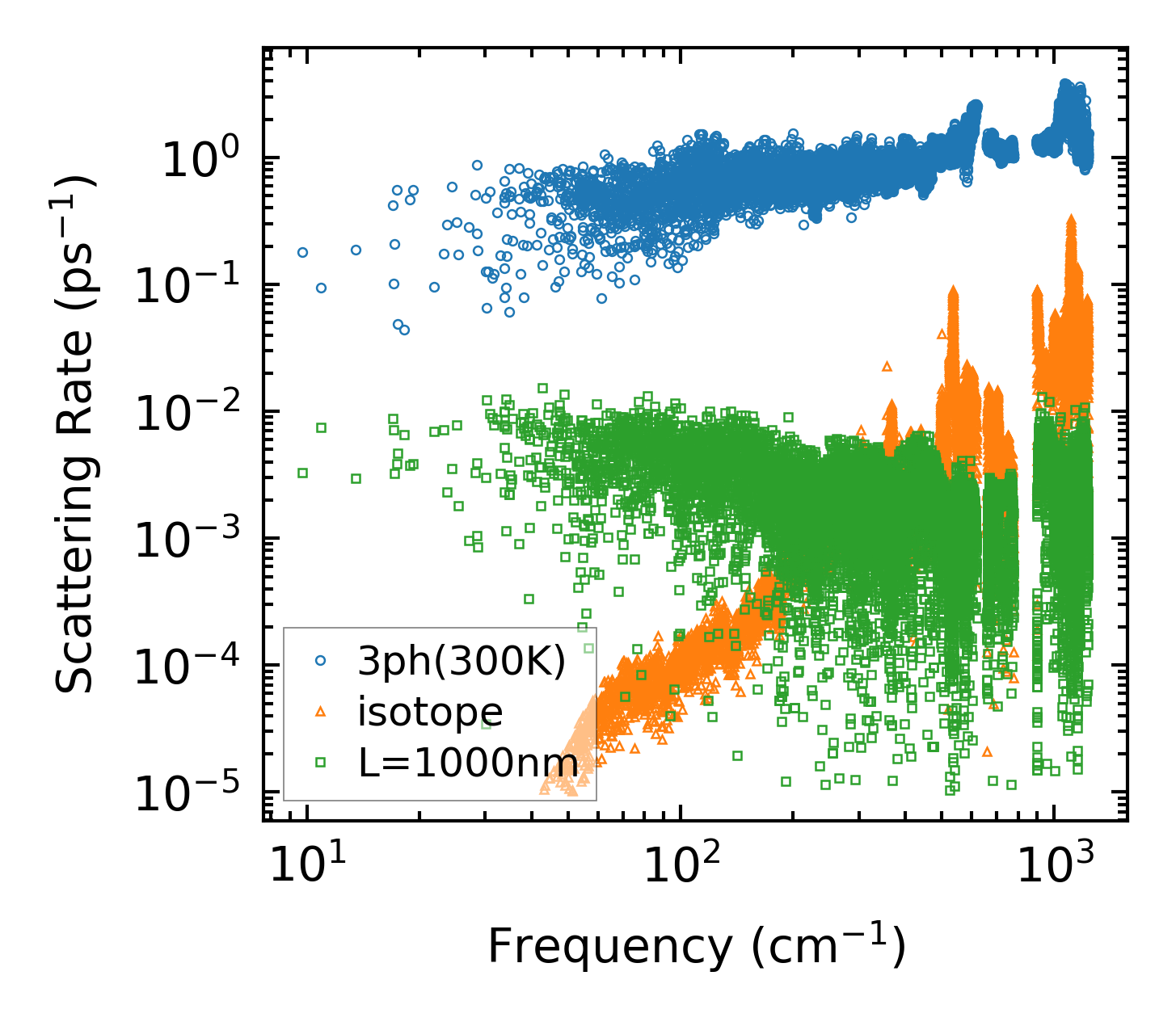

../../_images/fig_scat_rates2651.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

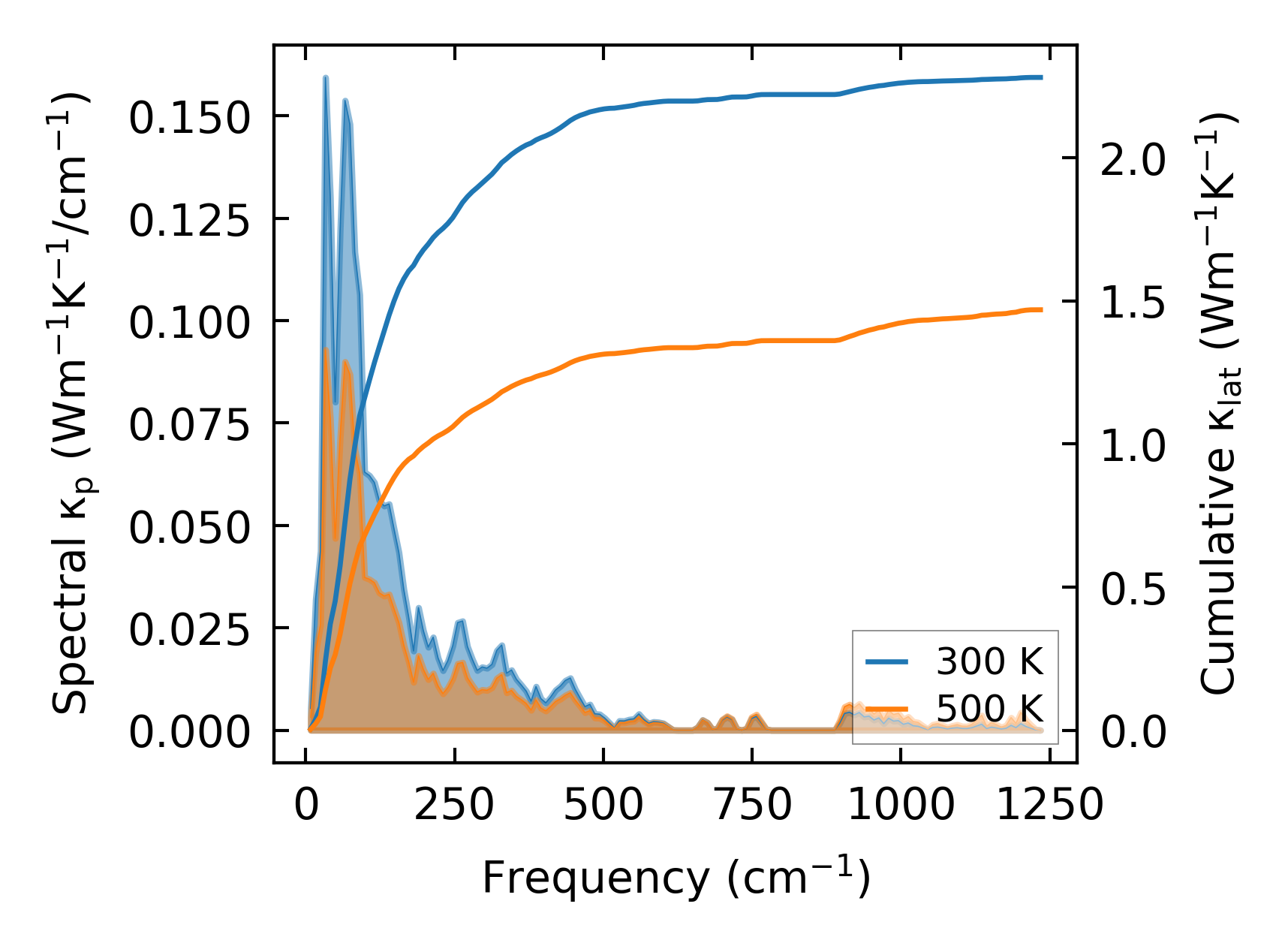

../../_images/fig_cumu_frequency2652.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

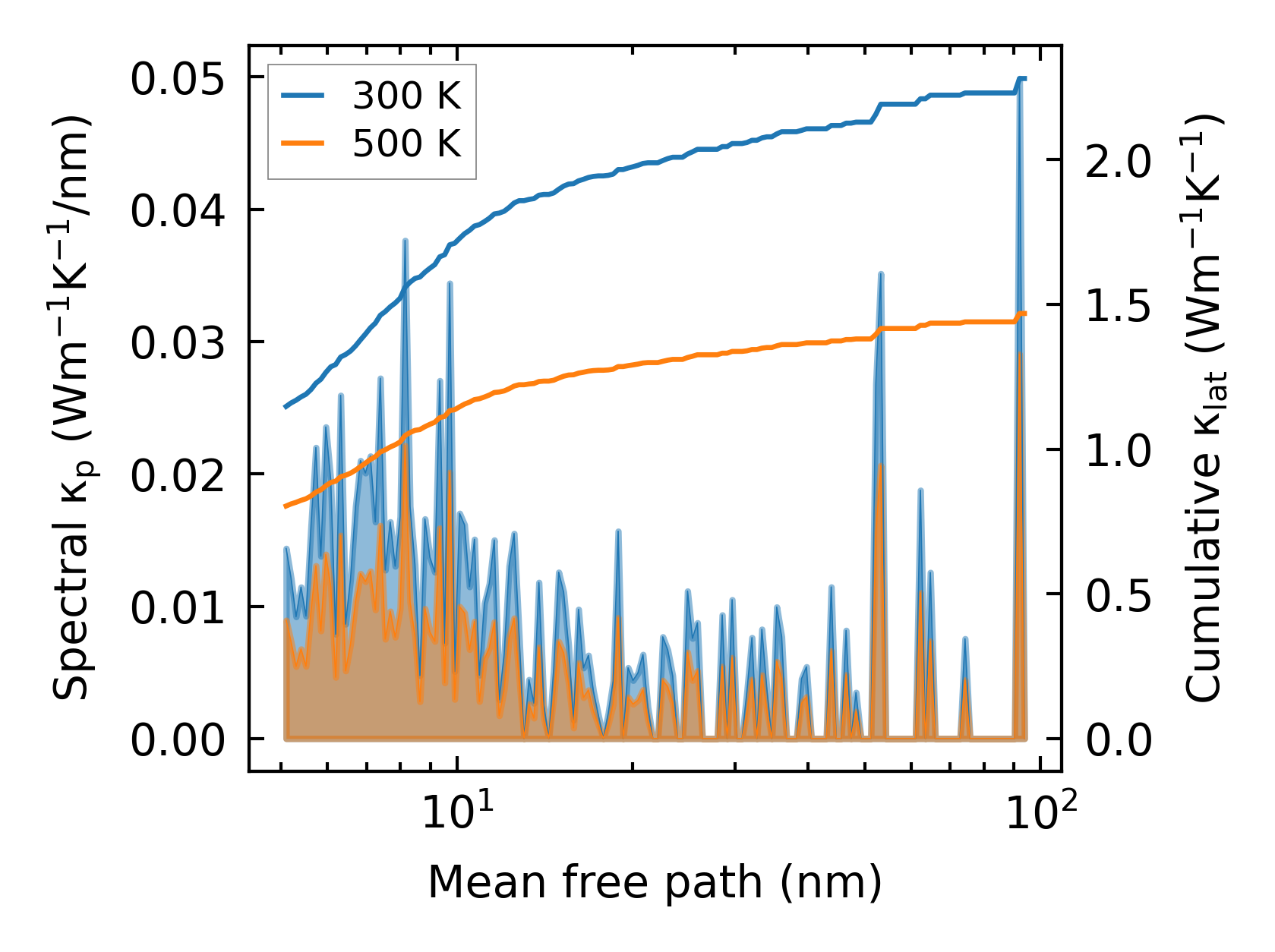

../../_images/fig_cumu_mfp2651.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

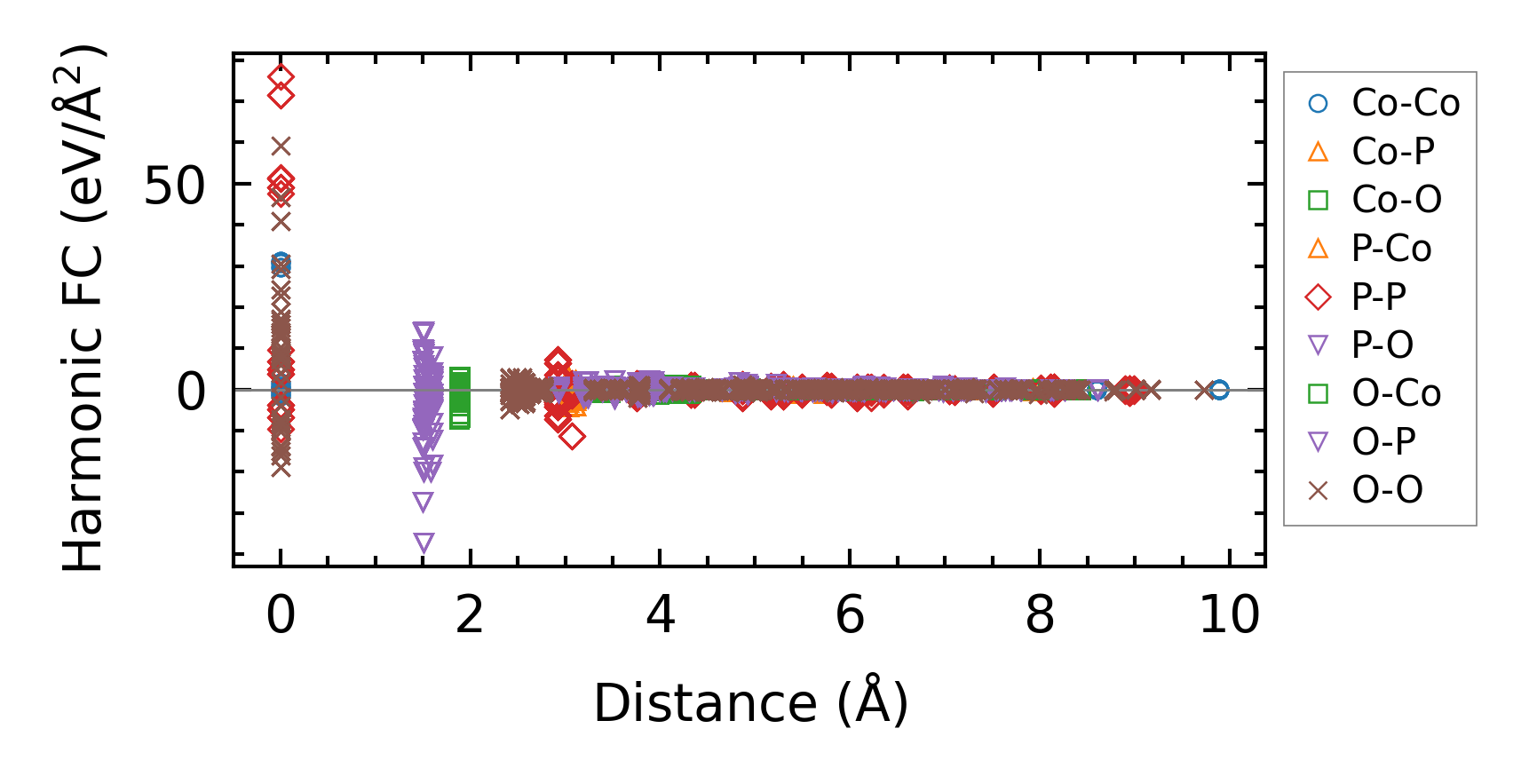

../../_images/fig_fc26315.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times11732.png — (a) Computation time
