mp-543011/ZnS/anharm

Space group: R3m (160)
Link: Materials Project
Download: mp-543011.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9365.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9365.png — (b) Thermodynamic properties

Grüneisen parameters

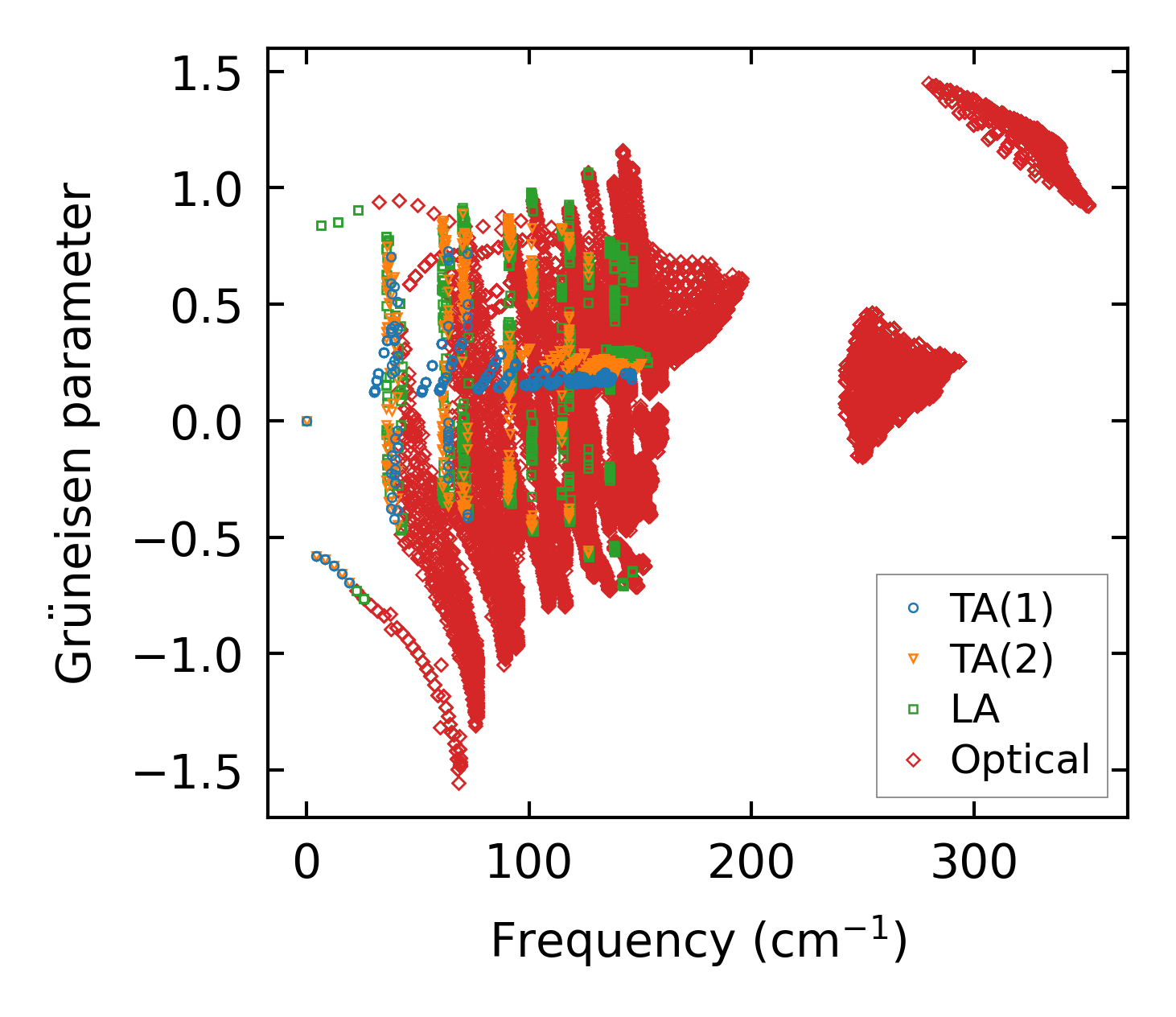

../../_images/fig_gru_all3730.png — (a) Grüneisen parameters

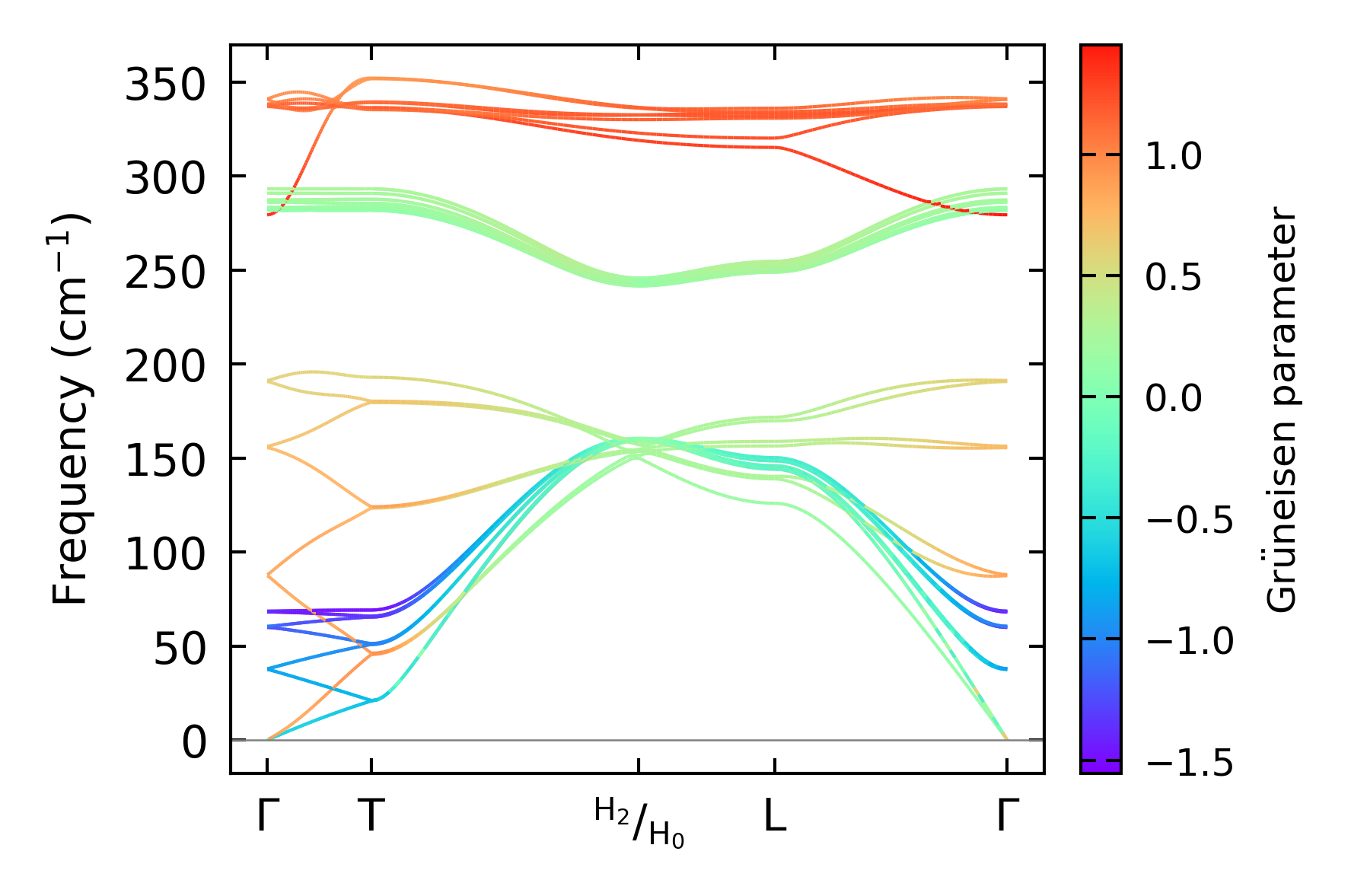

../../_images/fig_gruneisen3730.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

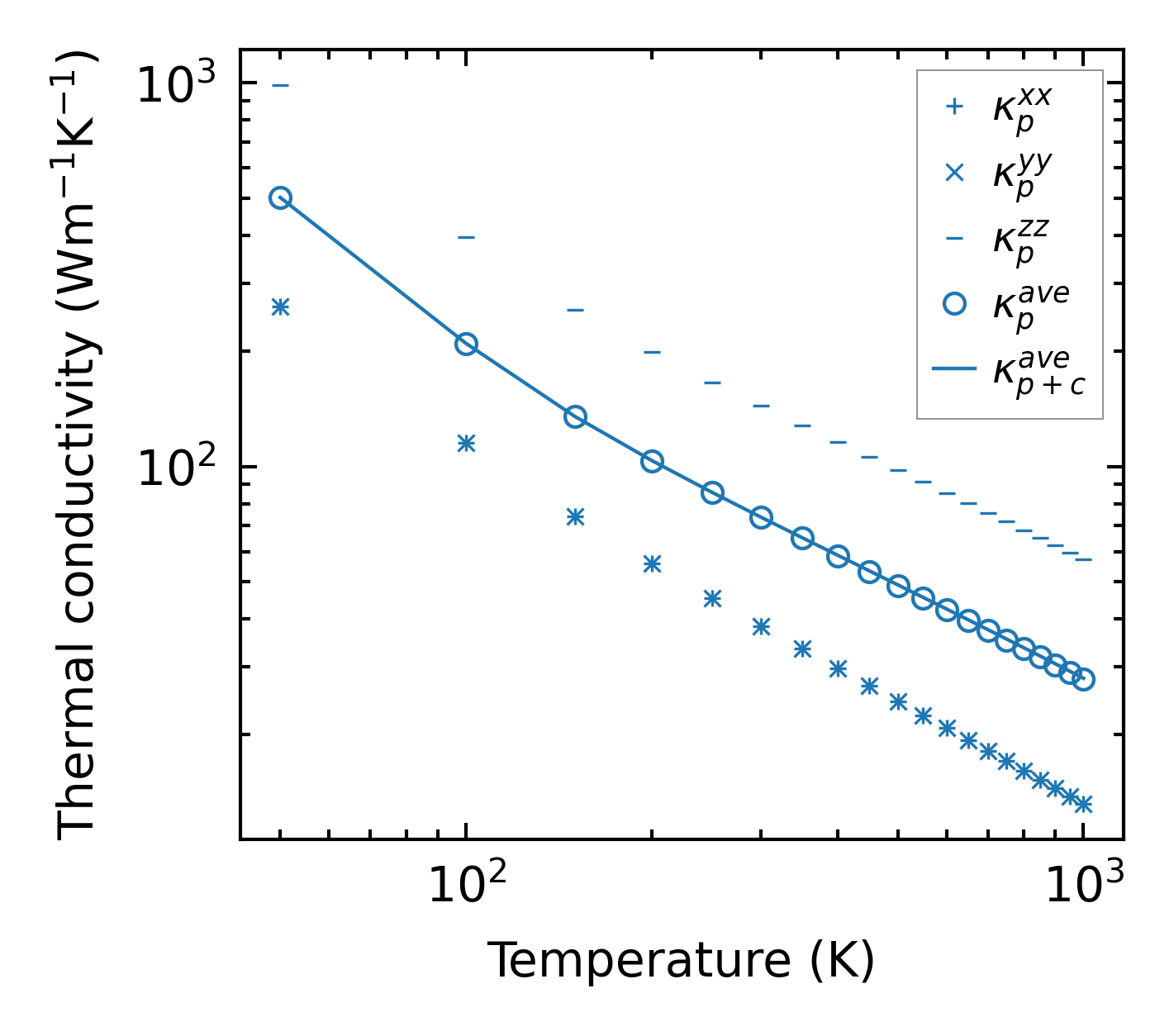

../../_images/fig_kappa7040.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3779.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

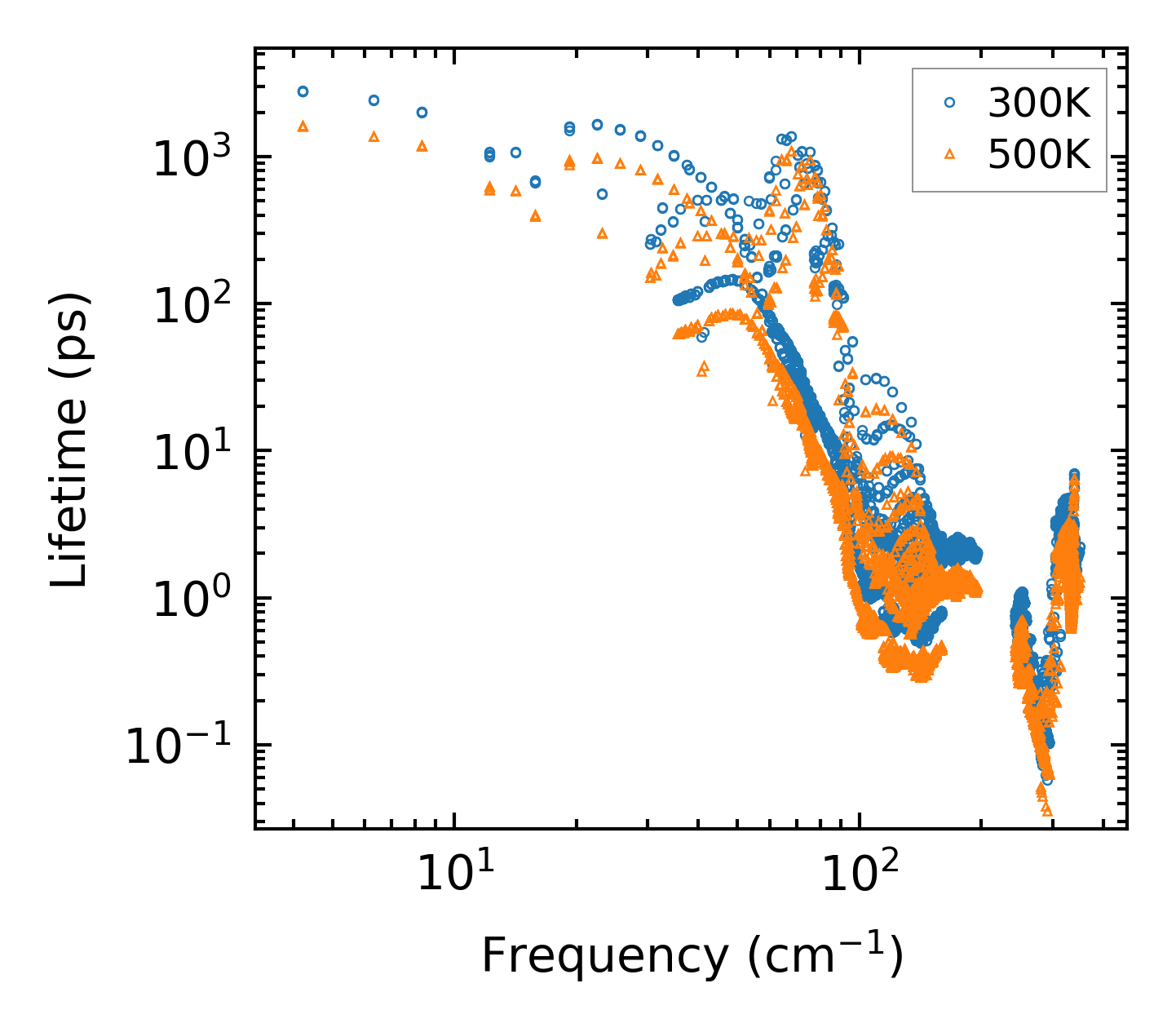

../../_images/fig_lifetime3695.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3694.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

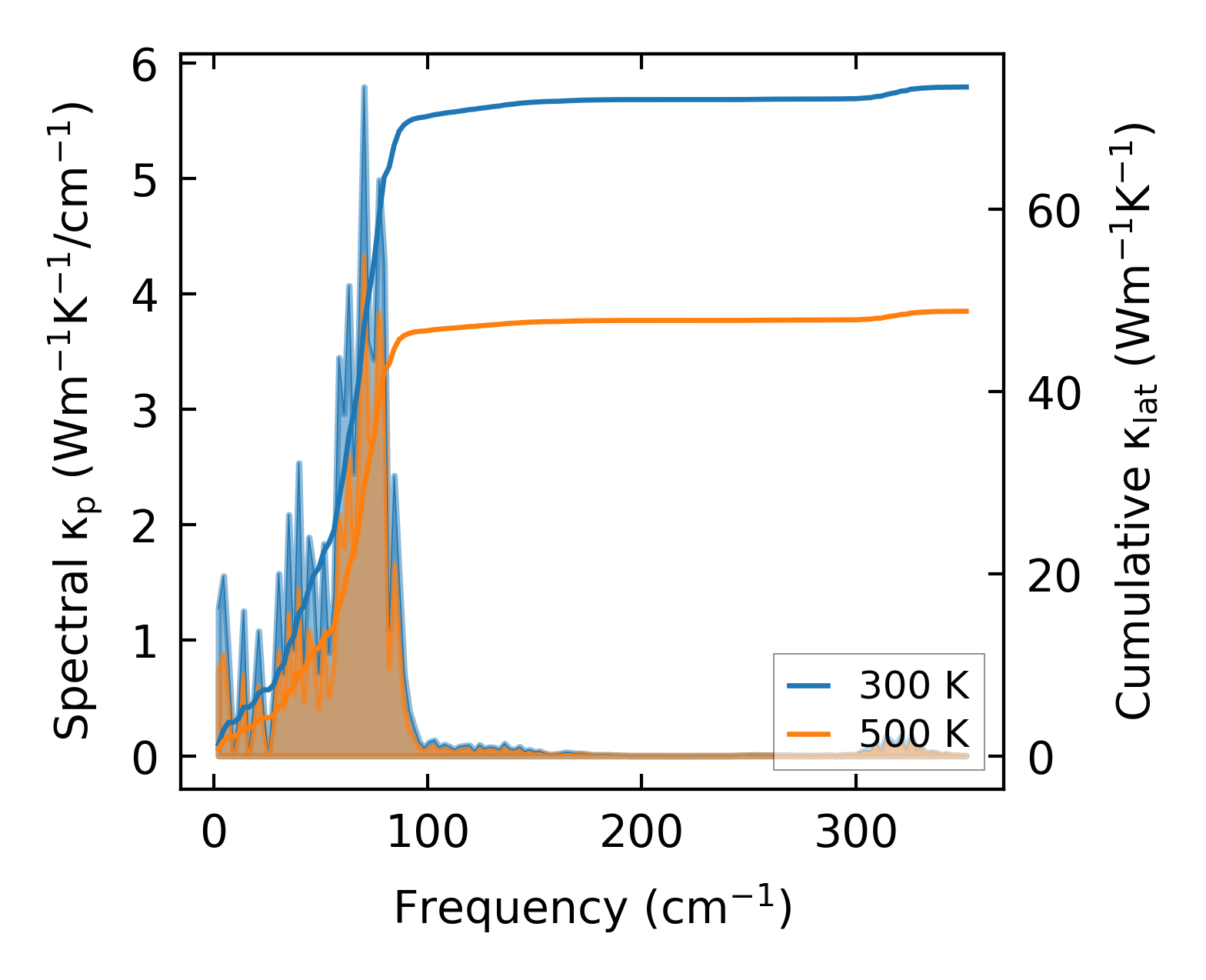

../../_images/fig_cumu_frequency3695.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3694.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

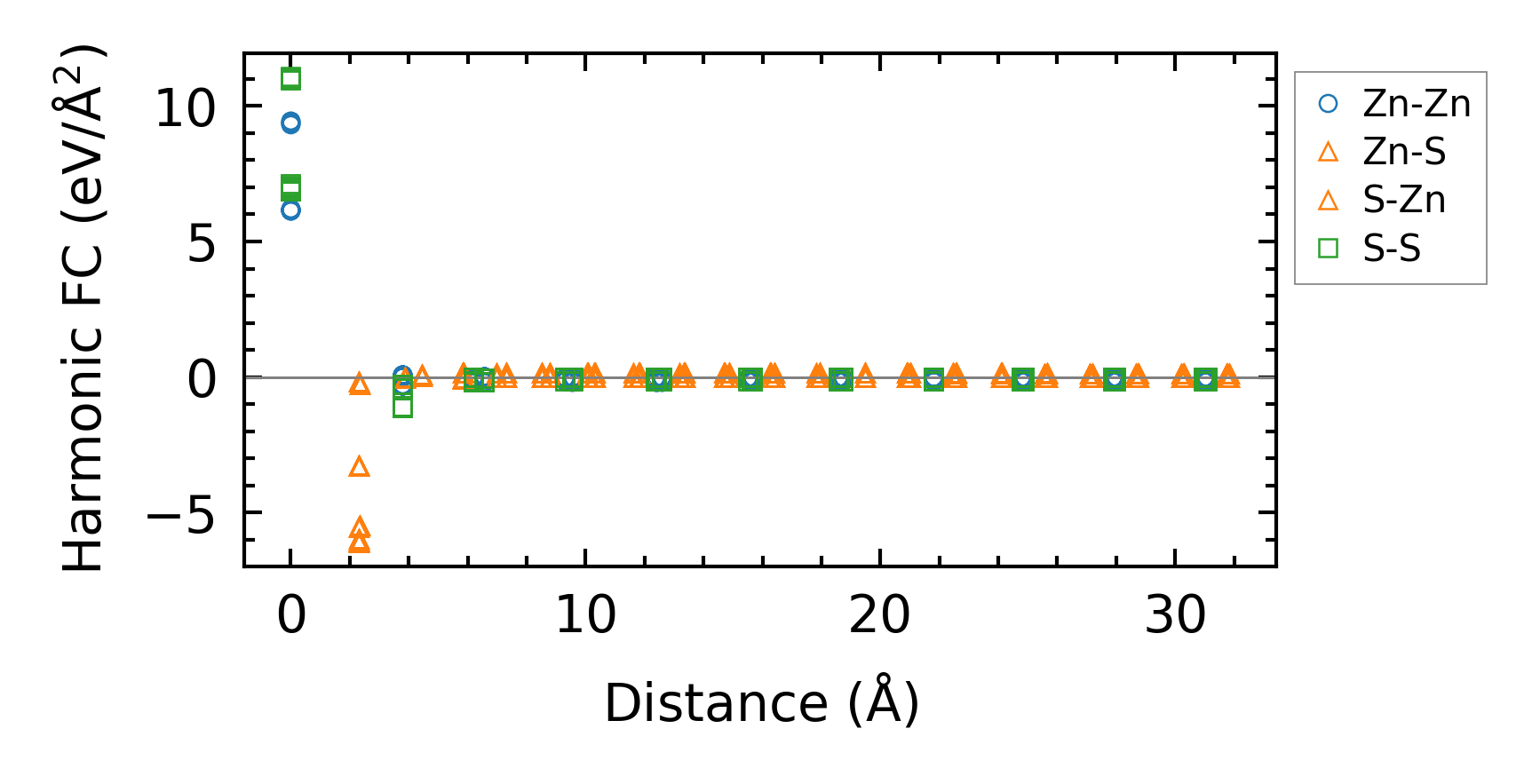

../../_images/fig_fc29127.png — (a) Force constants w.r.t atomic distance

Summary

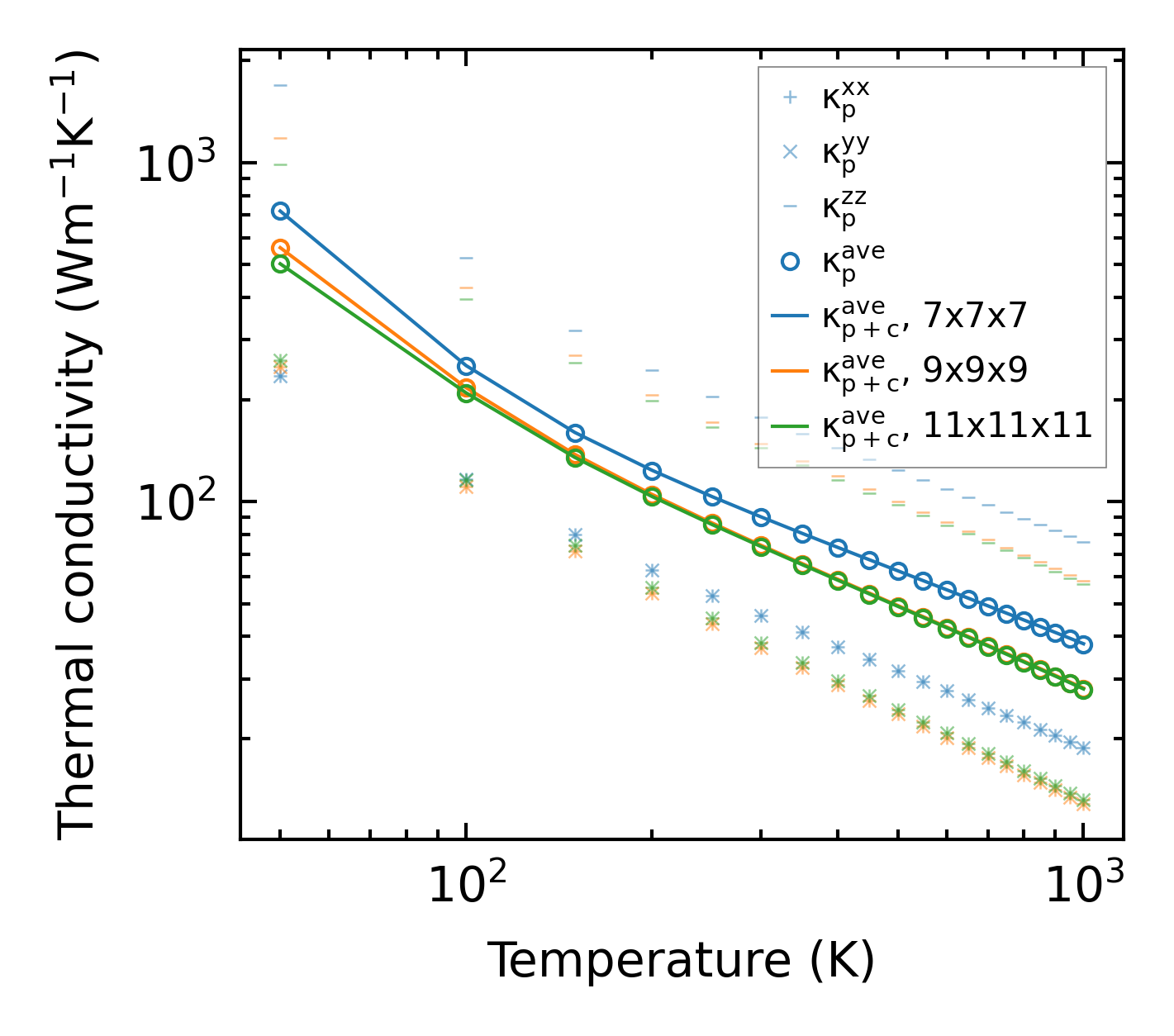

../../_images/fig_kappa7041.png — (a) Temperature-dependent lattice thermal conductivity

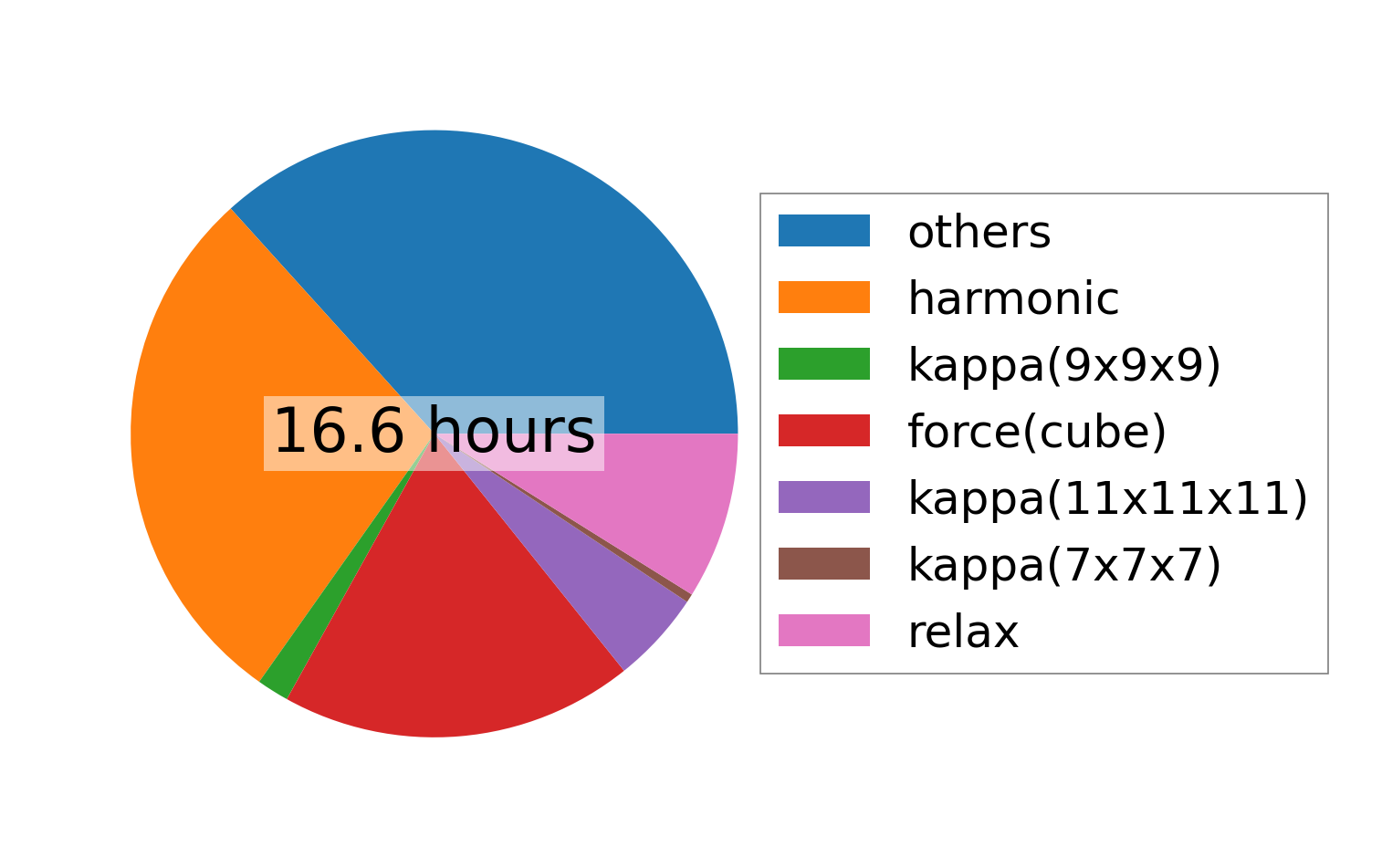

../../_images/fig_times16322.png — (b) Computation time
