mp-532727-2/K2YZrP3O12/anharm

Space group: P2_13 (198)
Link: Materials Project
Download: mp-532727-2.tar.gz

Equation of state

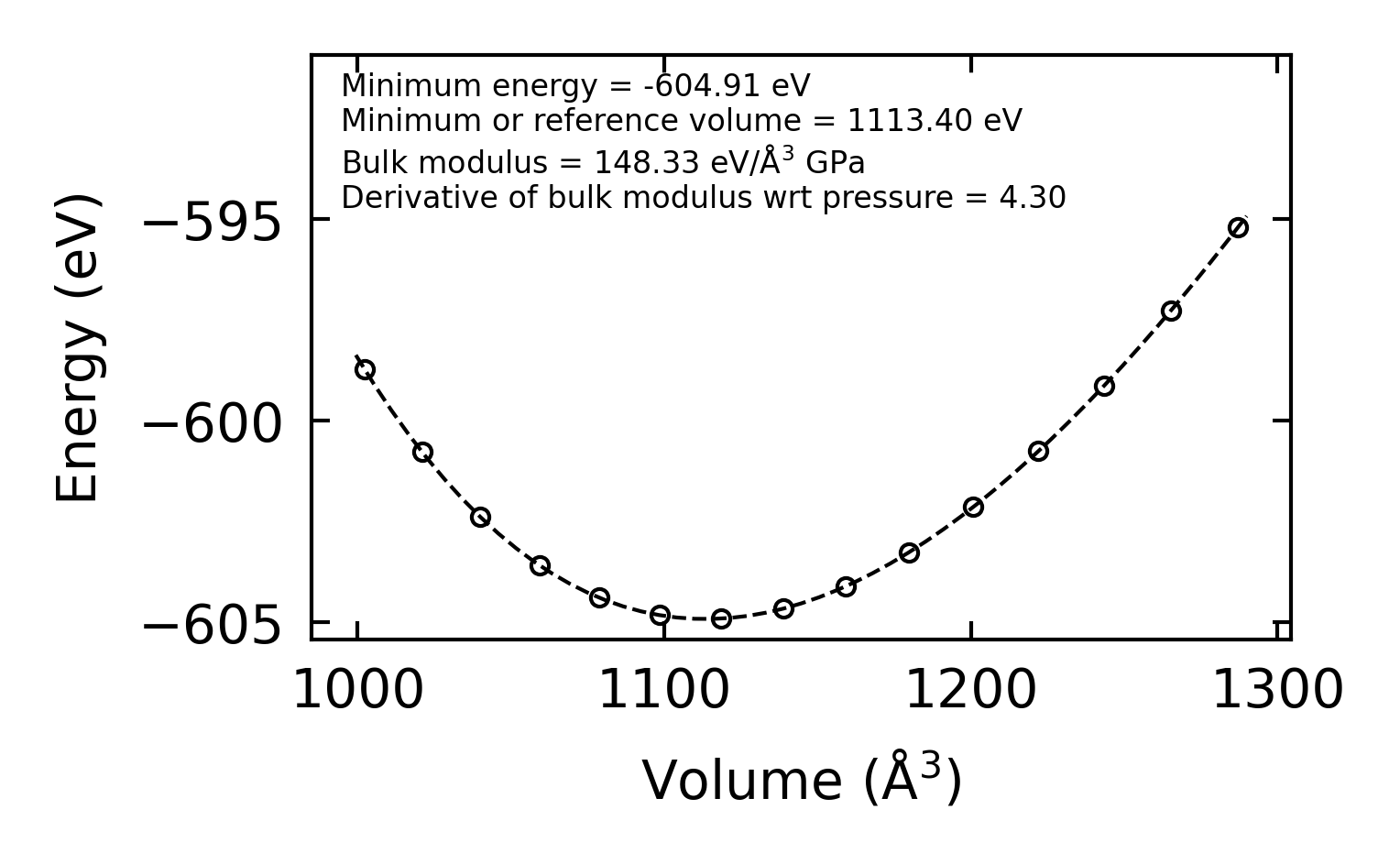

../../_images/fig_bm4819.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9669.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos13521.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9669.png — (c) Thermodynamic properties

Grüneisen parameters

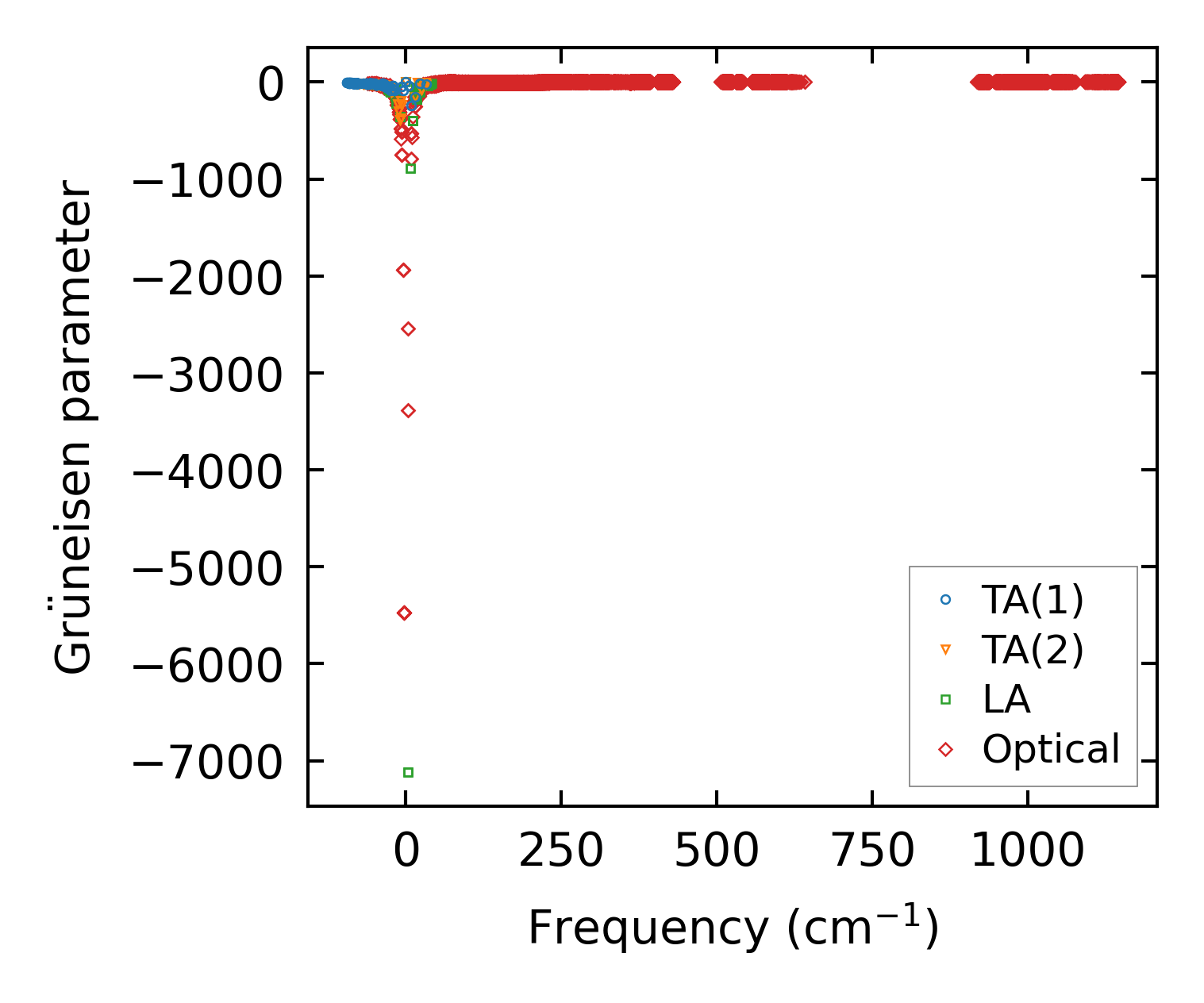

../../_images/fig_gru_all3861.png — (a) Grüneisen parameters

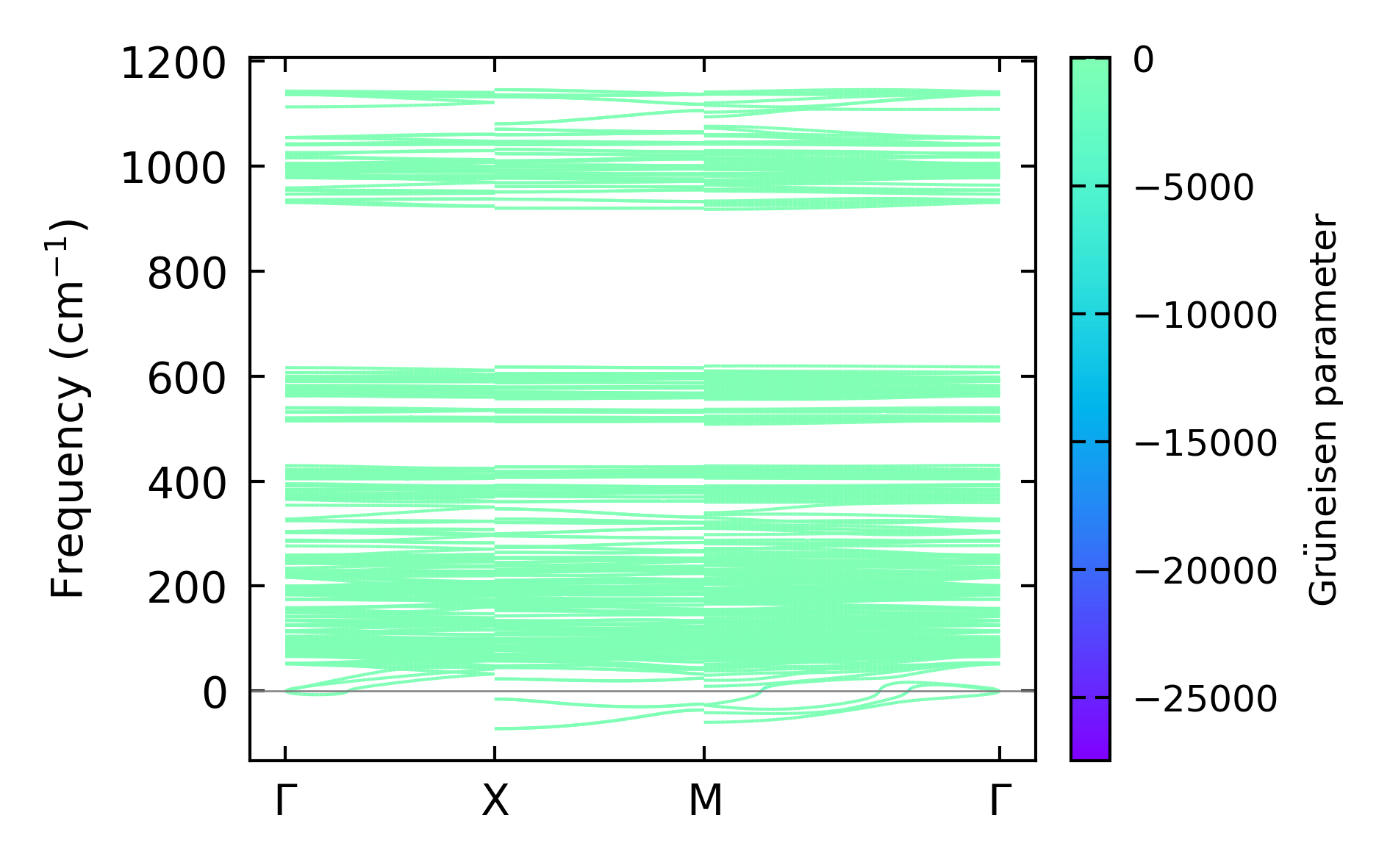

../../_images/fig_gruneisen3861.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 6x6x6, supercell: 2x2x2

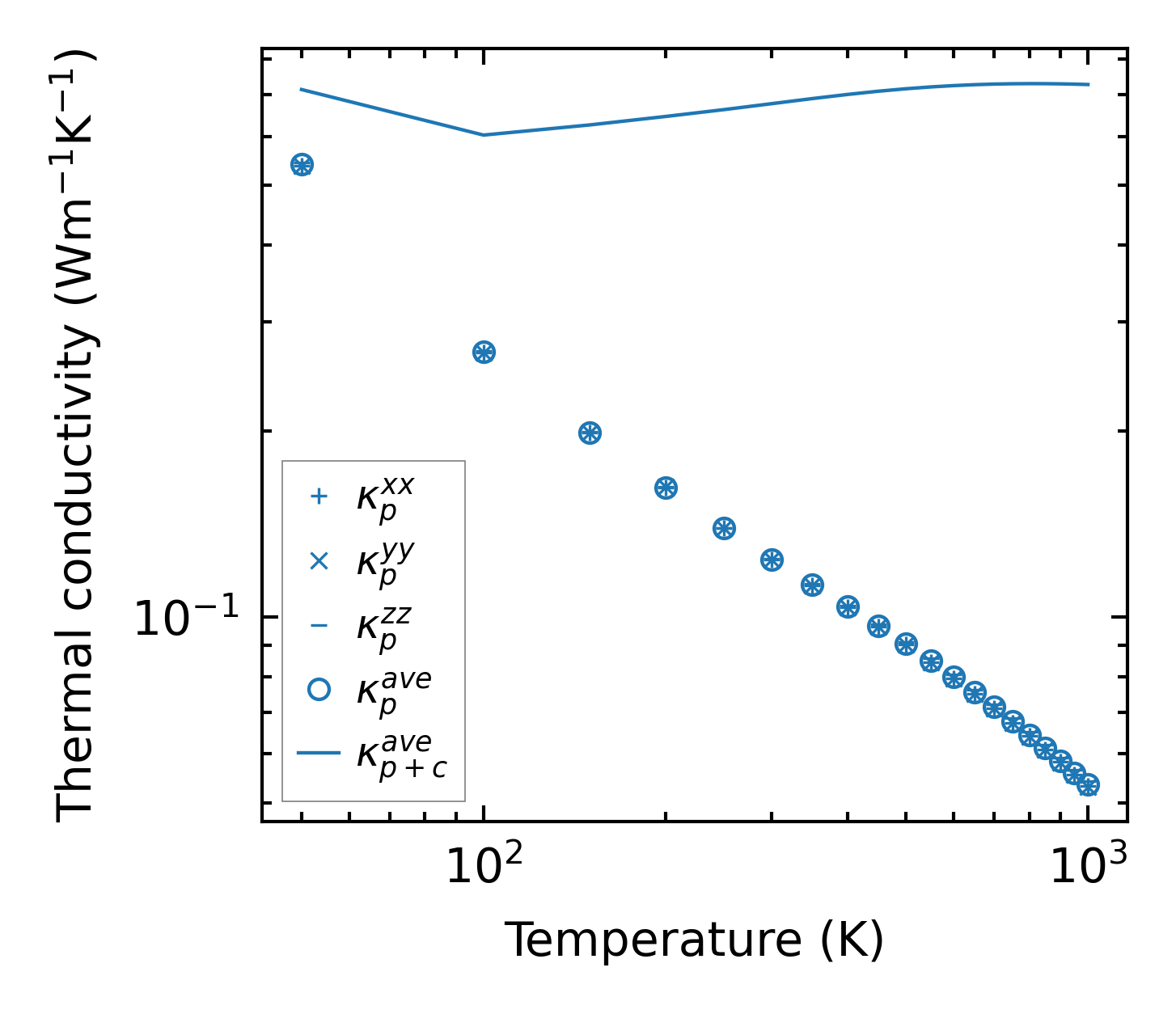

../../_images/fig_kappa7276.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3909.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3825.png — (a) Phonon lifetime due to phonon-phonon scattering

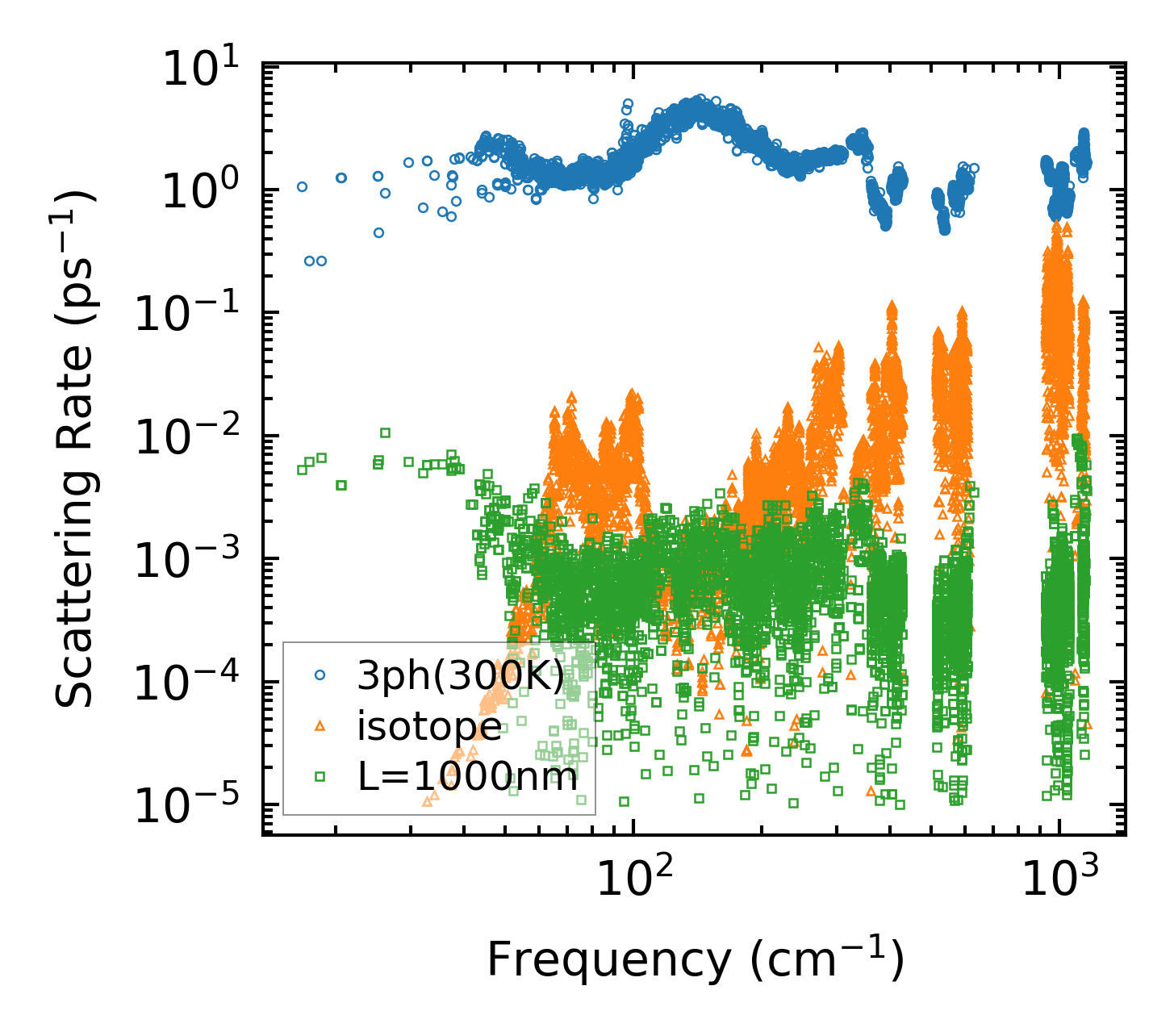

../../_images/fig_scat_rates3824.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3825.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

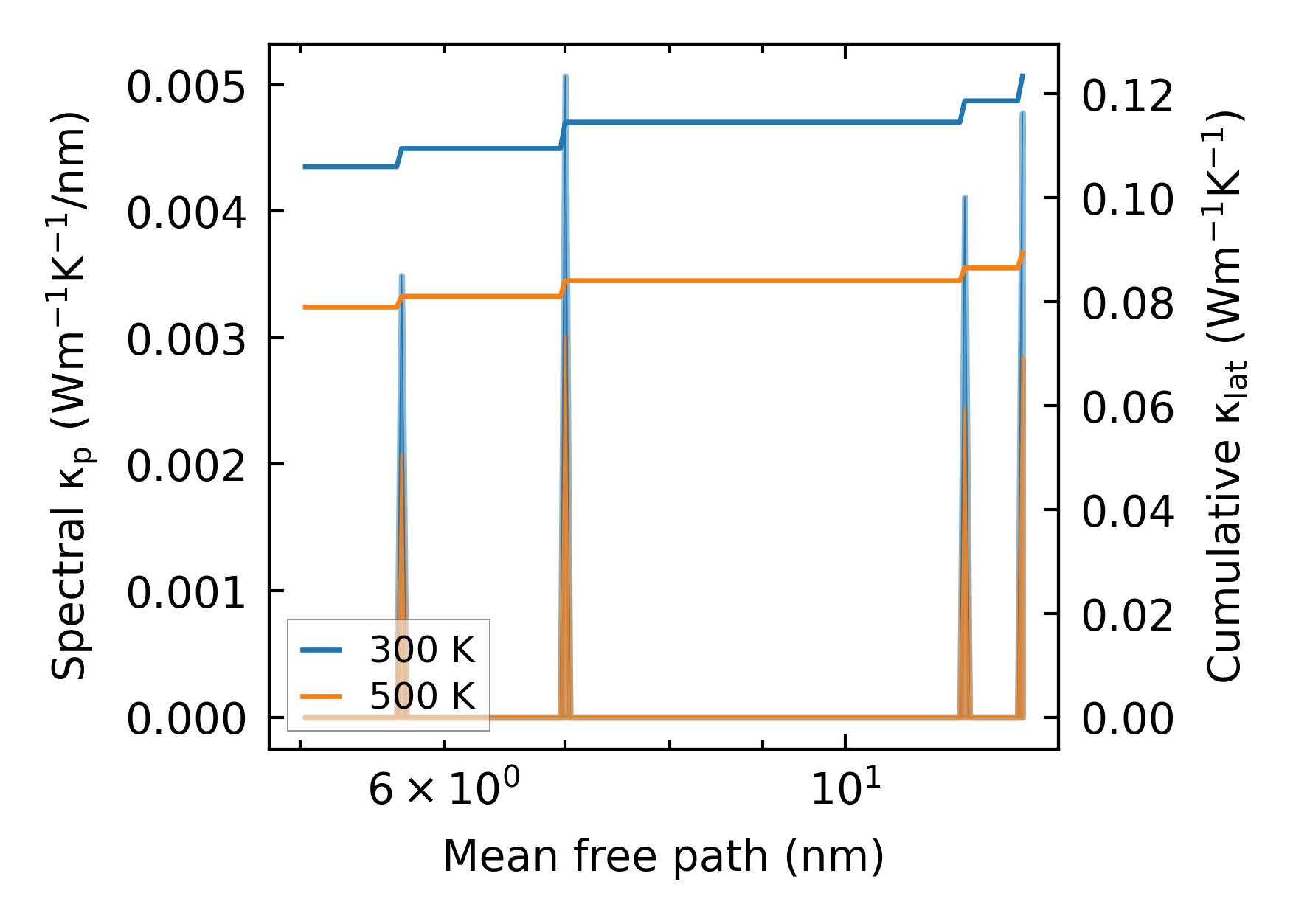

../../_images/fig_cumu_mfp3824.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

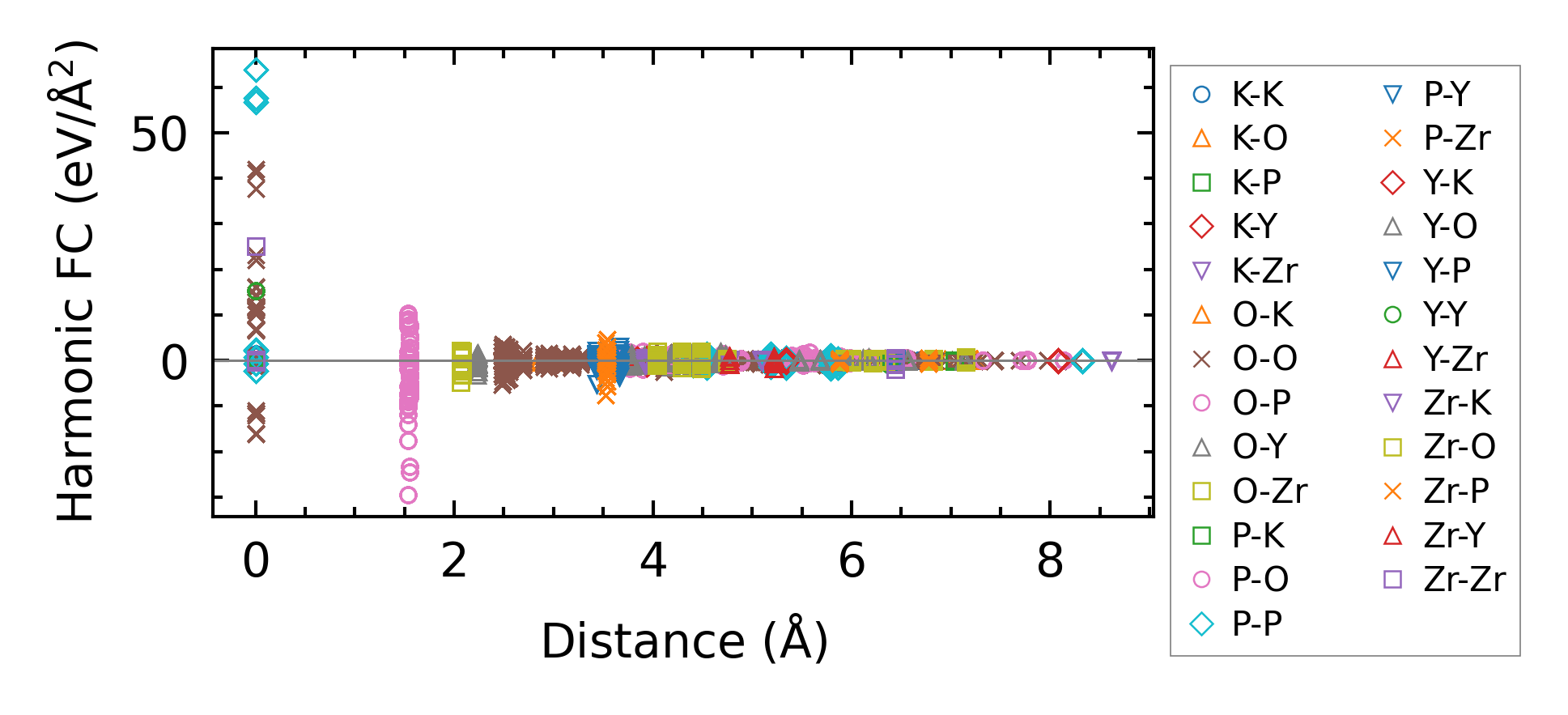

../../_images/fig_fc29430.png — (a) Force constants w.r.t atomic distance

Summary

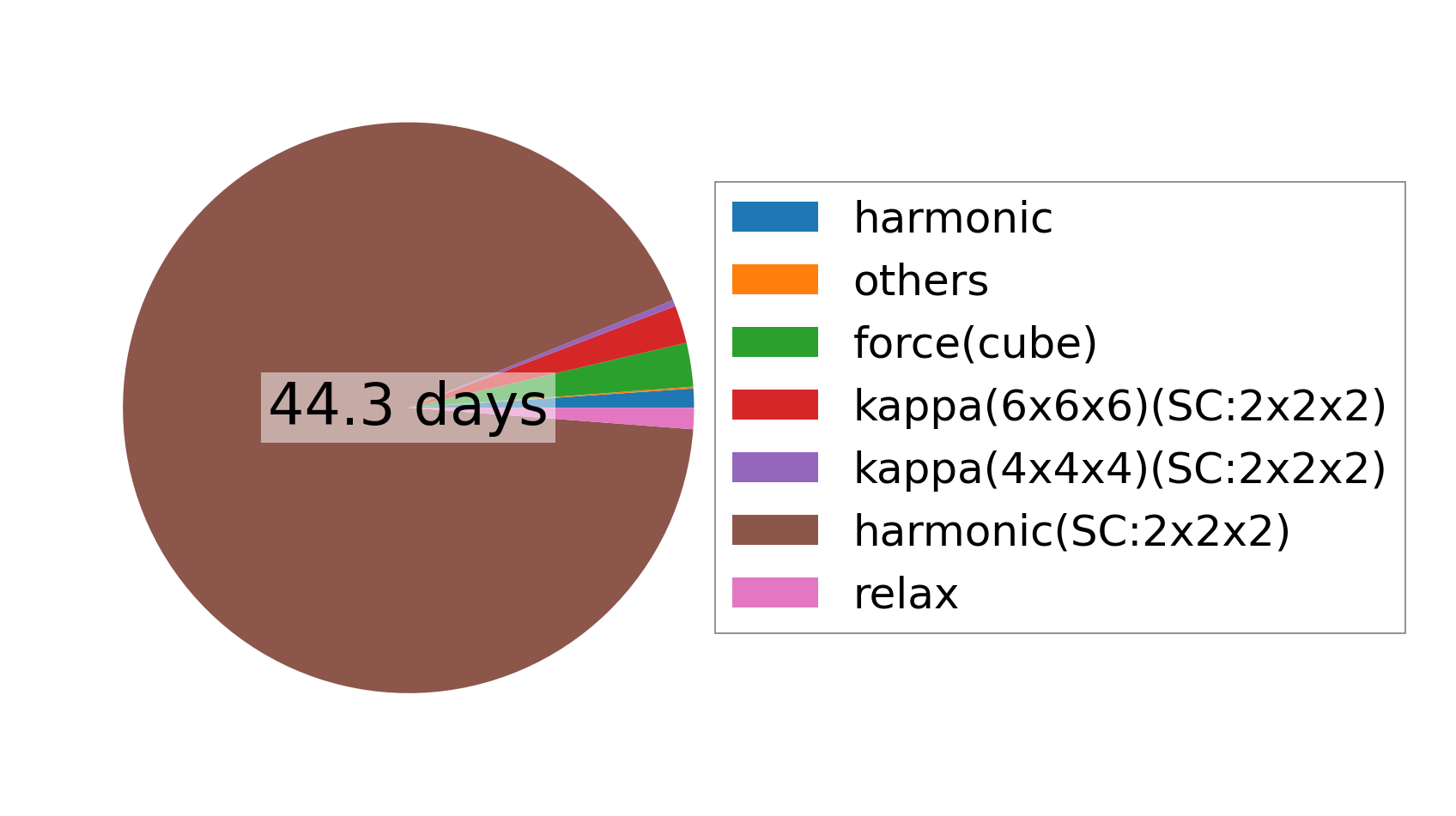

../../_images/fig_times16818.png — (a) Computation time
