mp-41795/LiAlPO4F/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-41795.tar.gz

Harmonic properties

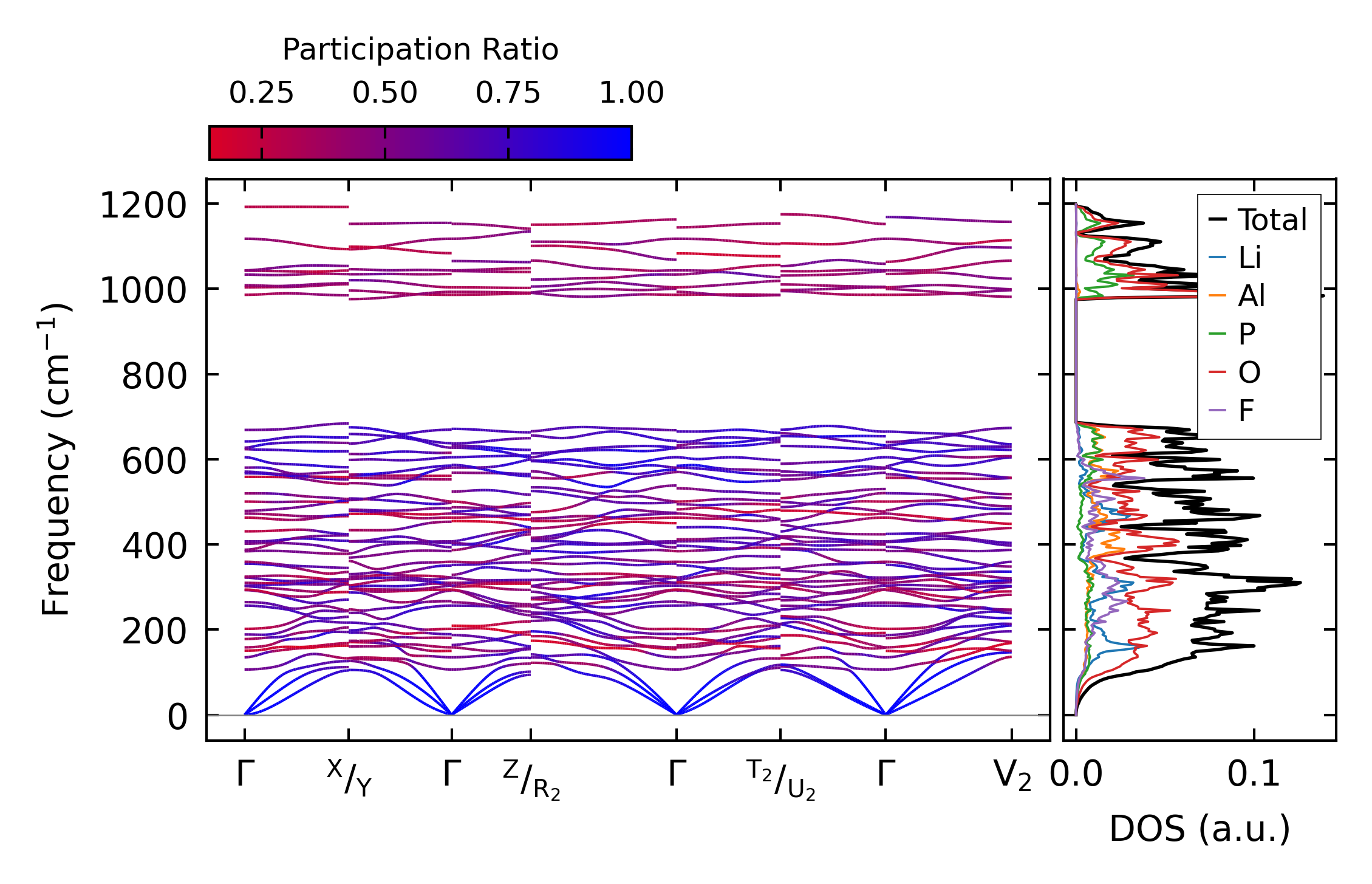

../../_images/fig_bandos_pr10199.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10199.png — (b) Thermodynamic properties

Grüneisen parameters

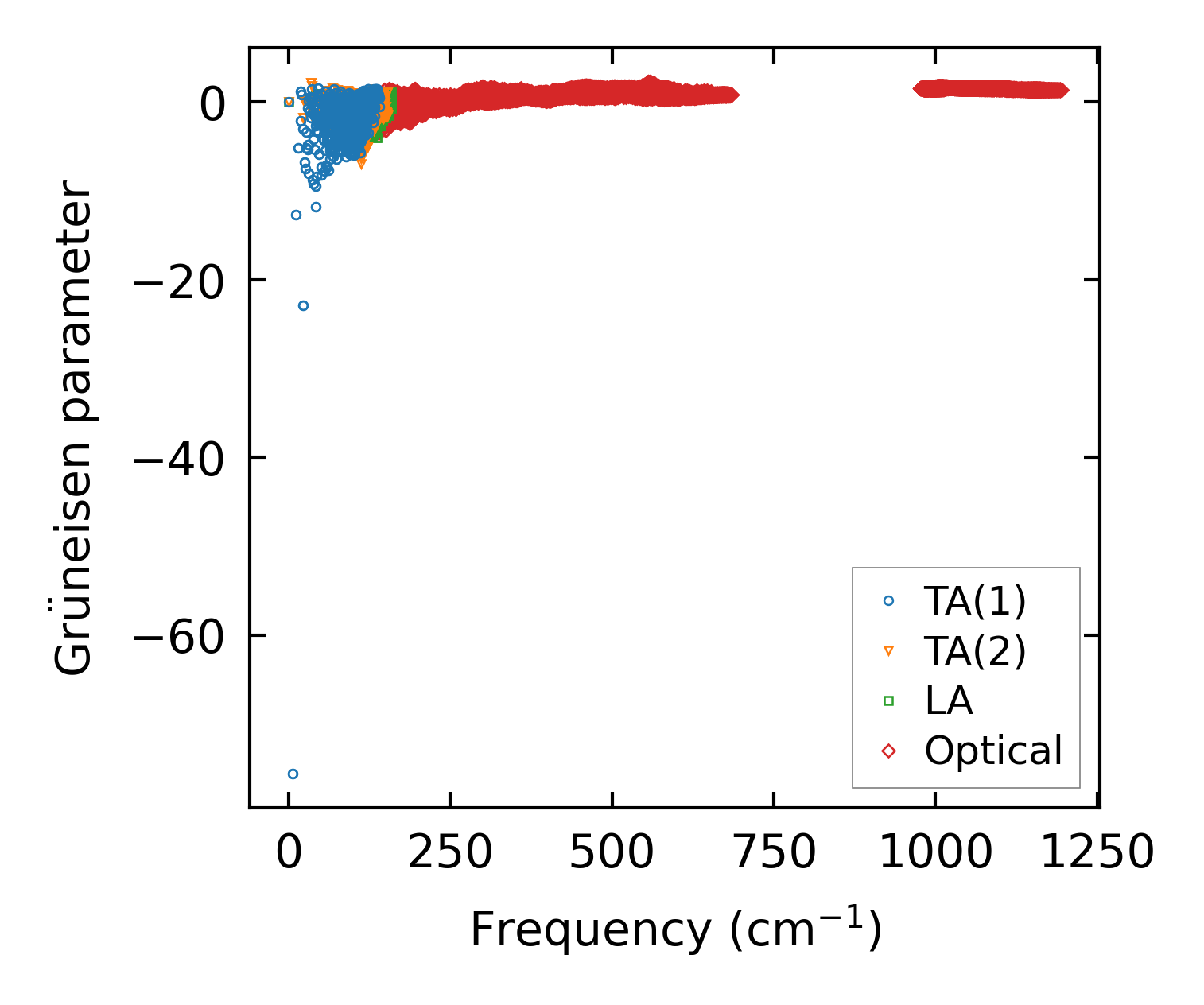

../../_images/fig_gru_all4120.png — (a) Grüneisen parameters

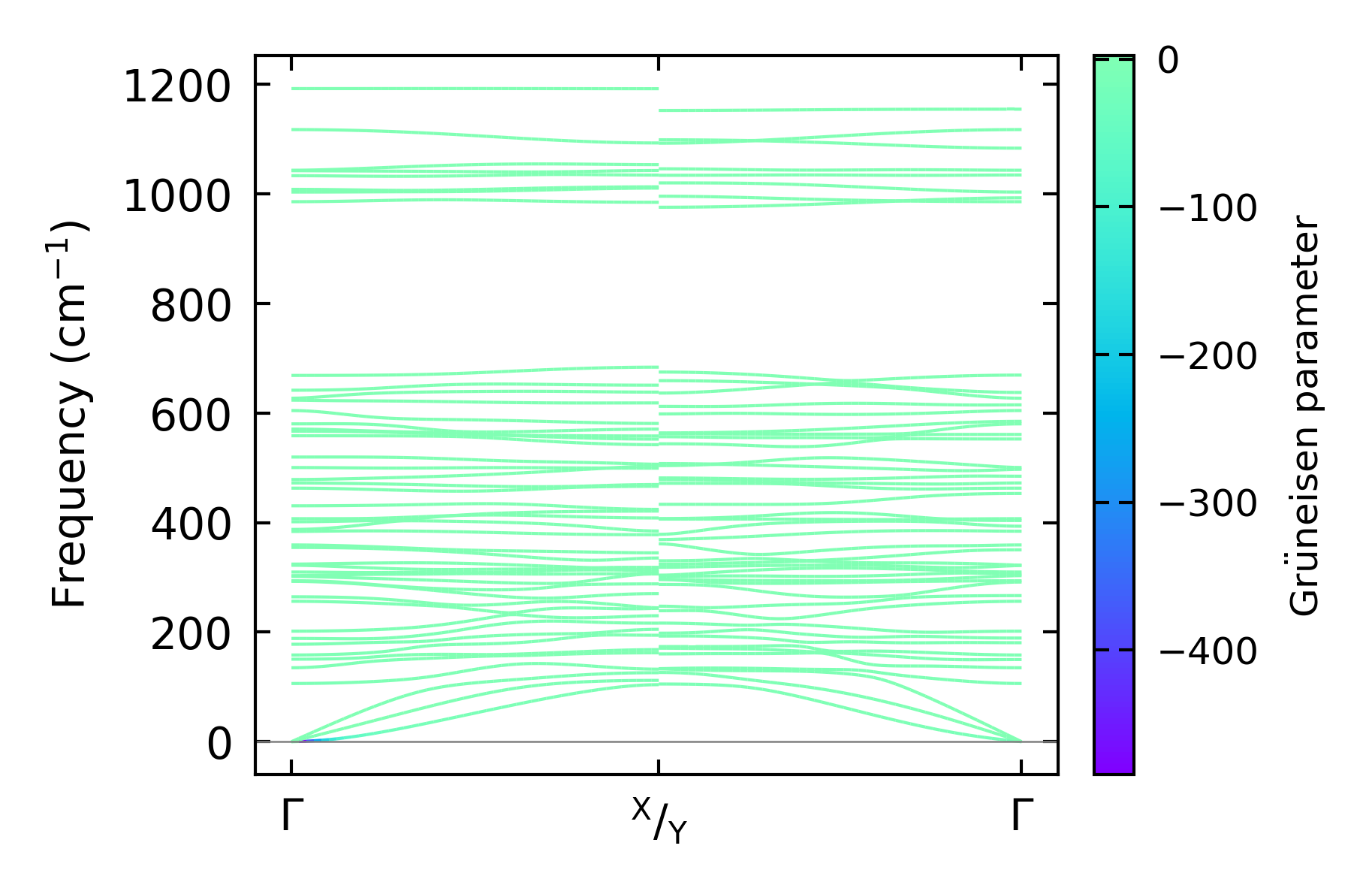

../../_images/fig_gruneisen4120.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x10, supercell: 2x2x2

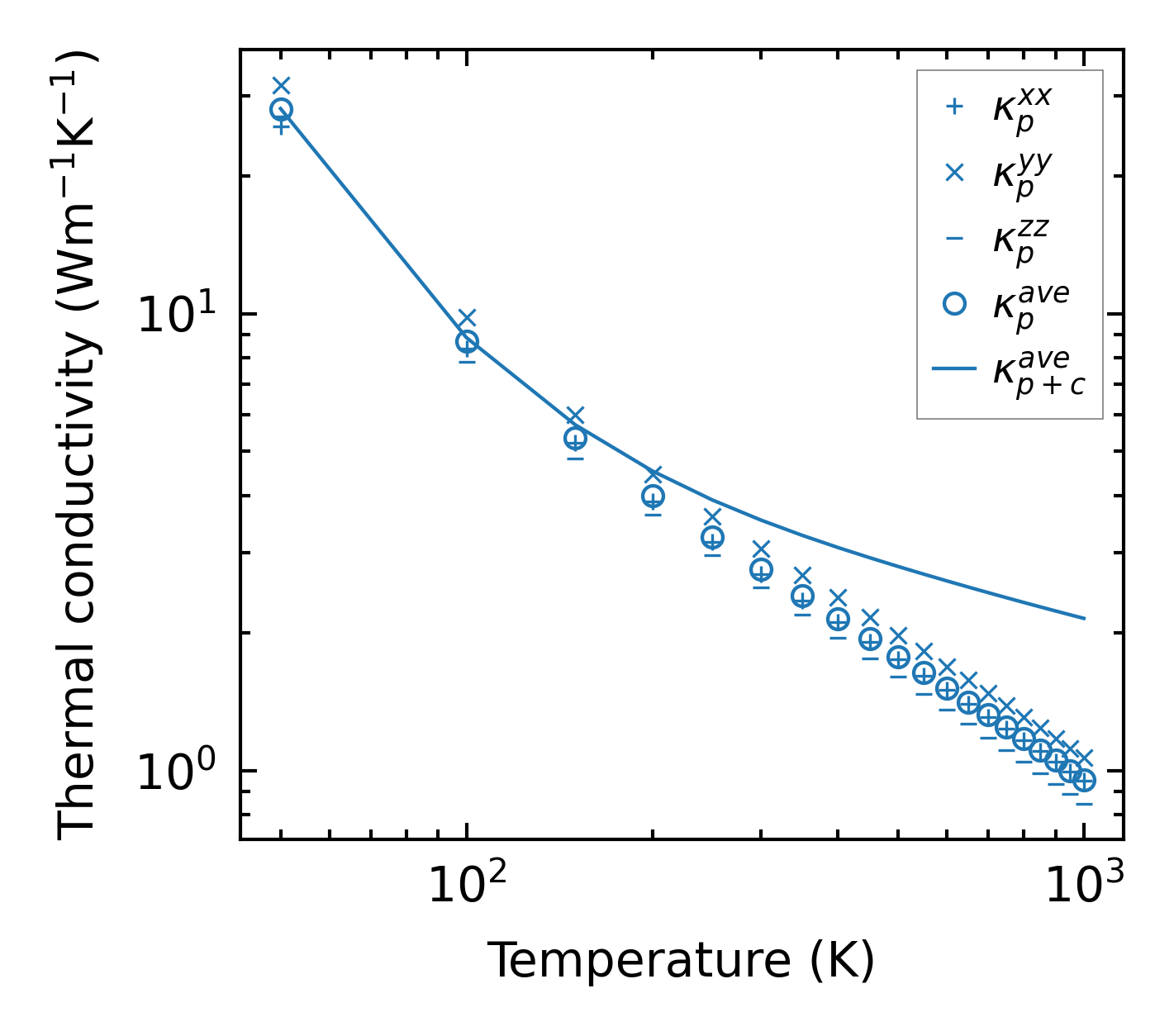

../../_images/fig_kappa7767.png — (a) Temperature-dependent lattice thermal conductivity

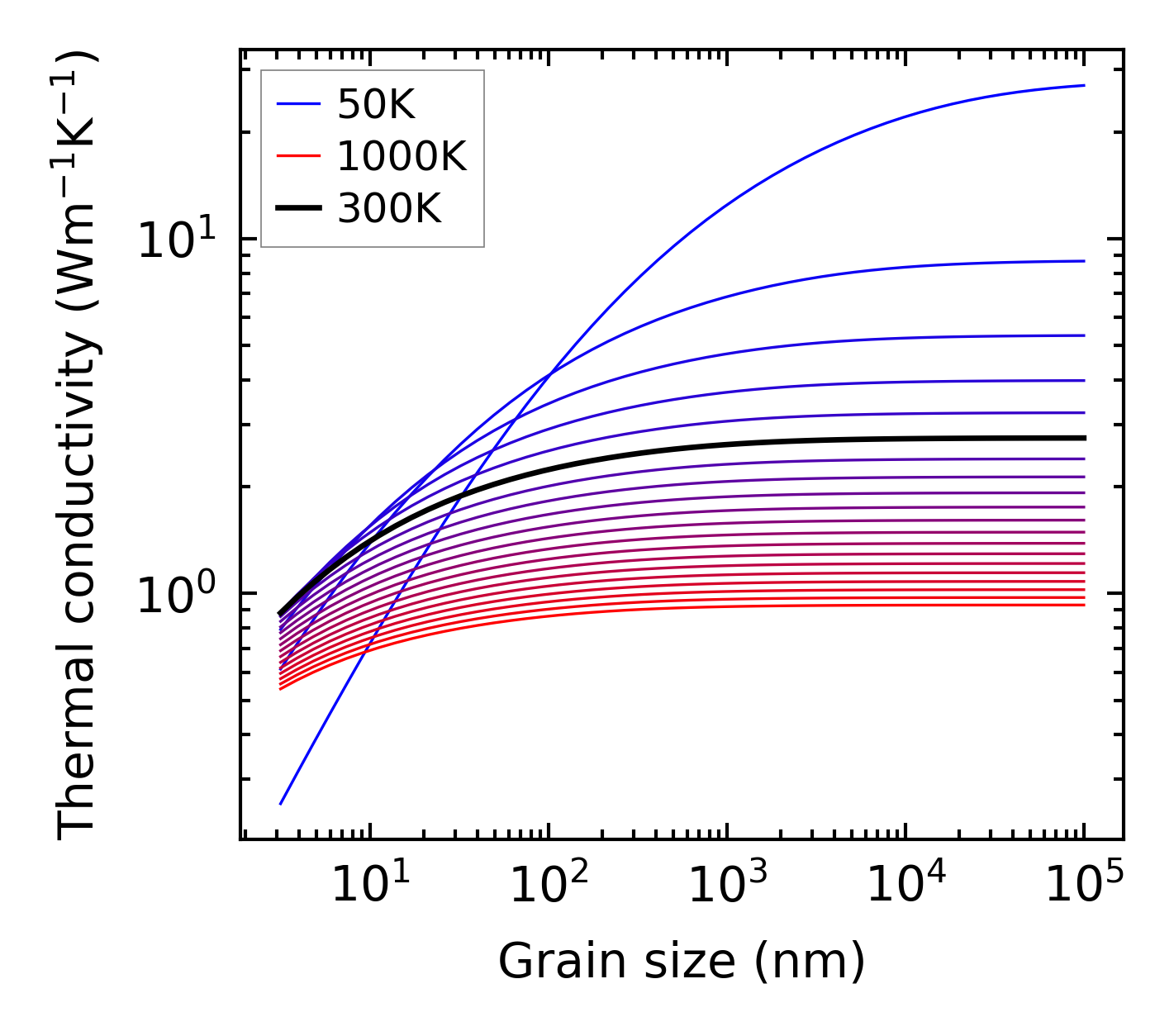

../../_images/fig_kappa_vs_grain_size4175.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

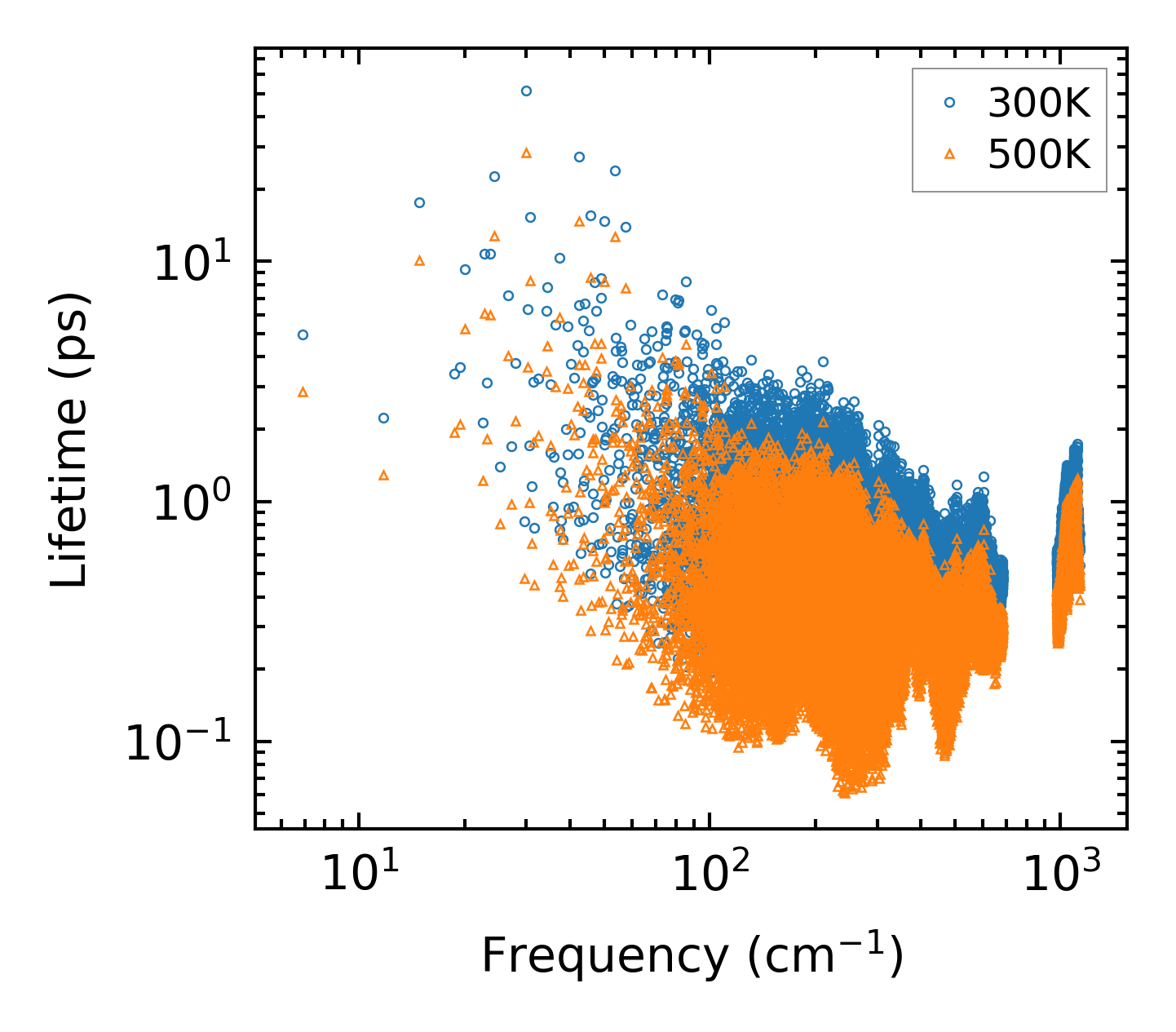

../../_images/fig_lifetime4082.png — (a) Phonon lifetime due to phonon-phonon scattering

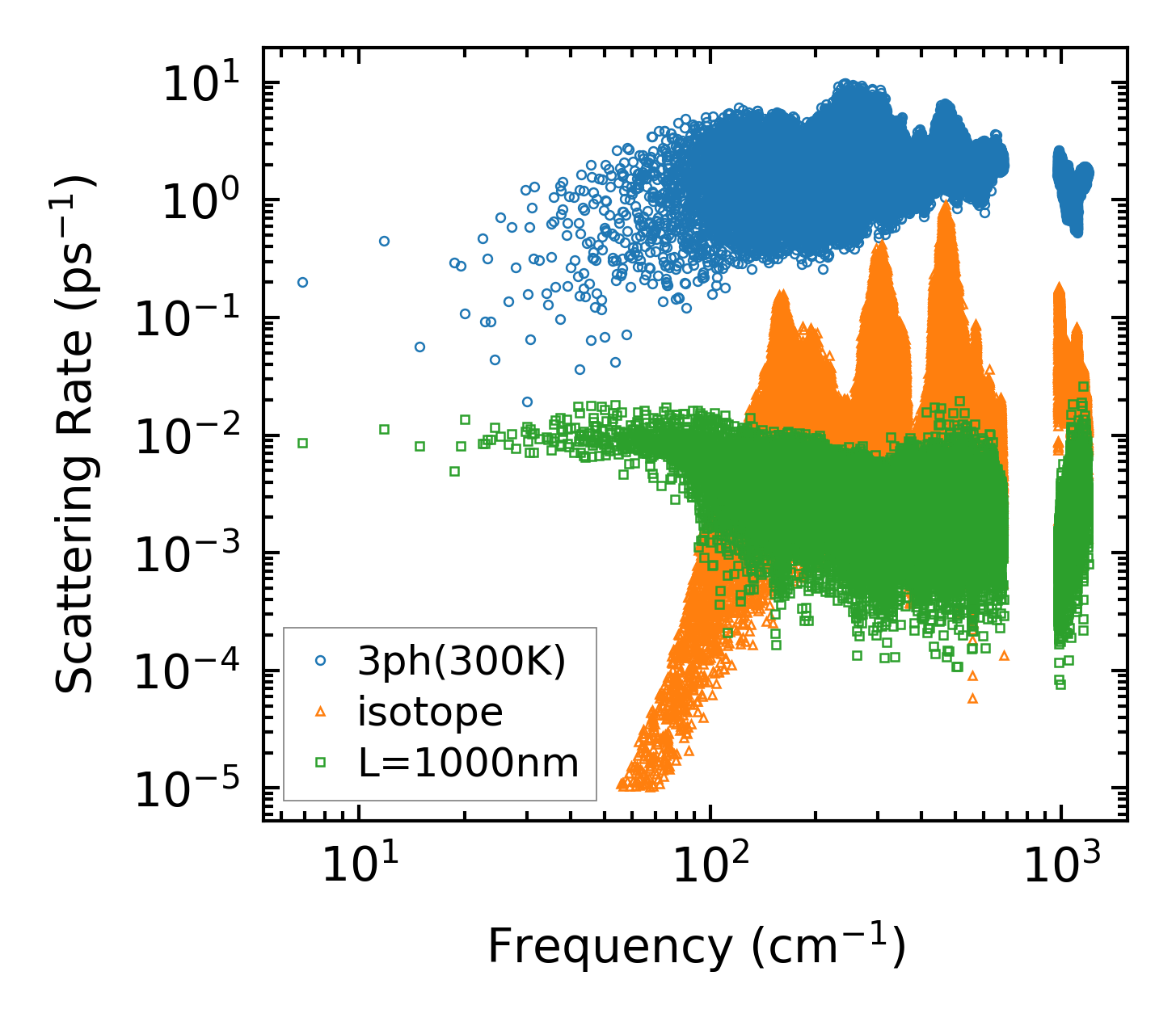

../../_images/fig_scat_rates4081.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

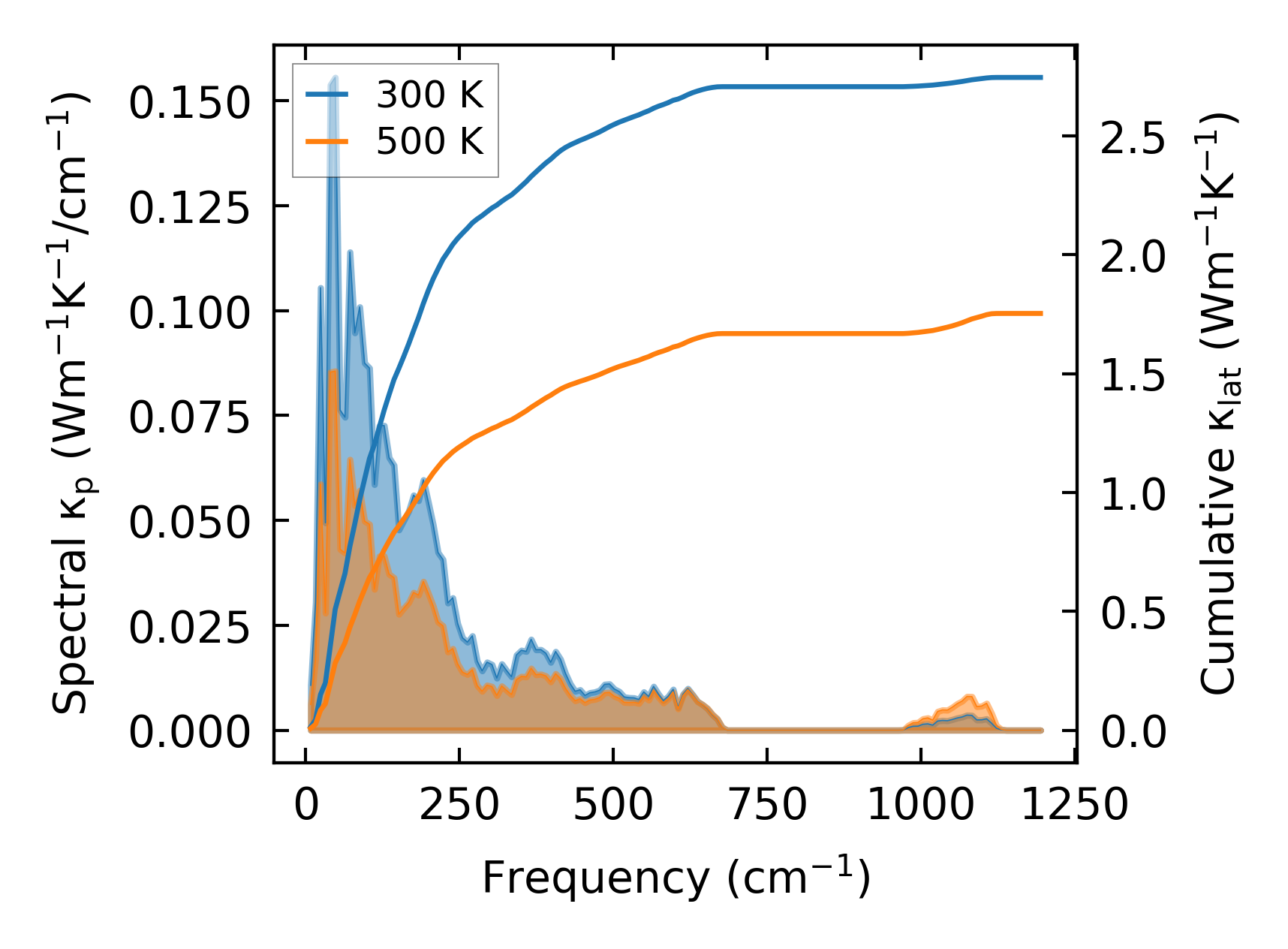

../../_images/fig_cumu_frequency4082.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

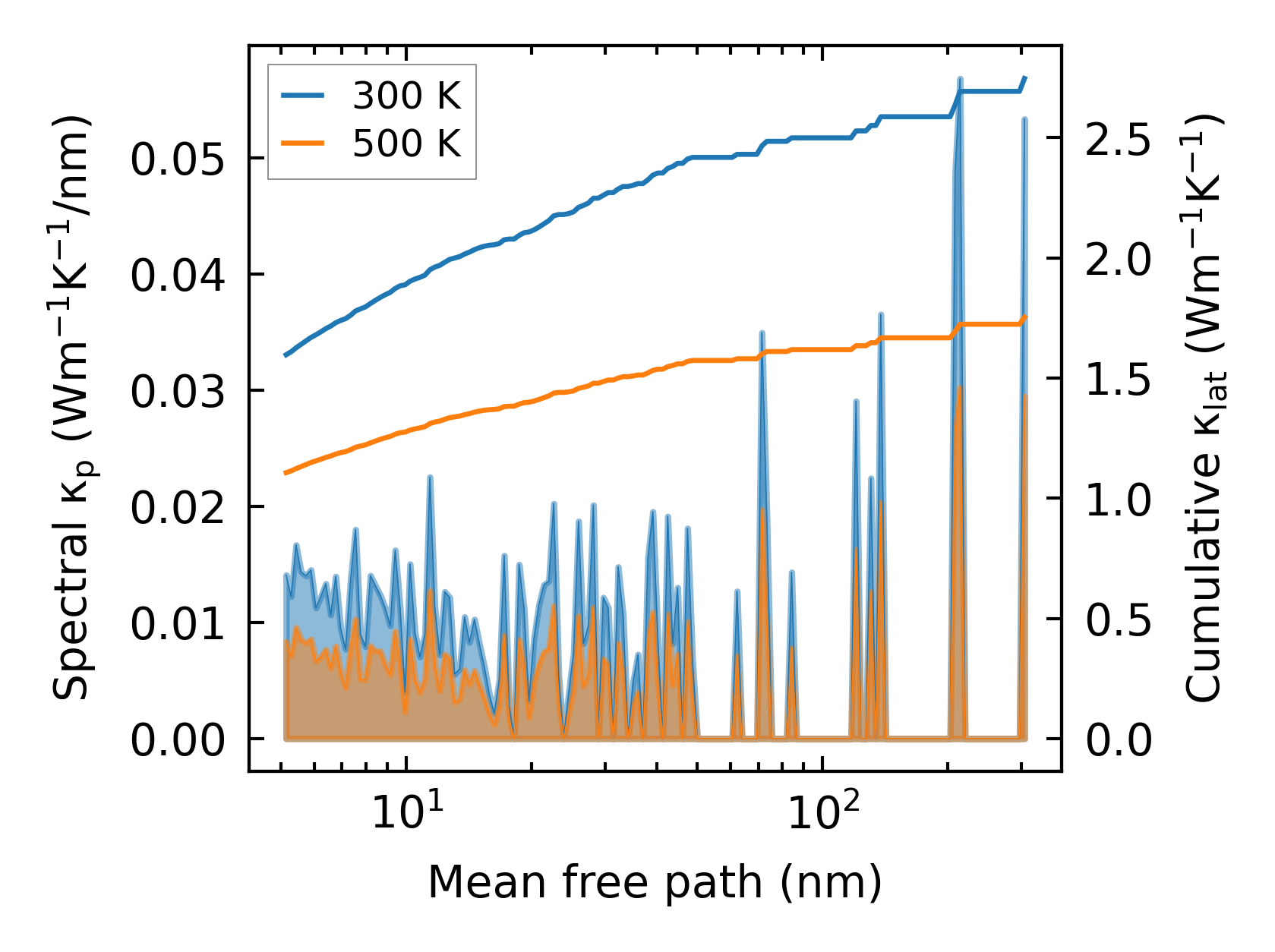

../../_images/fig_cumu_mfp4081.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

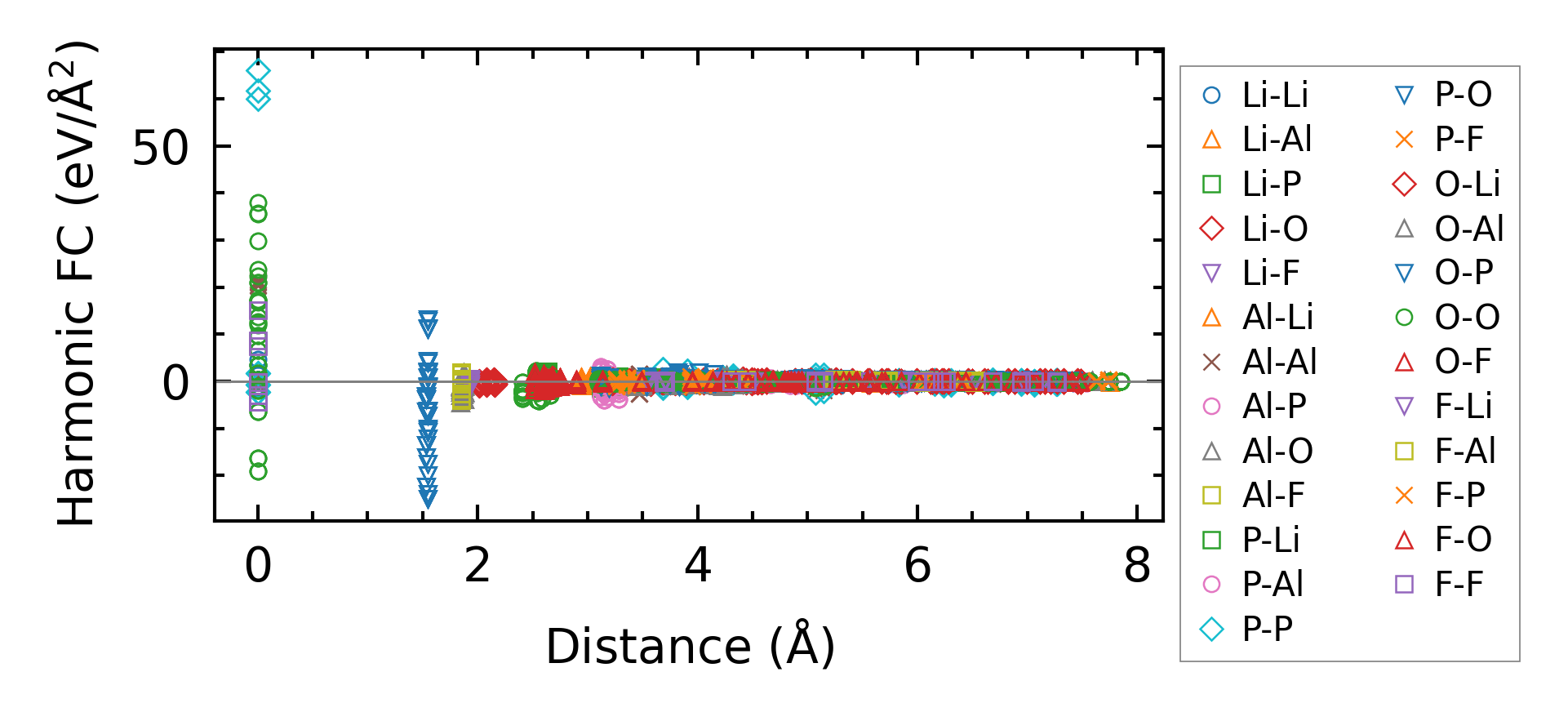

../../_images/fig_fc29950.png — (a) Force constants w.r.t atomic distance

Summary

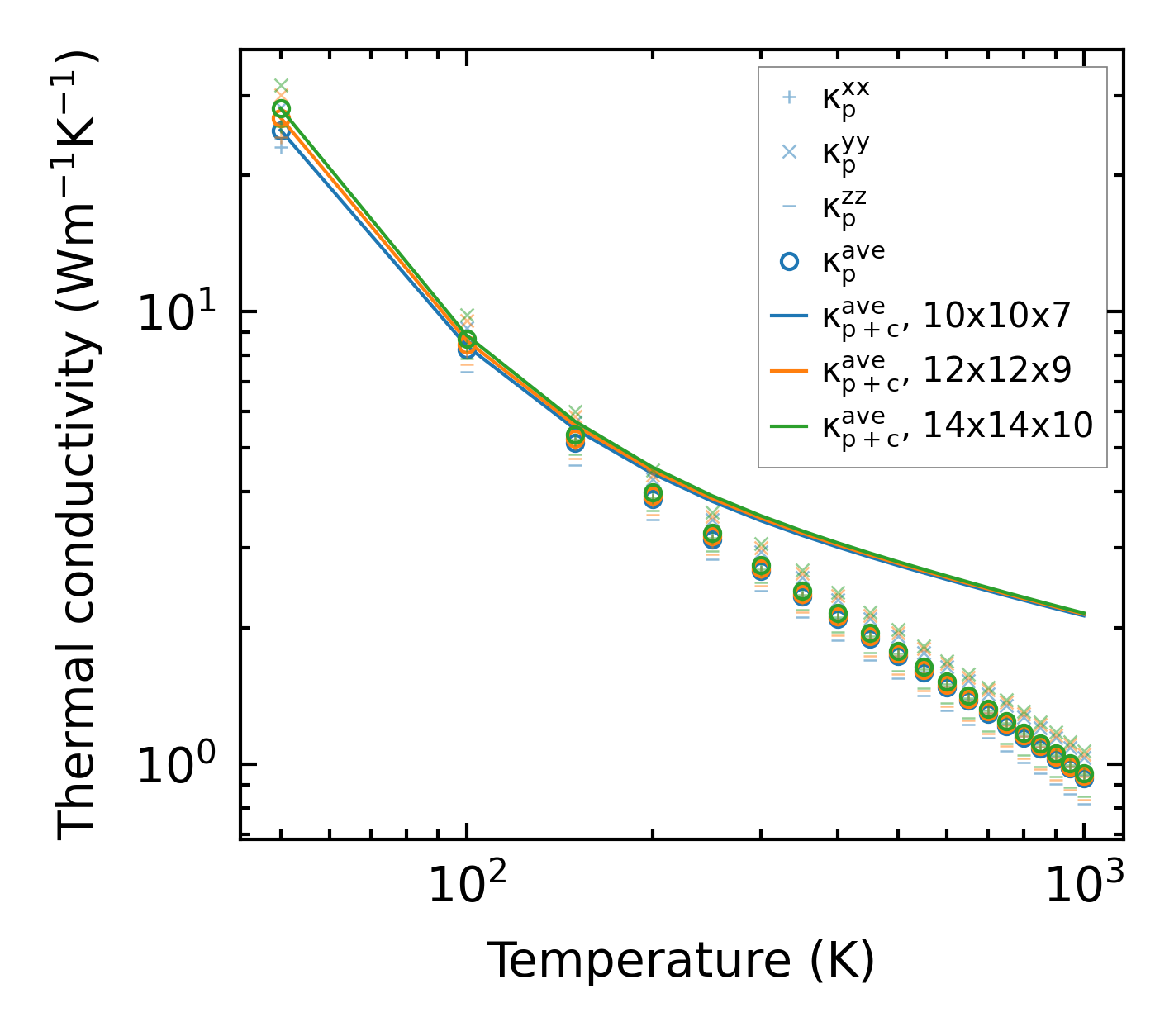

../../_images/fig_kappa7768.png — (a) Temperature-dependent lattice thermal conductivity

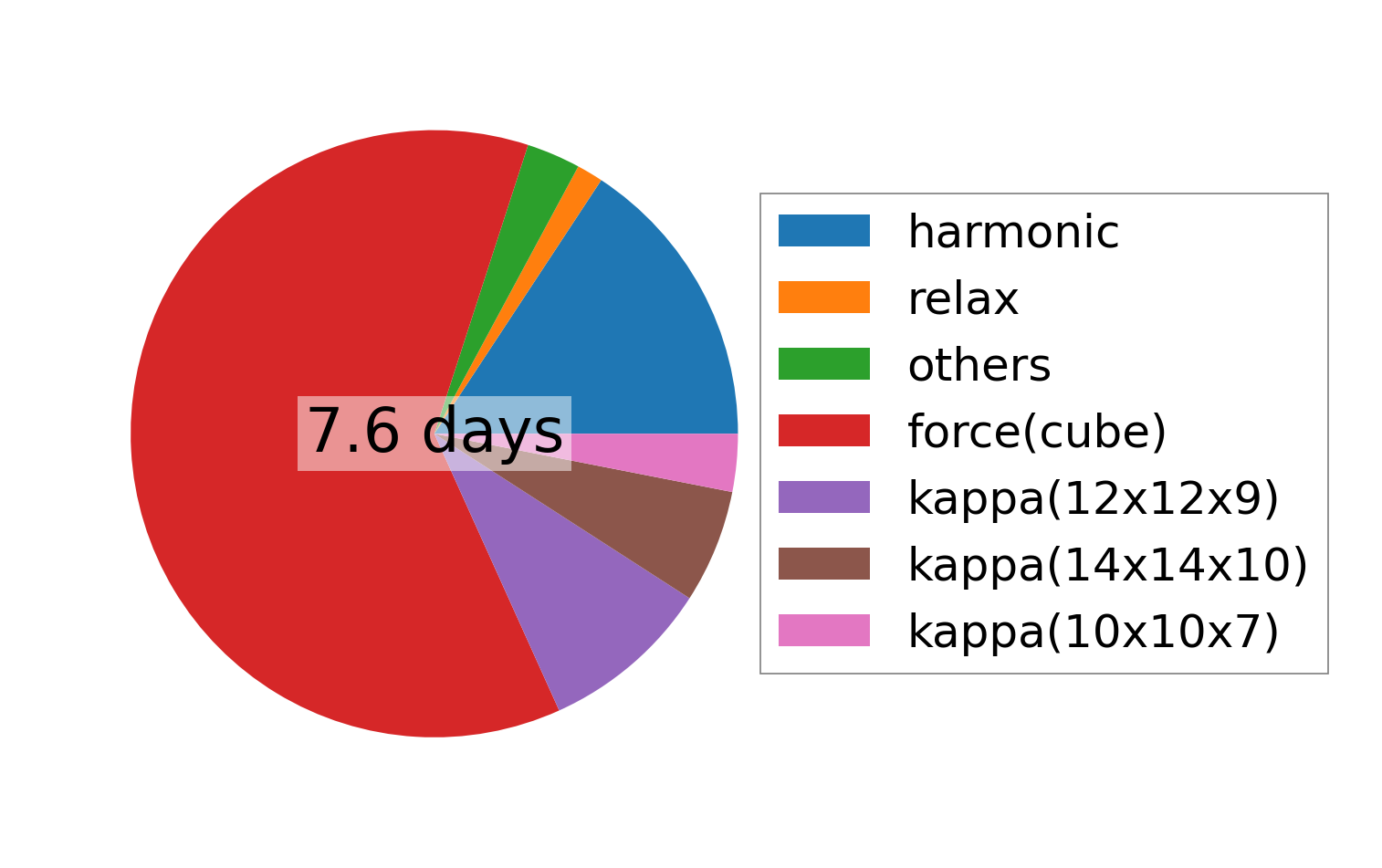

../../_images/fig_times17654.png — (b) Computation time
