mp-33588-2/Ca2NF/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-33588-2.tar.gz

Harmonic properties

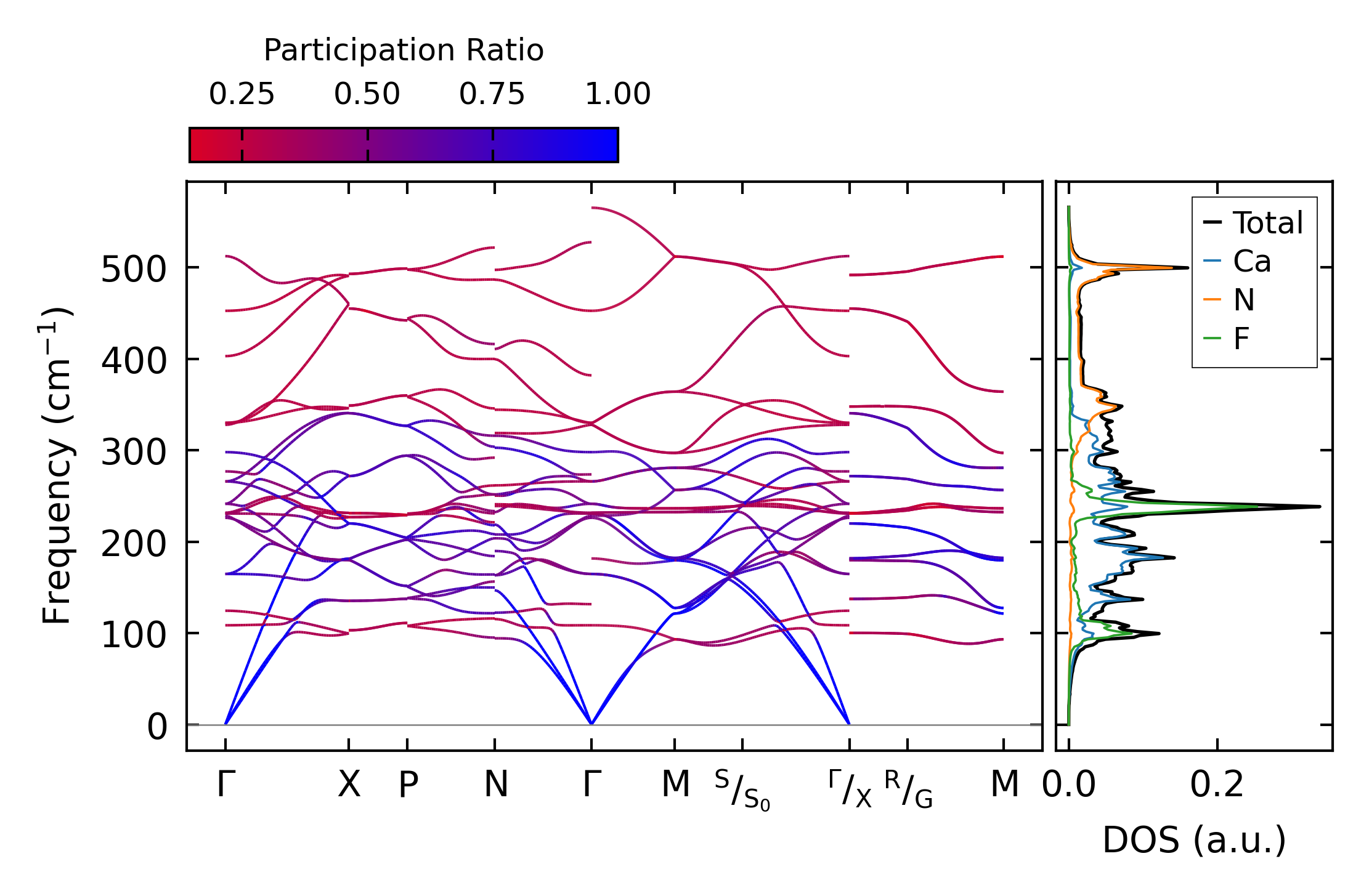

../../_images/fig_bandos_pr10814.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo10814.png — (b) Thermodynamic properties

Grüneisen parameters

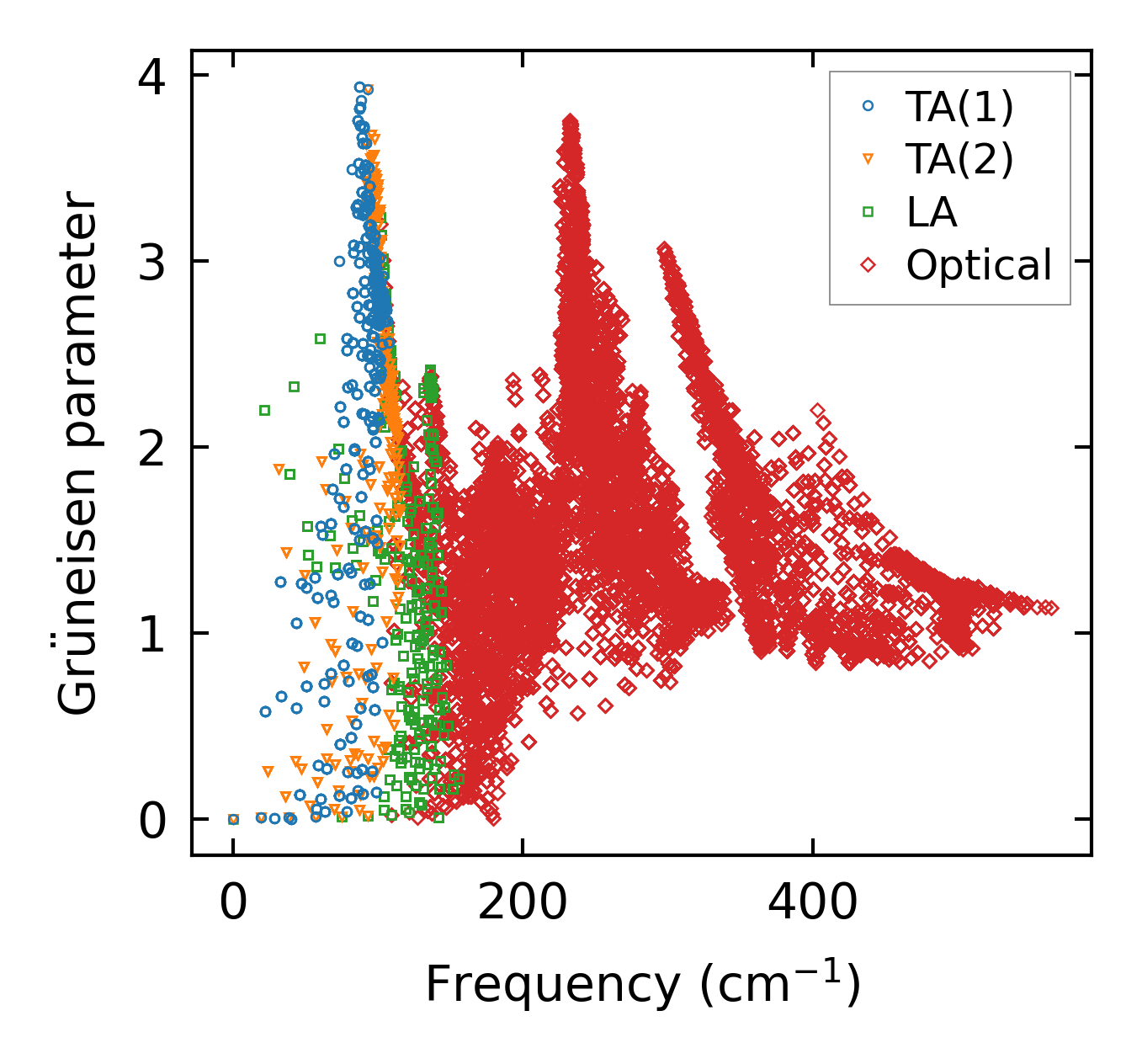

../../_images/fig_gru_all4411.png — (a) Grüneisen parameters

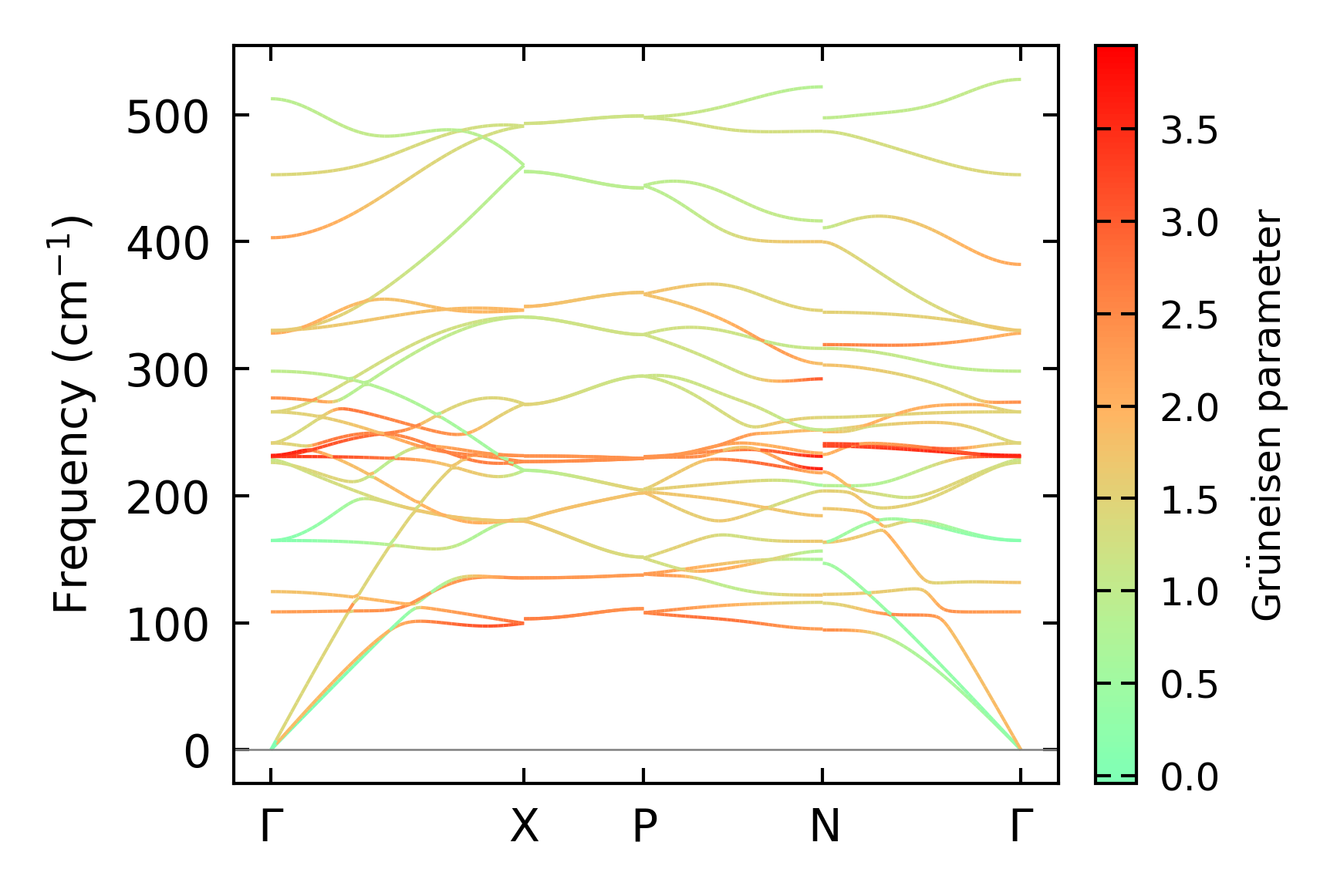

../../_images/fig_gruneisen4411.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x1

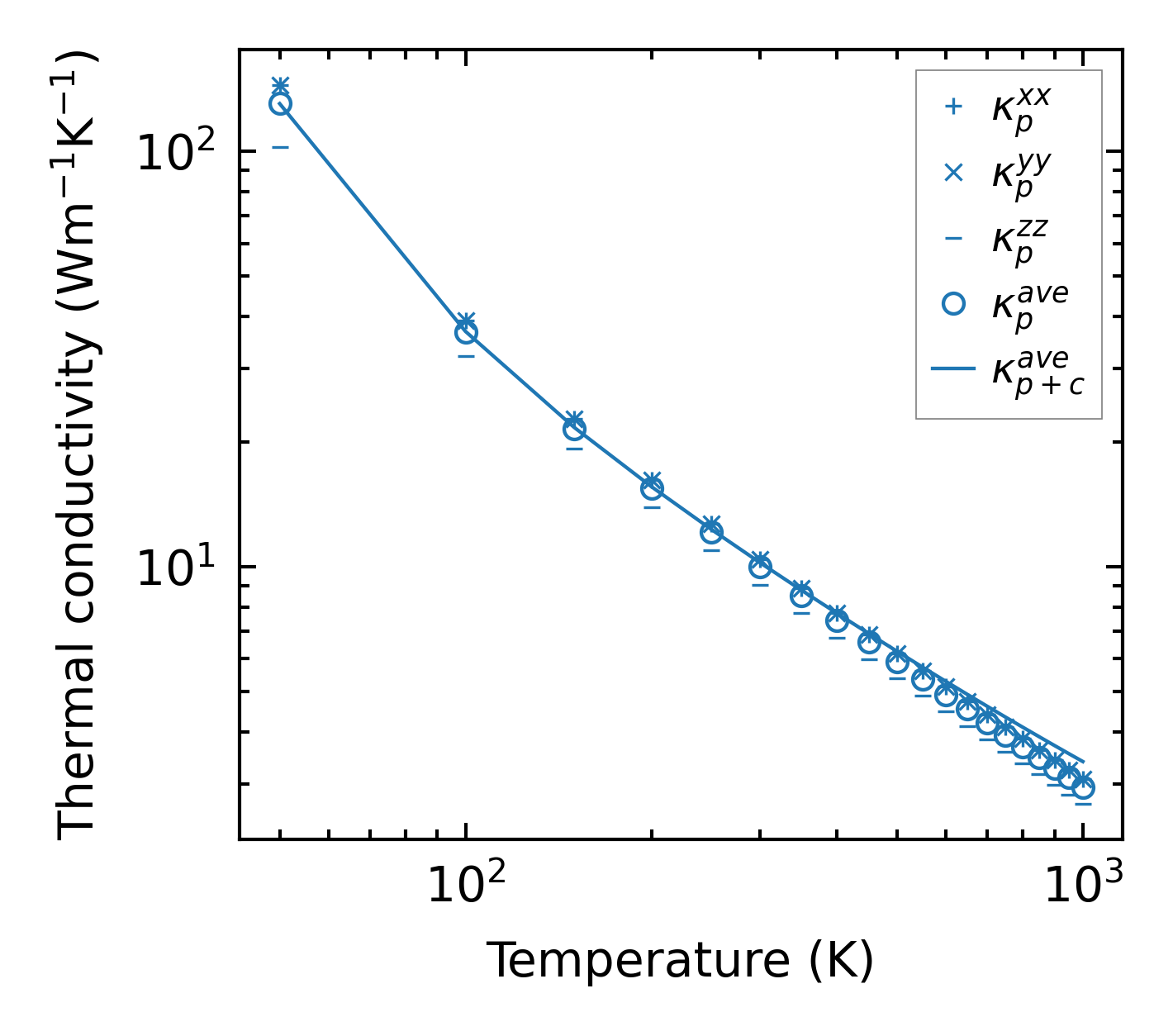

../../_images/fig_kappa8328.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4464.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

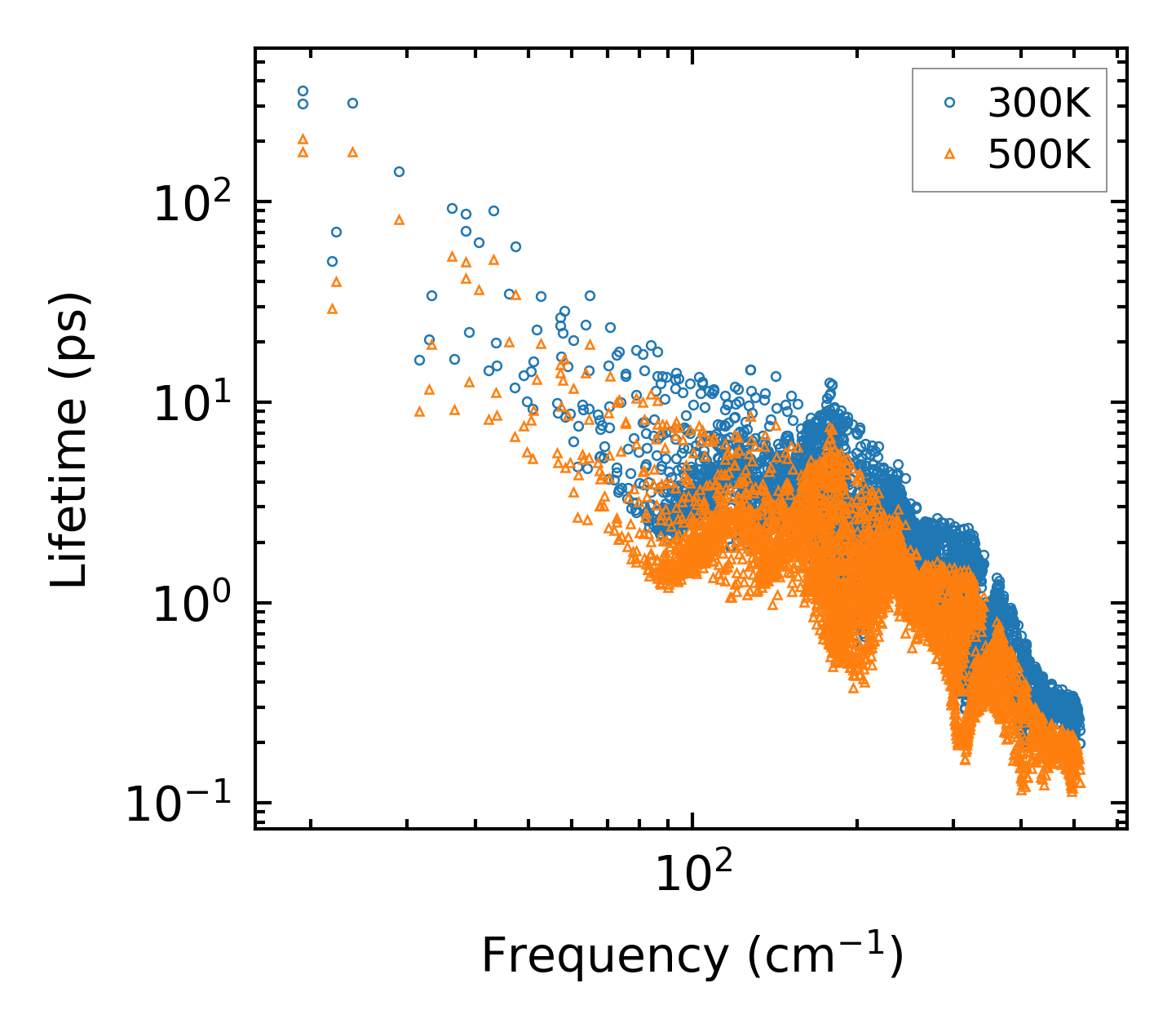

../../_images/fig_lifetime4368.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4367.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

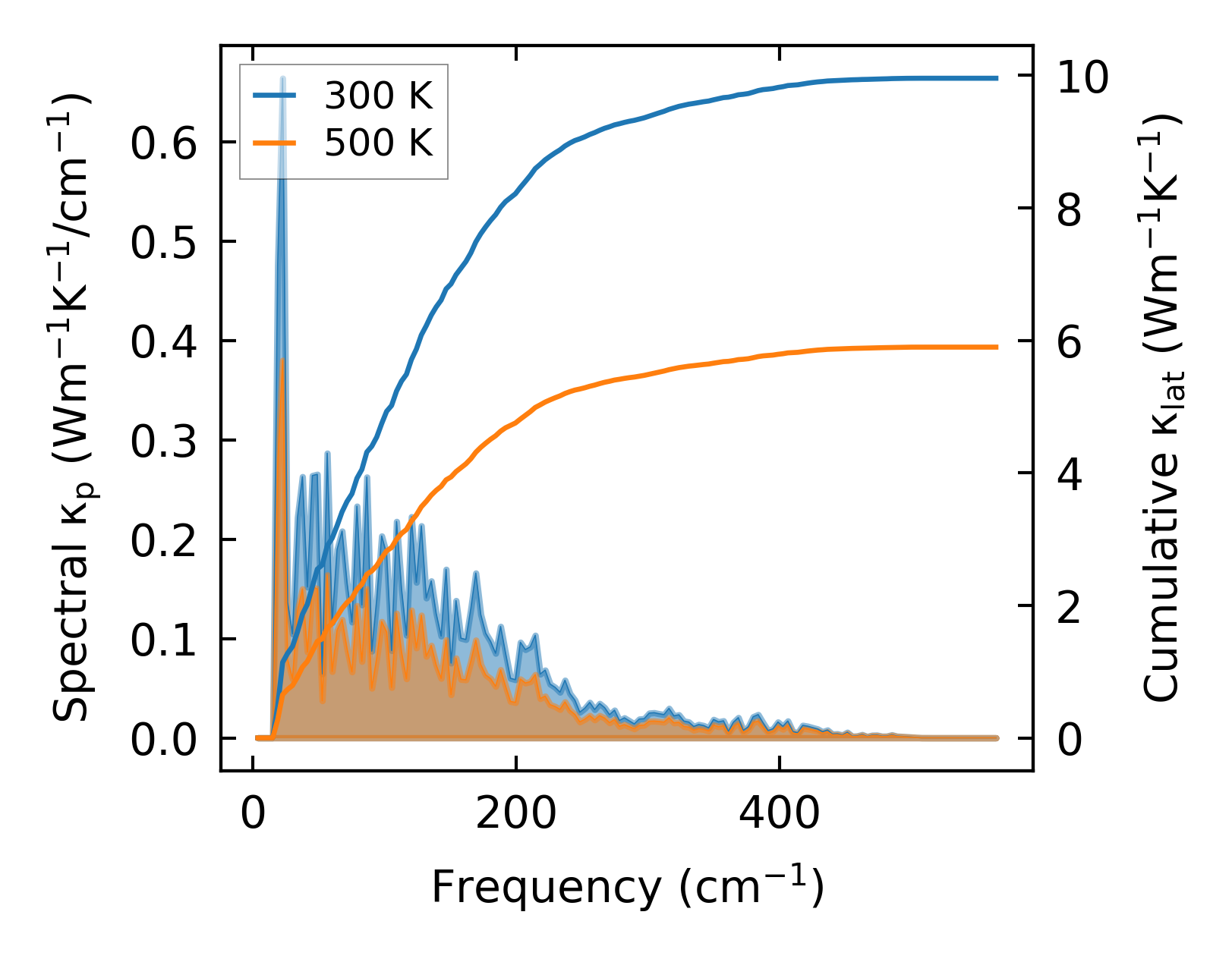

../../_images/fig_cumu_frequency4368.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

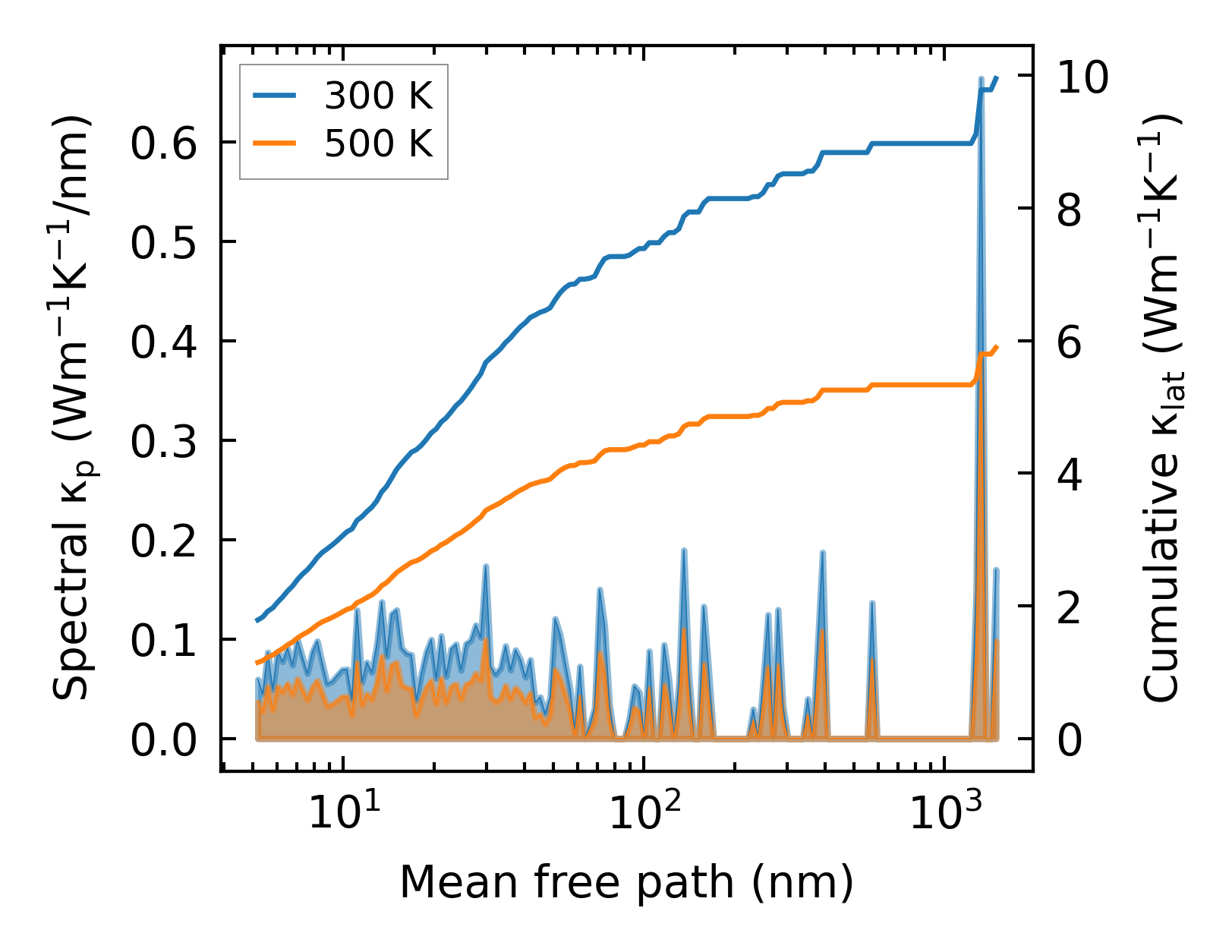

../../_images/fig_cumu_mfp4367.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

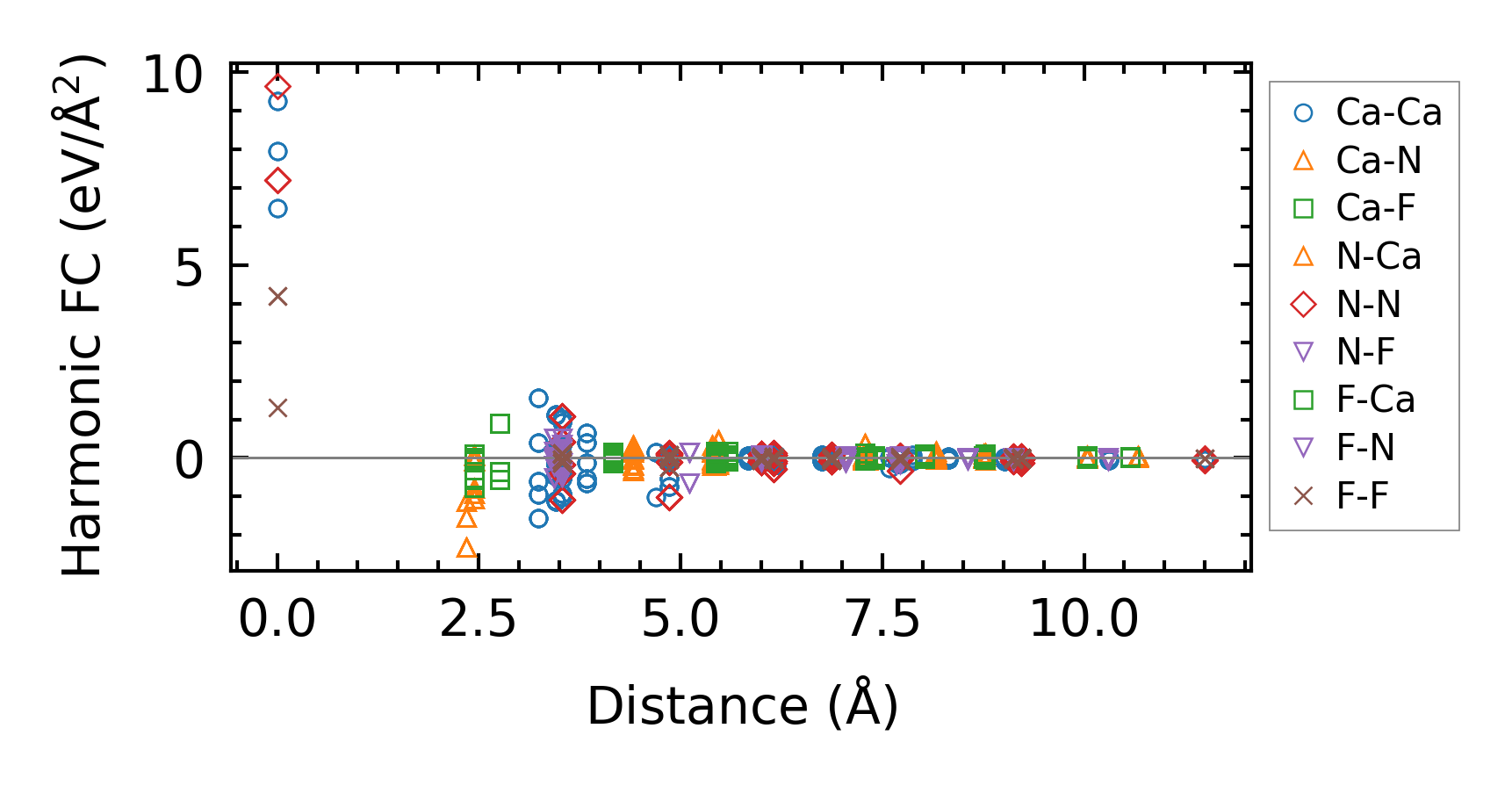

../../_images/fig_fc210543.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8329.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times18527.png — (b) Computation time
