mp-26702-2/LiSn2P3O12/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-26702-2.tar.gz

Equation of state

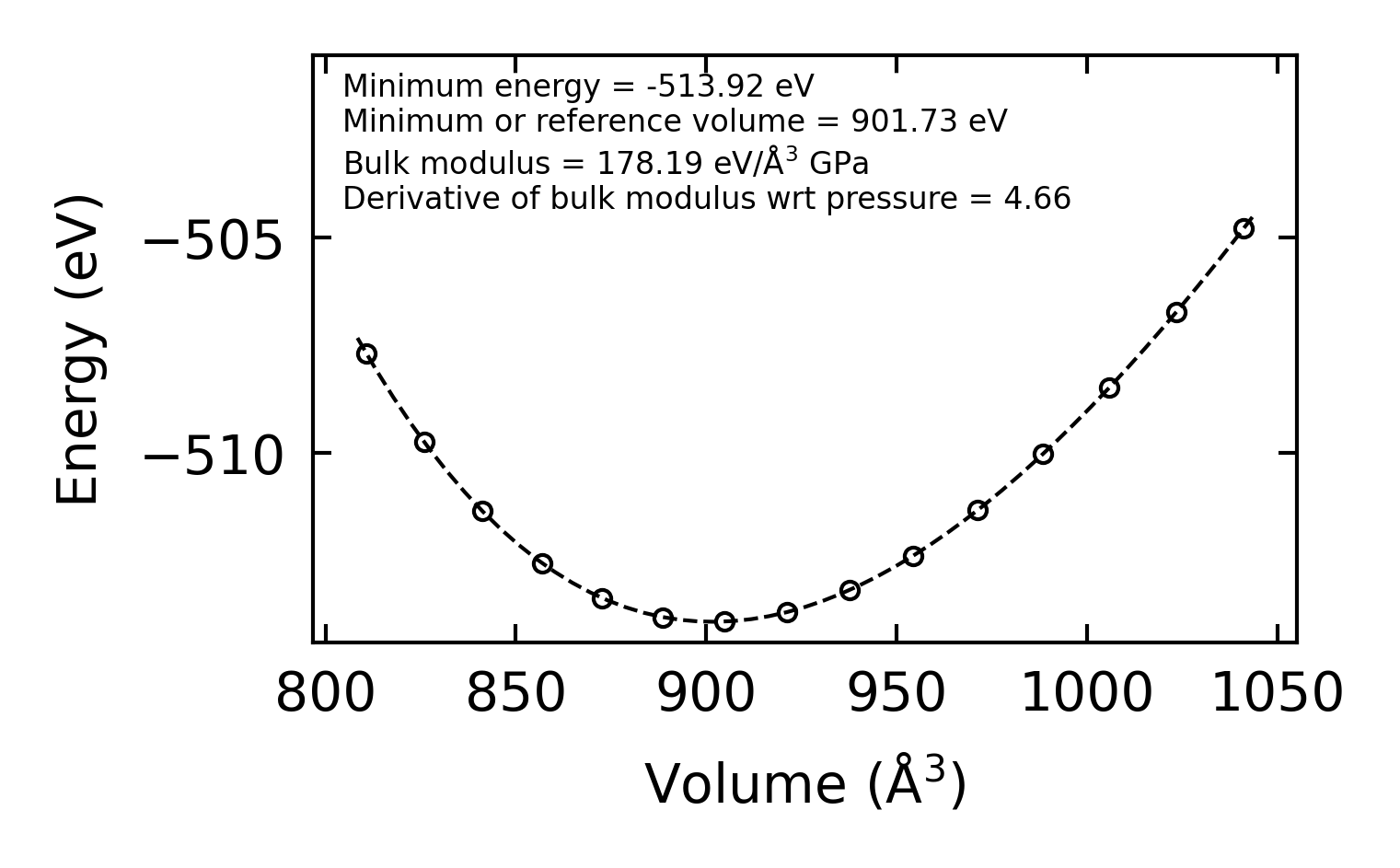

../../_images/fig_bm6019.png — (a) Equation of state

Harmonic properties

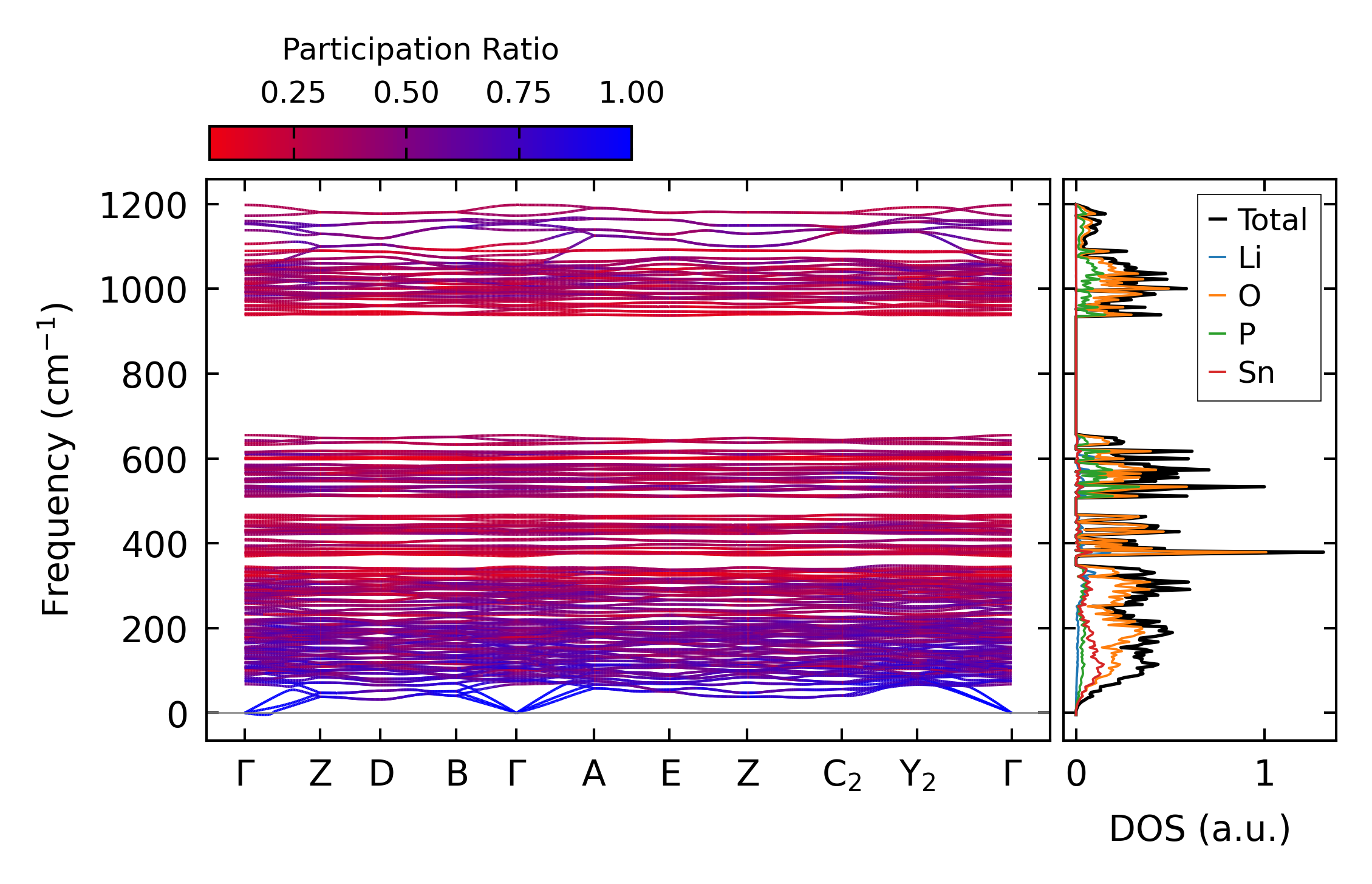

../../_images/fig_bandos_pr12238.png — (a) Phonon dispersion with participation ratio and DOS

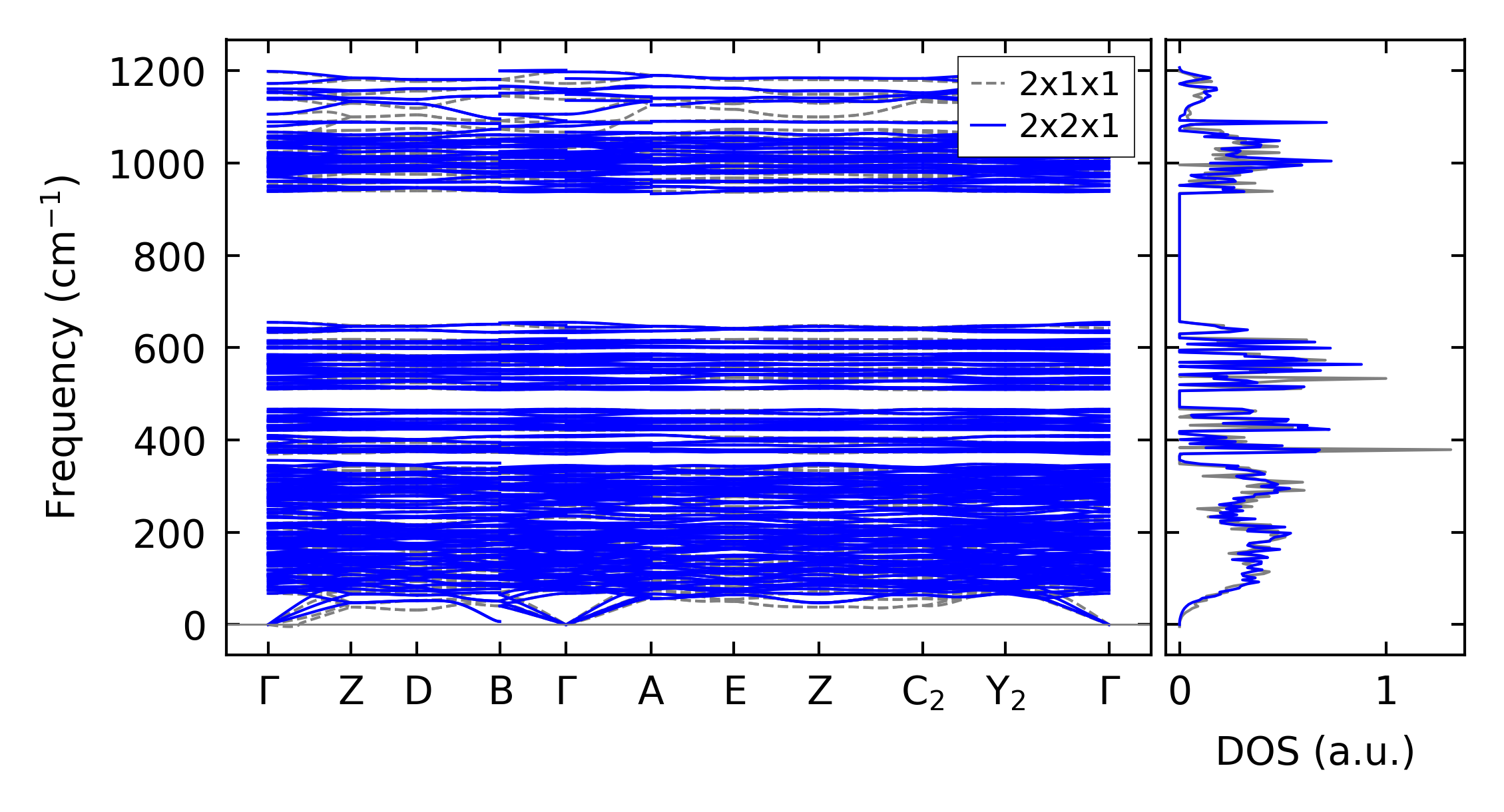

../../_images/fig_bandos16400.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12238.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5104.png — (a) Grüneisen parameters

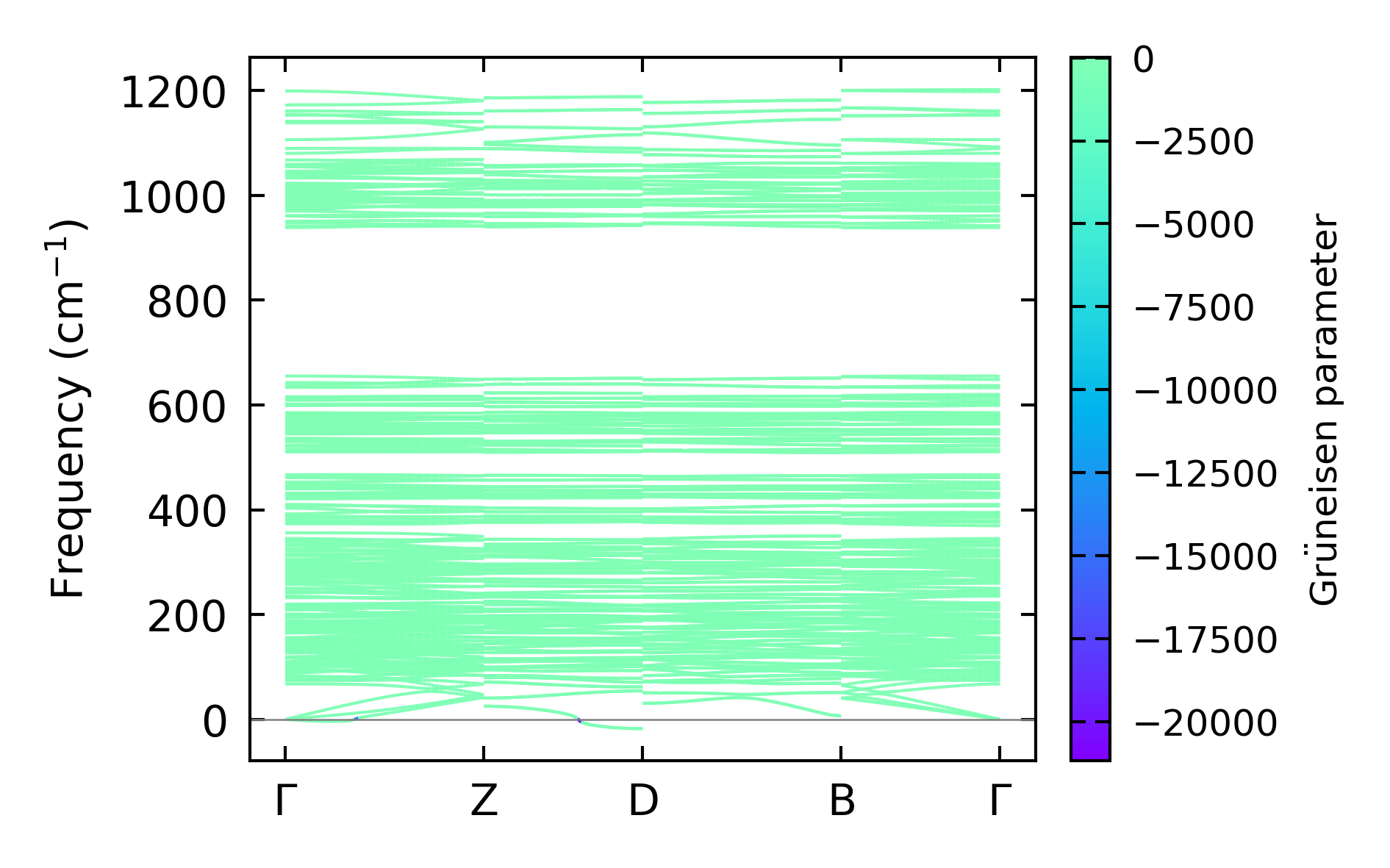

../../_images/fig_gruneisen5104.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x8x5, supercell: 2x2x1

../../_images/fig_kappa9604.png — (a) Temperature-dependent lattice thermal conductivity

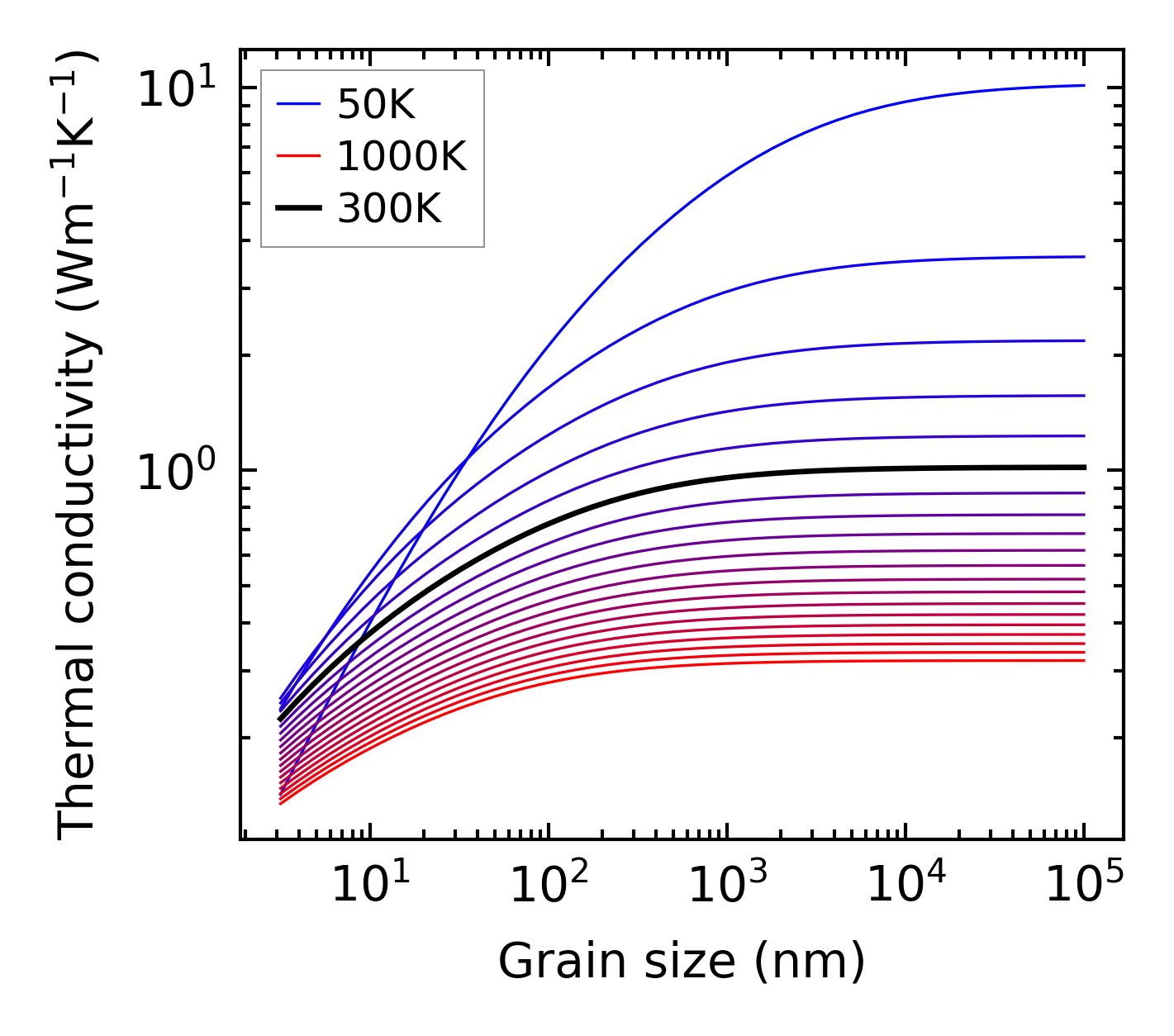

../../_images/fig_kappa_vs_grain_size5163.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5053.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5052.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

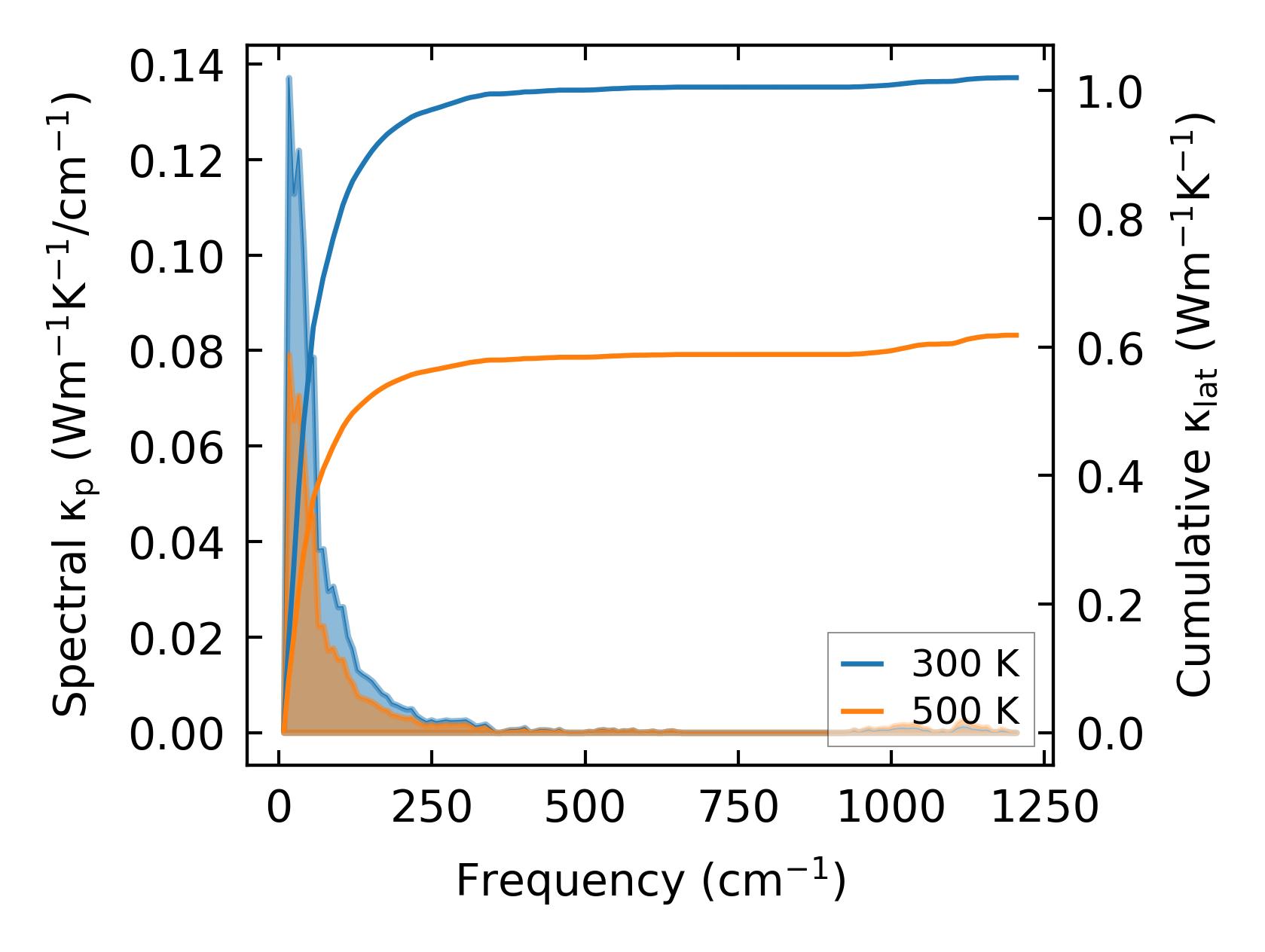

../../_images/fig_cumu_frequency5053.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5052.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

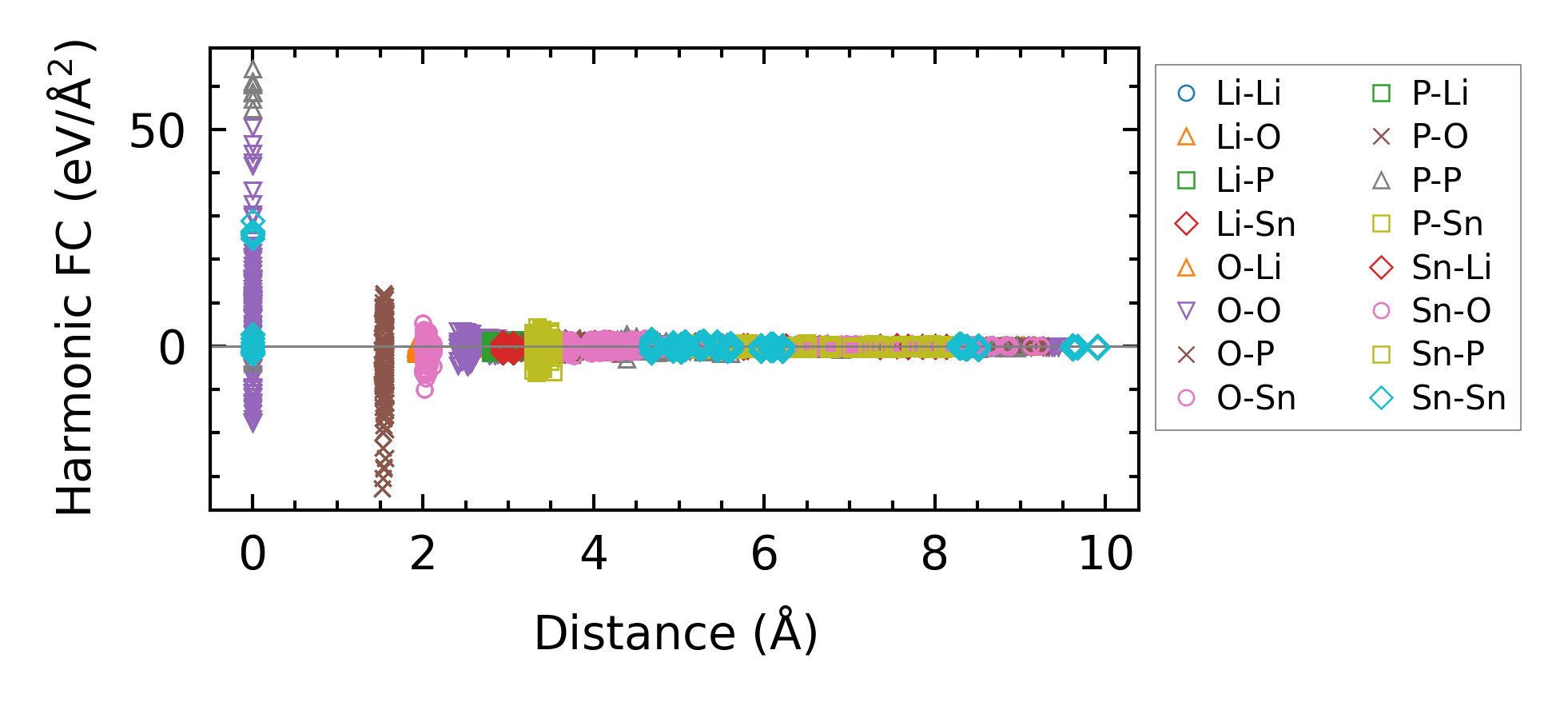

../../_images/fig_fc211937.png — (a) Force constants w.r.t atomic distance

Summary

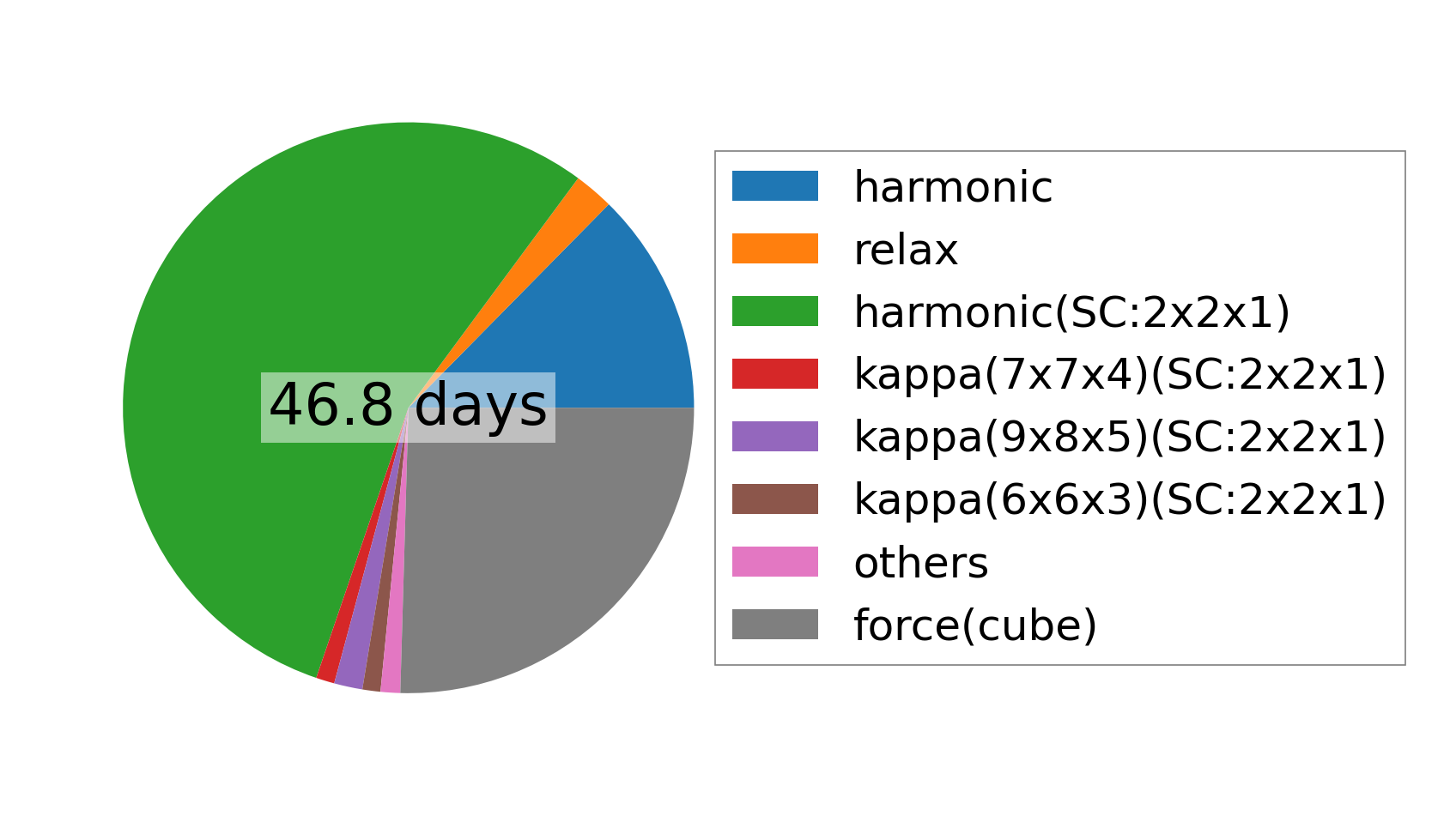

../../_images/fig_times20758.png — (a) Computation time
