mp-1323553/CaNiF6/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-1323553.tar.gz

Harmonic properties

../../_images/fig_bandos_pr15031.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15030.png — (b) Thermodynamic properties

Grüneisen parameters

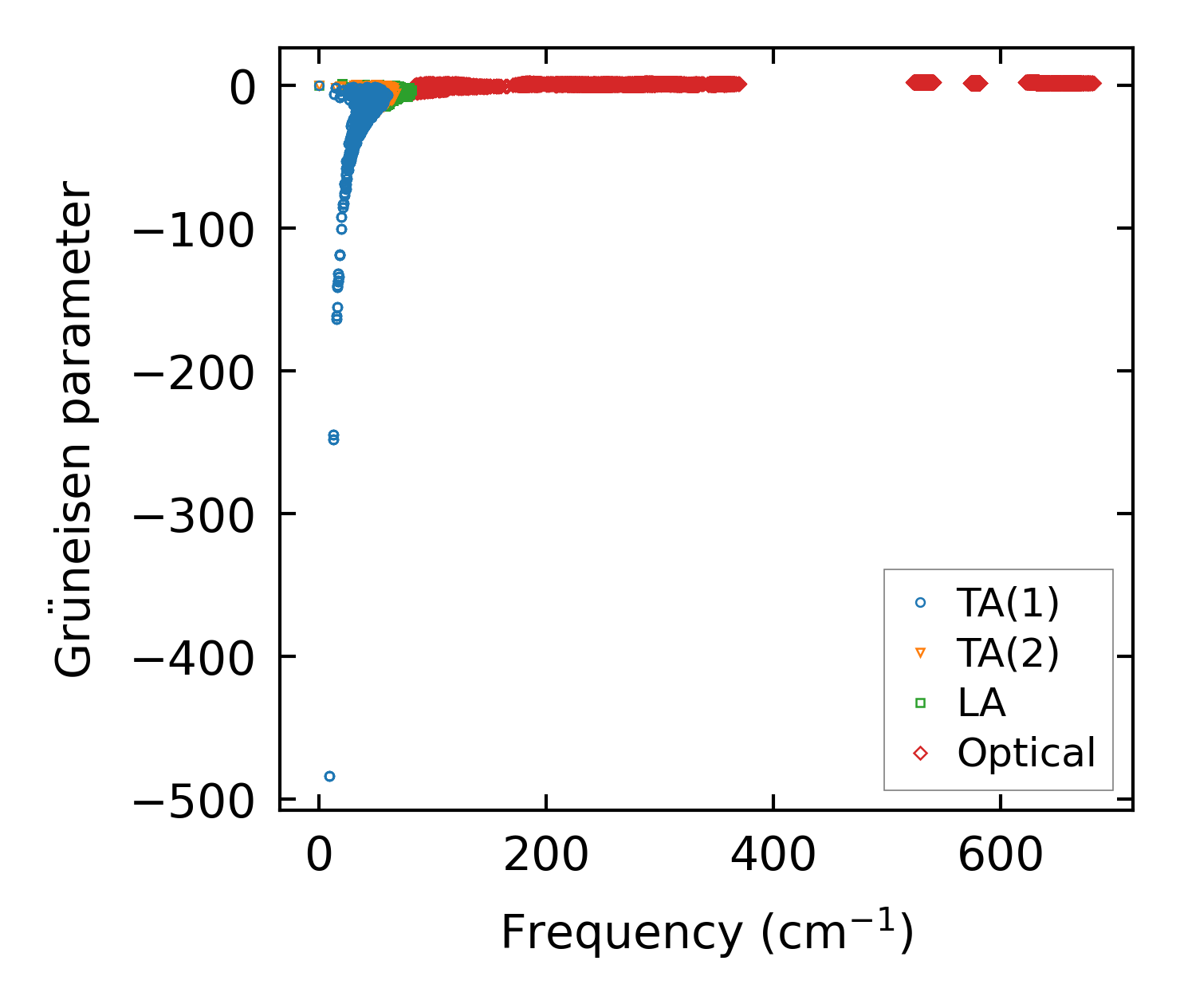

../../_images/fig_gru_all6460.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6460.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 2x2x1

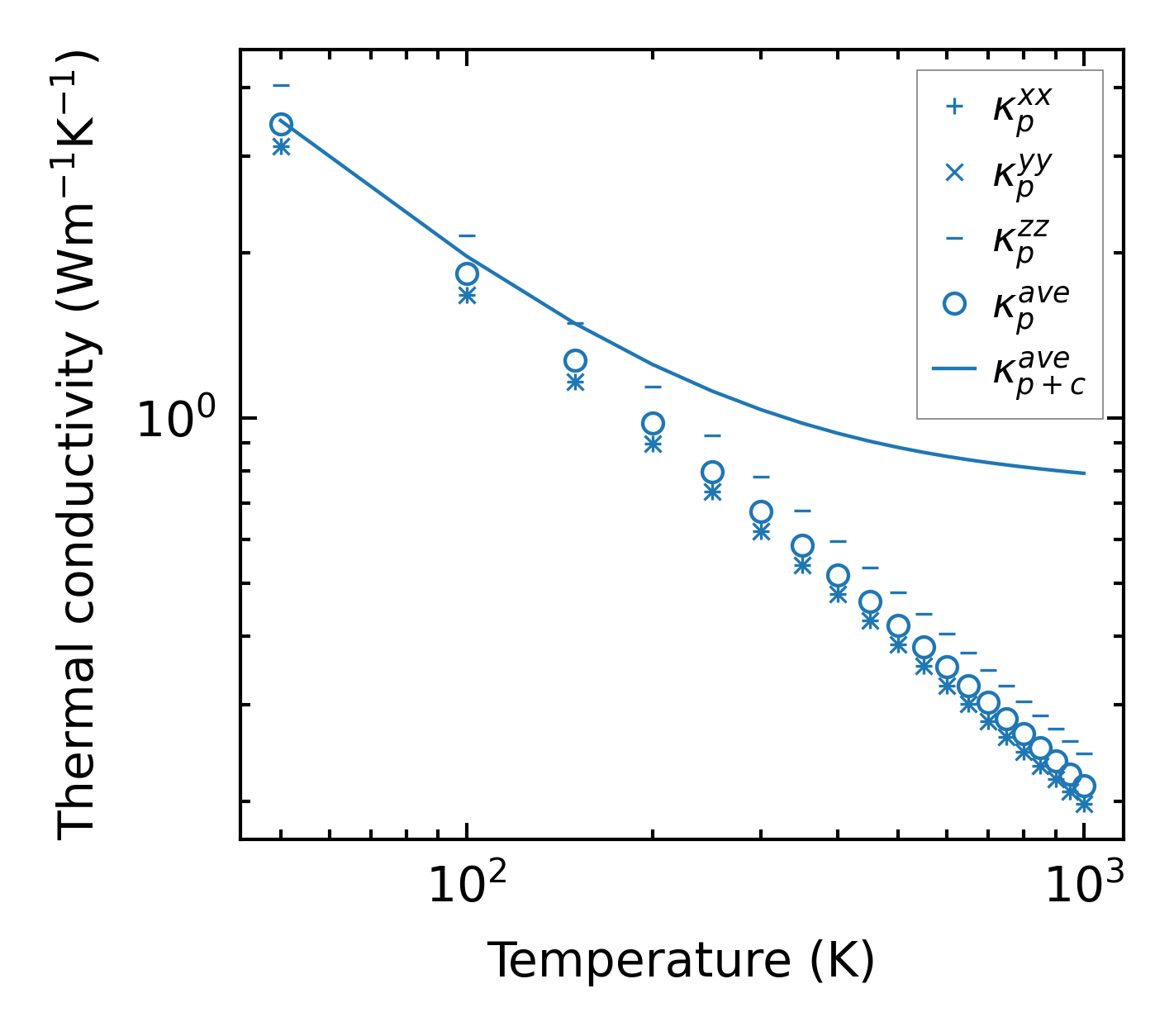

../../_images/fig_kappa12150.png — (a) Temperature-dependent lattice thermal conductivity

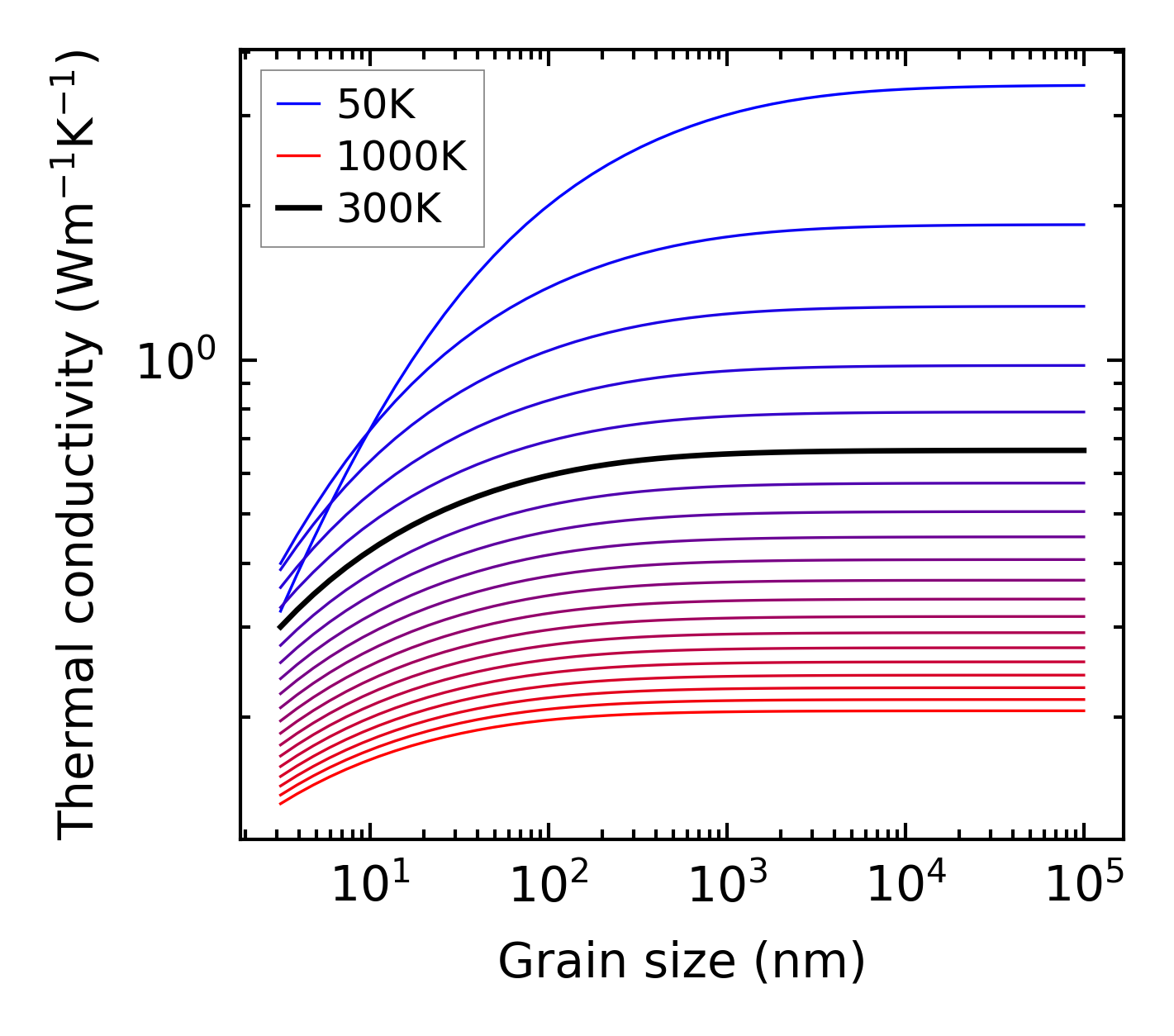

../../_images/fig_kappa_vs_grain_size6537.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

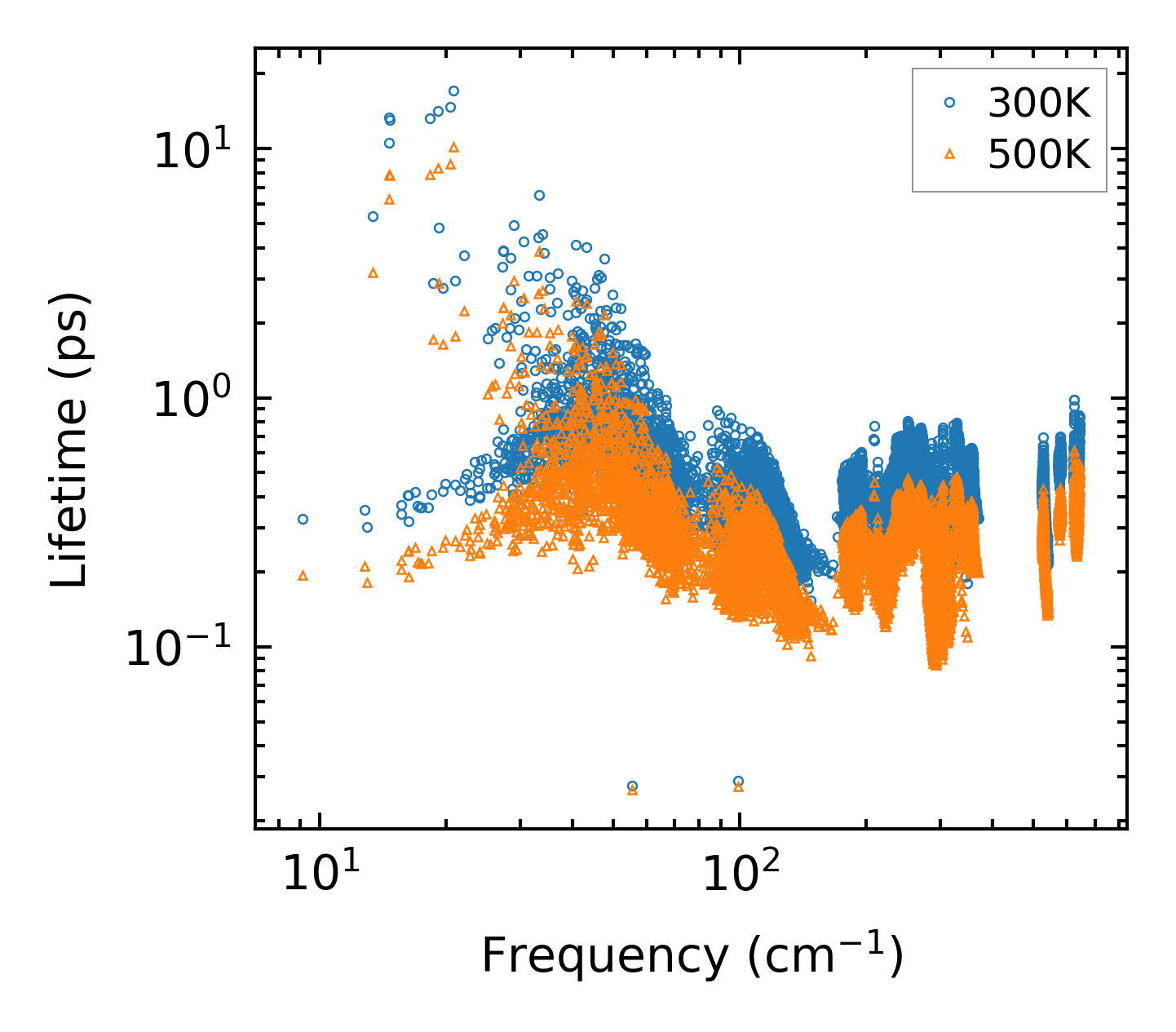

../../_images/fig_lifetime6394.png — (a) Phonon lifetime due to phonon-phonon scattering

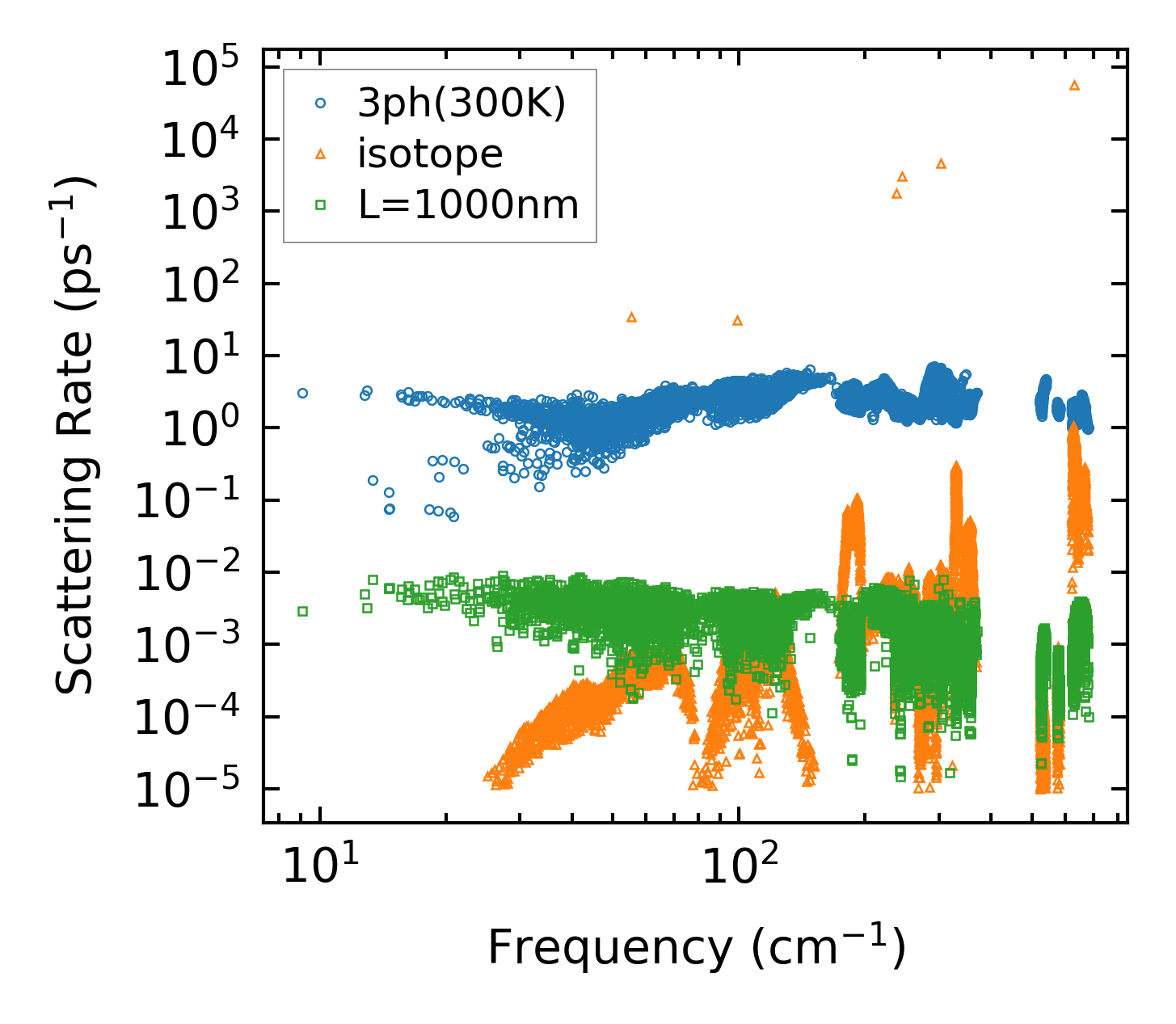

../../_images/fig_scat_rates6393.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6394.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

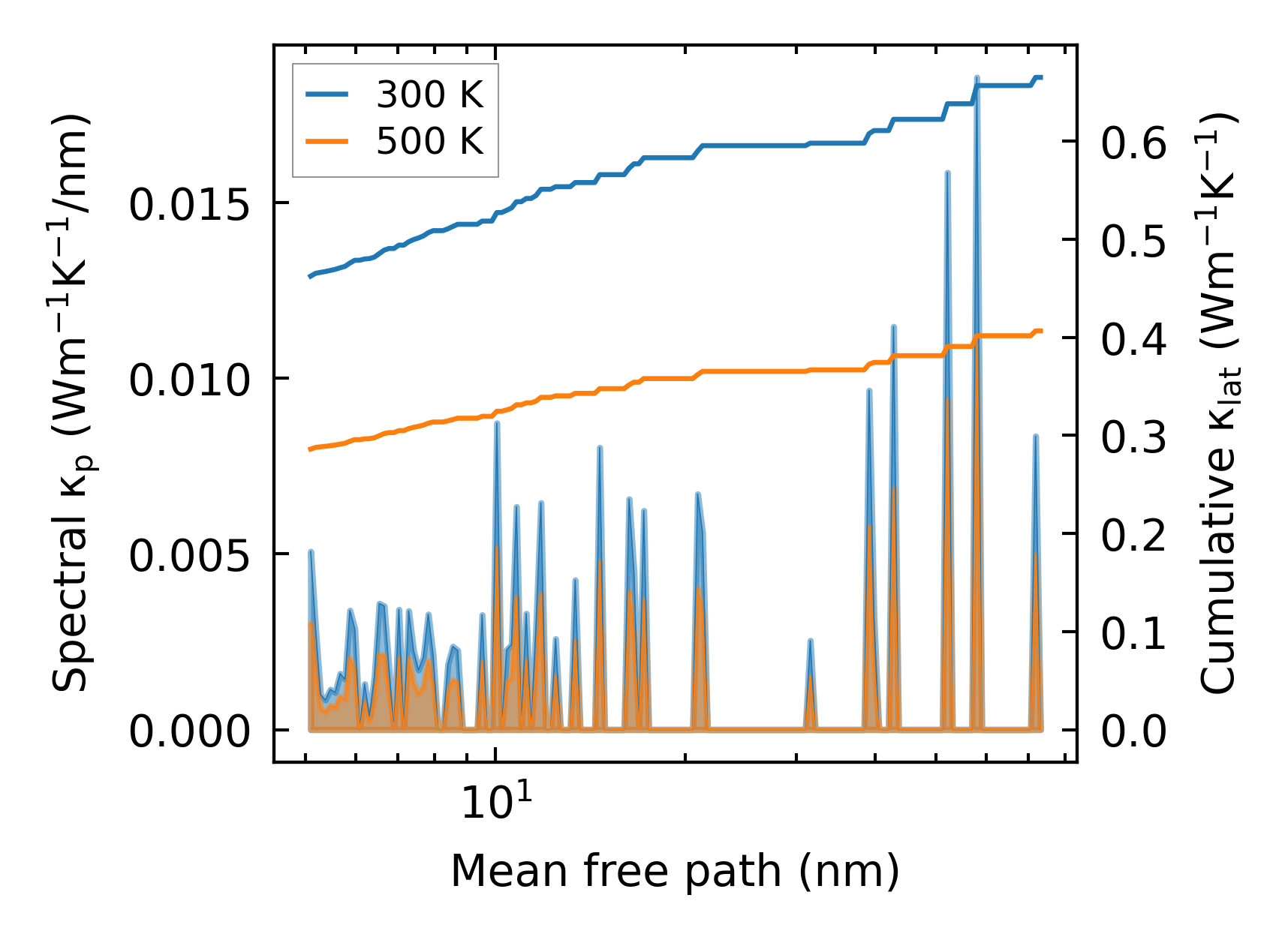

../../_images/fig_cumu_mfp6393.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214648.png — (a) Force constants w.r.t atomic distance

Summary

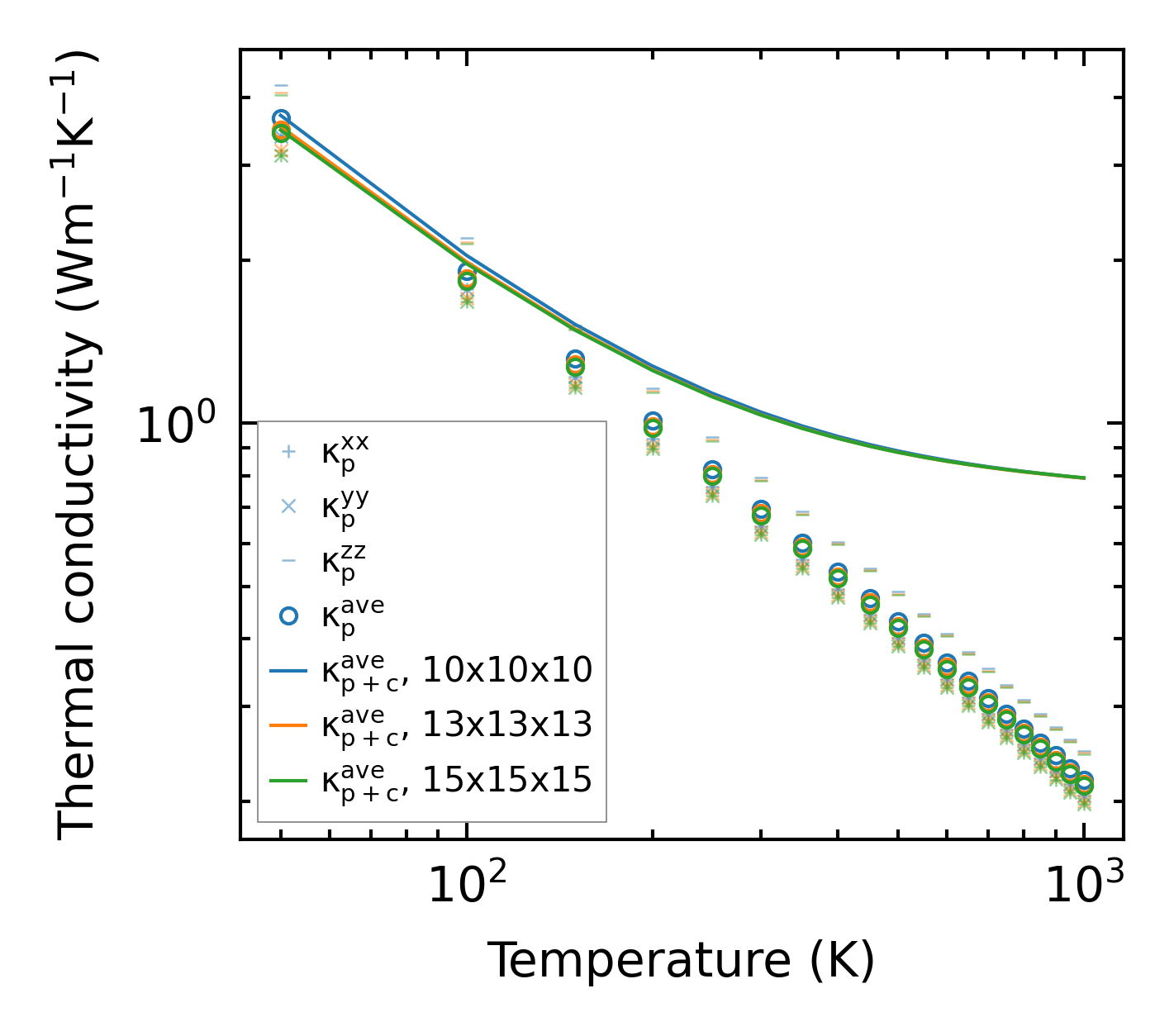

../../_images/fig_kappa12151.png — (a) Temperature-dependent lattice thermal conductivity

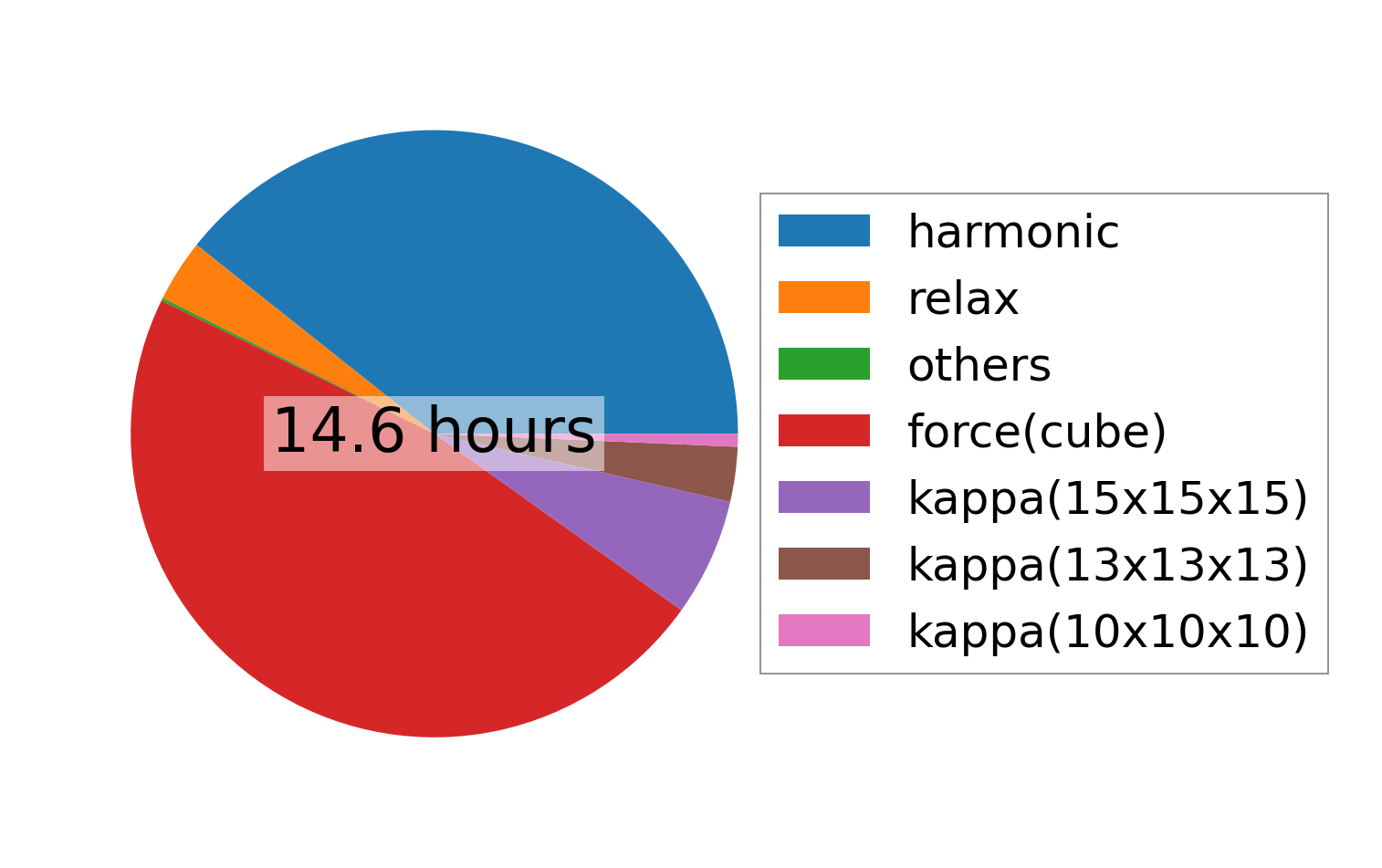

../../_images/fig_times24874.png — (b) Computation time
