mp-1239169/MoS3/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1239169.tar.gz

Harmonic properties

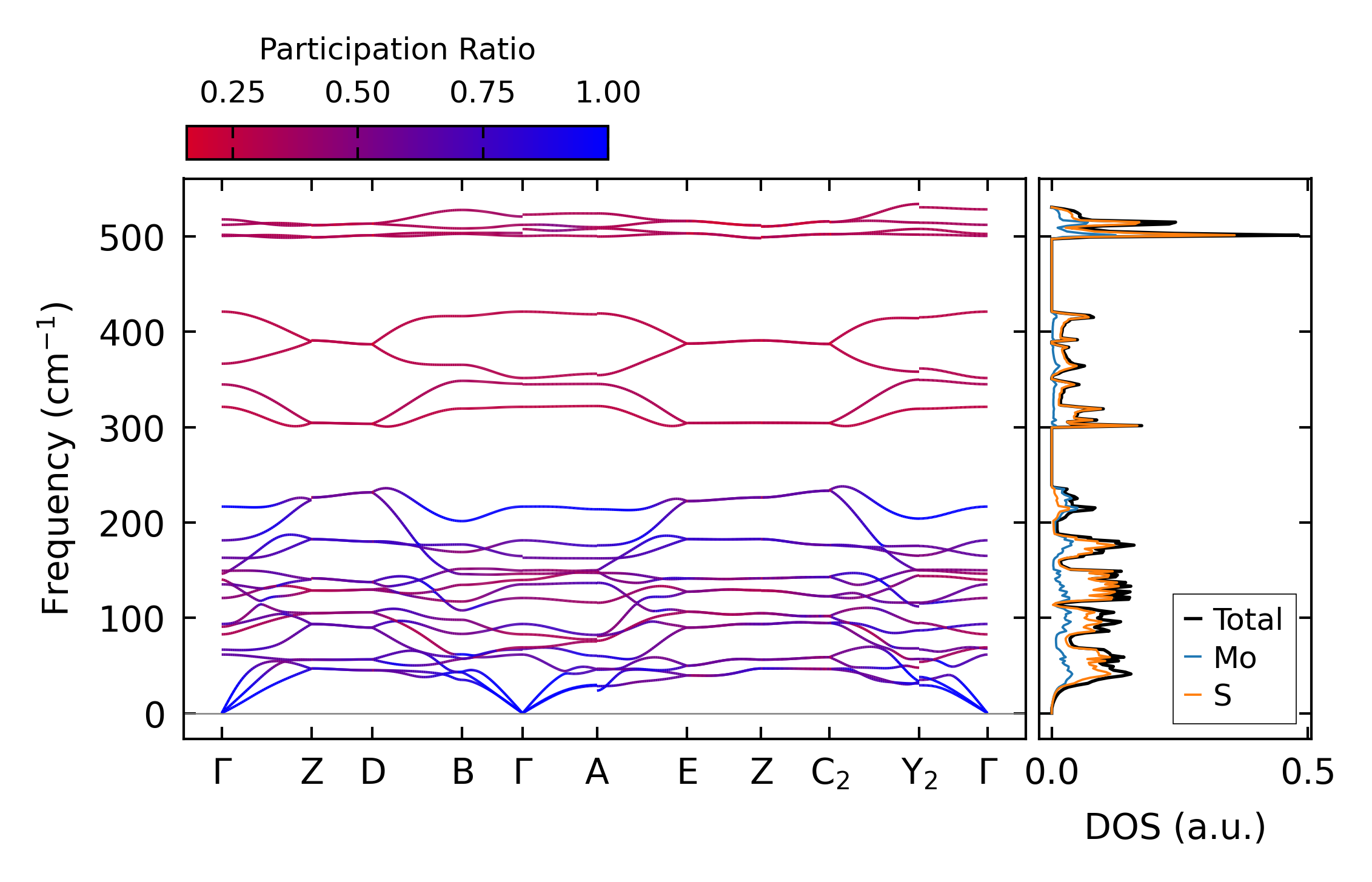

../../_images/fig_bandos_pr15162.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15161.png — (b) Thermodynamic properties

Grüneisen parameters

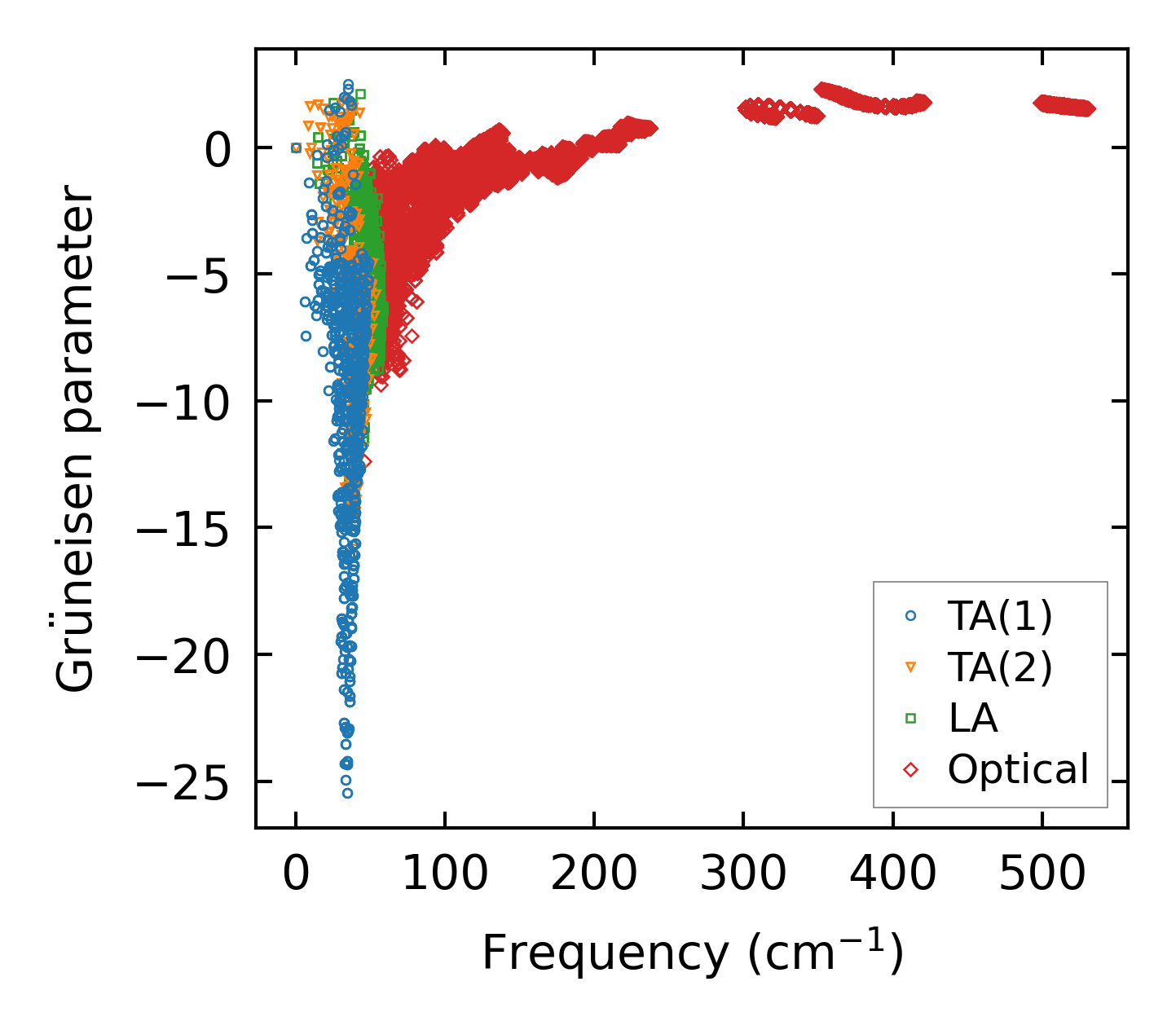

../../_images/fig_gru_all6508.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6508.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x16x10, supercell: 3x3x2

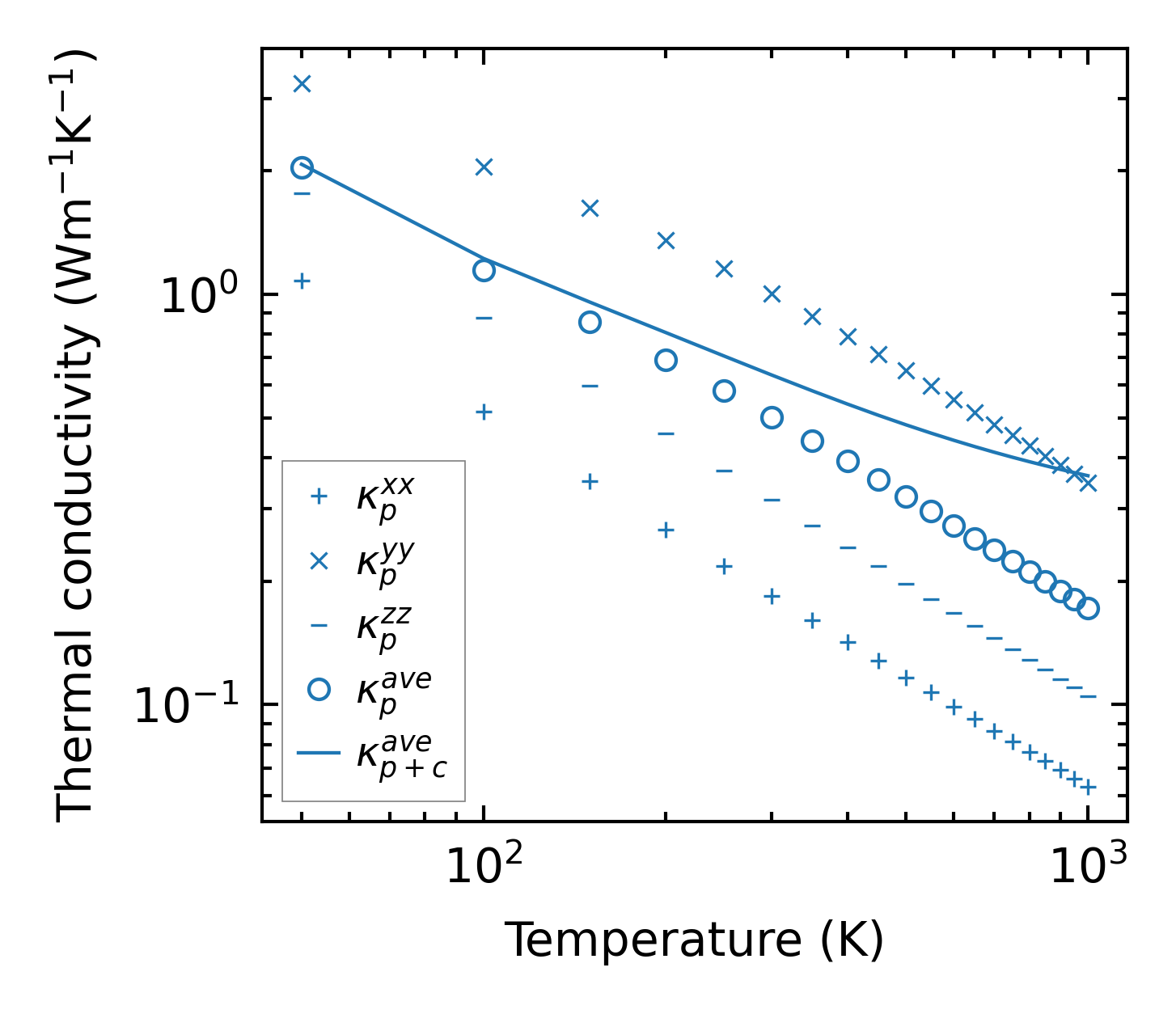

../../_images/fig_kappa12246.png — (a) Temperature-dependent lattice thermal conductivity

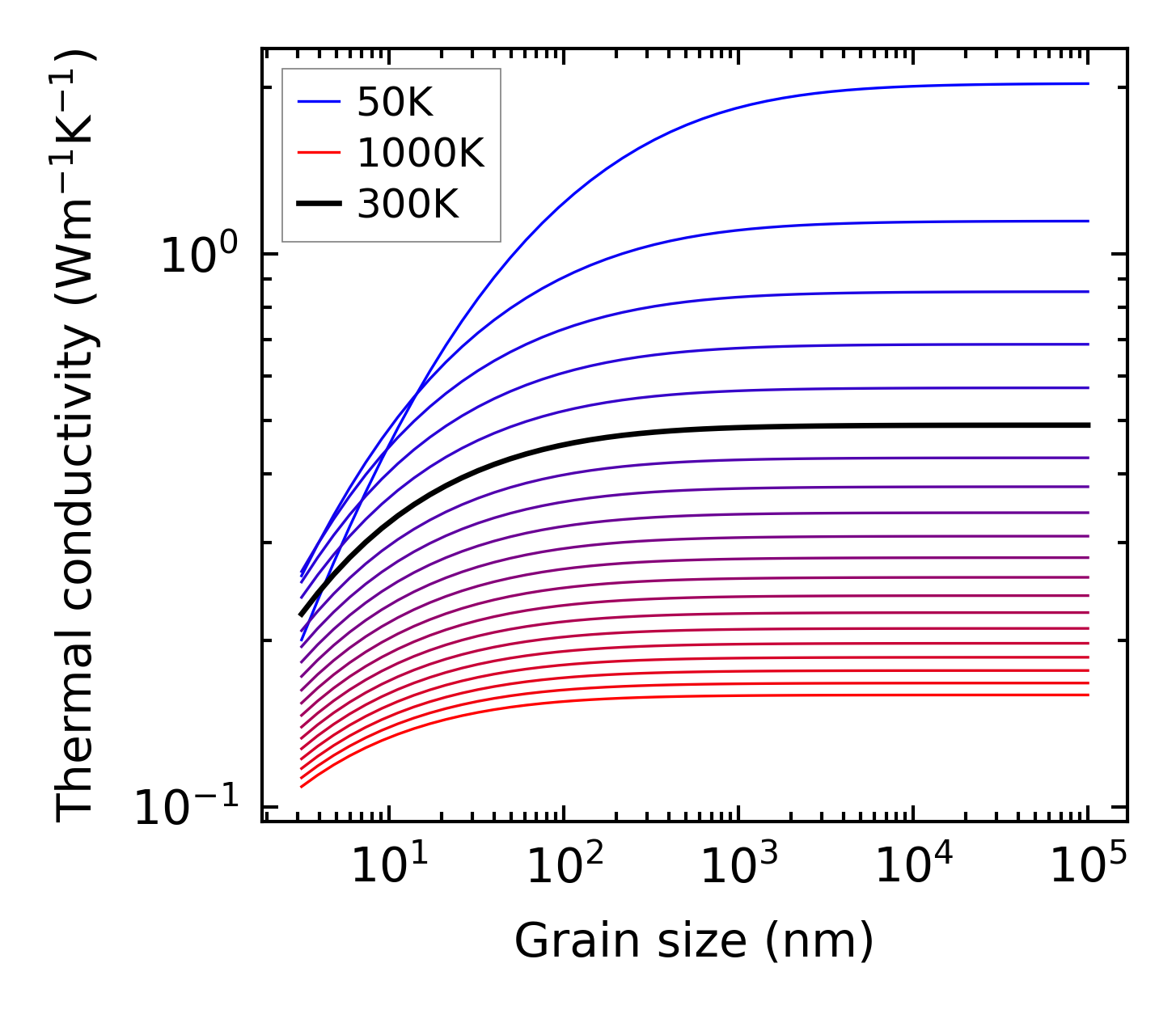

../../_images/fig_kappa_vs_grain_size6585.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

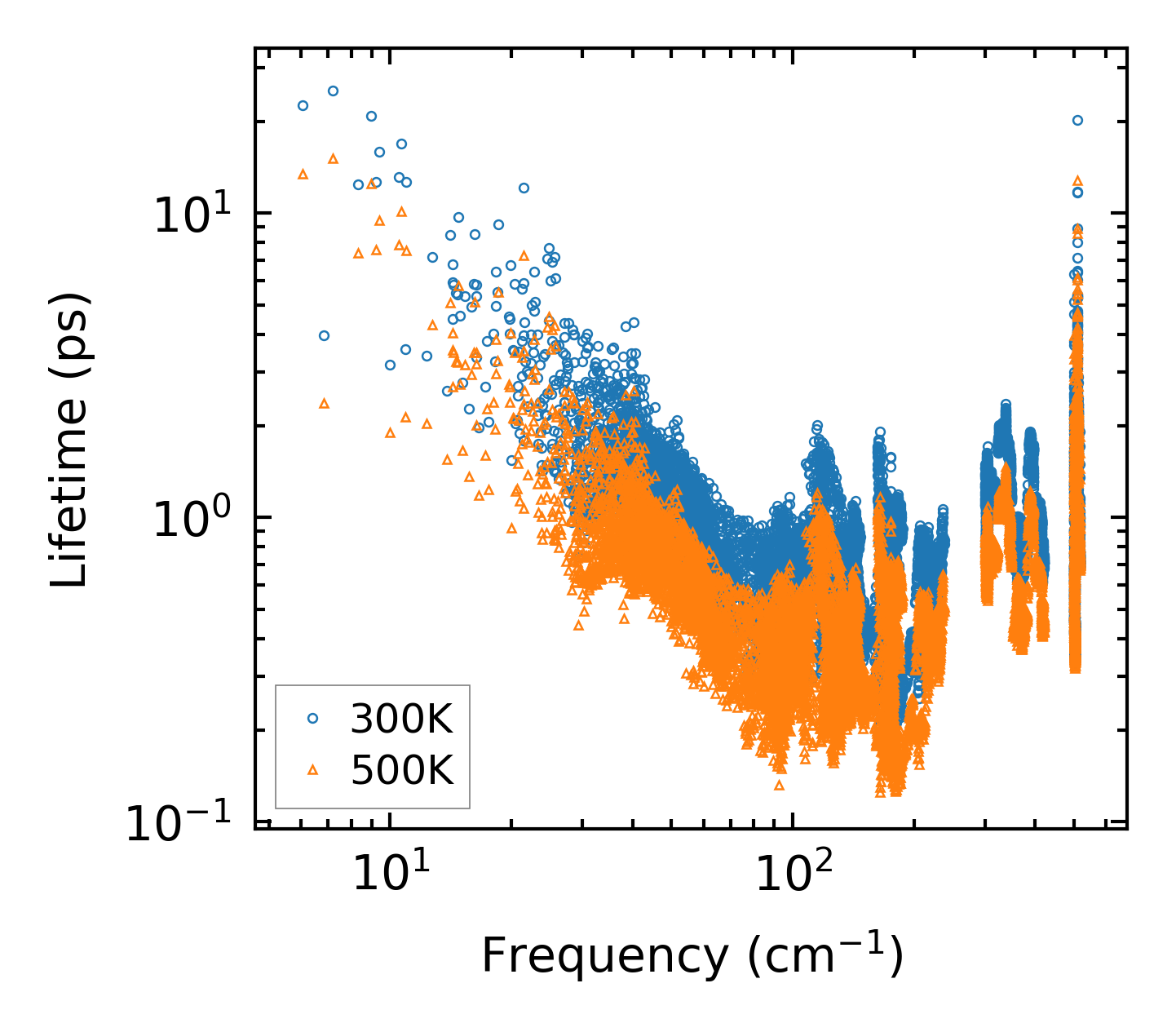

../../_images/fig_lifetime6442.png — (a) Phonon lifetime due to phonon-phonon scattering

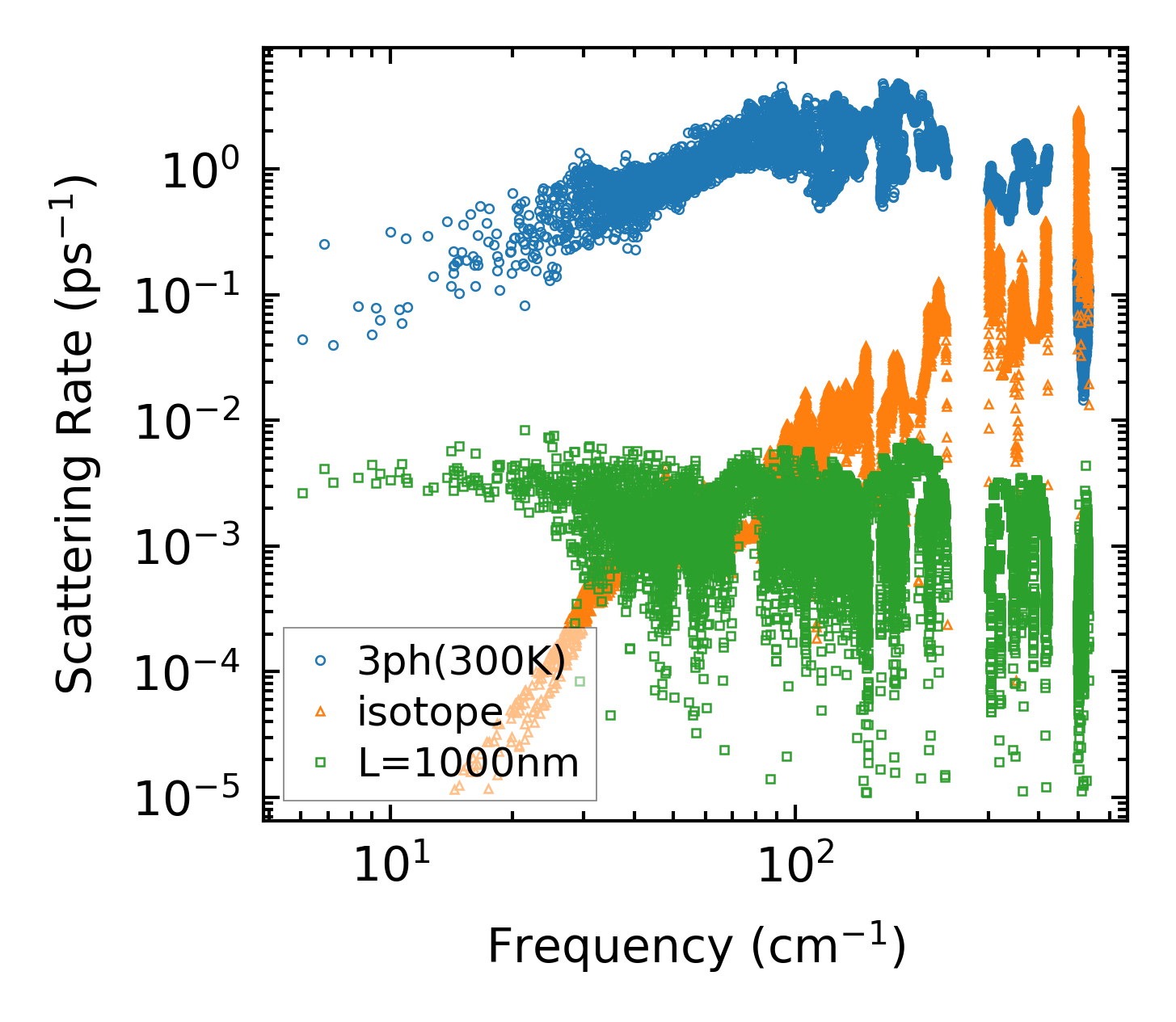

../../_images/fig_scat_rates6441.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6442.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

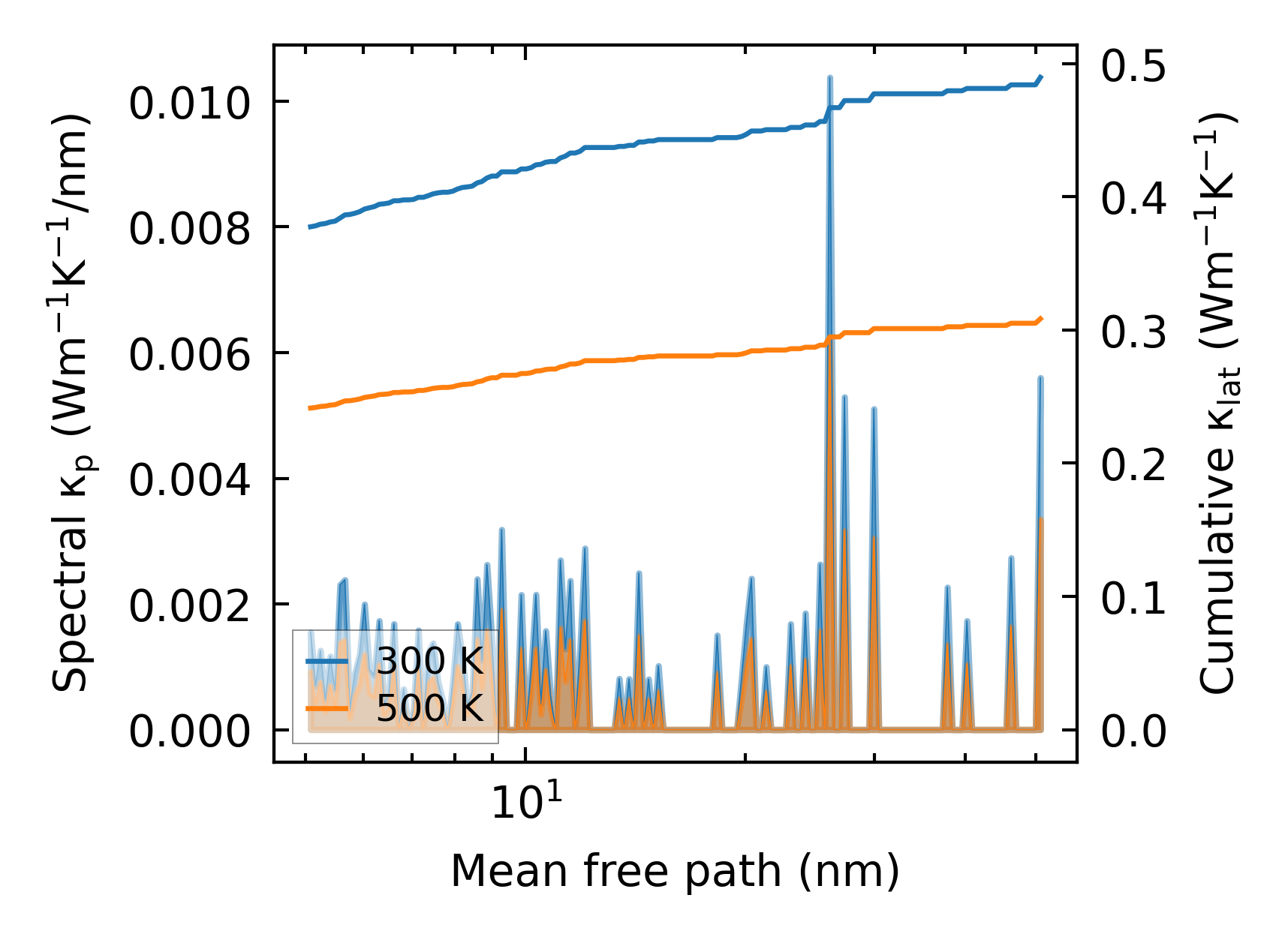

../../_images/fig_cumu_mfp6441.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

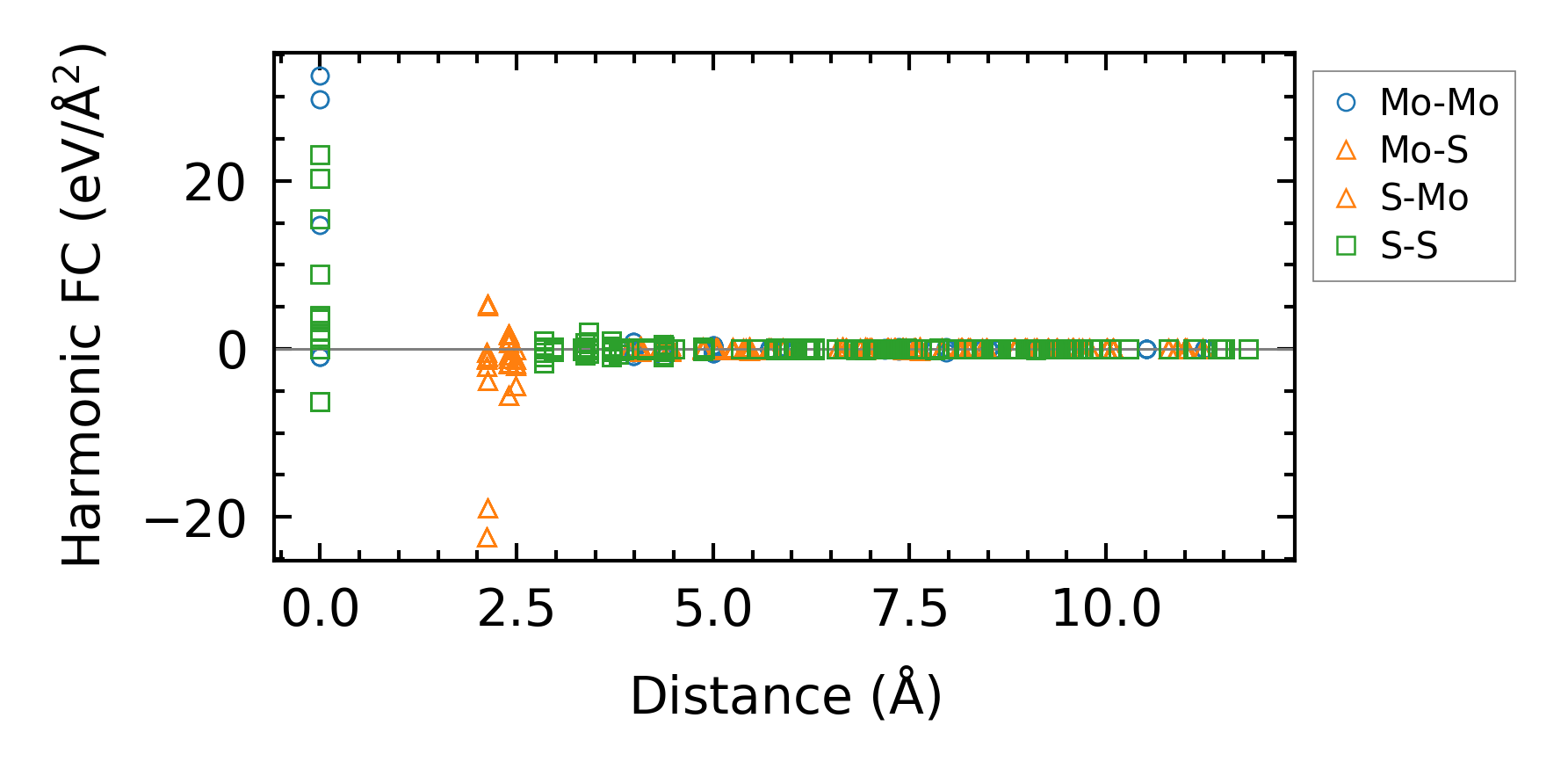

../../_images/fig_fc214777.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12247.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times25102.png — (b) Computation time
