mp-1201627-3/RbH4CN3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-1201627-3.tar.gz

Harmonic properties

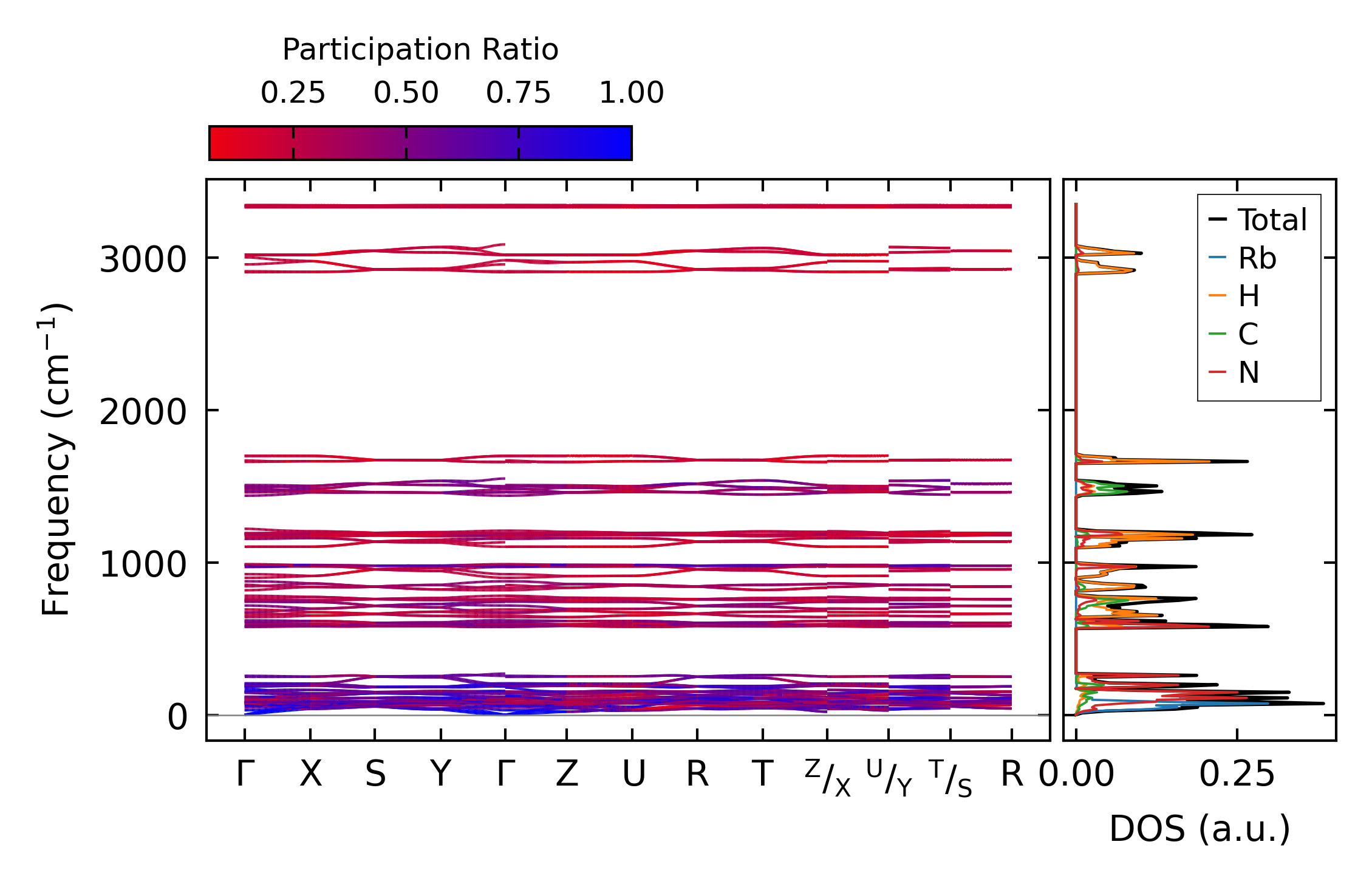

../../_images/fig_bandos_pr15381.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15380.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6655.png — (a) Grüneisen parameters

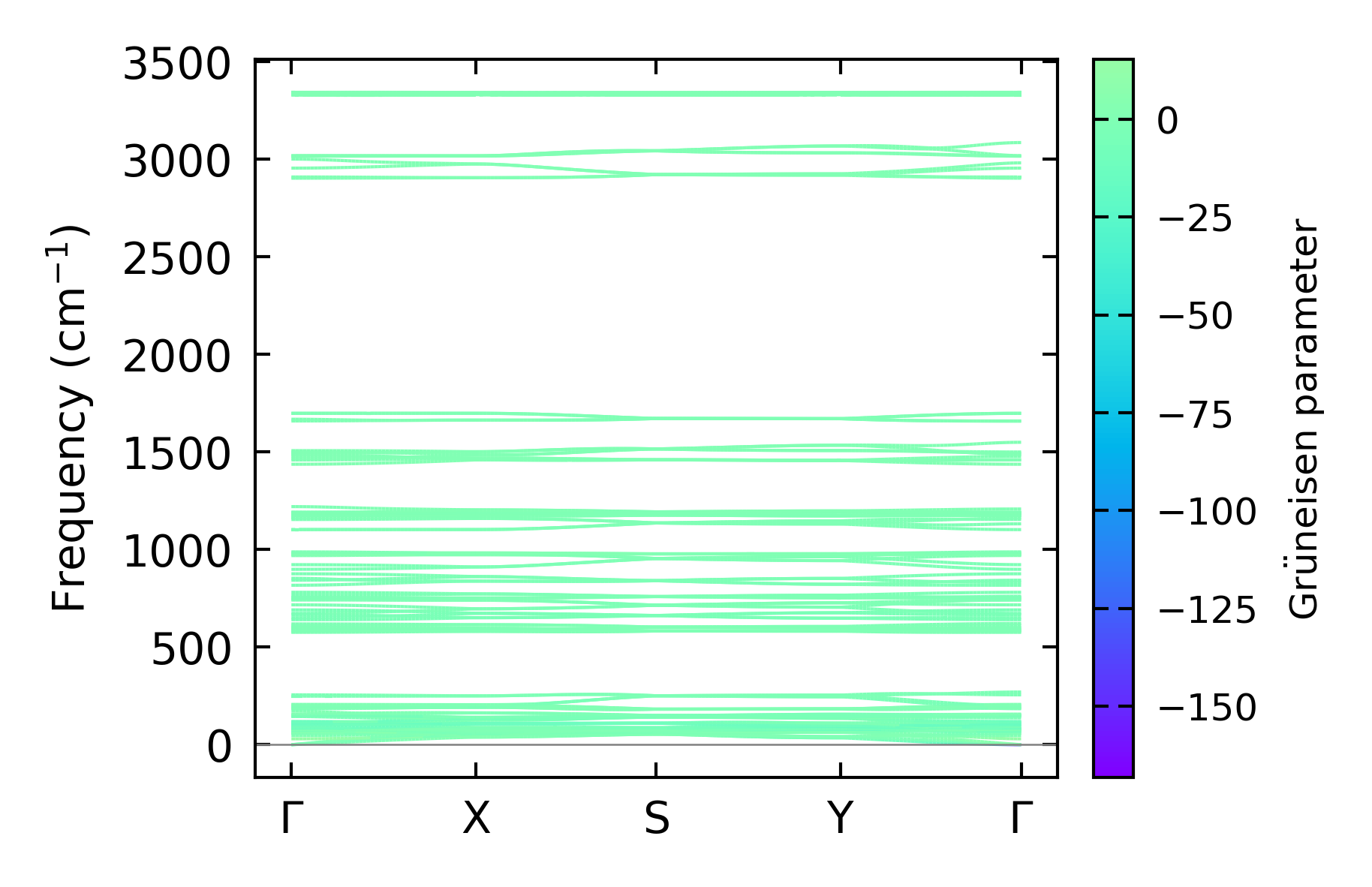

../../_images/fig_gruneisen6655.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x9, supercell: 2x2x1

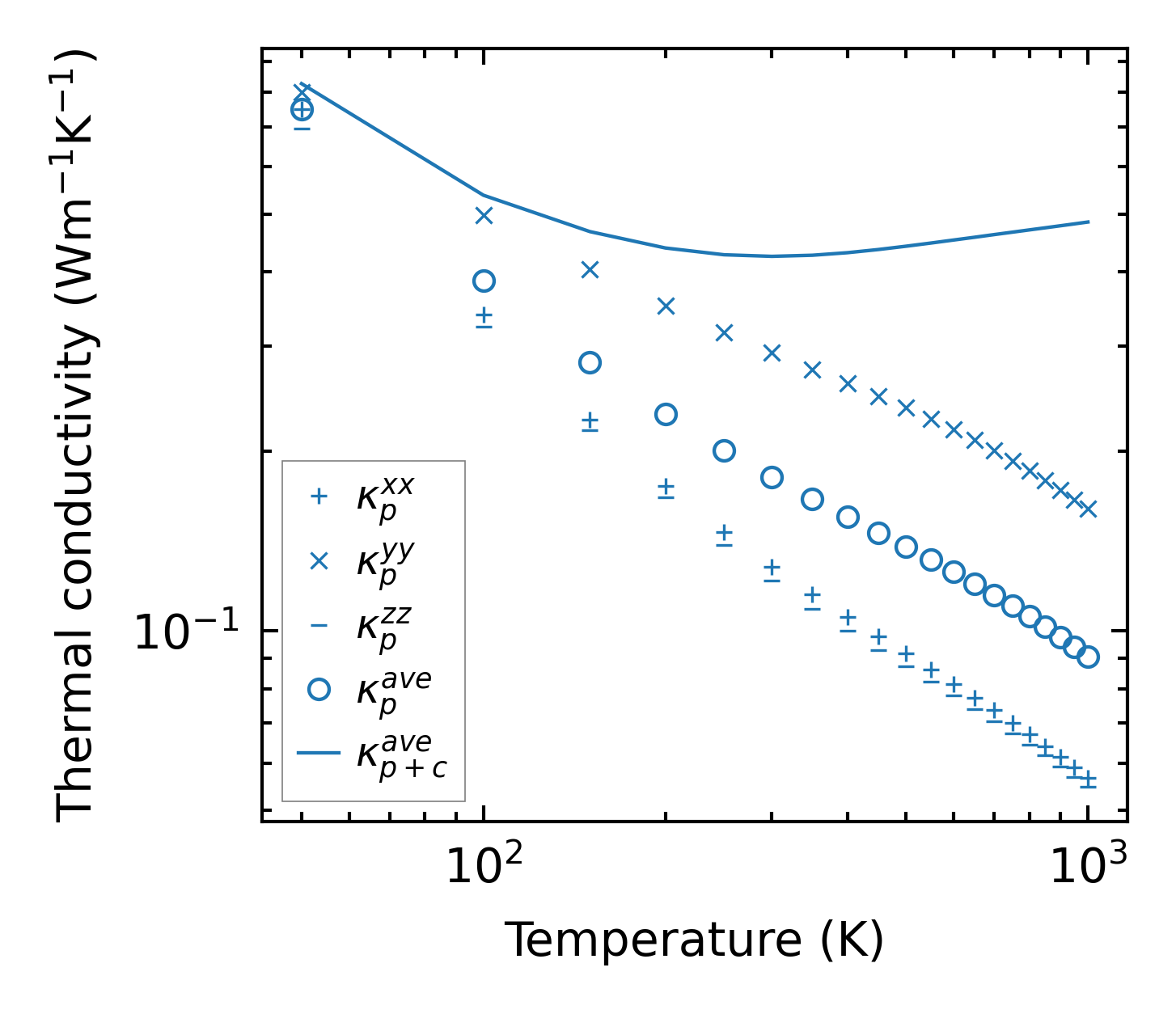

../../_images/fig_kappa12532.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6733.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

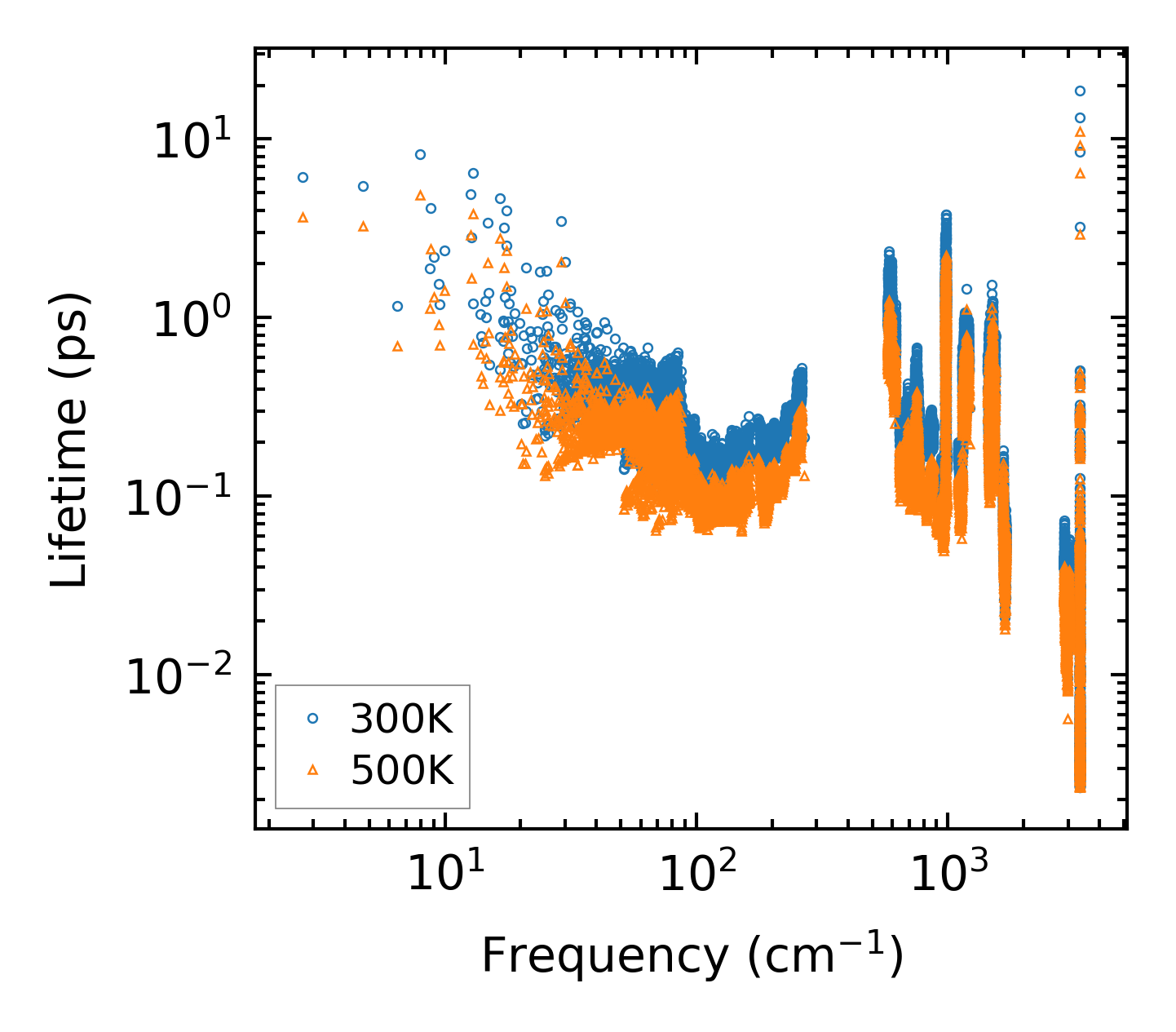

../../_images/fig_lifetime6589.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6588.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

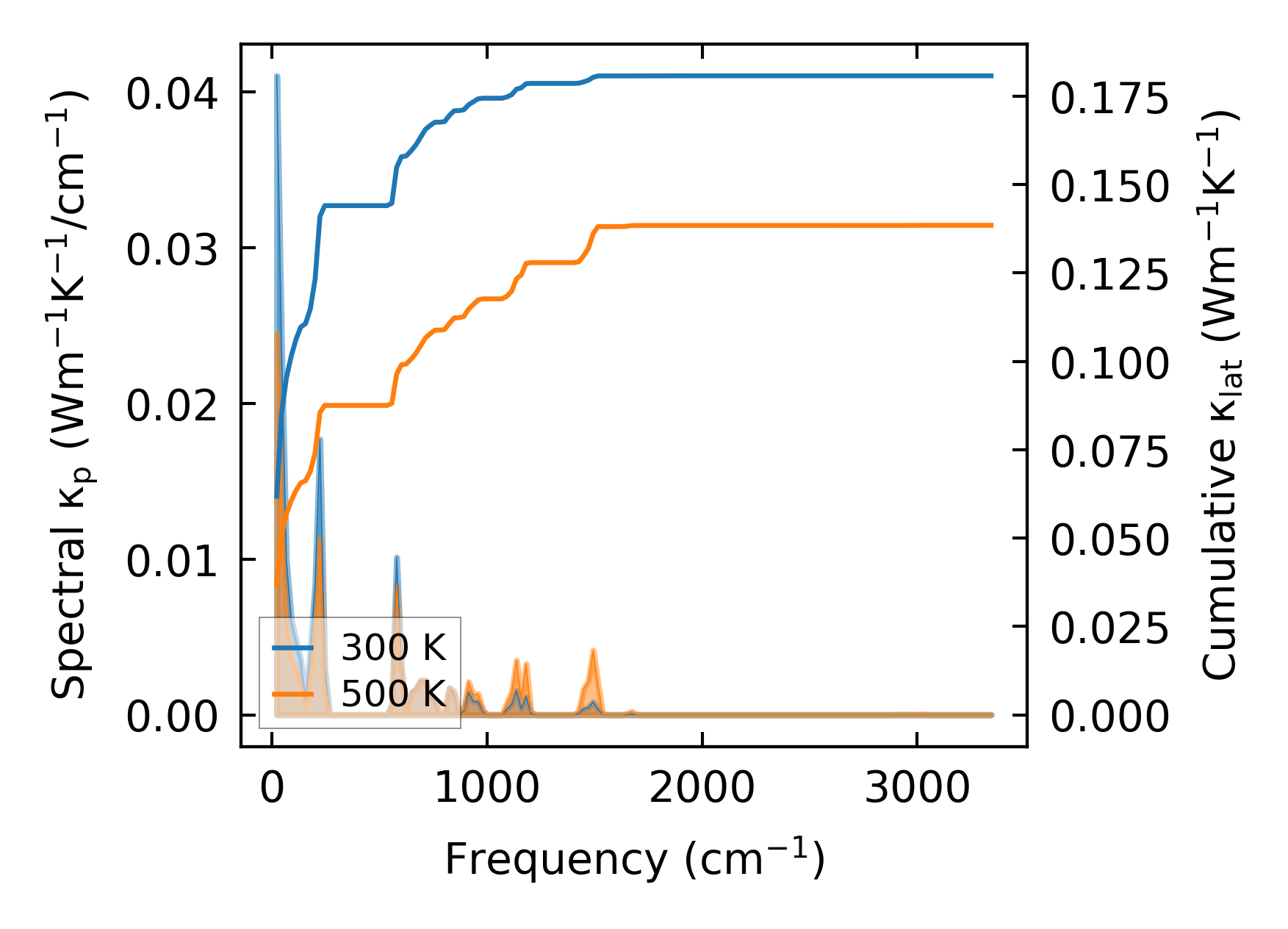

../../_images/fig_cumu_frequency6589.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

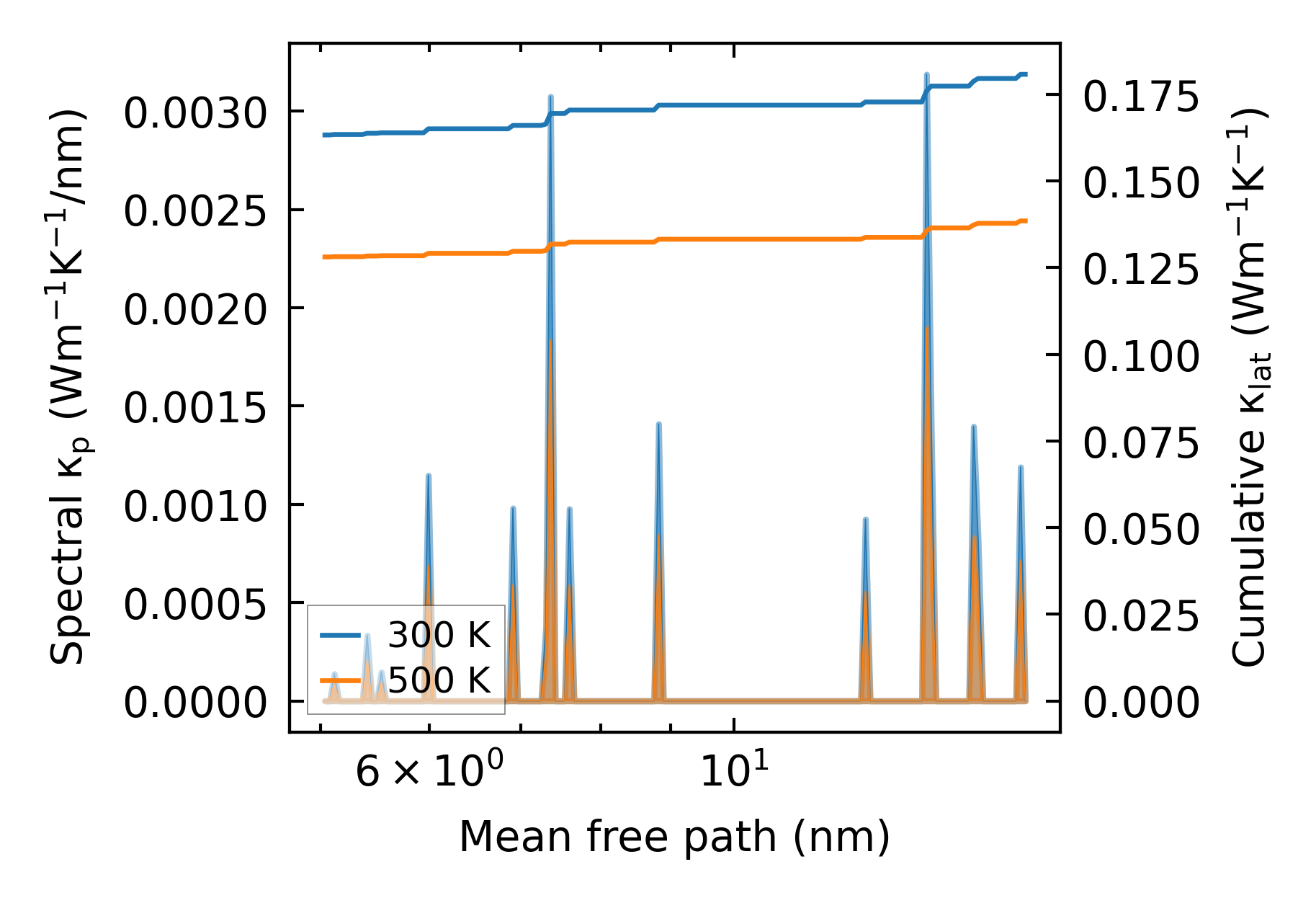

../../_images/fig_cumu_mfp6588.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

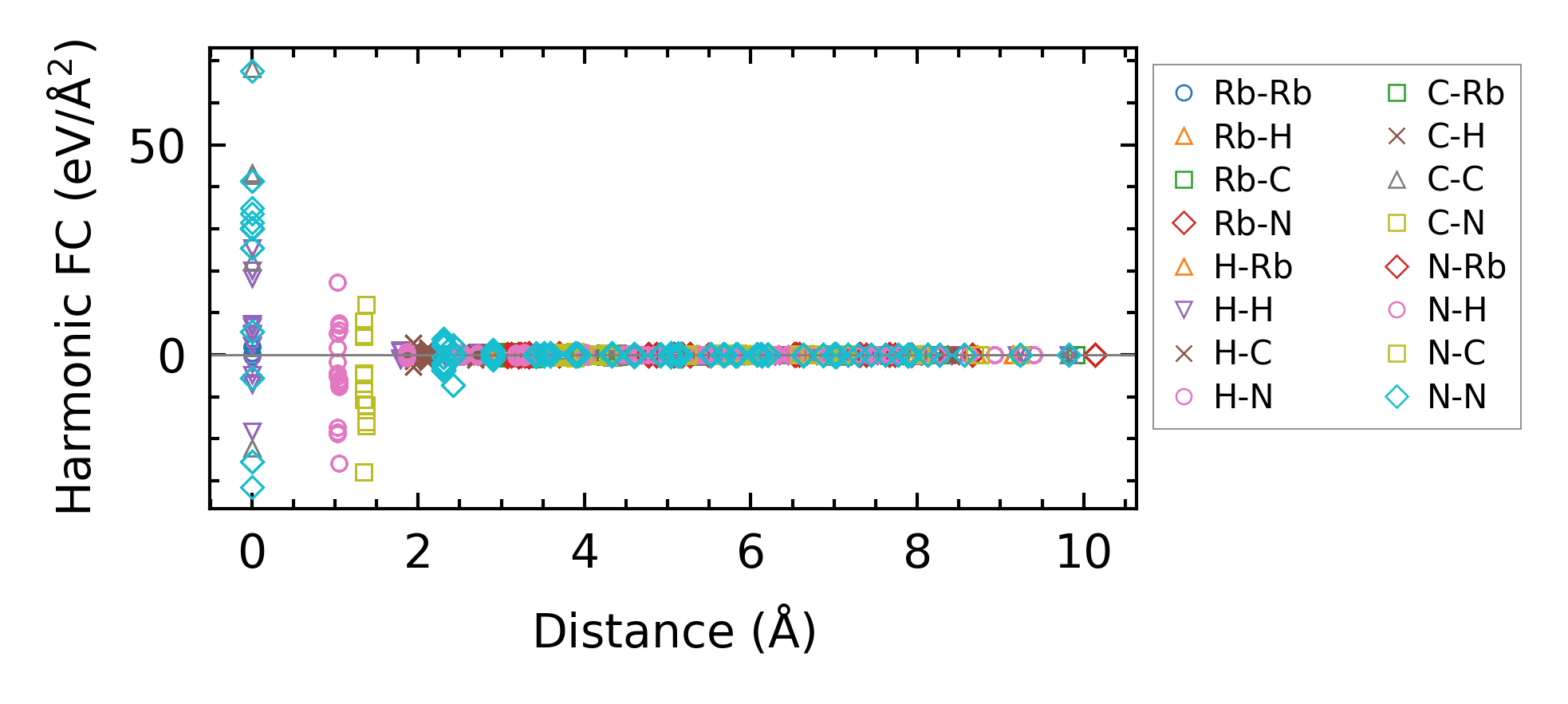

../../_images/fig_fc214984.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa12533.png — (a) Temperature-dependent lattice thermal conductivity

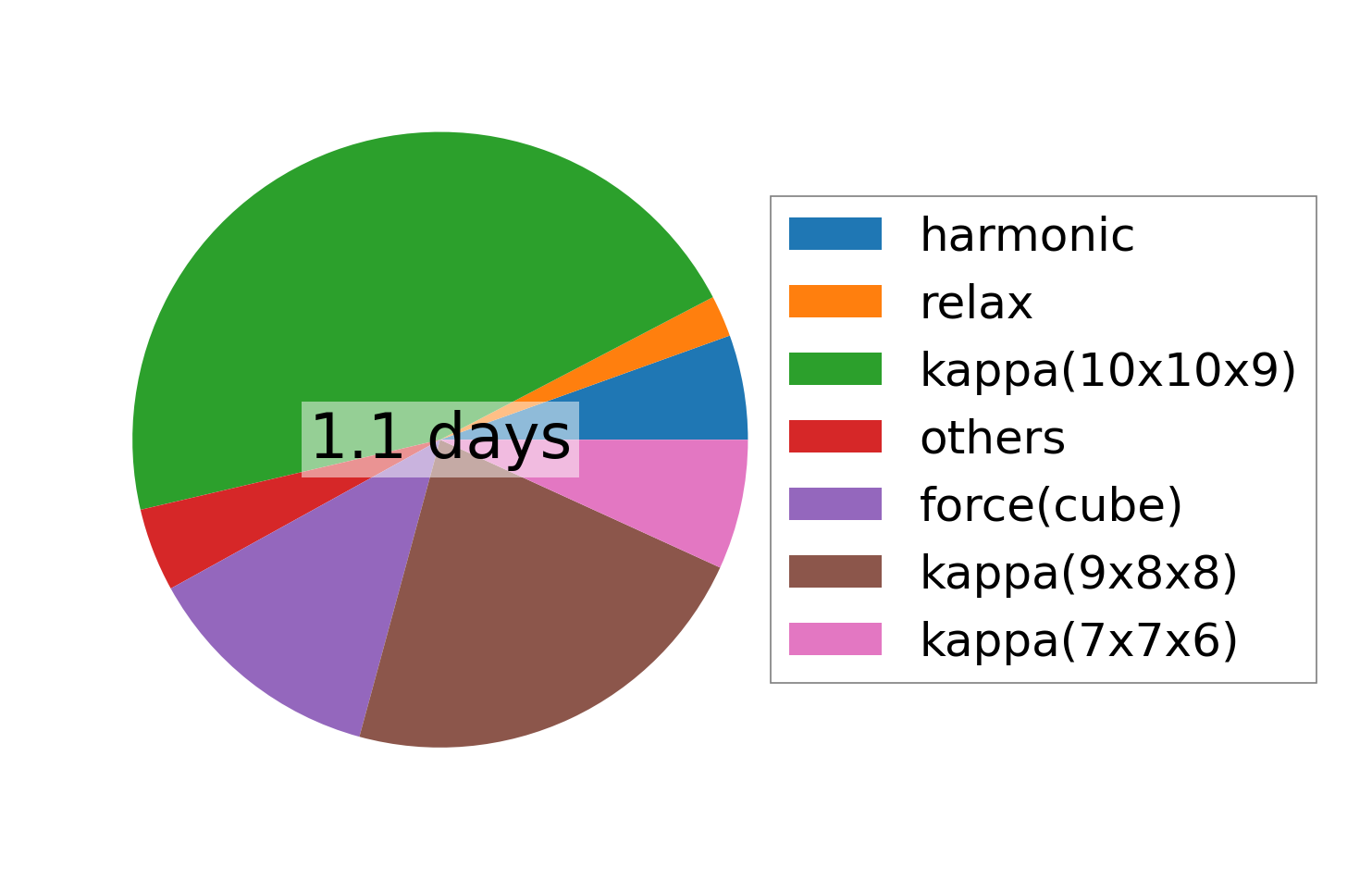

../../_images/fig_times25432.png — (b) Computation time
