mp-1153970/Zn4InGaO7/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-1153970.tar.gz

Harmonic properties

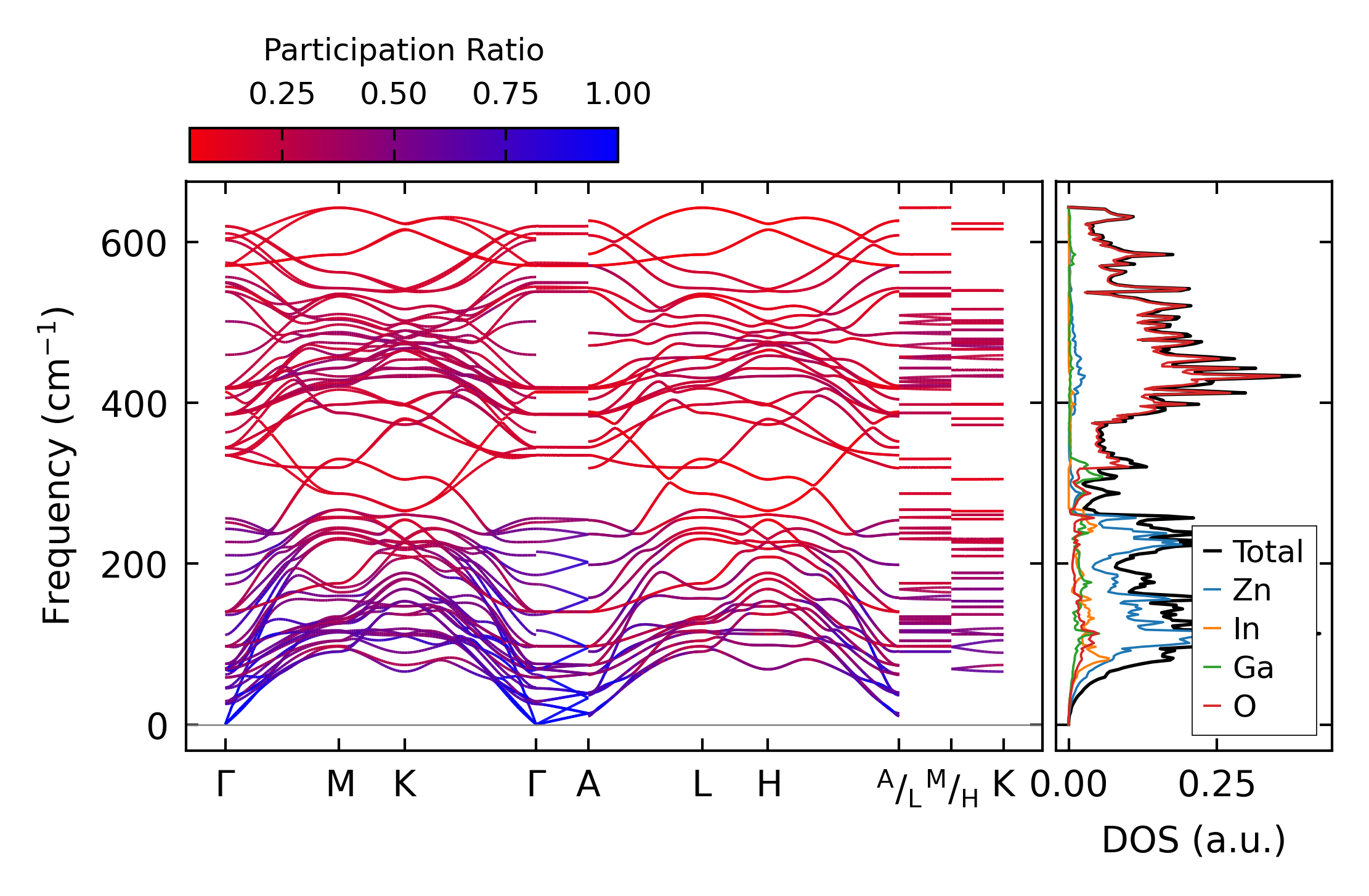

../../_images/fig_bandos_pr16092.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16091.png — (b) Thermodynamic properties

Grüneisen parameters

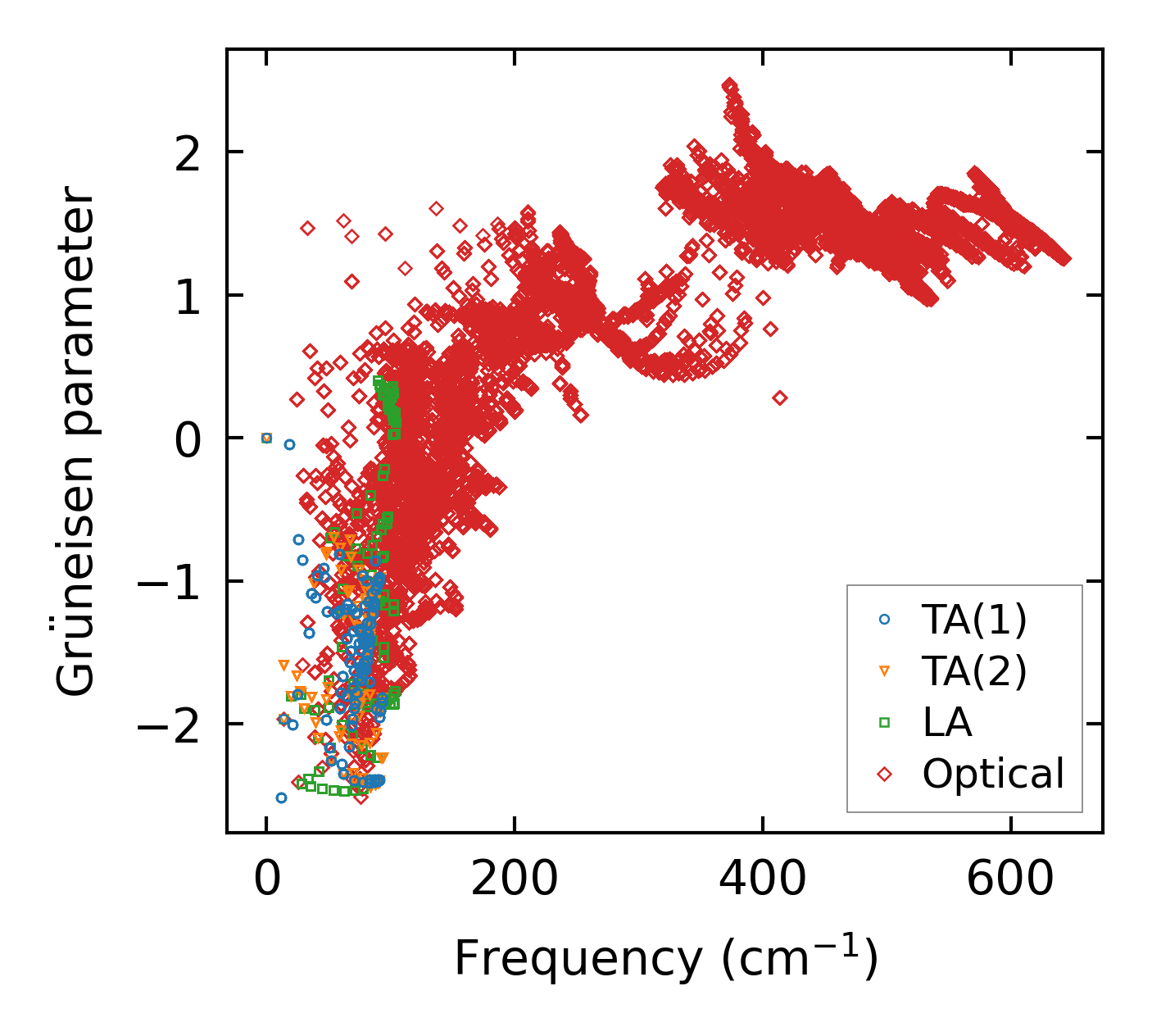

../../_images/fig_gru_all6973.png — (a) Grüneisen parameters

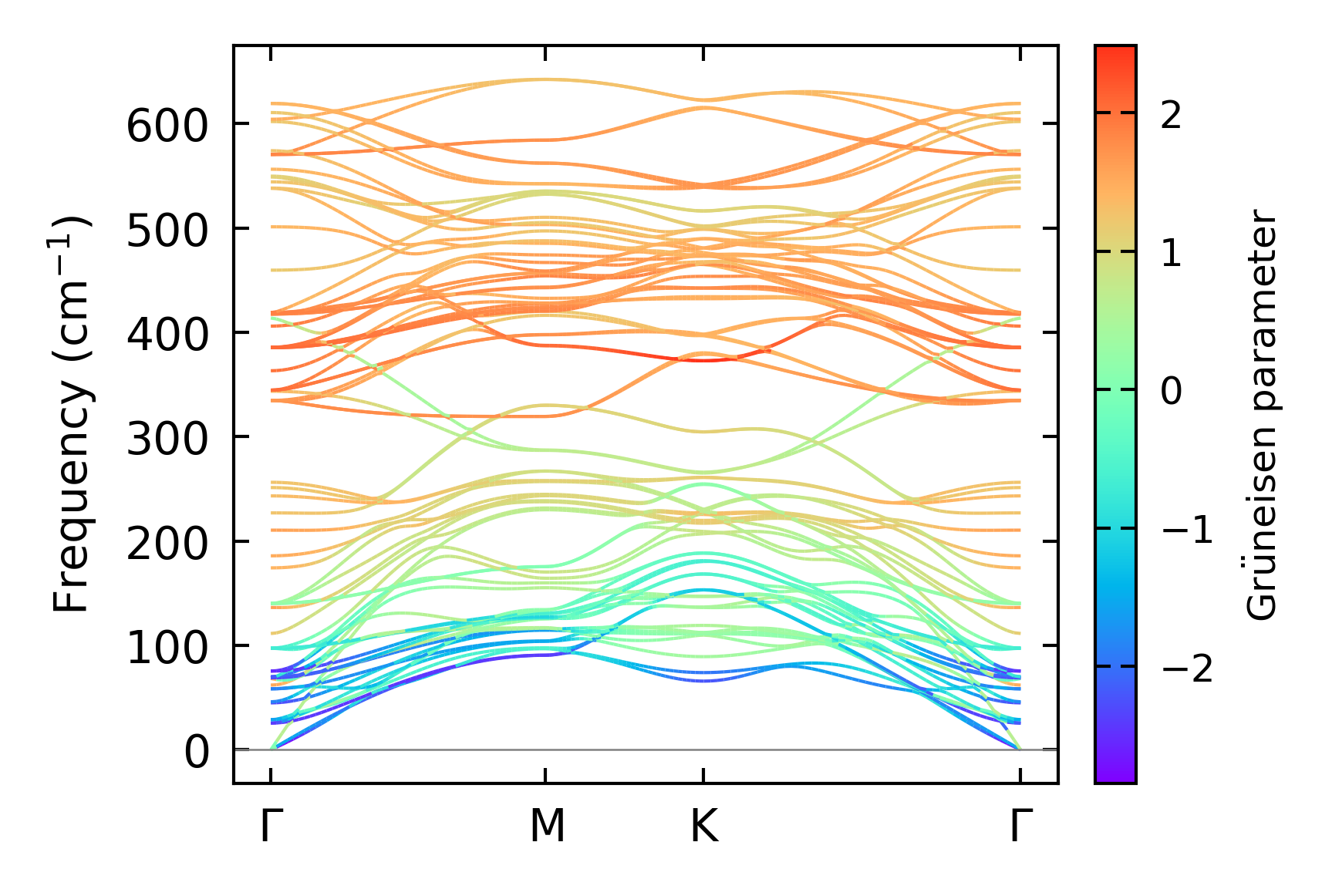

../../_images/fig_gruneisen6973.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x22x2, supercell: 2x2x1

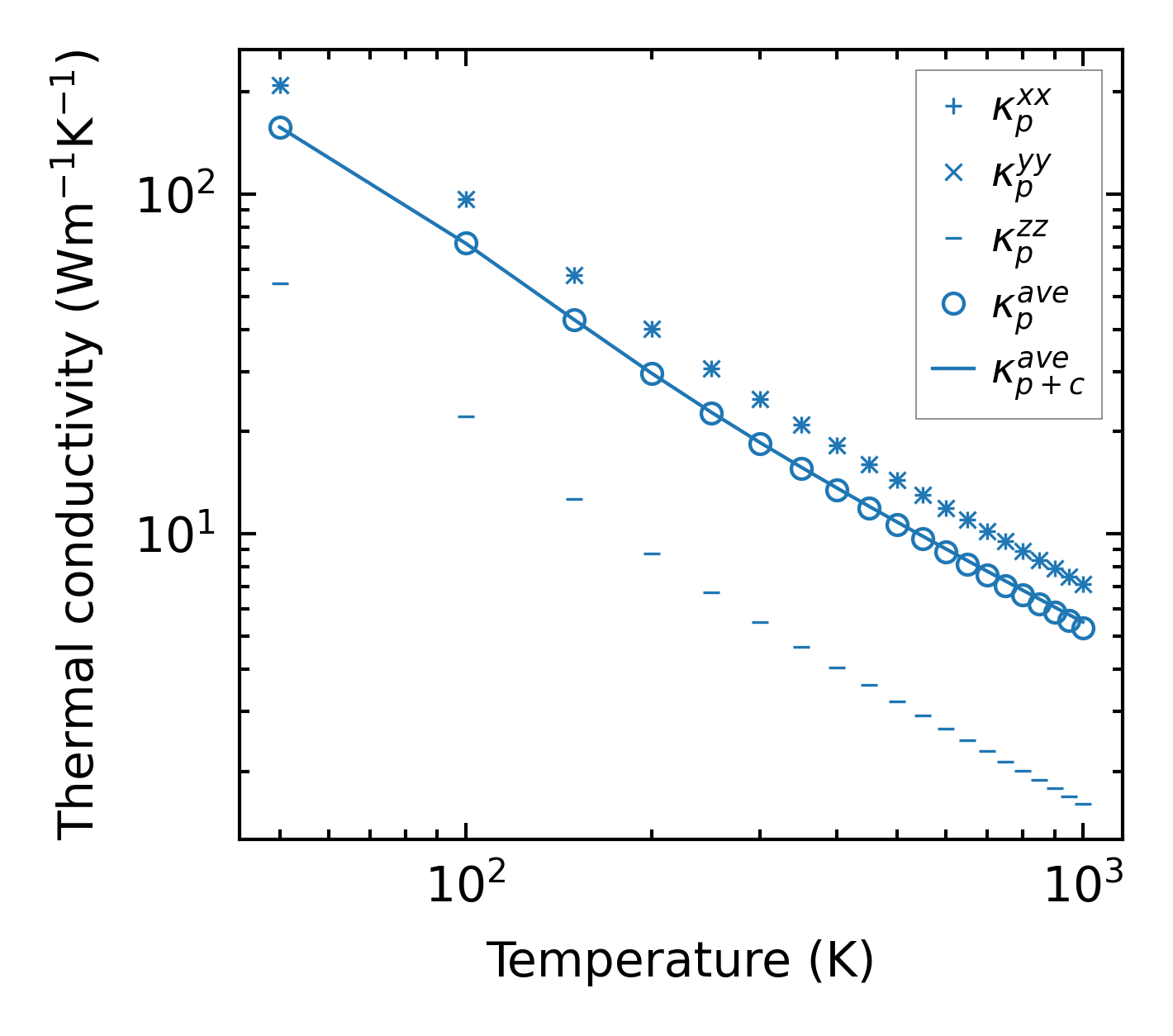

../../_images/fig_kappa13126.png — (a) Temperature-dependent lattice thermal conductivity

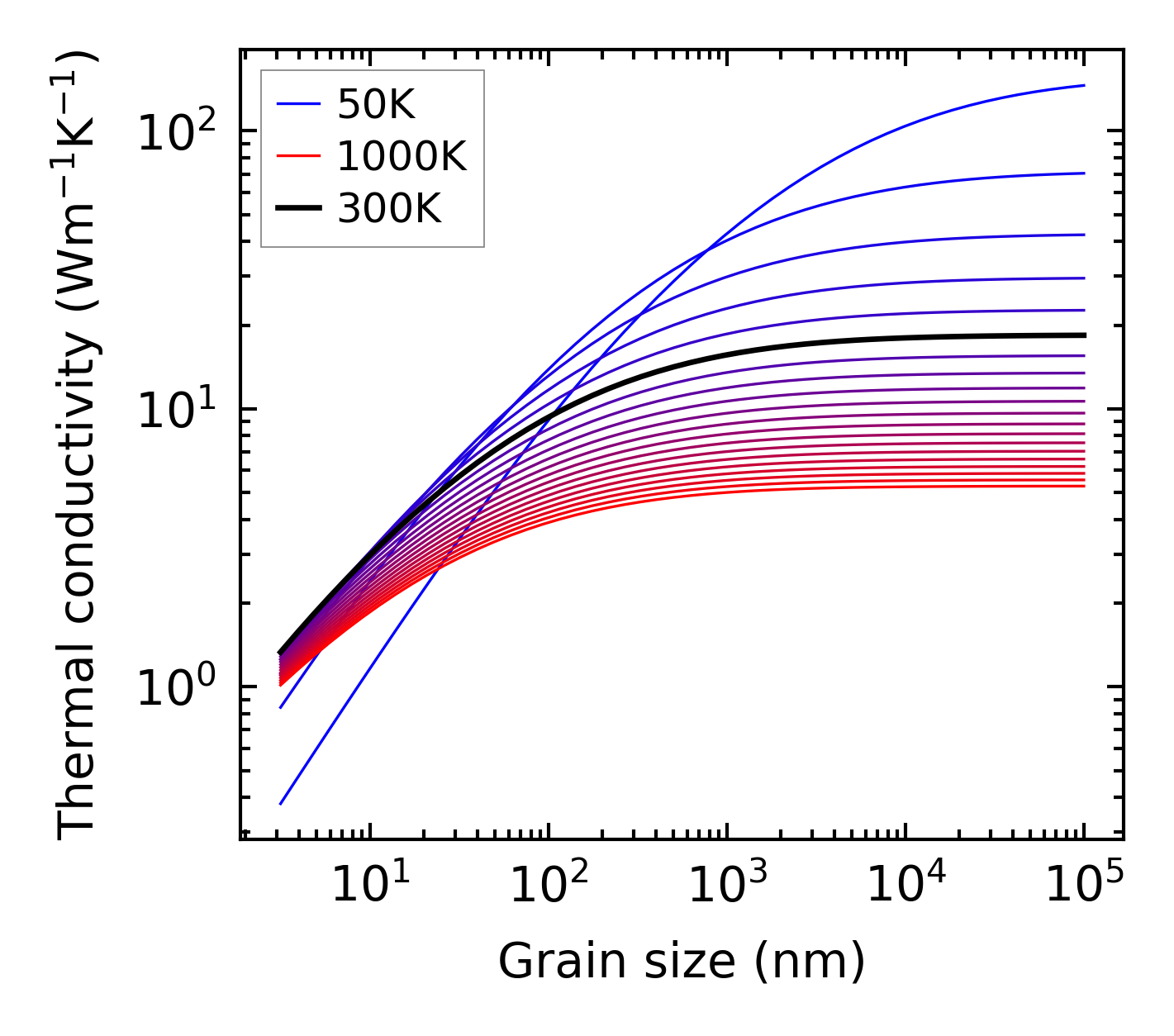

../../_images/fig_kappa_vs_grain_size7055.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

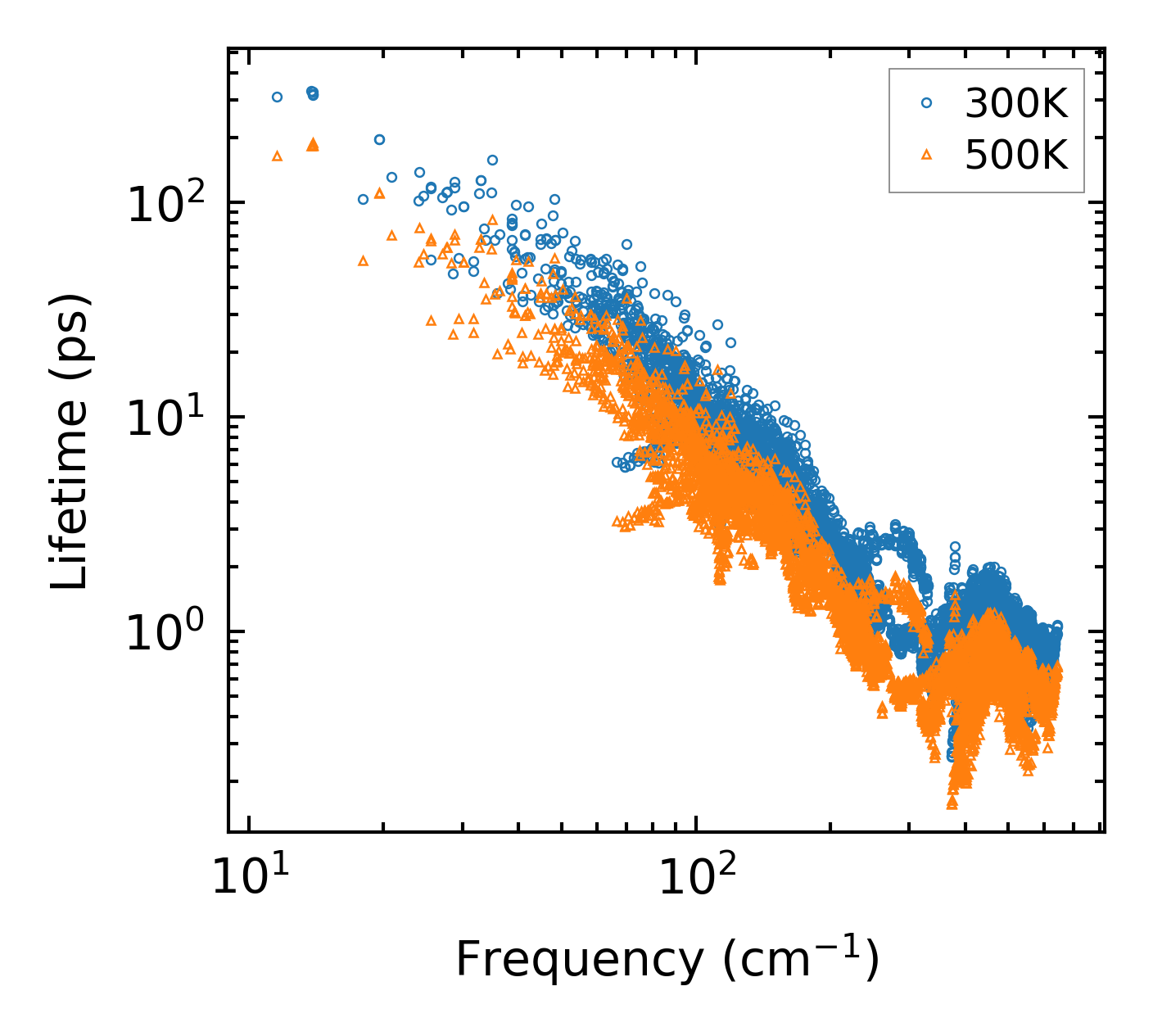

../../_images/fig_lifetime6907.png — (a) Phonon lifetime due to phonon-phonon scattering

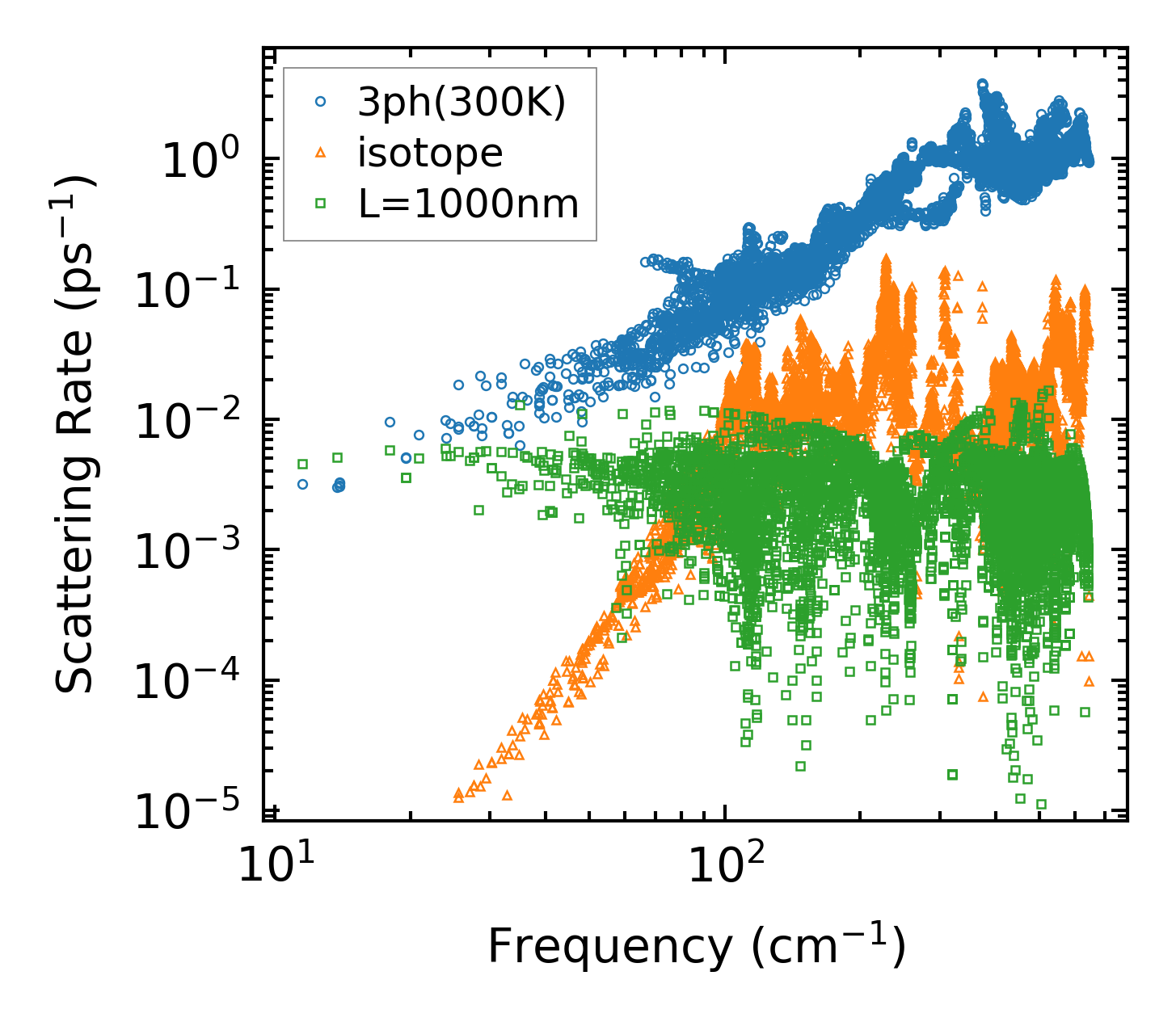

../../_images/fig_scat_rates6906.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

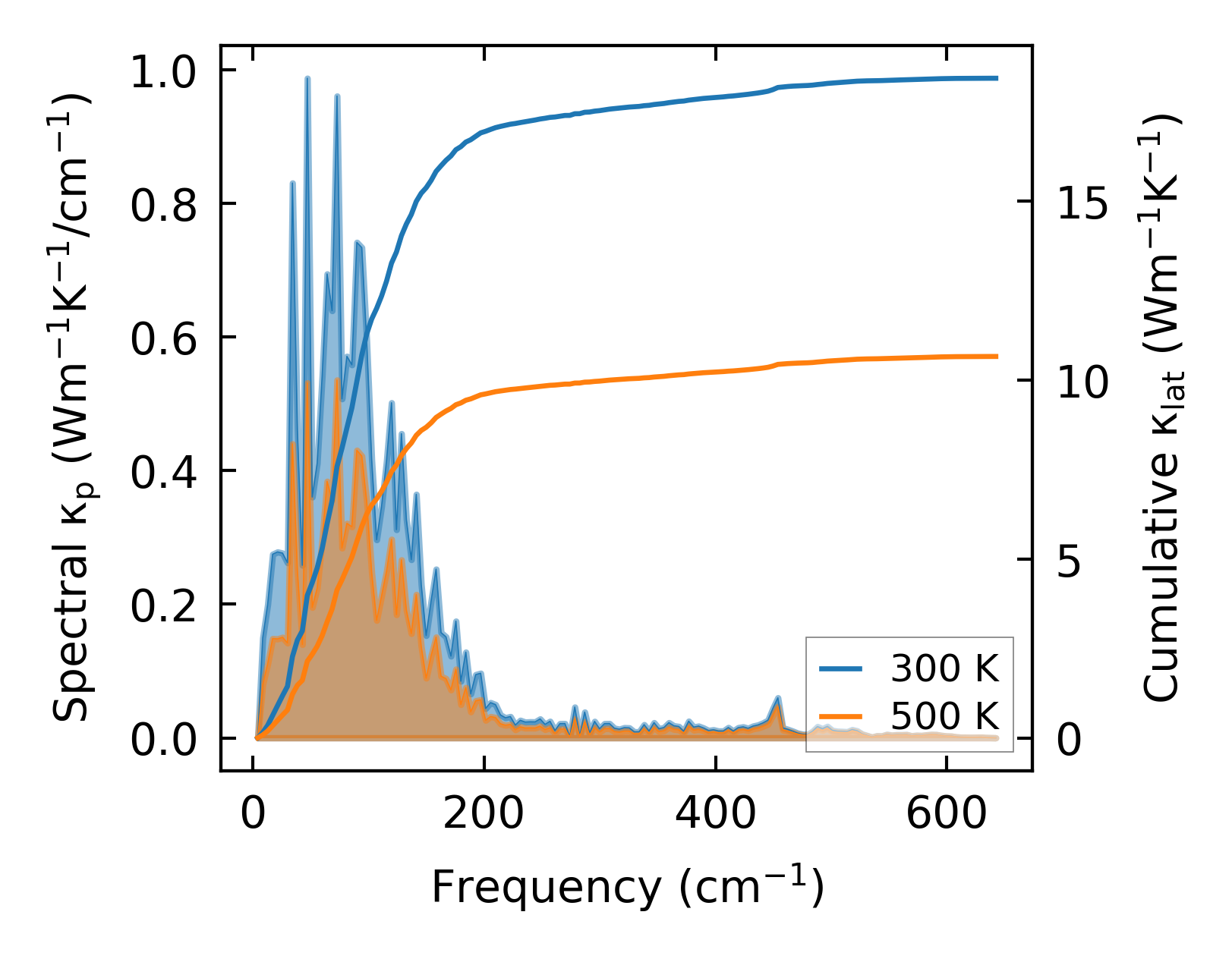

../../_images/fig_cumu_frequency6907.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

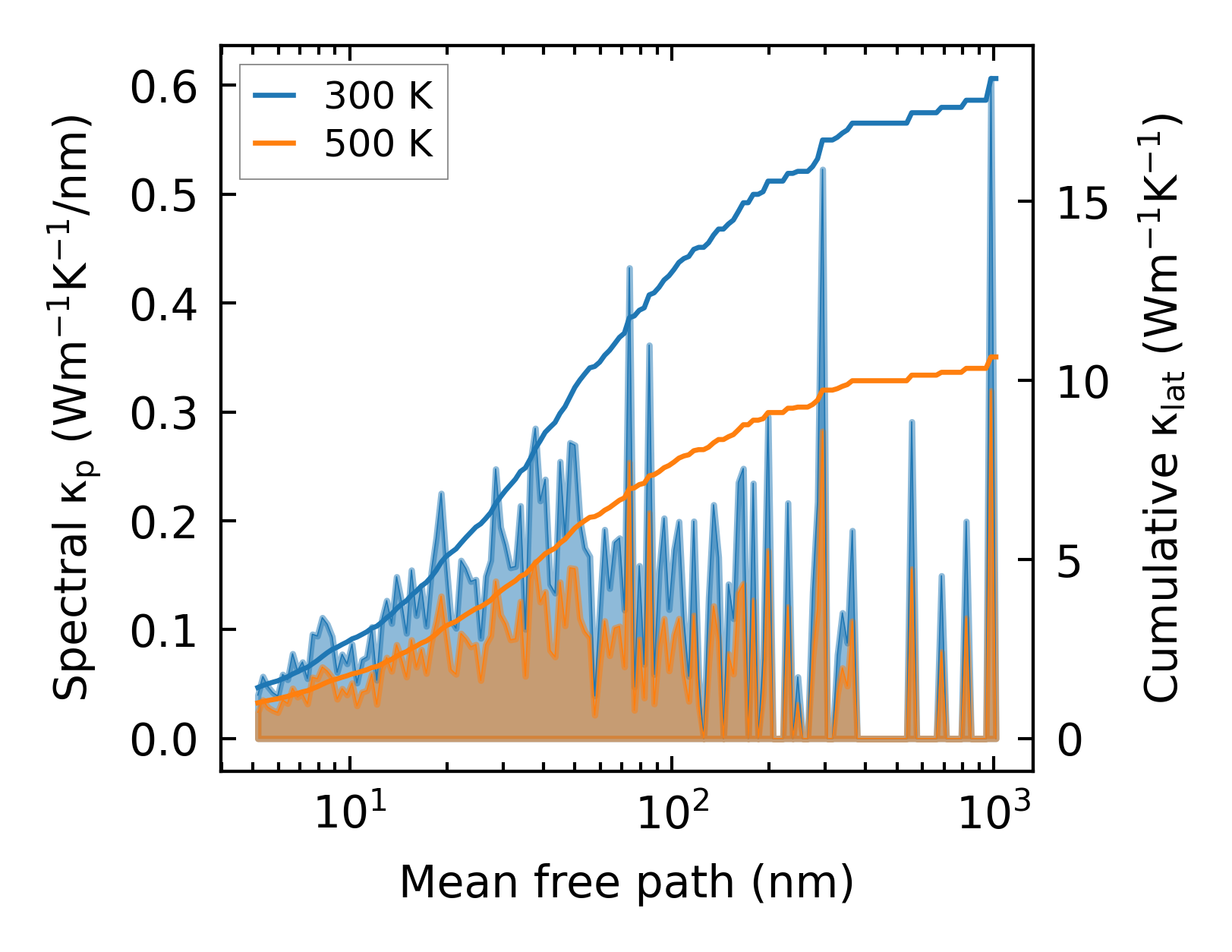

../../_images/fig_cumu_mfp6906.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

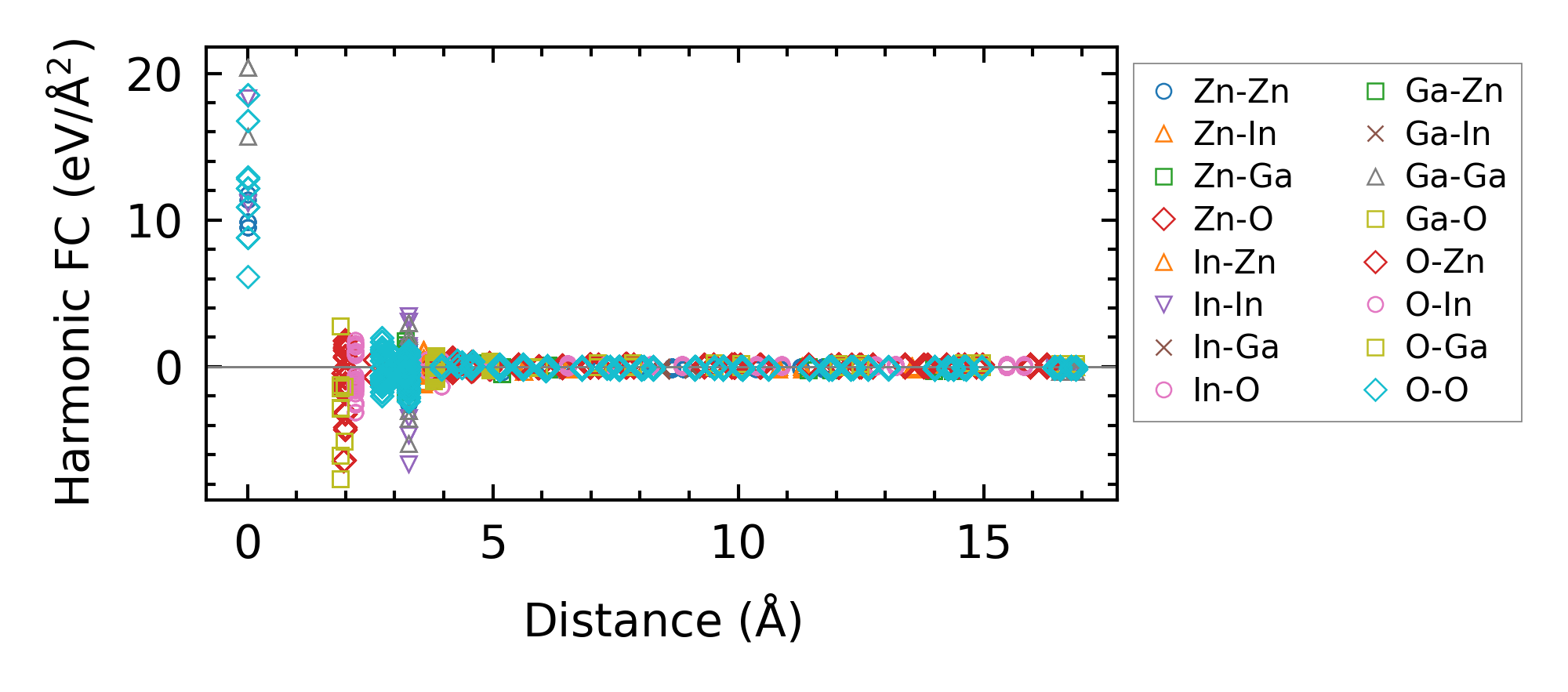

../../_images/fig_fc215687.png — (a) Force constants w.r.t atomic distance

Summary

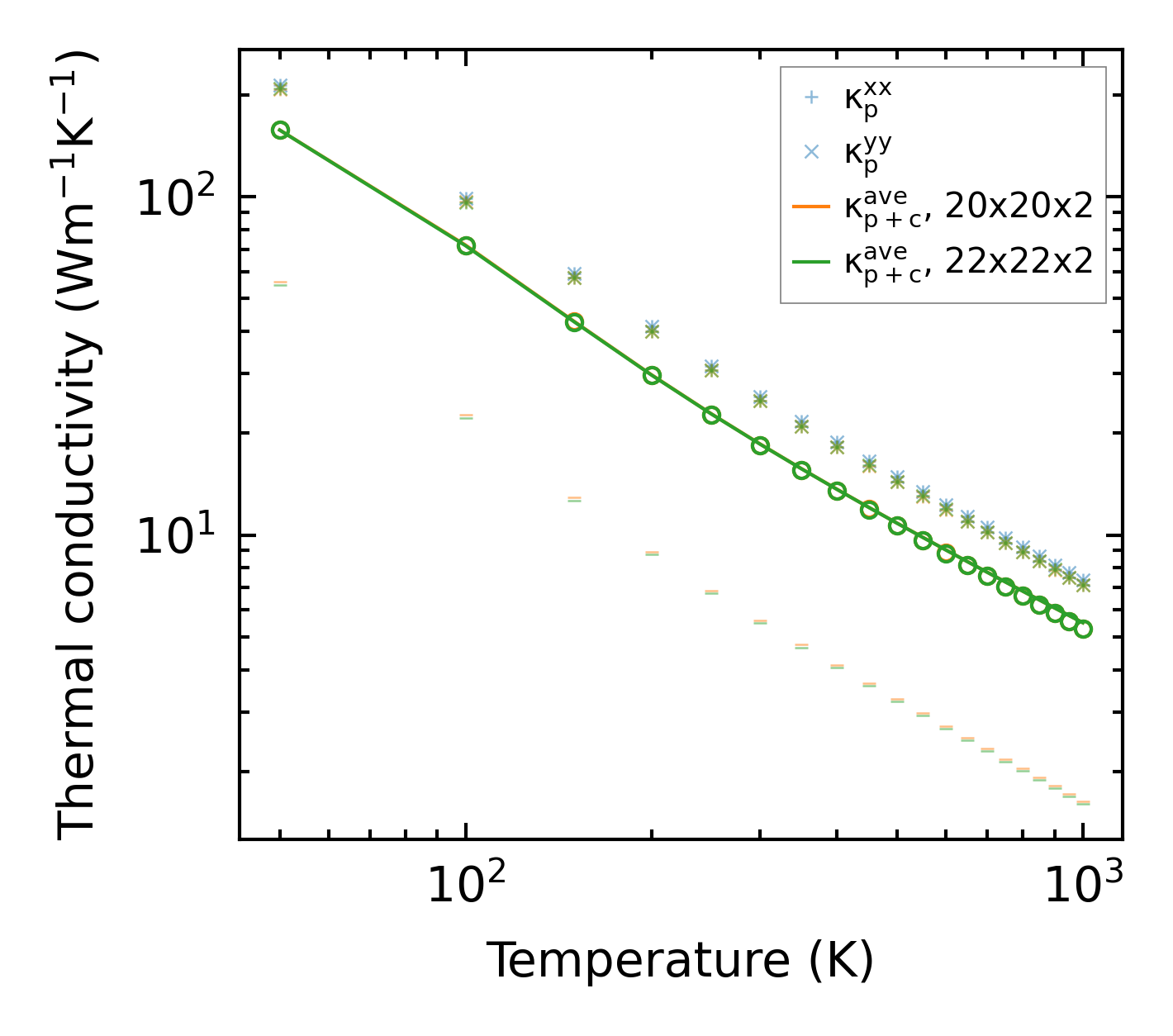

../../_images/fig_kappa13127.png — (a) Temperature-dependent lattice thermal conductivity

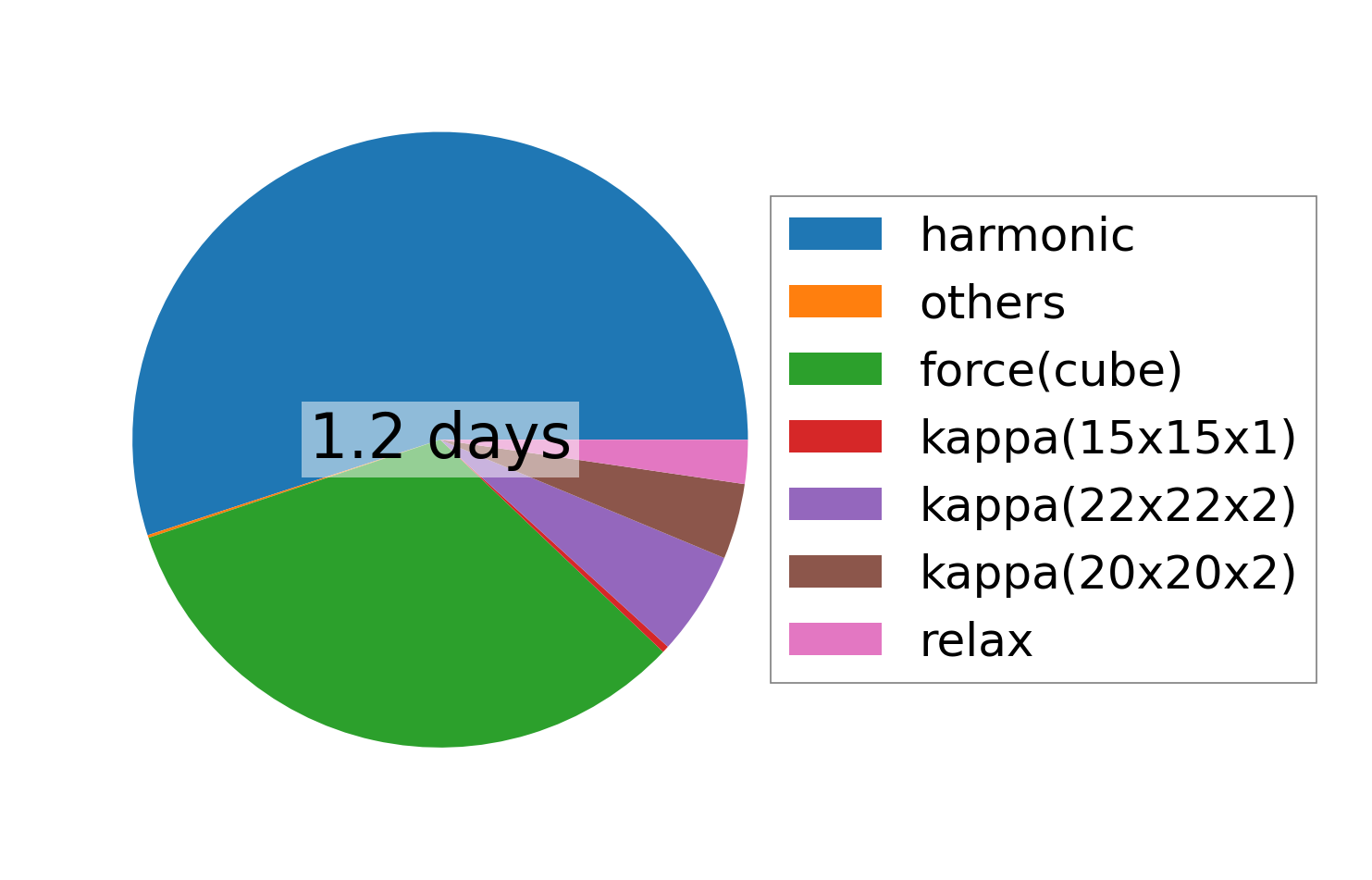

../../_images/fig_times26464.png — (b) Computation time
