mp-1119338/Na2O/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-1119338.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16083.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16082.png — (b) Thermodynamic properties

Grüneisen parameters

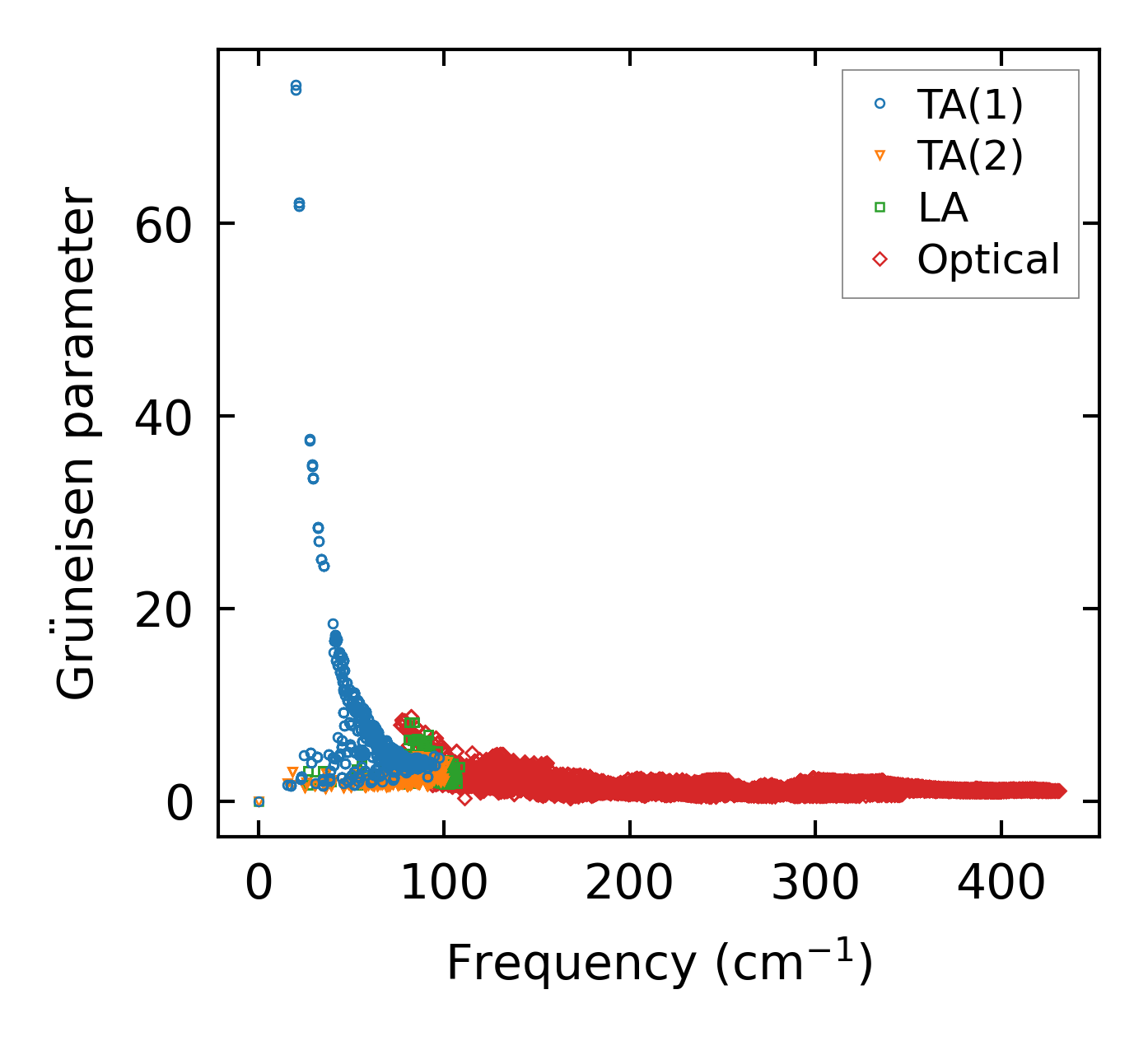

../../_images/fig_gru_all6969.png — (a) Grüneisen parameters

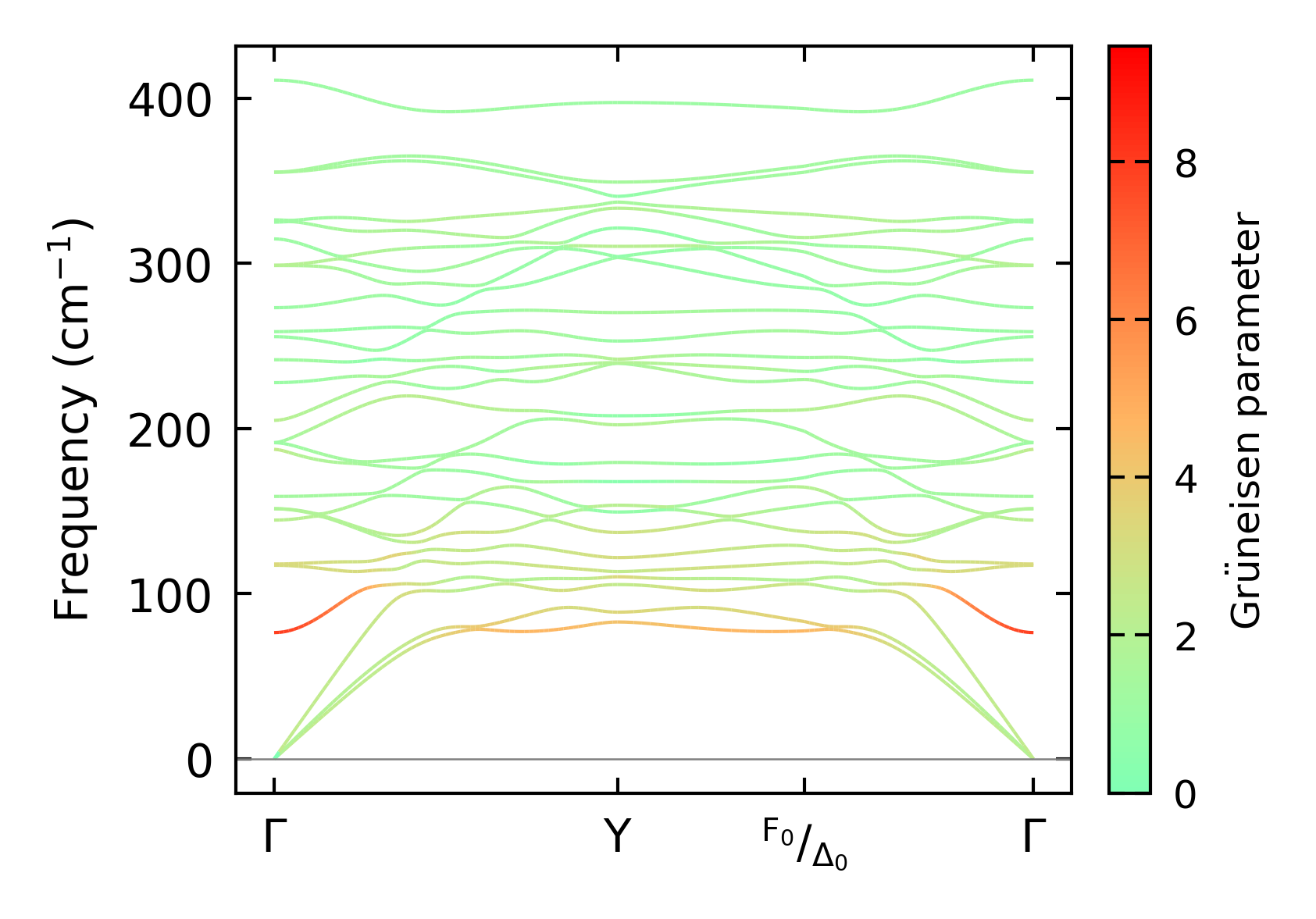

../../_images/fig_gruneisen6969.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x12x12, supercell: 3x1x2

../../_images/fig_kappa13118.png — (a) Temperature-dependent lattice thermal conductivity

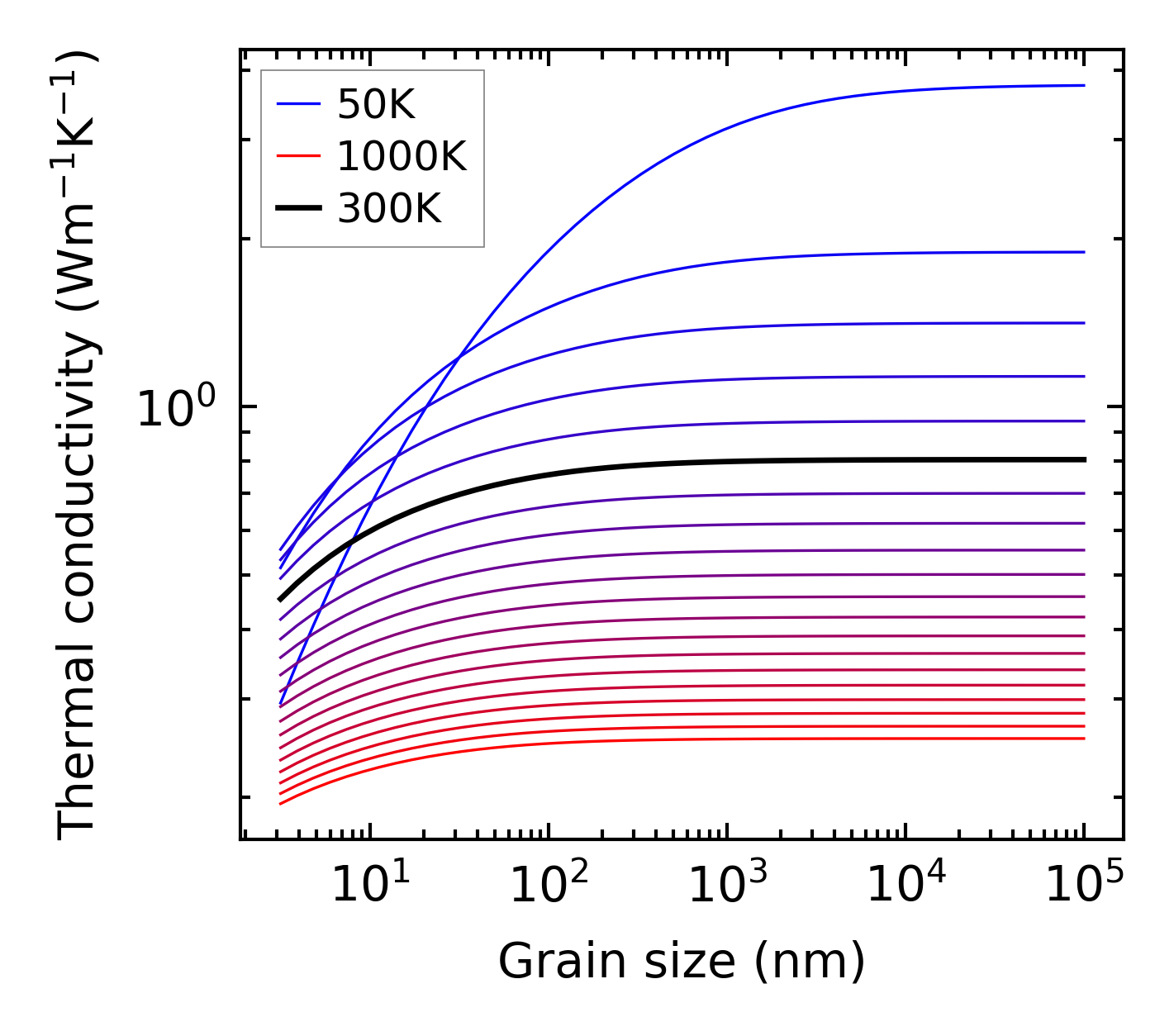

../../_images/fig_kappa_vs_grain_size7051.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

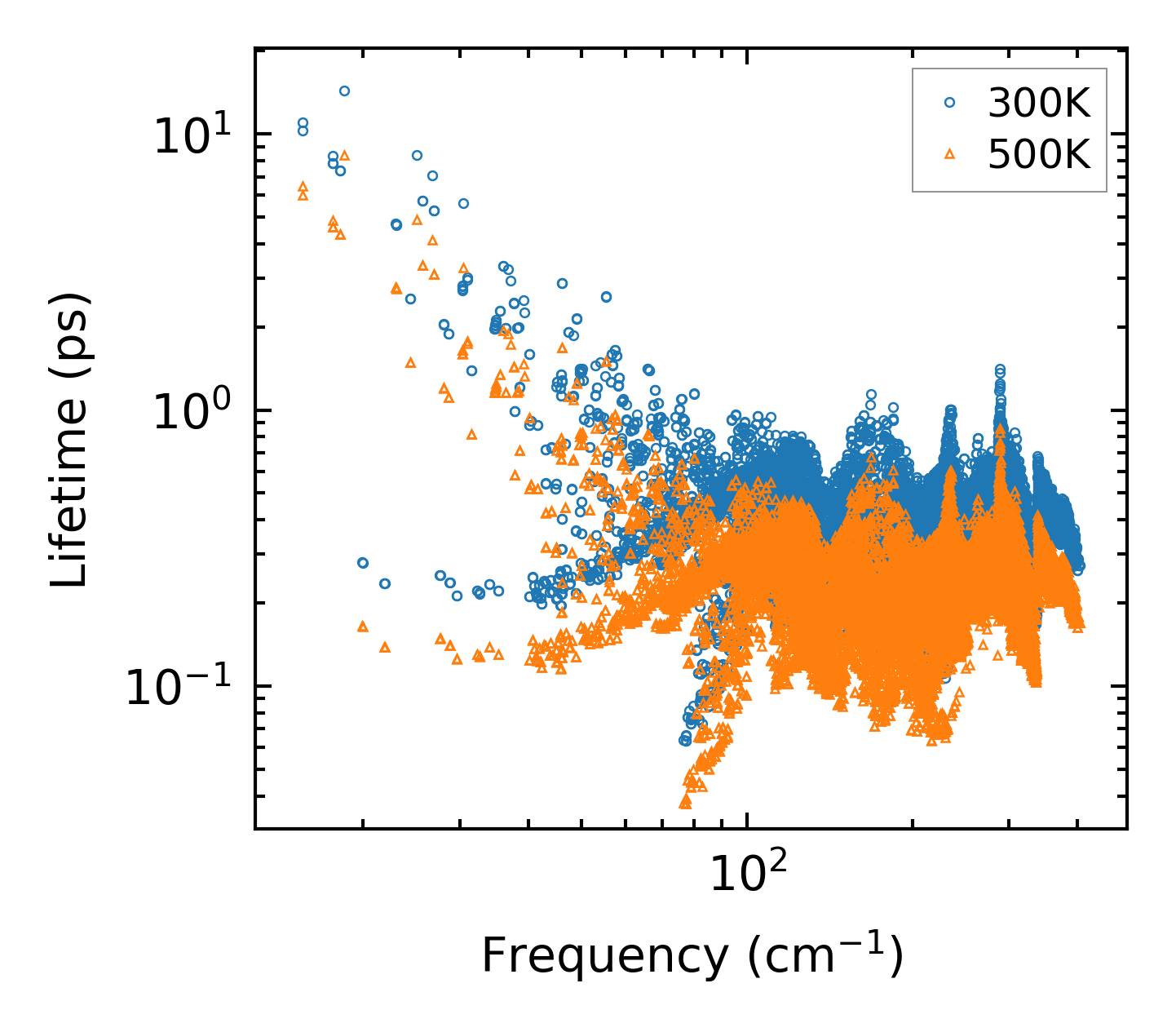

../../_images/fig_lifetime6903.png — (a) Phonon lifetime due to phonon-phonon scattering

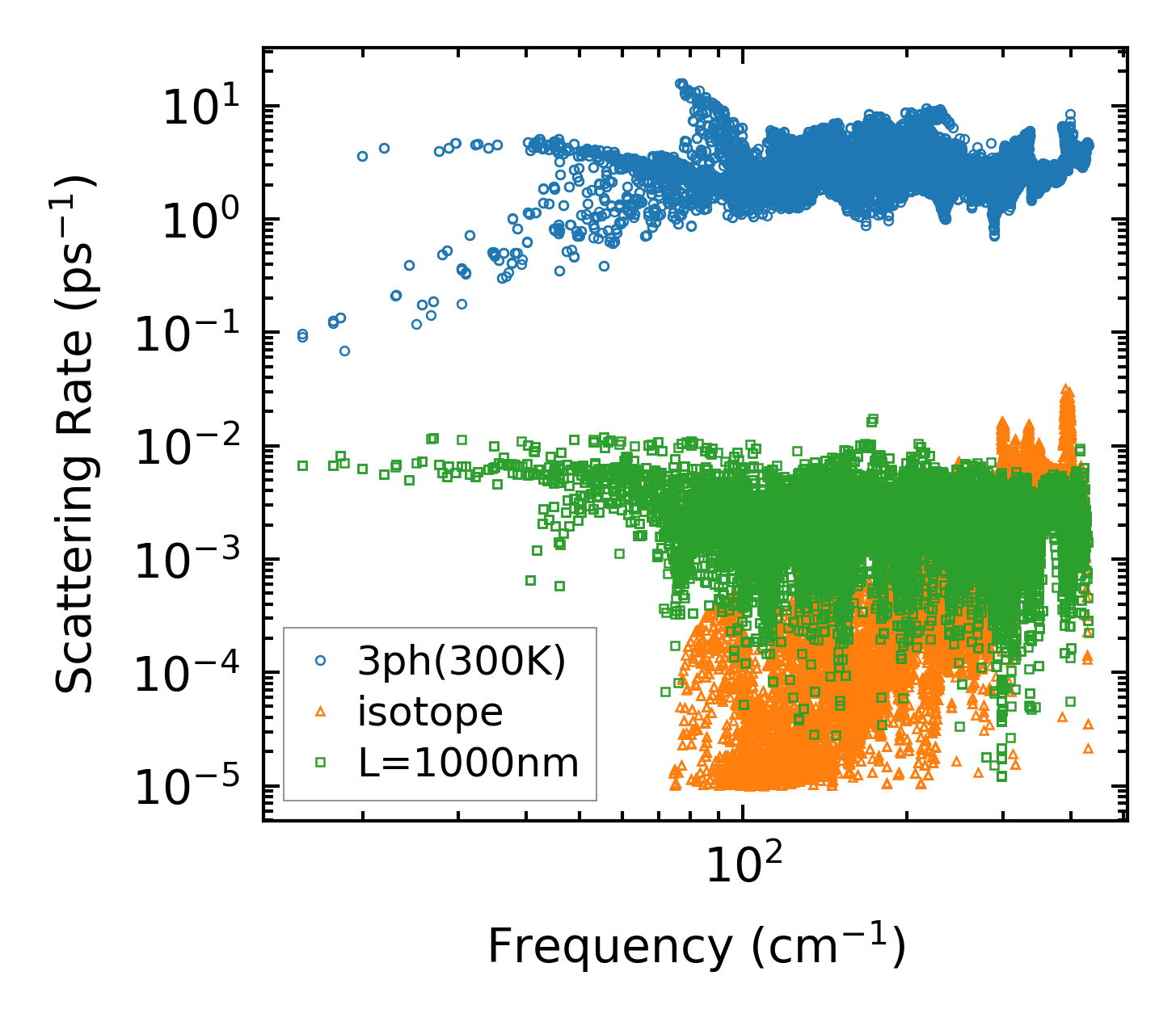

../../_images/fig_scat_rates6902.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

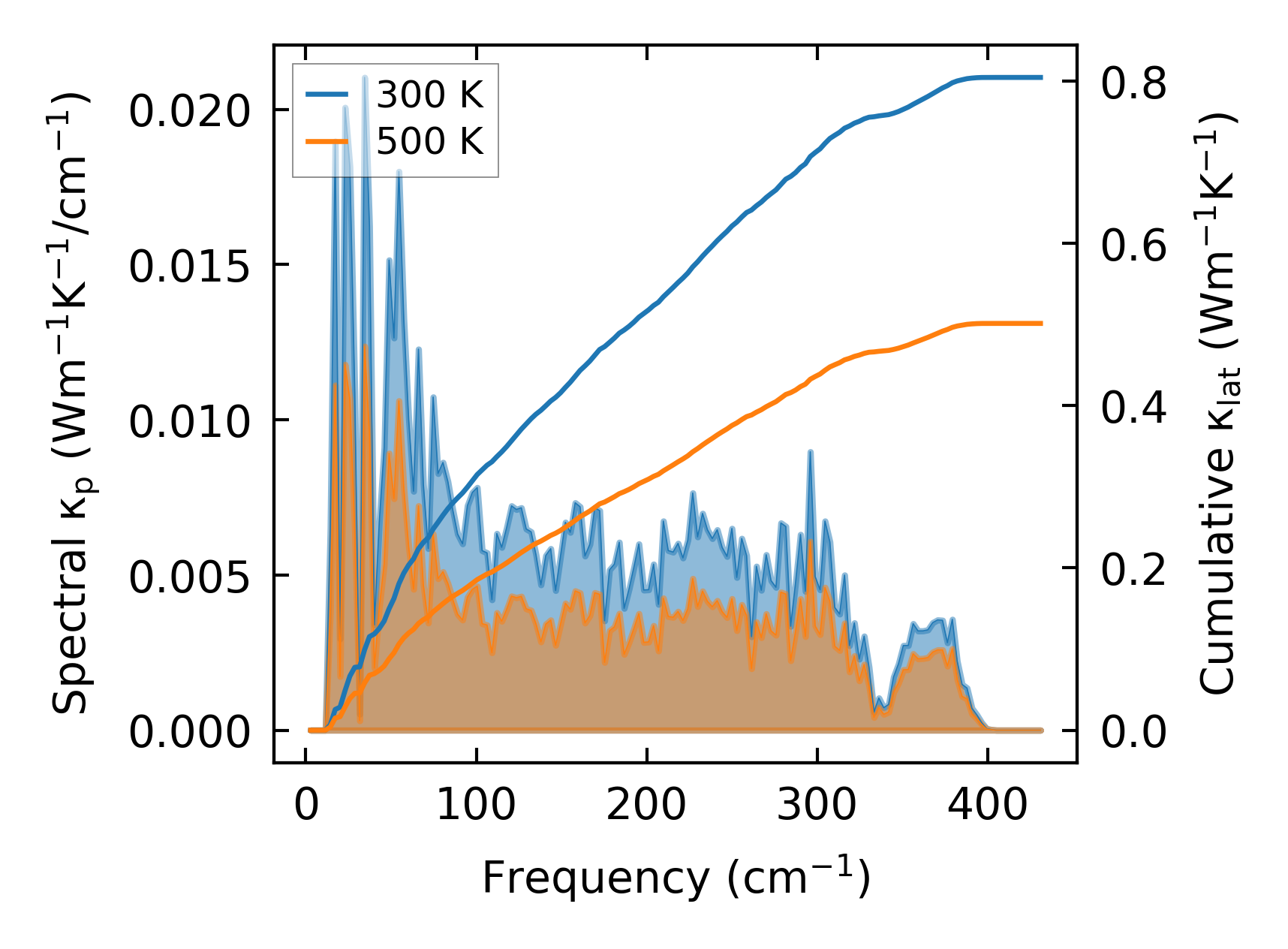

../../_images/fig_cumu_frequency6903.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

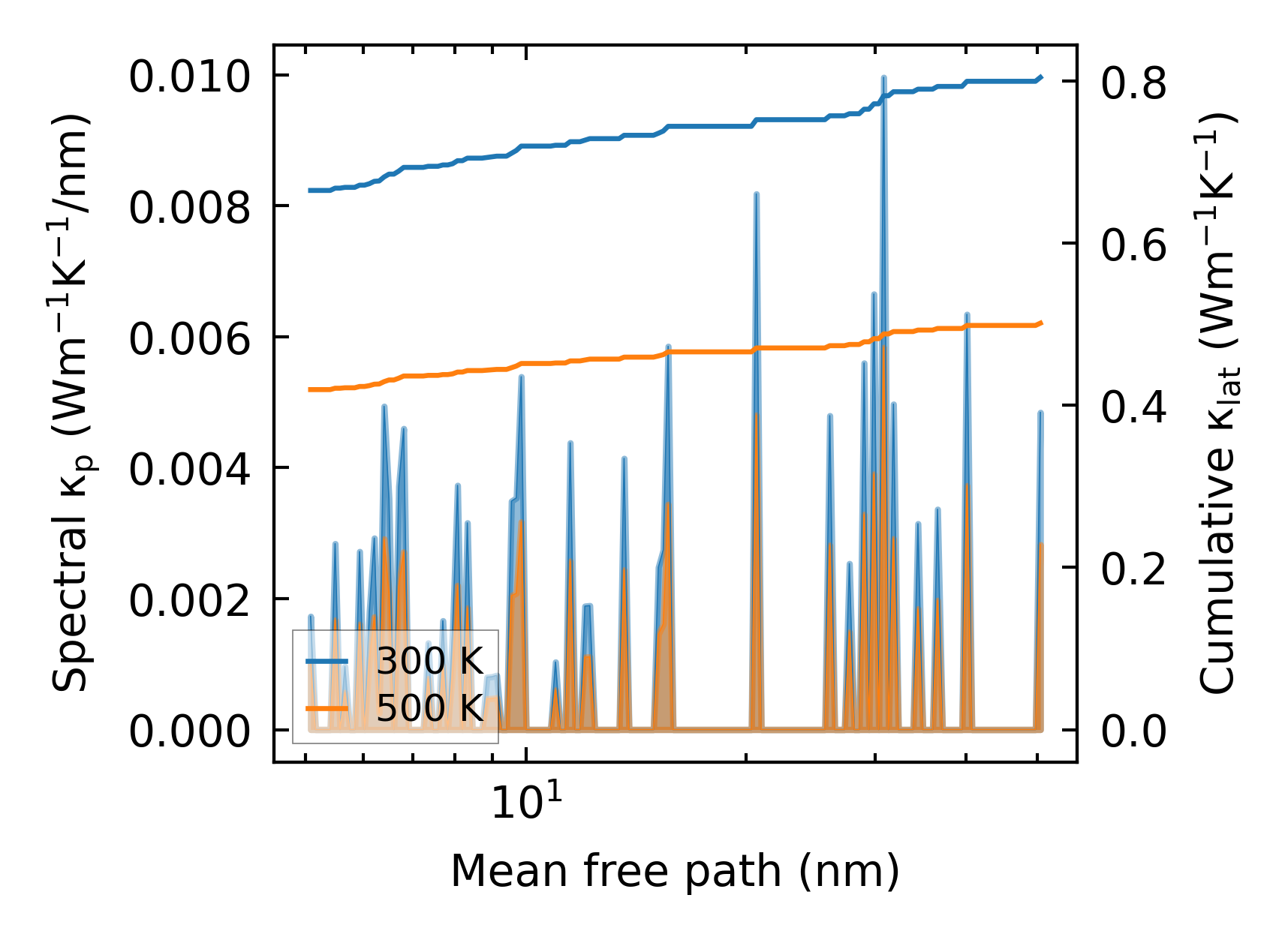

../../_images/fig_cumu_mfp6902.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215678.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13119.png — (a) Temperature-dependent lattice thermal conductivity

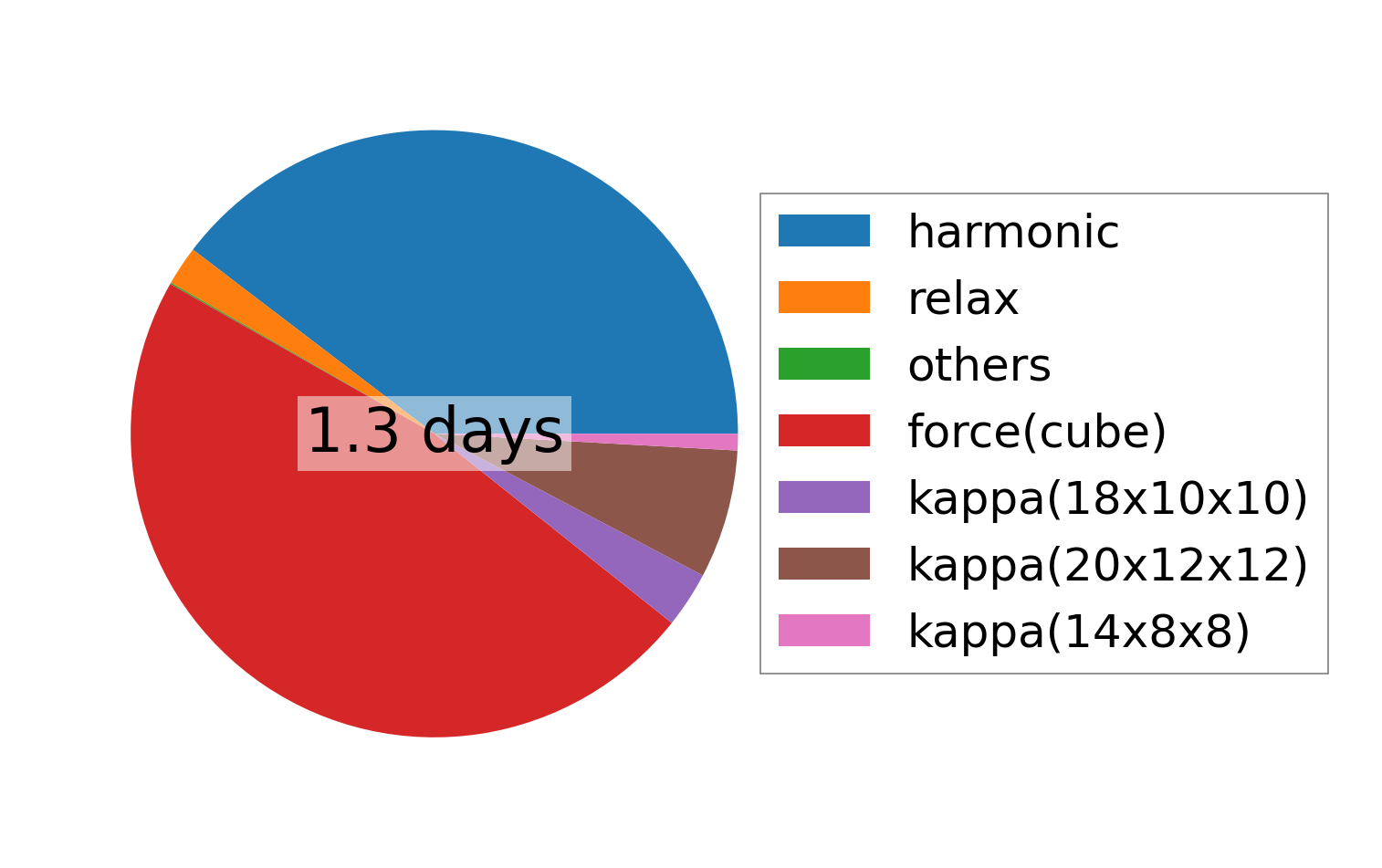

../../_images/fig_times26450.png — (b) Computation time
