mp-1068042/YbMg2Bi2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-1068042.tar.gz

Harmonic properties

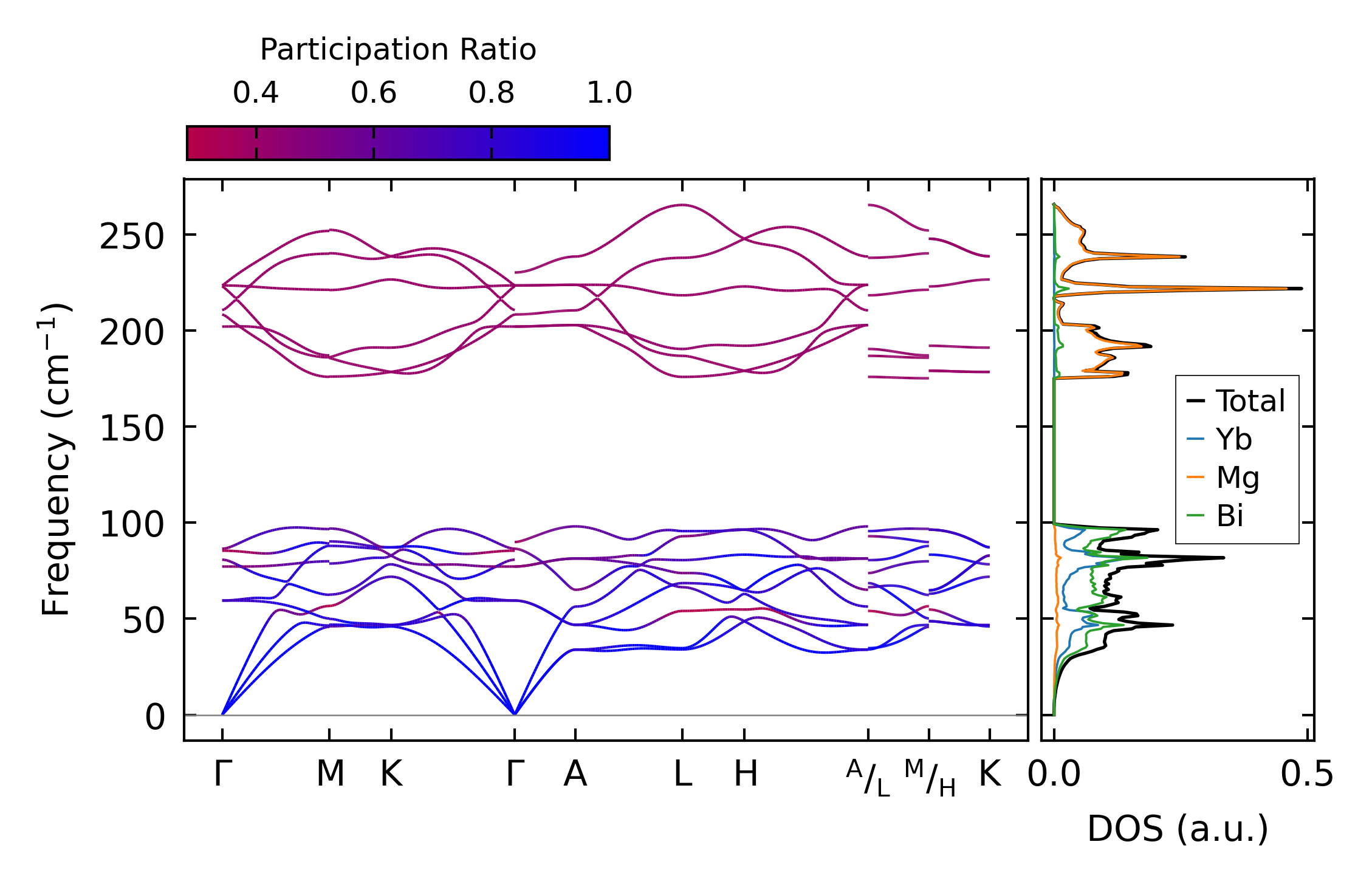

../../_images/fig_bandos_pr17122.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo17121.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7482.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7482.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x10, supercell: 3x3x2

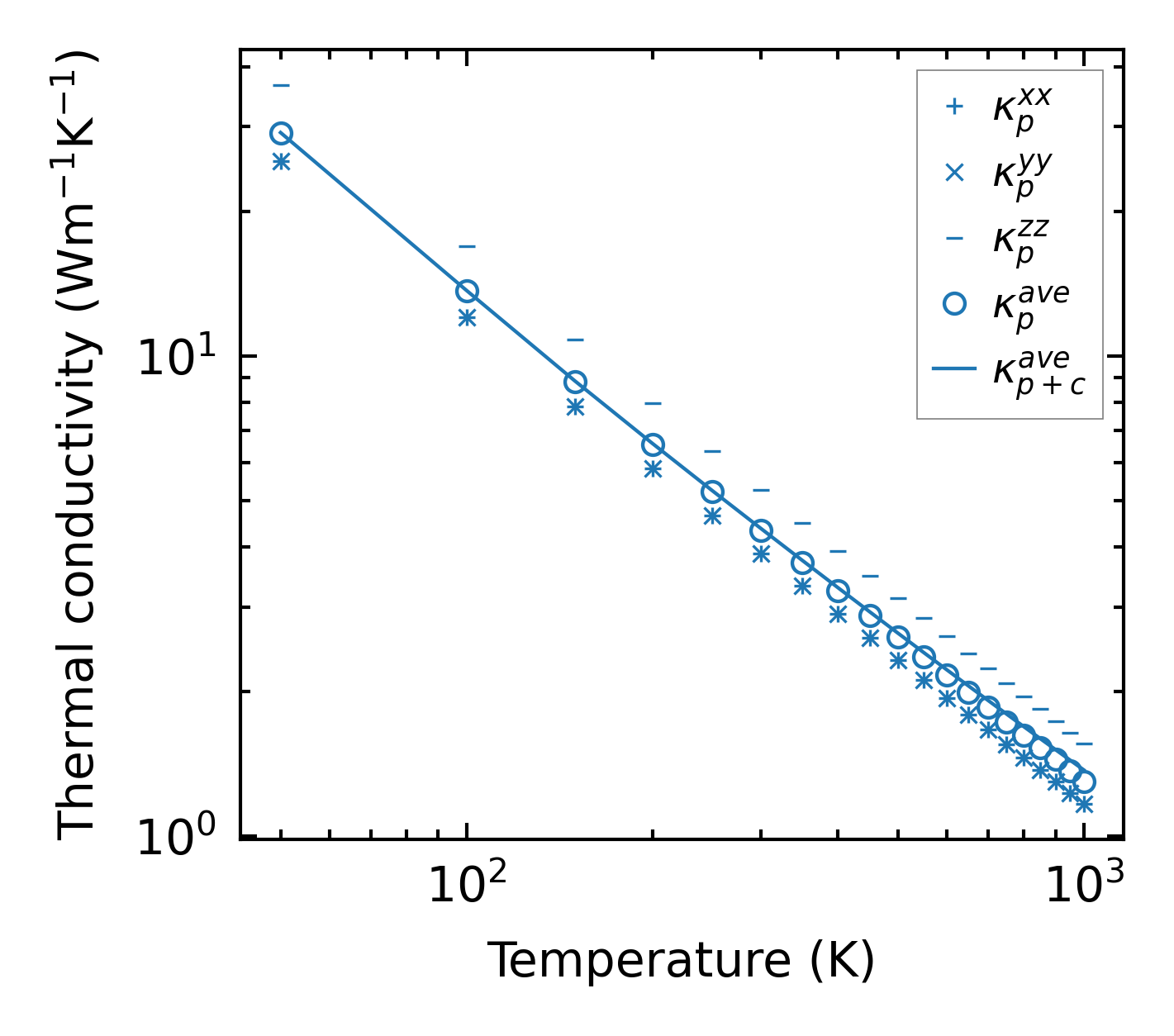

../../_images/fig_kappa14116.png — (a) Temperature-dependent lattice thermal conductivity

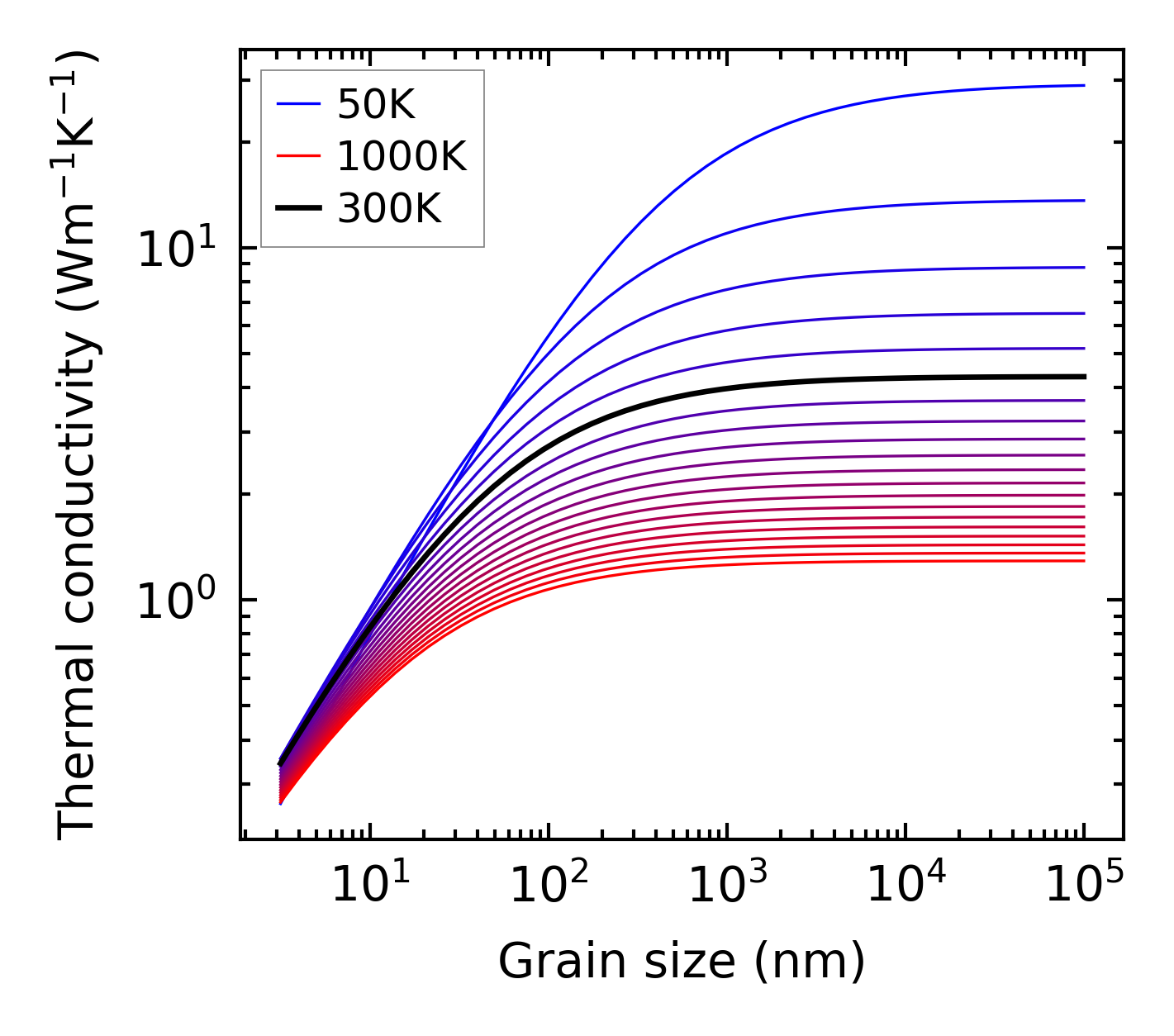

../../_images/fig_kappa_vs_grain_size7572.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

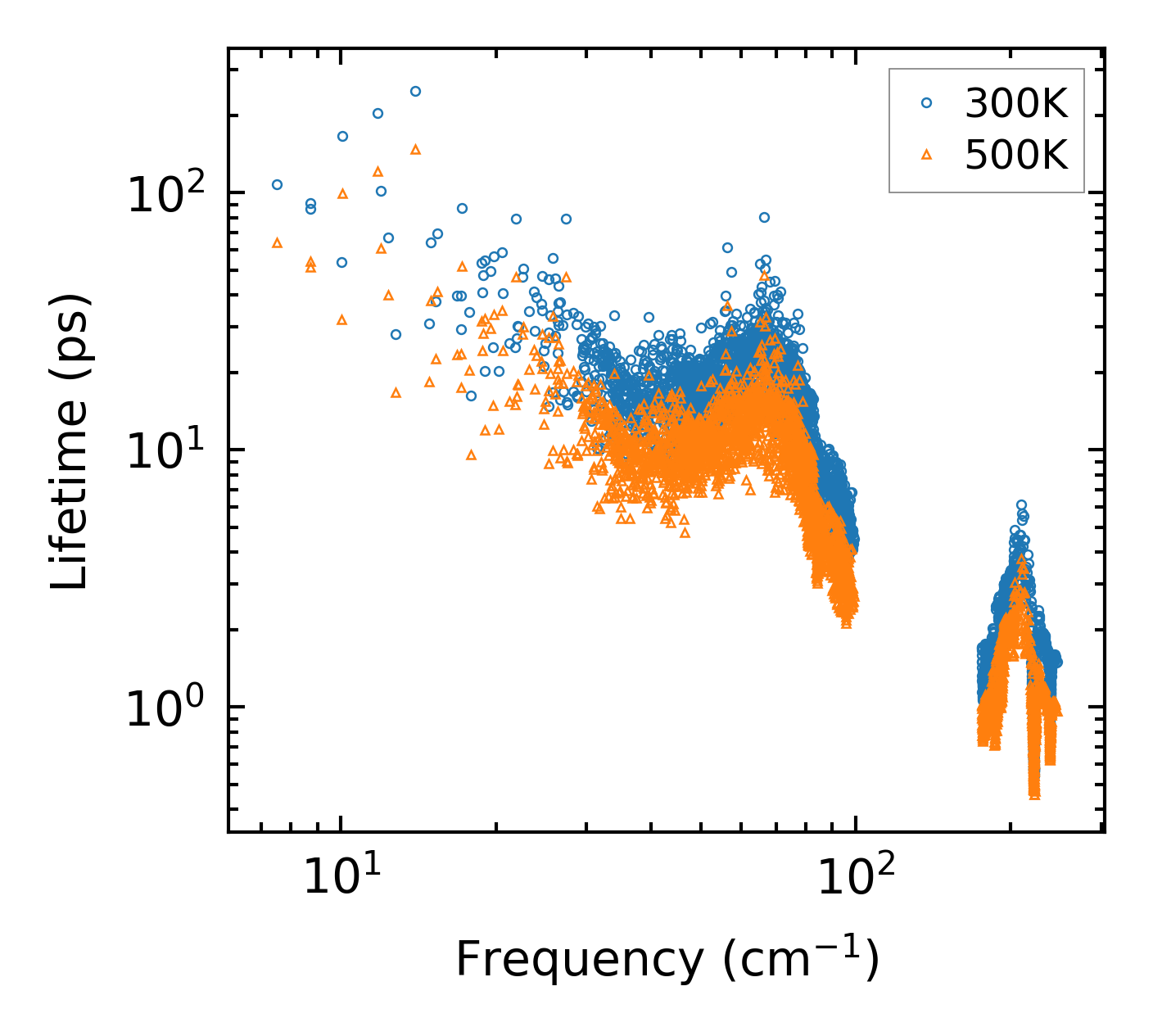

../../_images/fig_lifetime7415.png — (a) Phonon lifetime due to phonon-phonon scattering

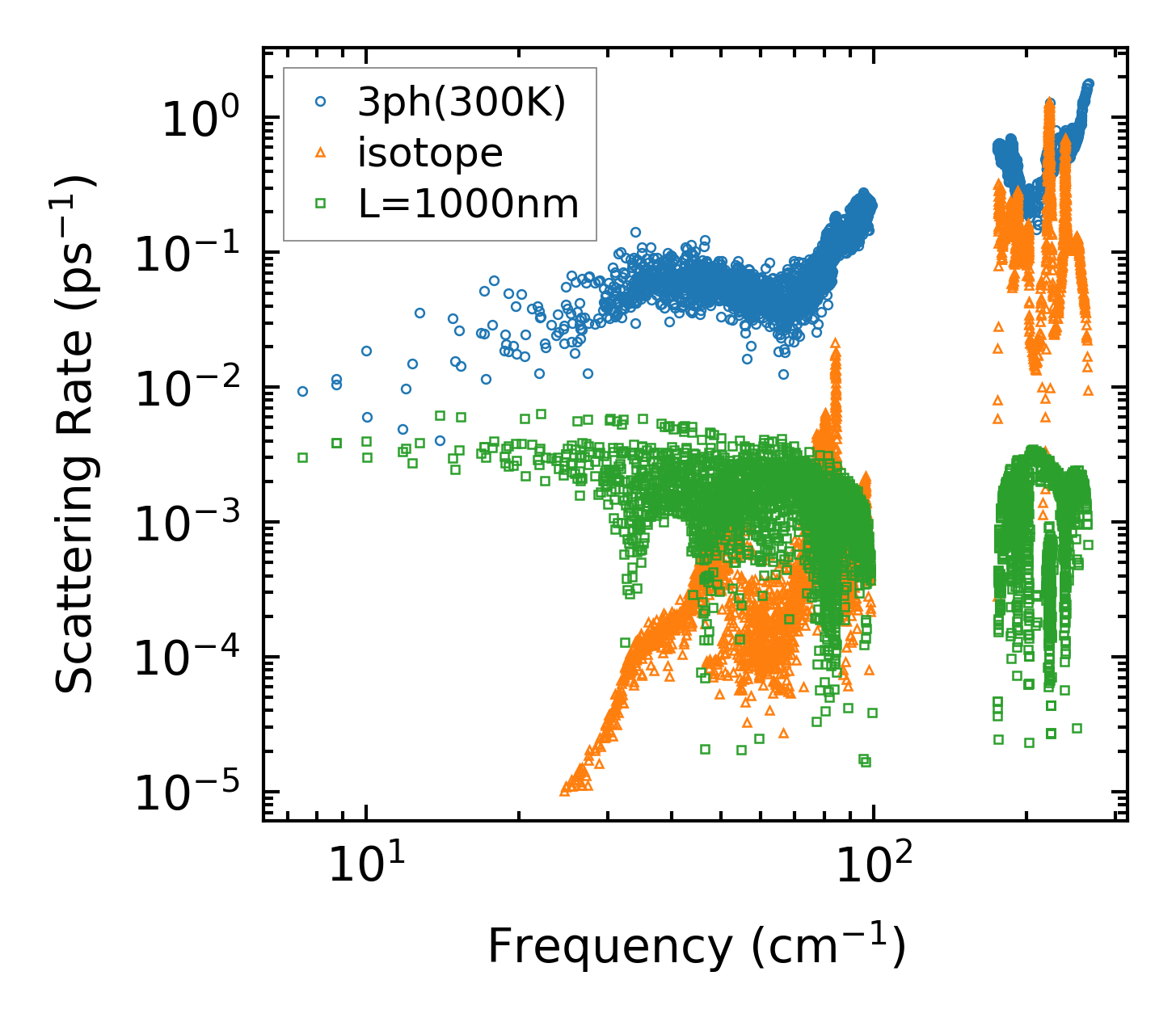

../../_images/fig_scat_rates7414.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7415.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

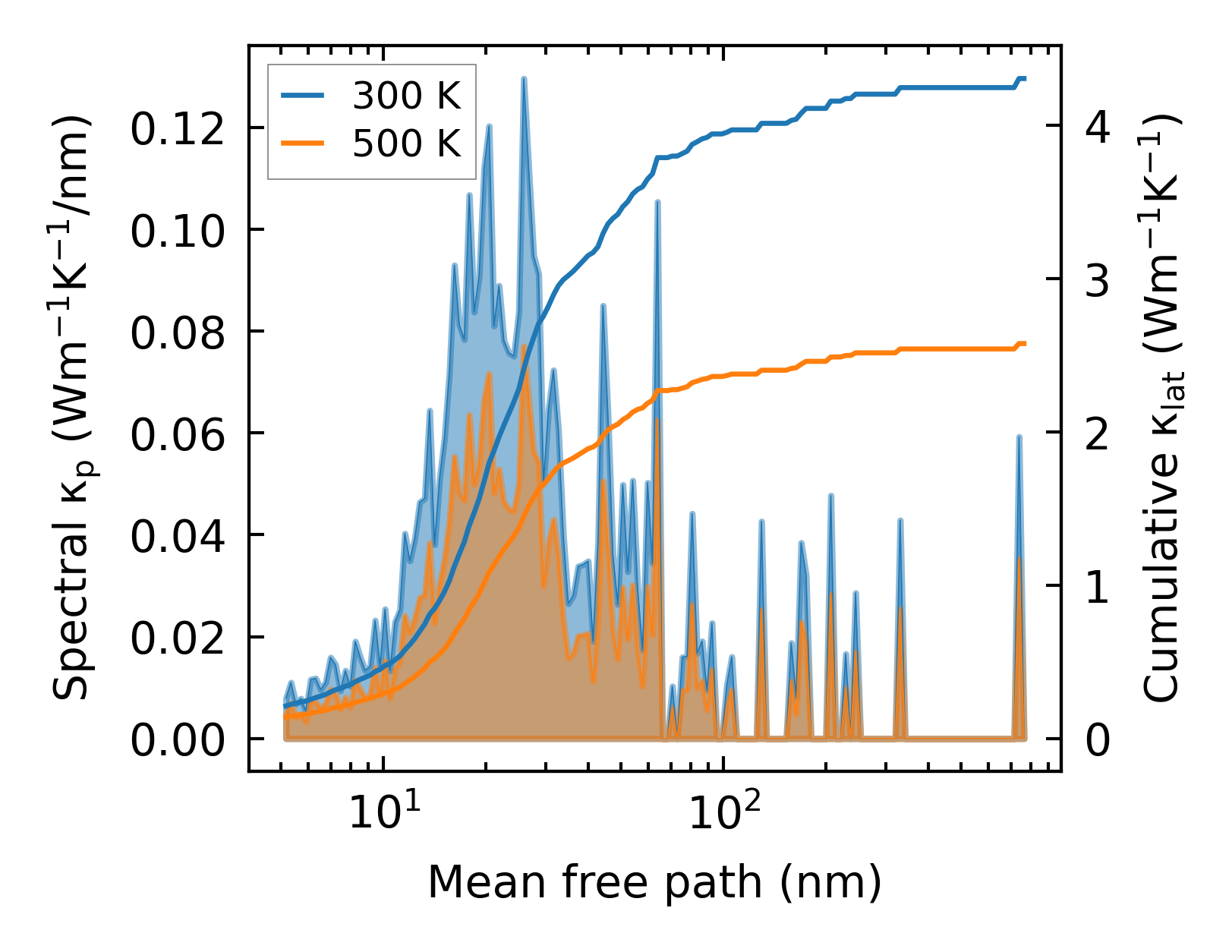

../../_images/fig_cumu_mfp7414.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

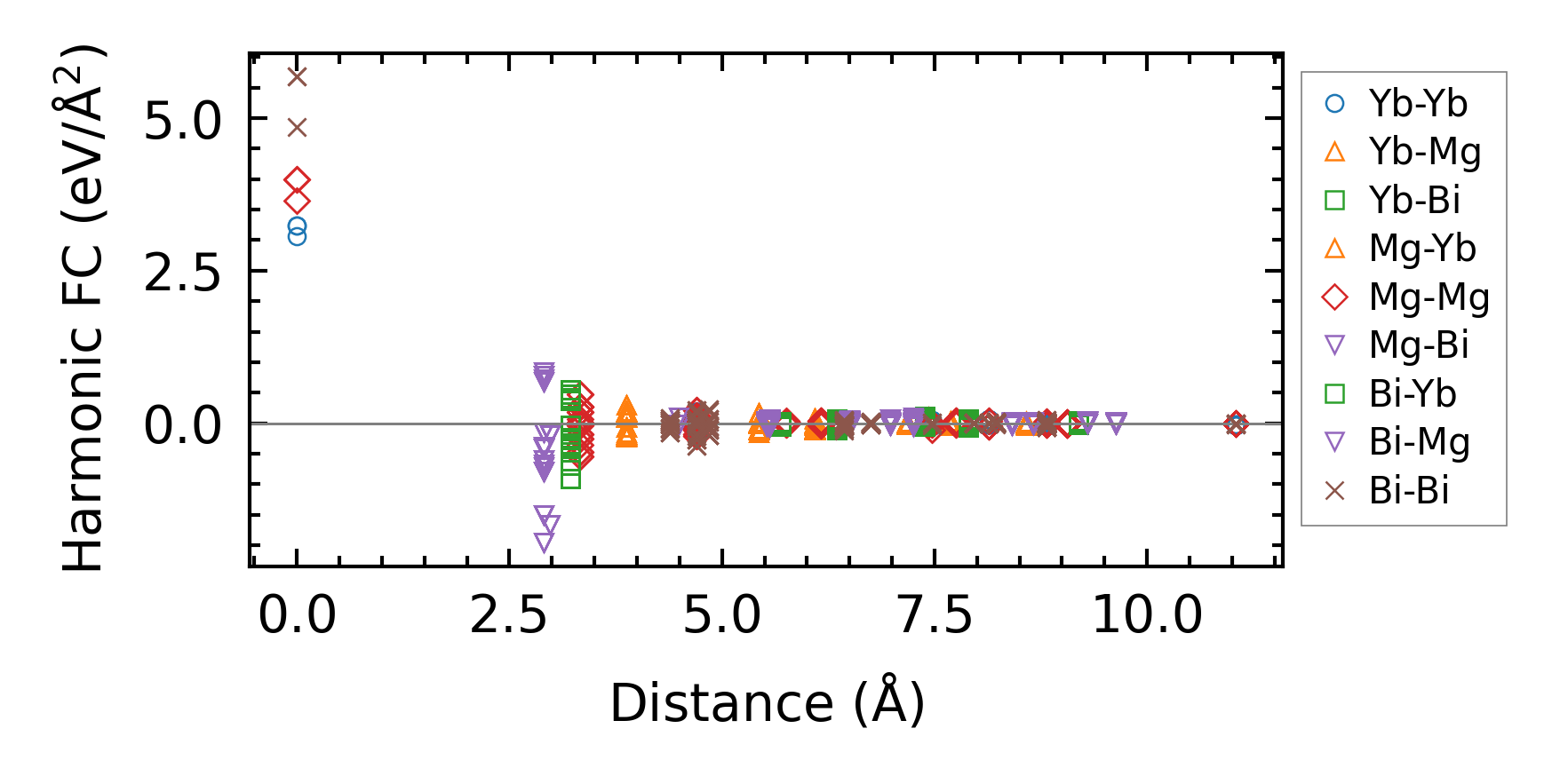

../../_images/fig_fc216667.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa14117.png — (a) Temperature-dependent lattice thermal conductivity

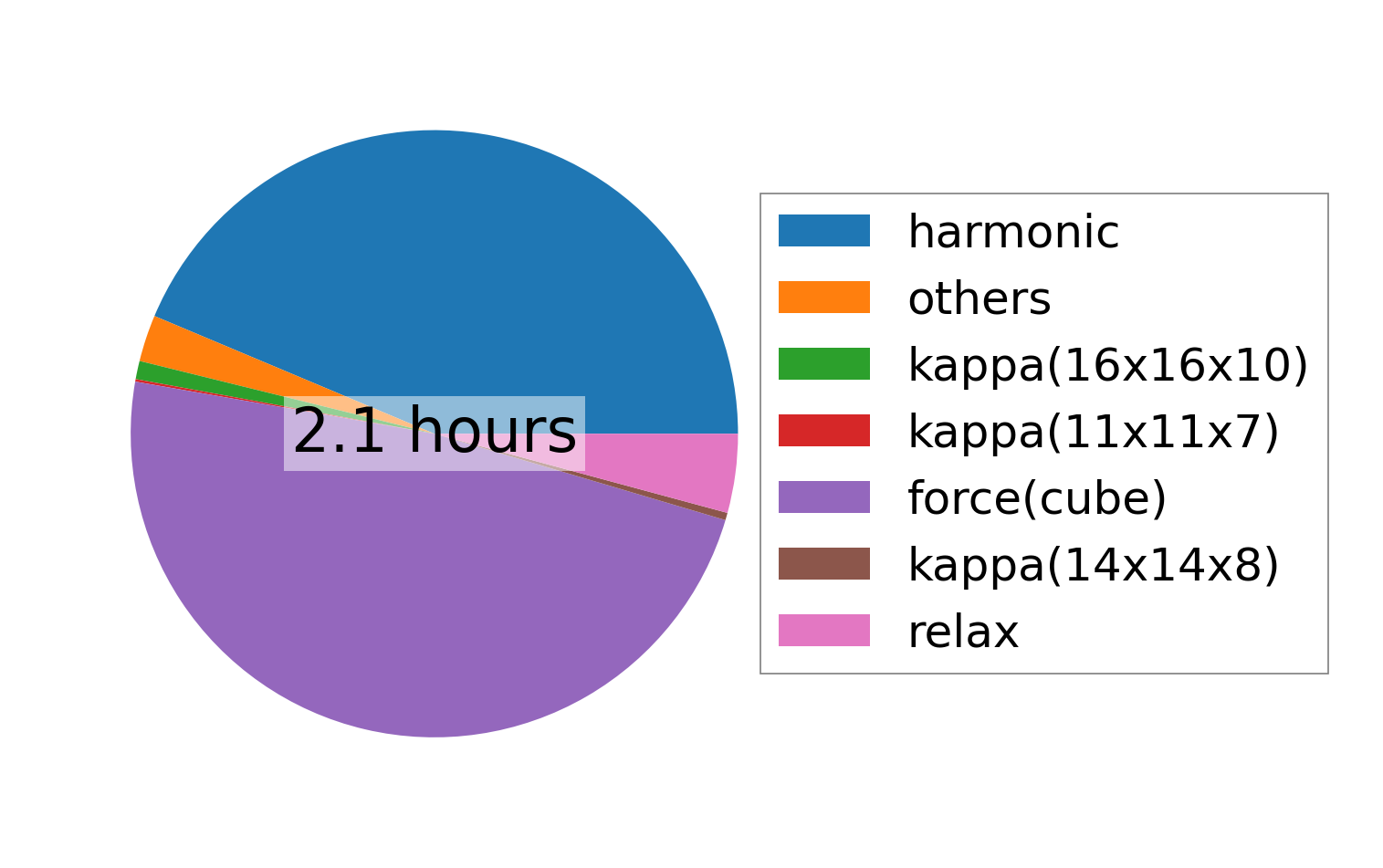

../../_images/fig_times27940.png — (b) Computation time
