mp-1066791/TmTlS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1066791.tar.gz

Harmonic properties

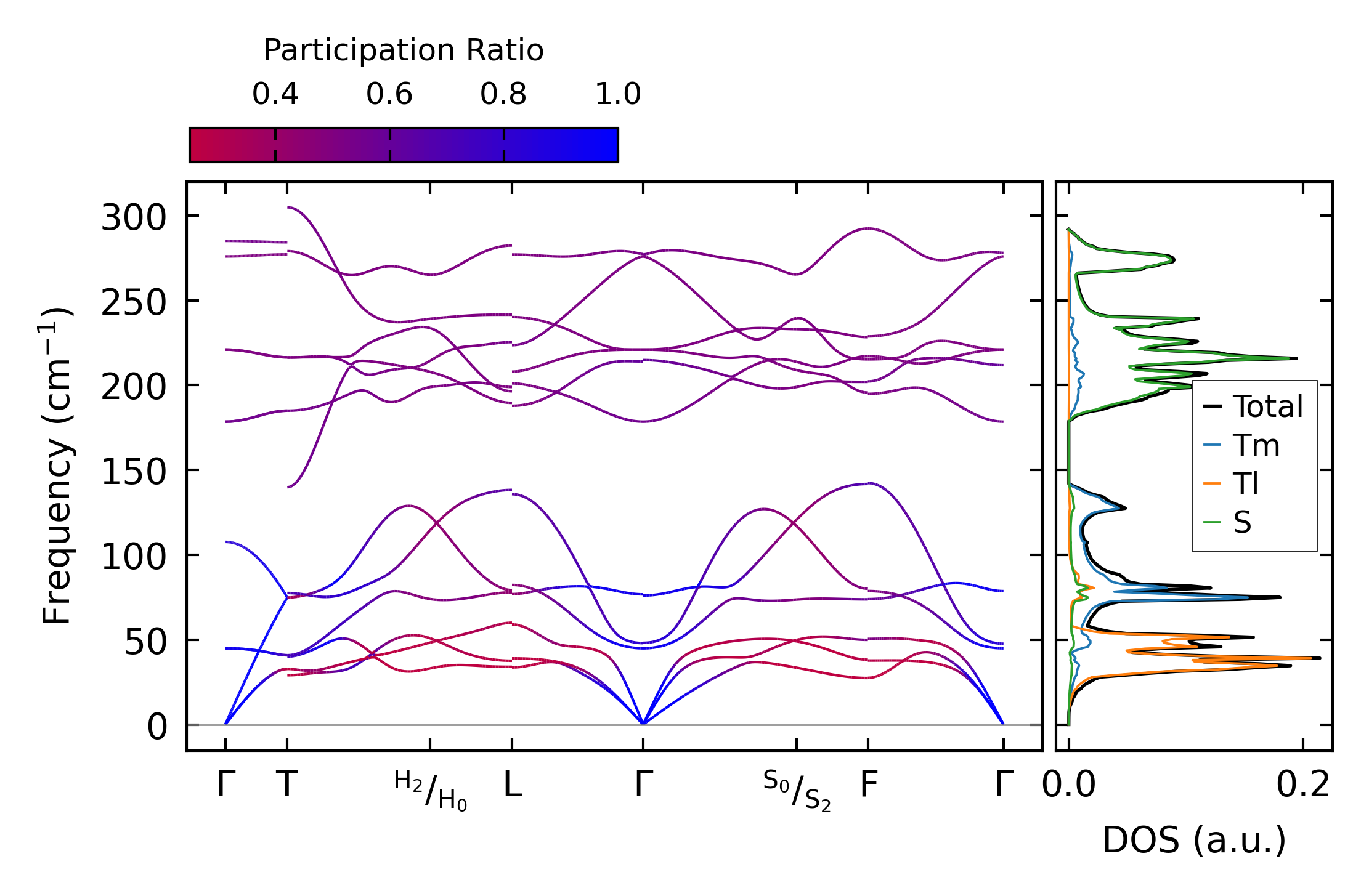

../../_images/fig_bandos_pr17117.png — (a) Phonon dispersion with participation ratio and DOS

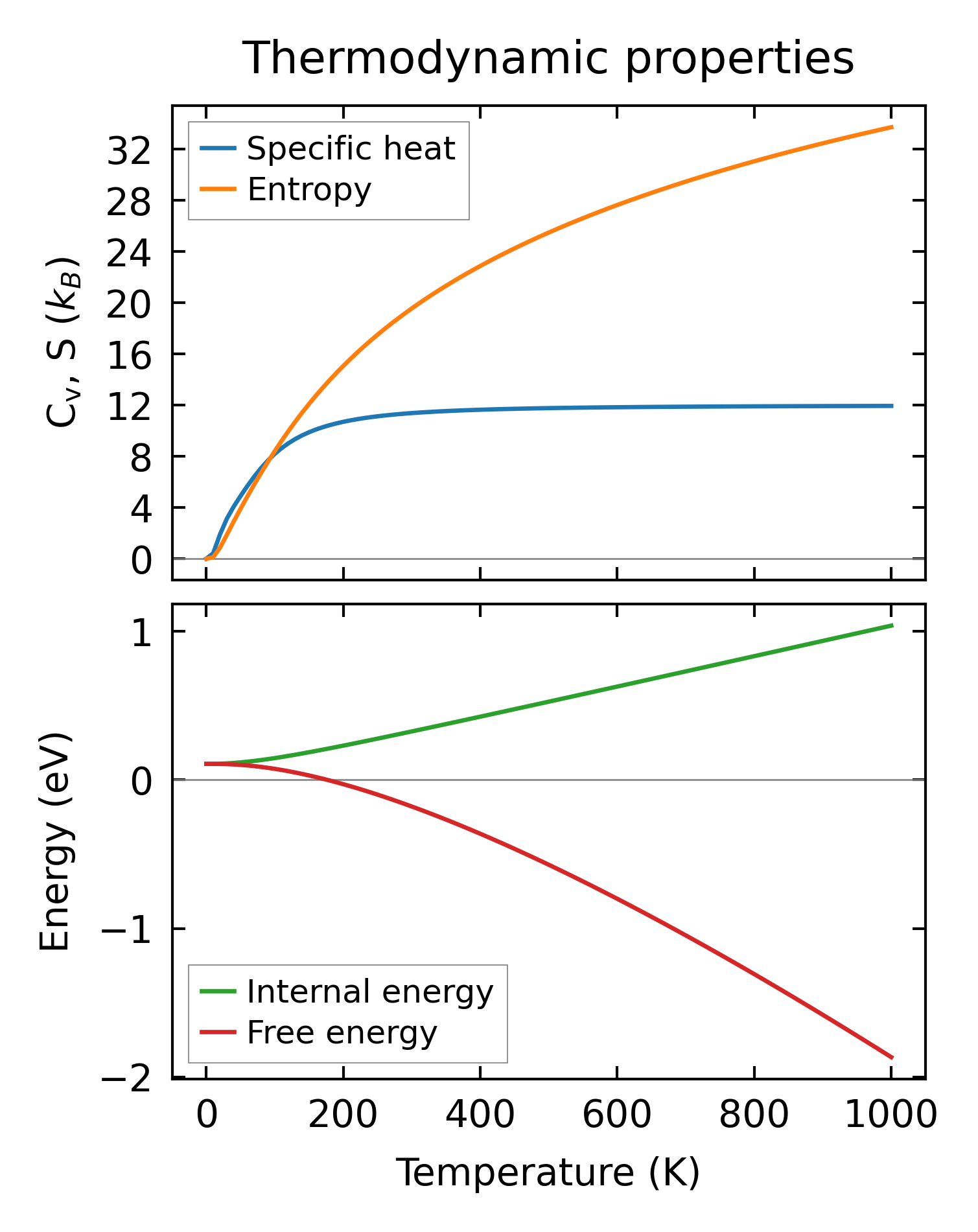

../../_images/fig_thermo17116.png — (b) Thermodynamic properties

Grüneisen parameters

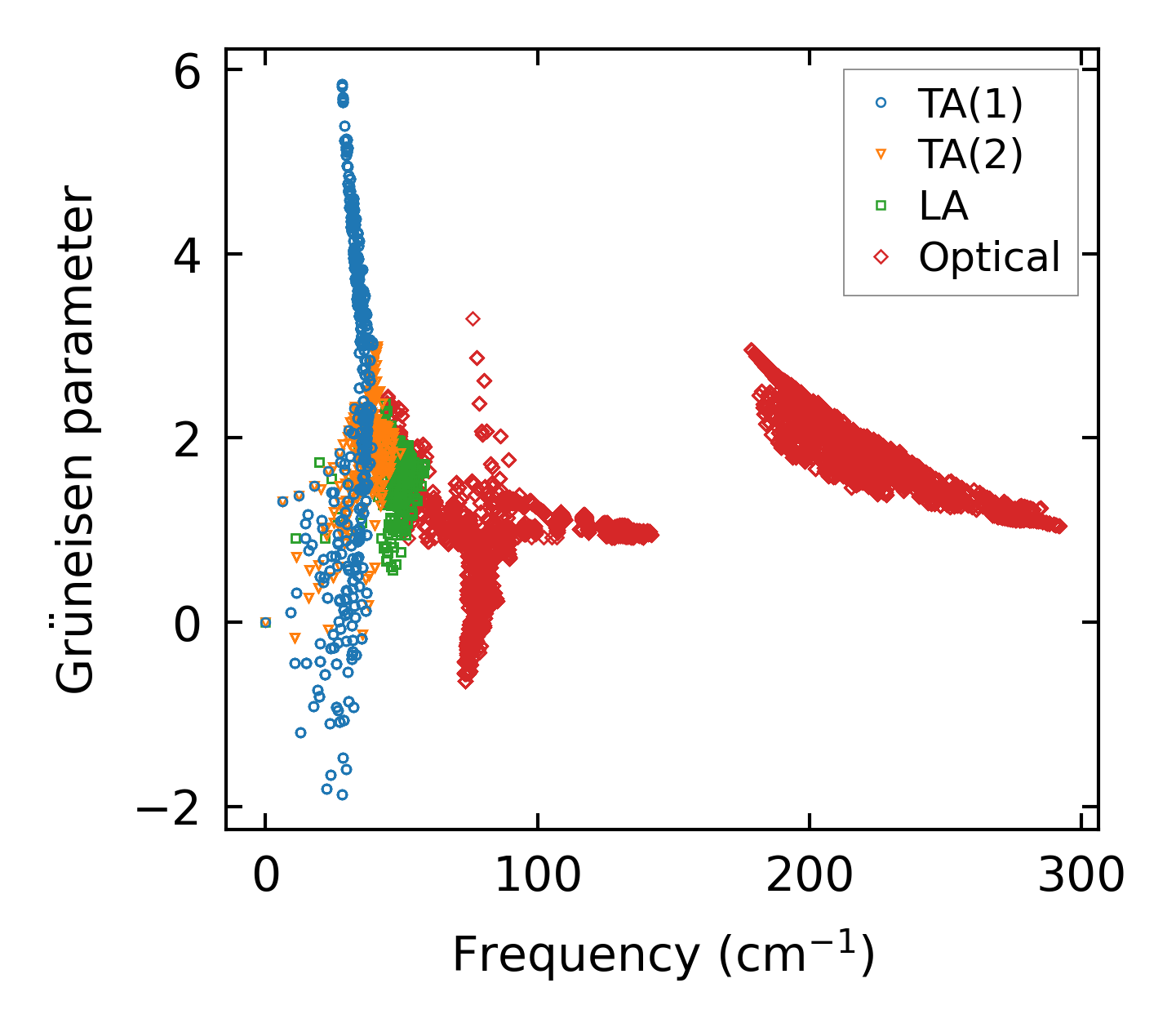

../../_images/fig_gru_all7478.png — (a) Grüneisen parameters

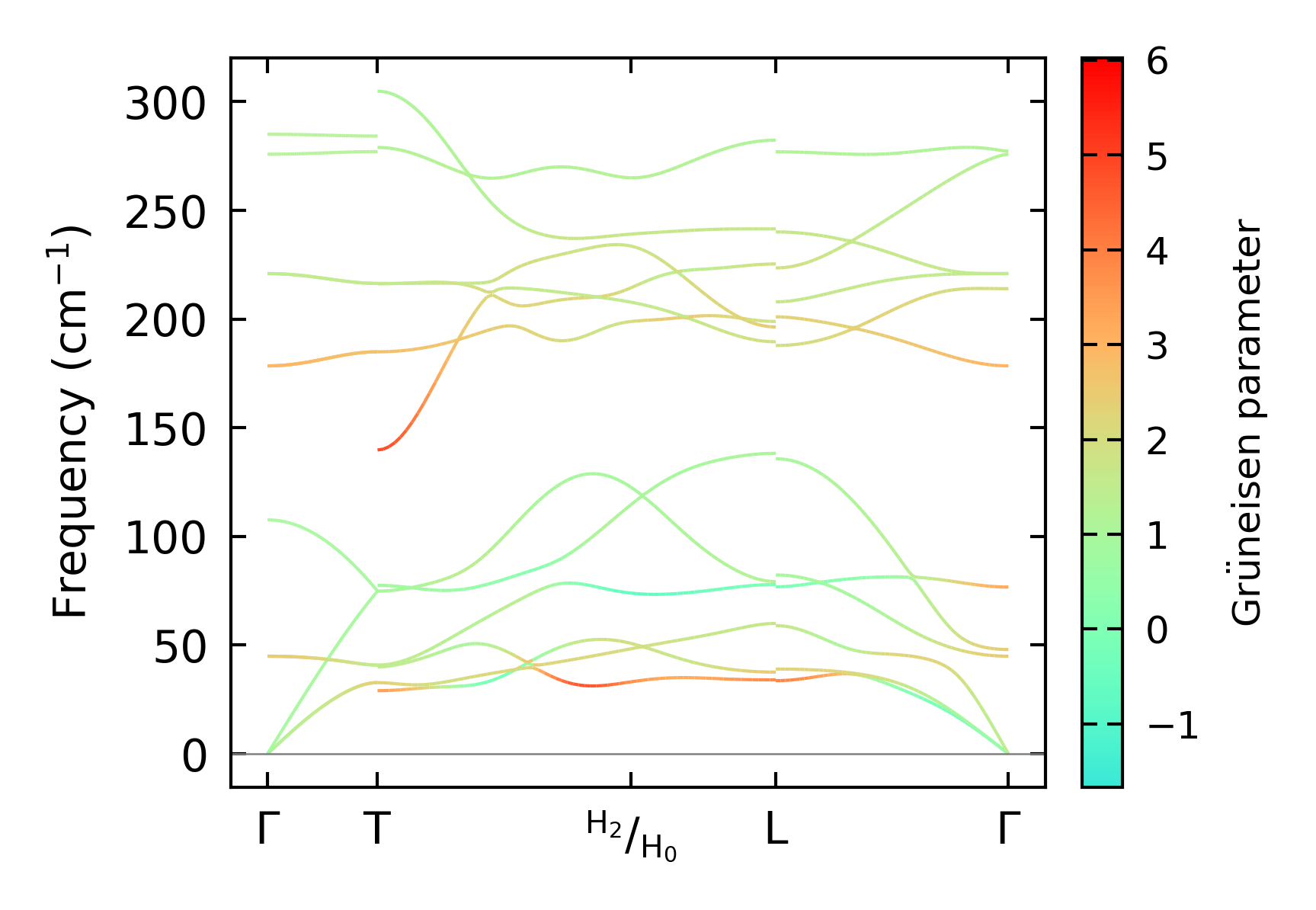

../../_images/fig_gruneisen7478.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 3x3x1

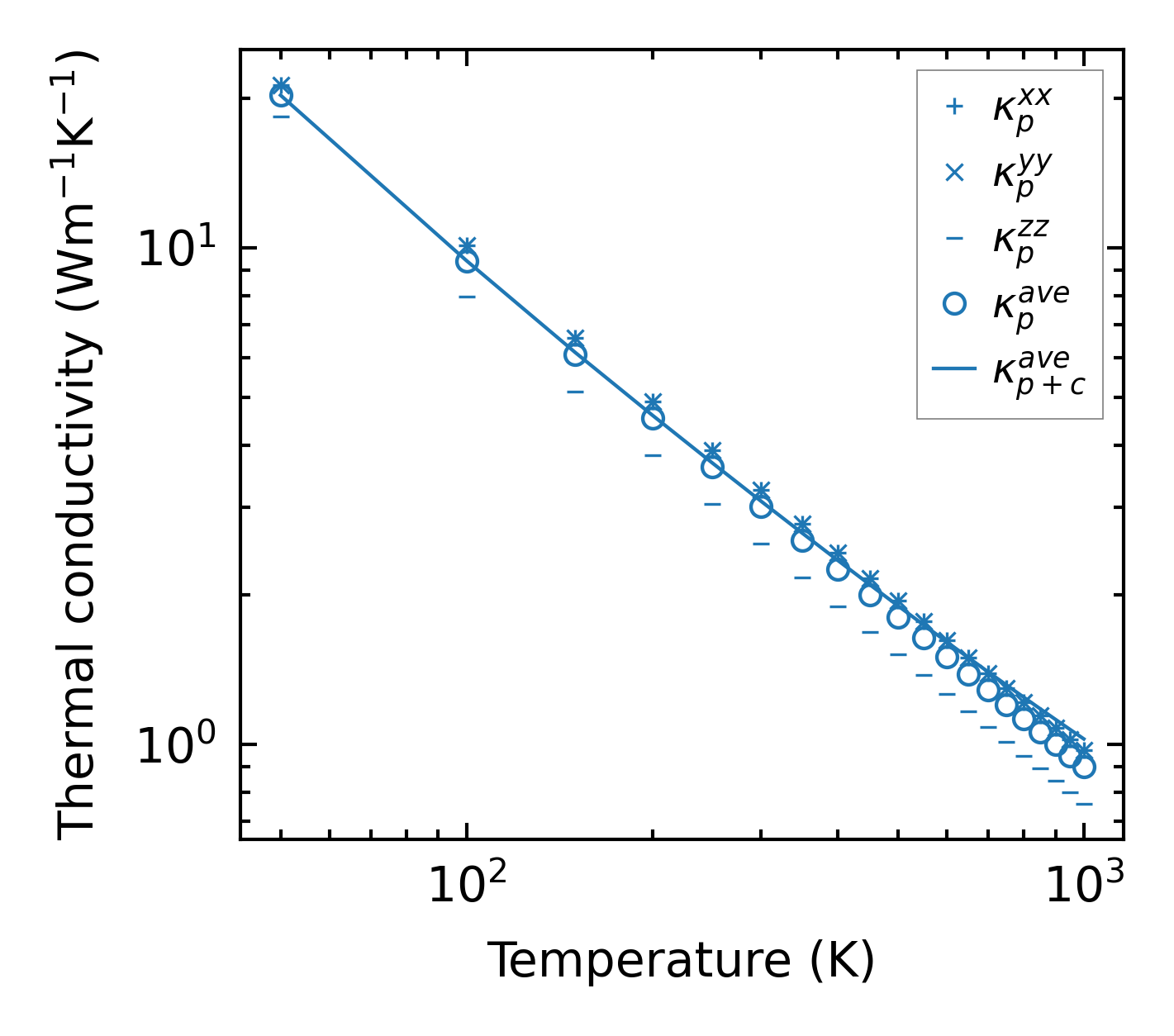

../../_images/fig_kappa14108.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7568.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7411.png — (a) Phonon lifetime due to phonon-phonon scattering

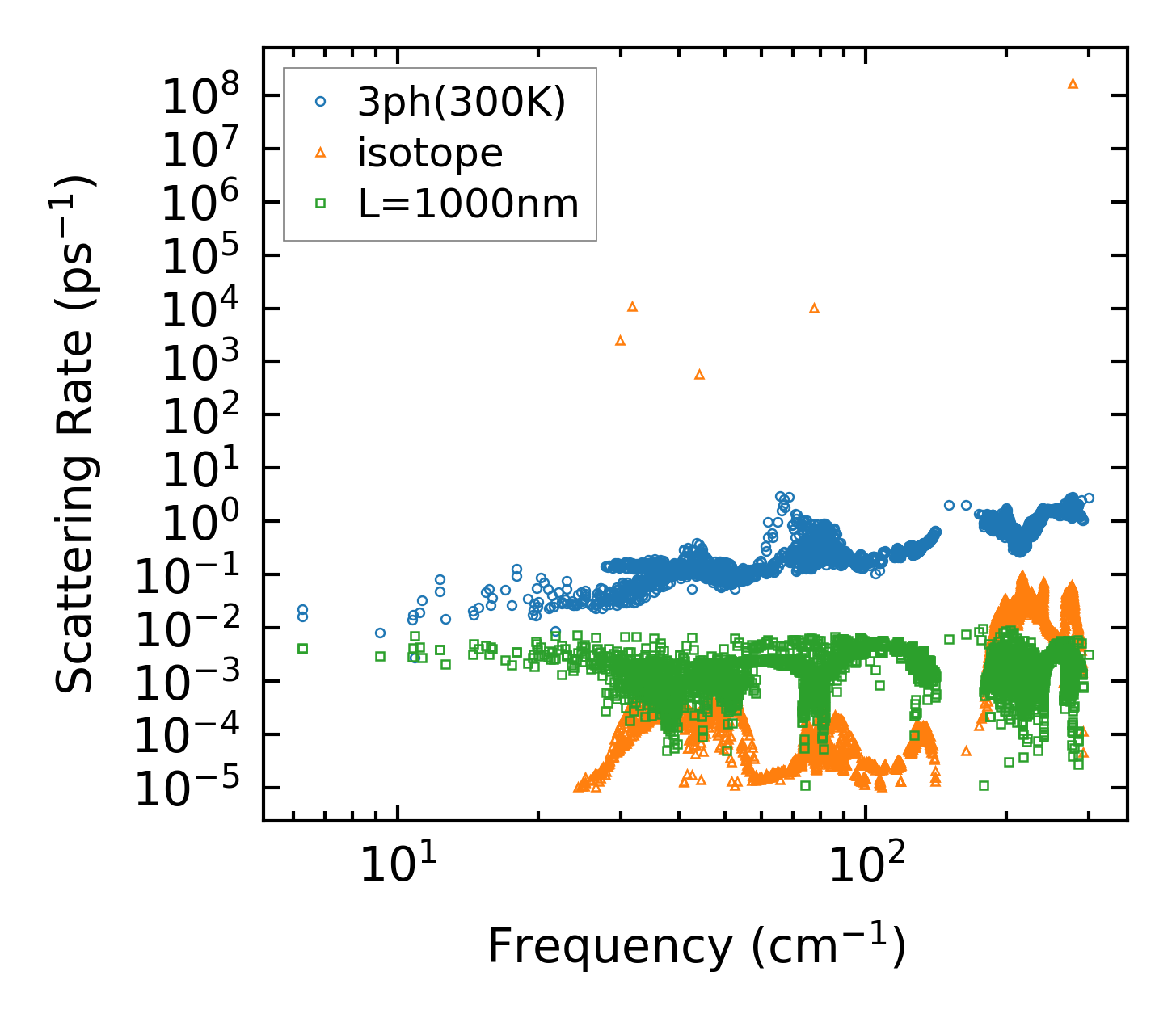

../../_images/fig_scat_rates7410.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7411.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7410.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216662.png — (a) Force constants w.r.t atomic distance

Summary

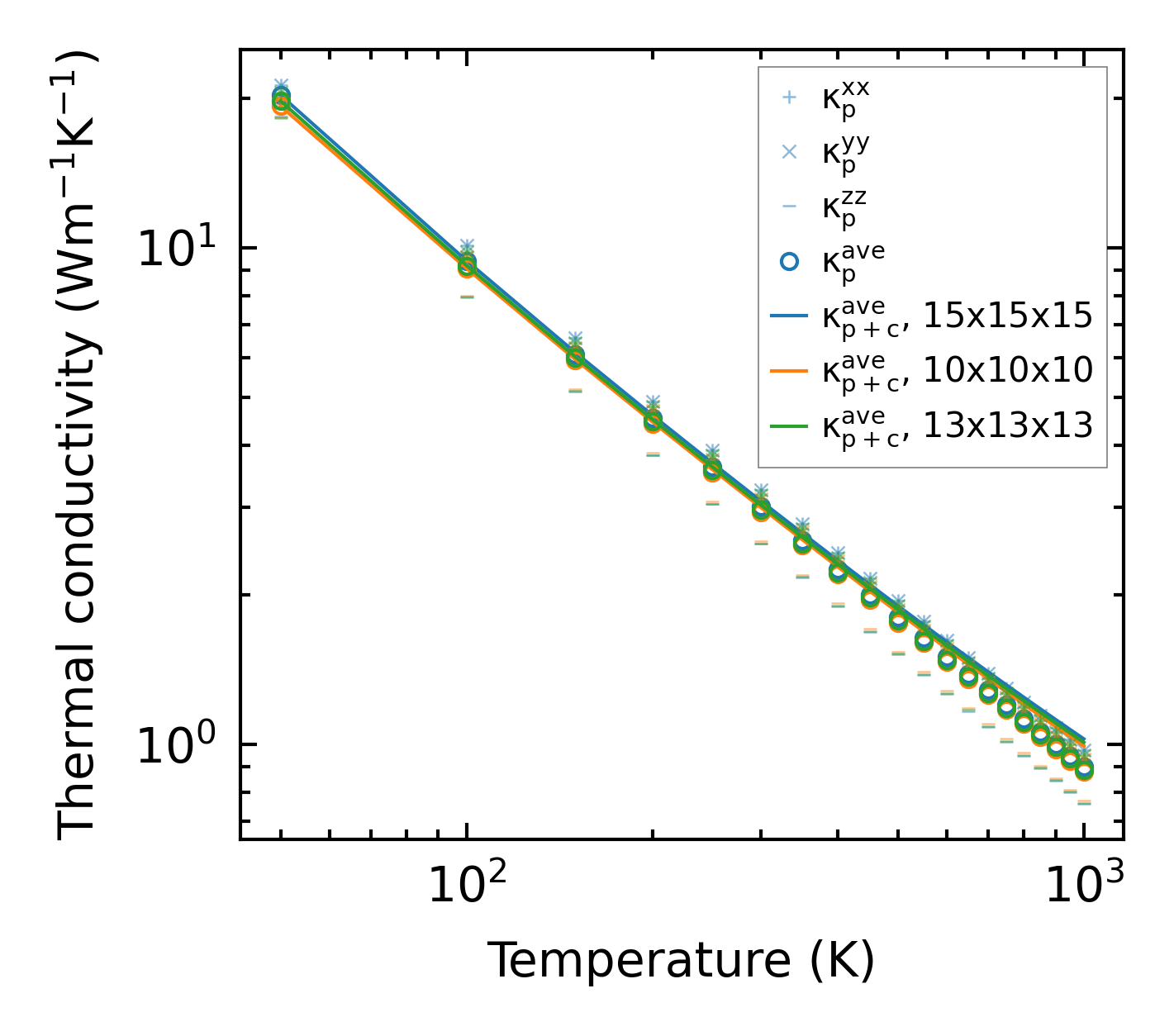

../../_images/fig_kappa14109.png — (a) Temperature-dependent lattice thermal conductivity

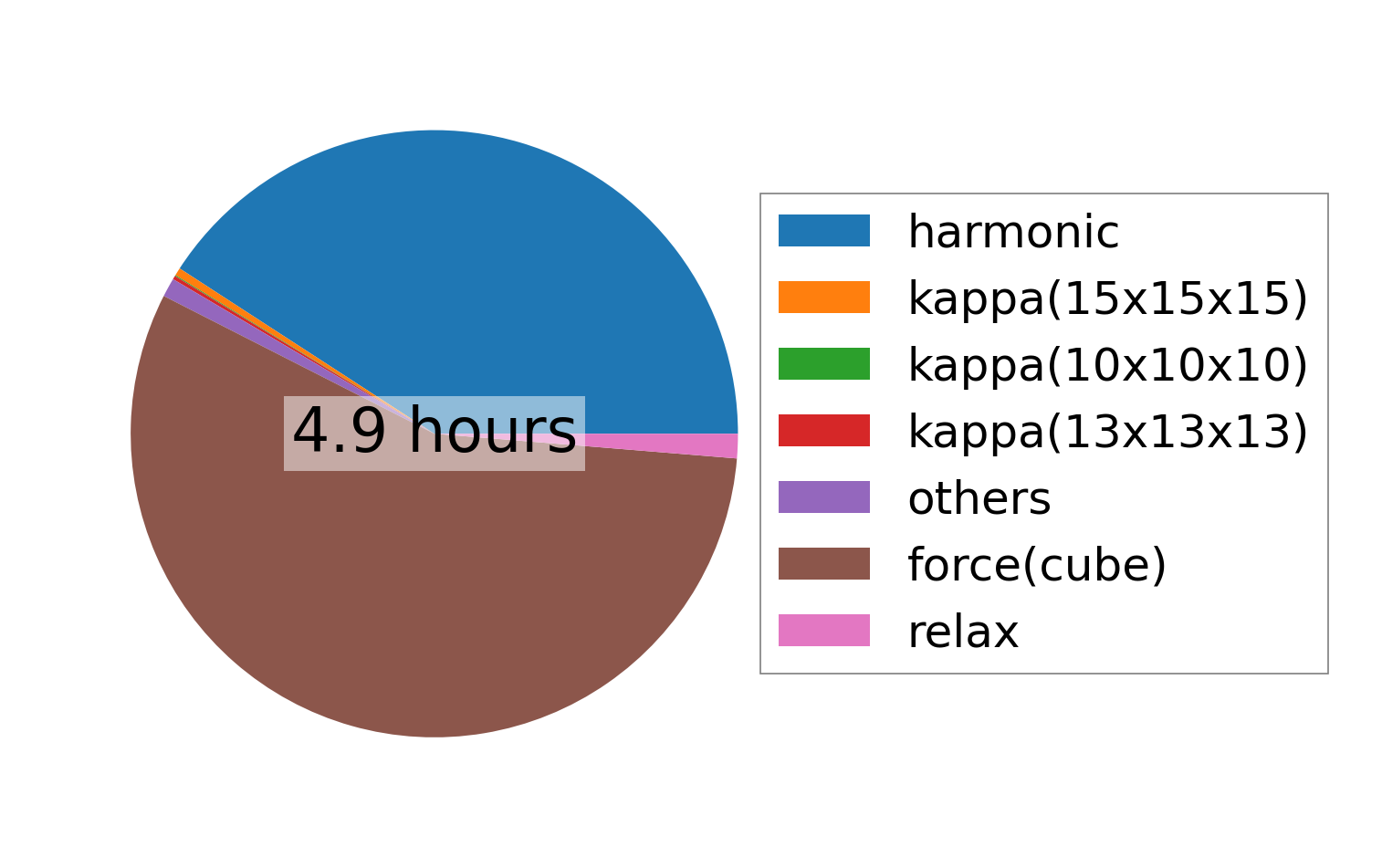

../../_images/fig_times27934.png — (b) Computation time
