mp-1062711/Rb2Pd/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-1062711.tar.gz

Harmonic properties

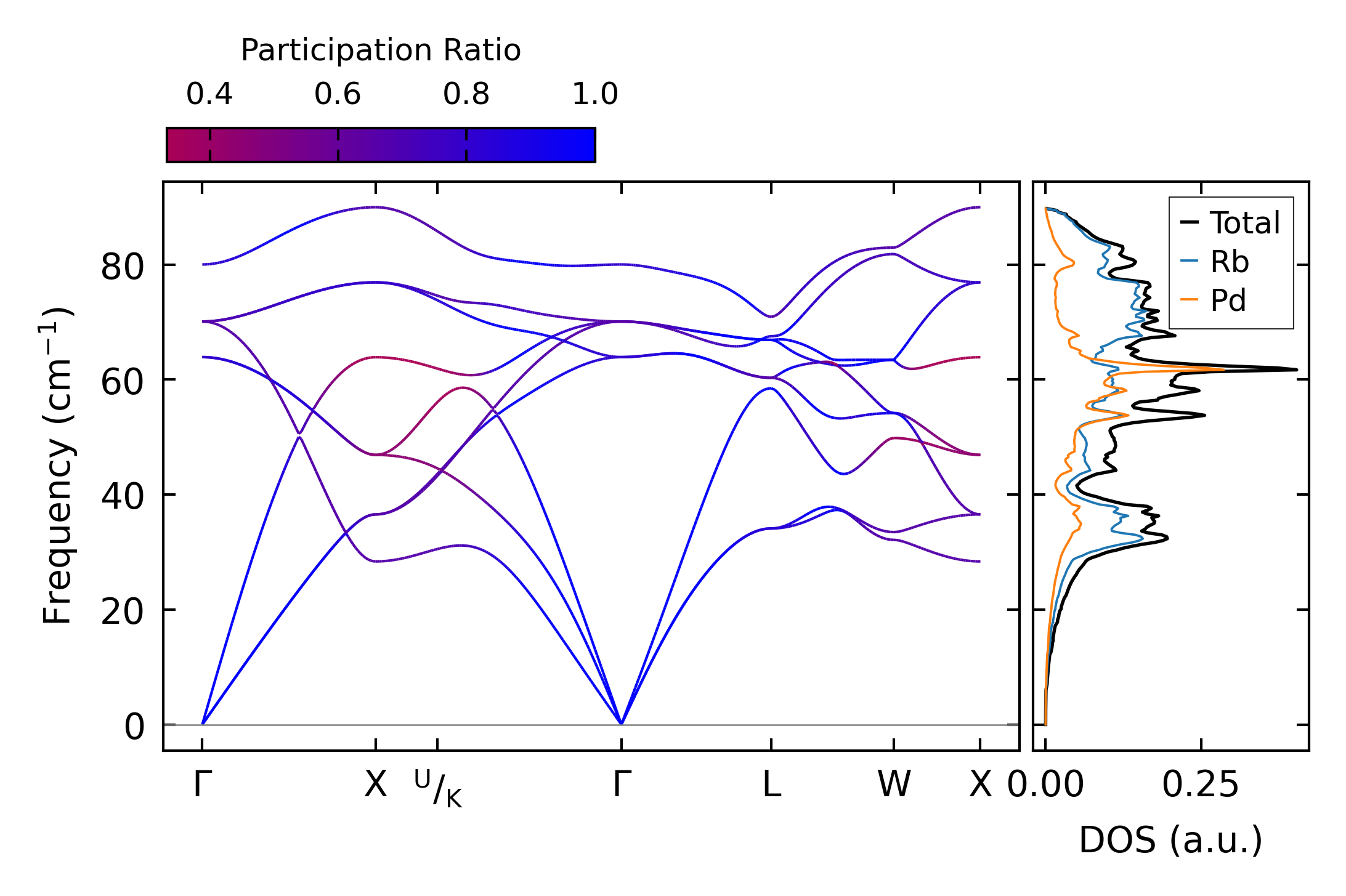

../../_images/fig_bandos_pr17112.png — (a) Phonon dispersion with participation ratio and DOS

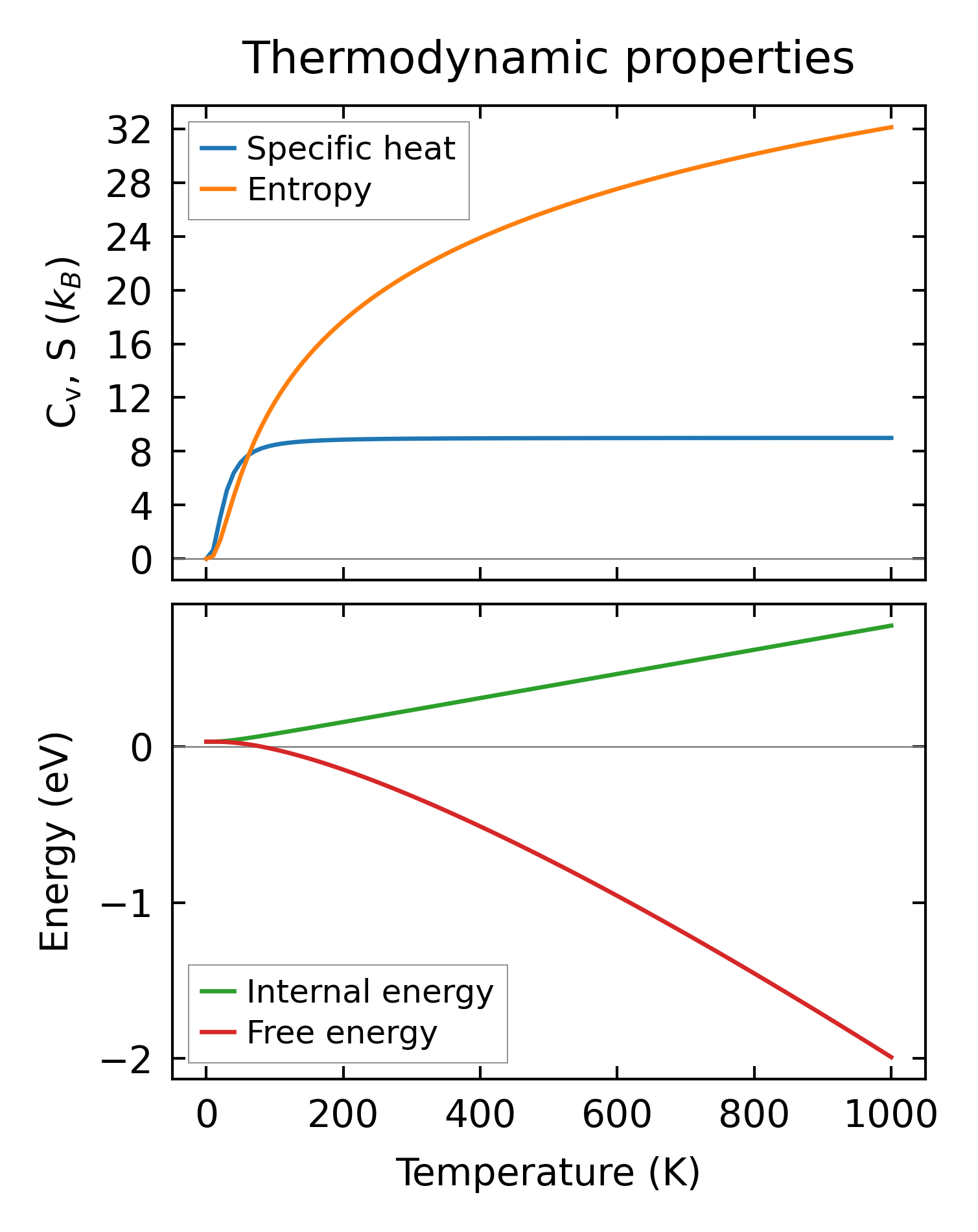

../../_images/fig_thermo17111.png — (b) Thermodynamic properties

Grüneisen parameters

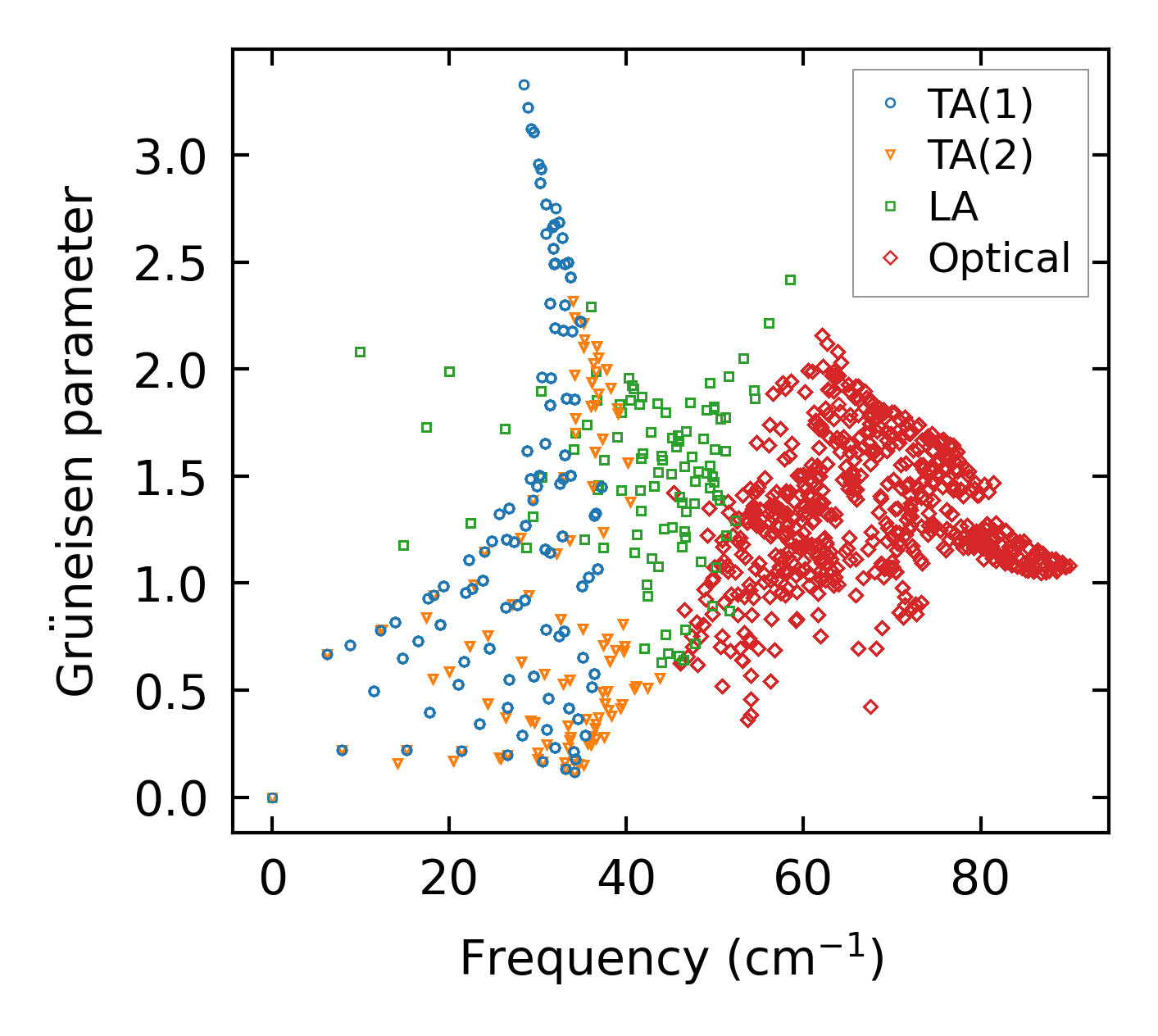

../../_images/fig_gru_all7474.png — (a) Grüneisen parameters

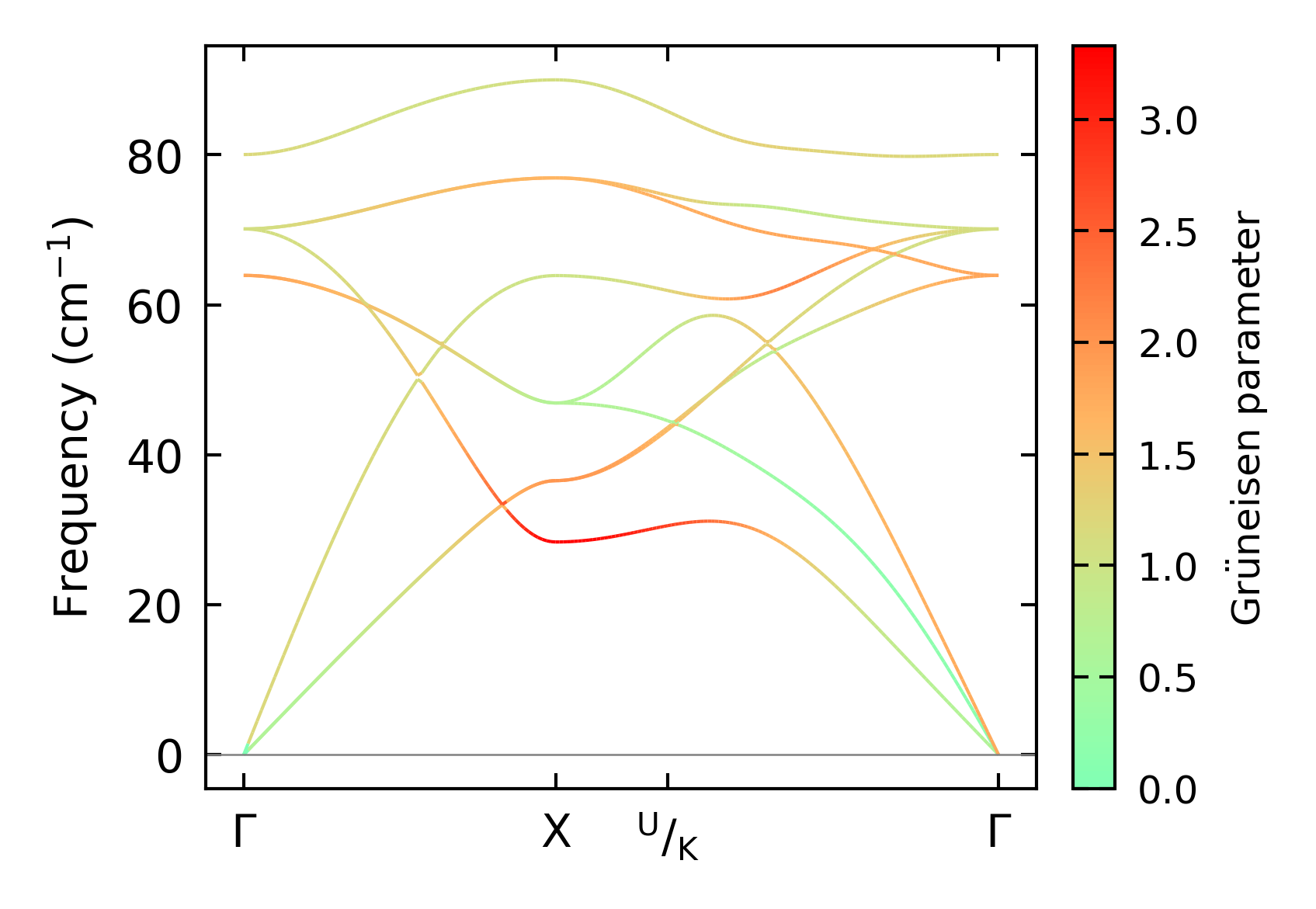

../../_images/fig_gruneisen7474.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 14x14x14, supercell: 2x2x2

../../_images/fig_kappa14098.png — (a) Temperature-dependent lattice thermal conductivity

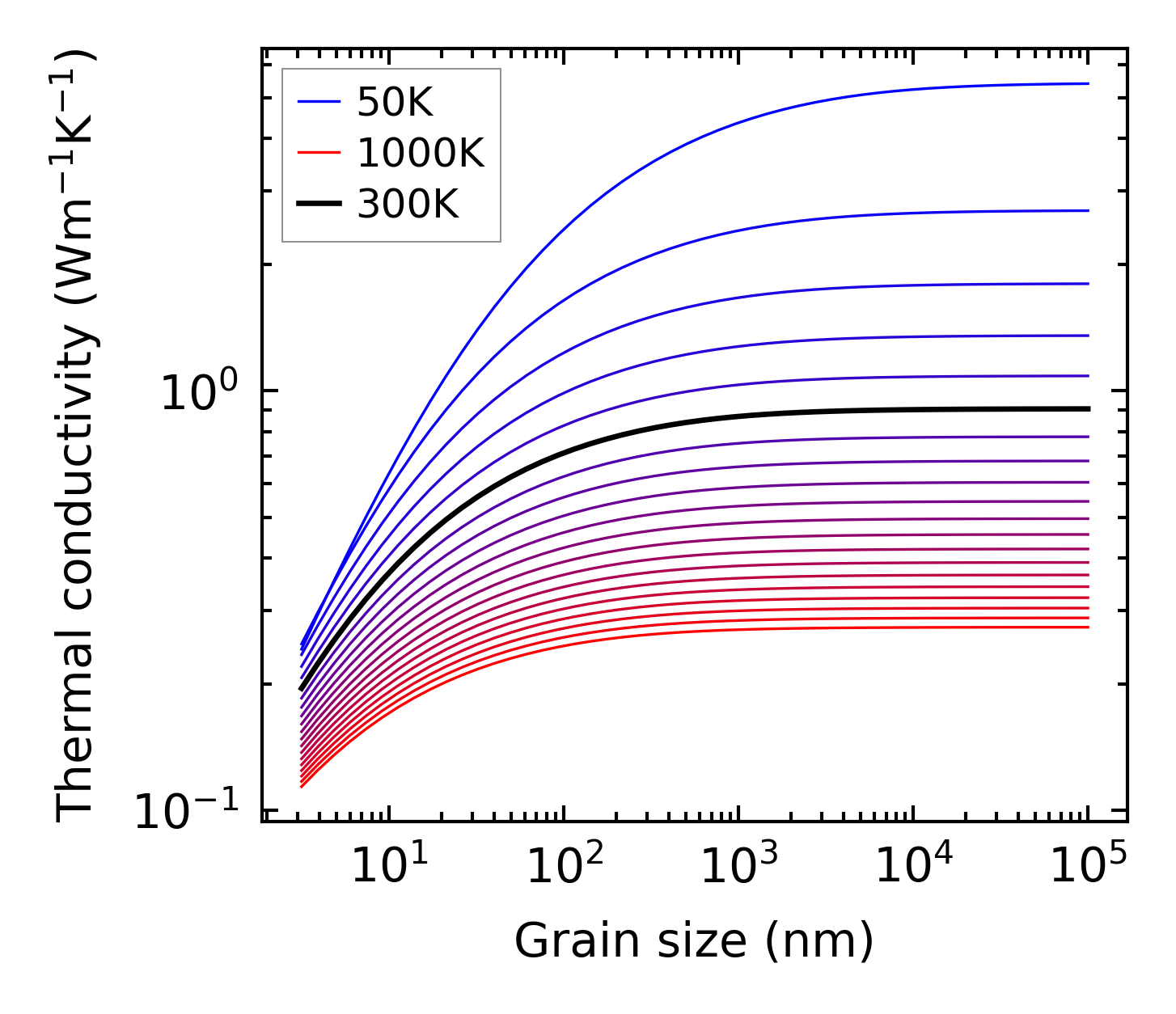

../../_images/fig_kappa_vs_grain_size7562.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

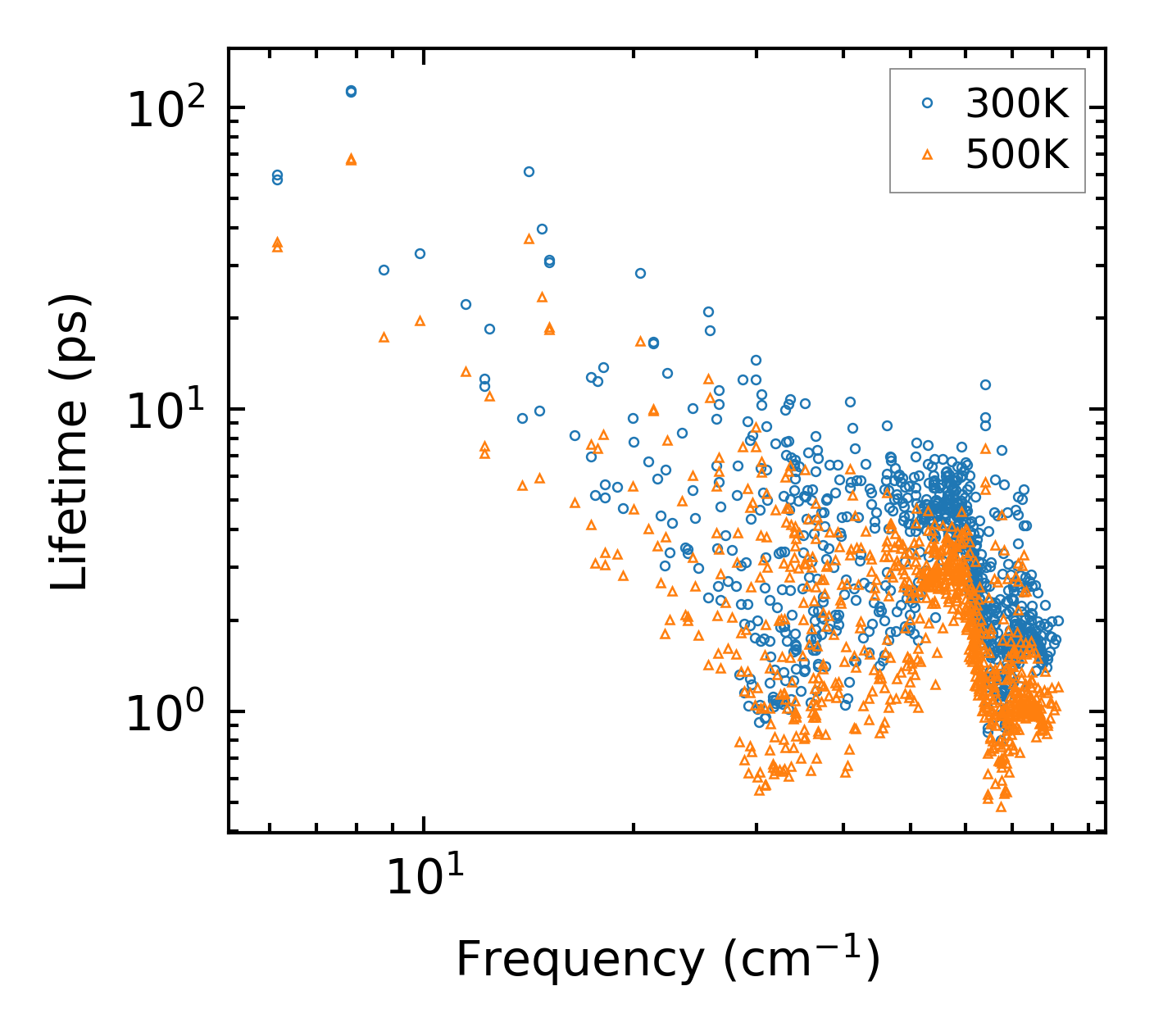

../../_images/fig_lifetime7407.png — (a) Phonon lifetime due to phonon-phonon scattering

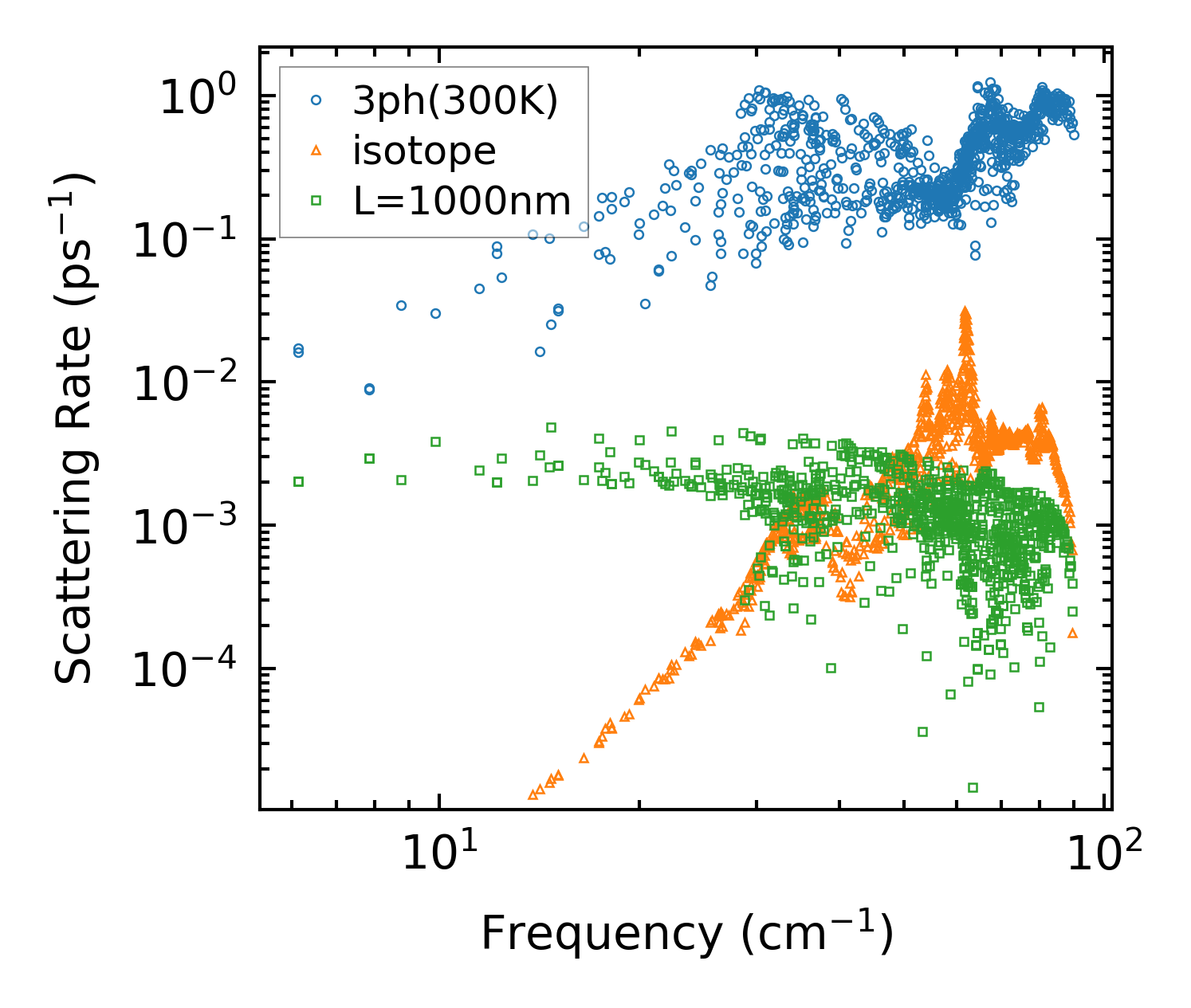

../../_images/fig_scat_rates7406.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

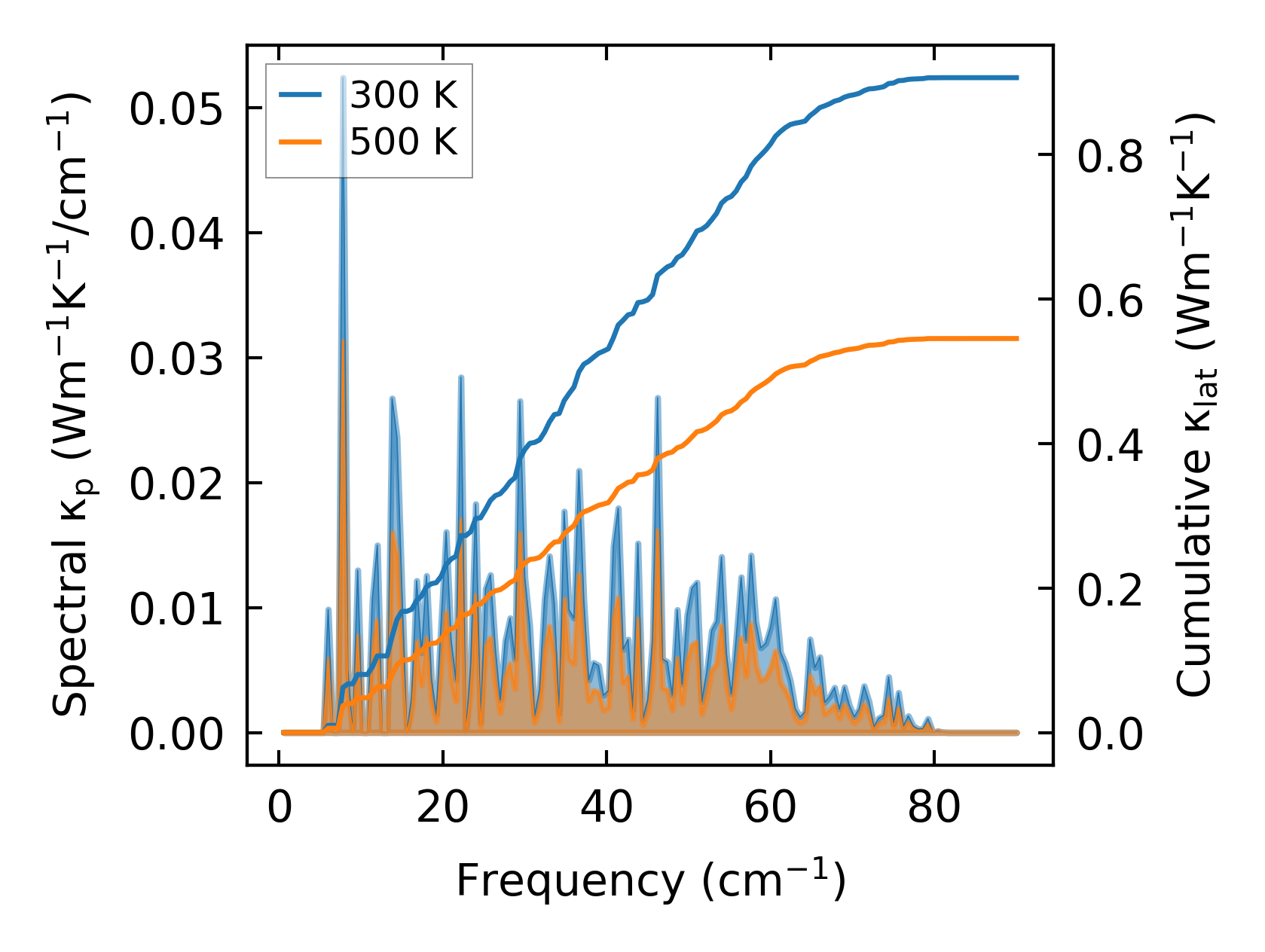

../../_images/fig_cumu_frequency7407.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

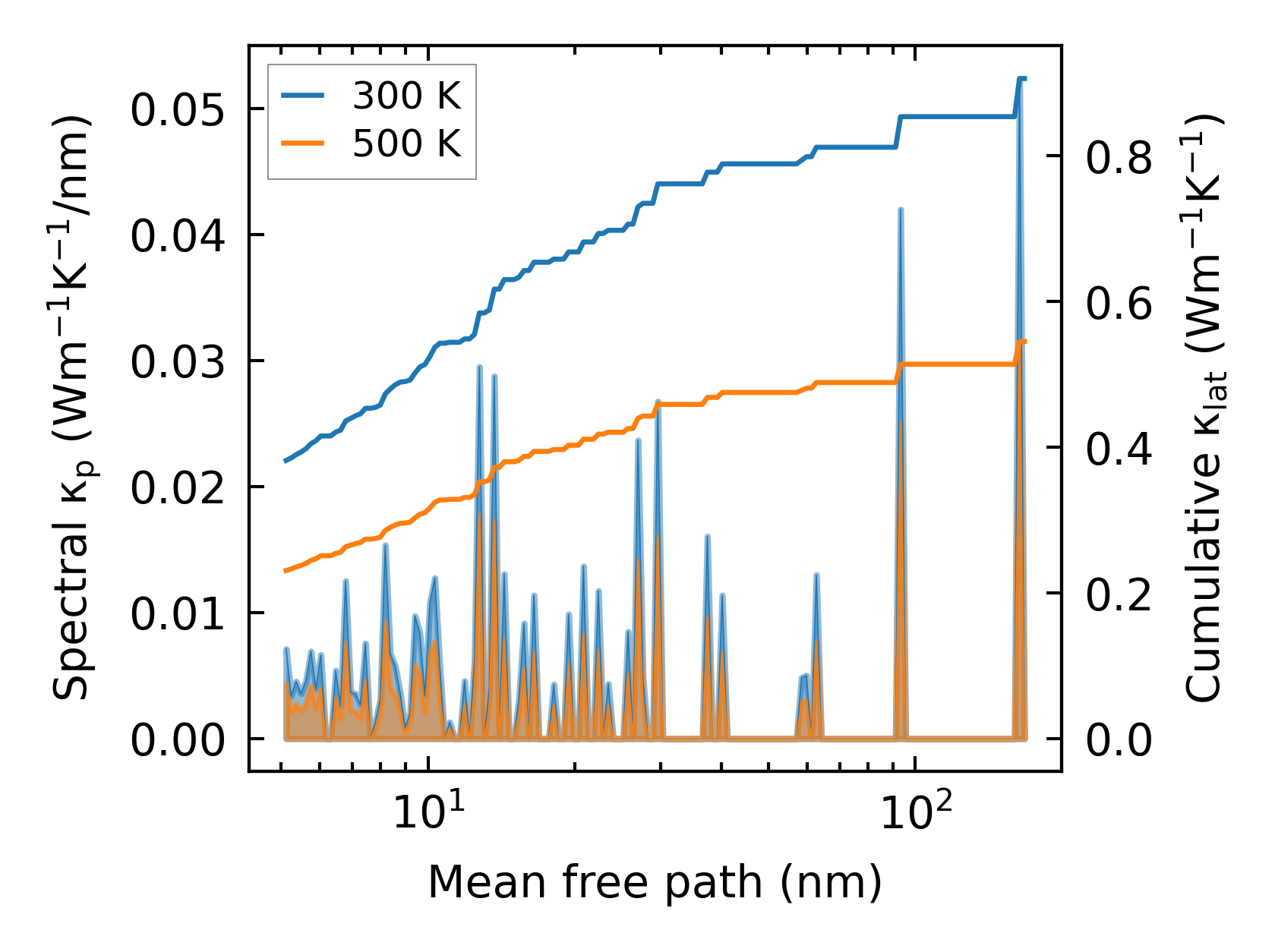

../../_images/fig_cumu_mfp7406.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

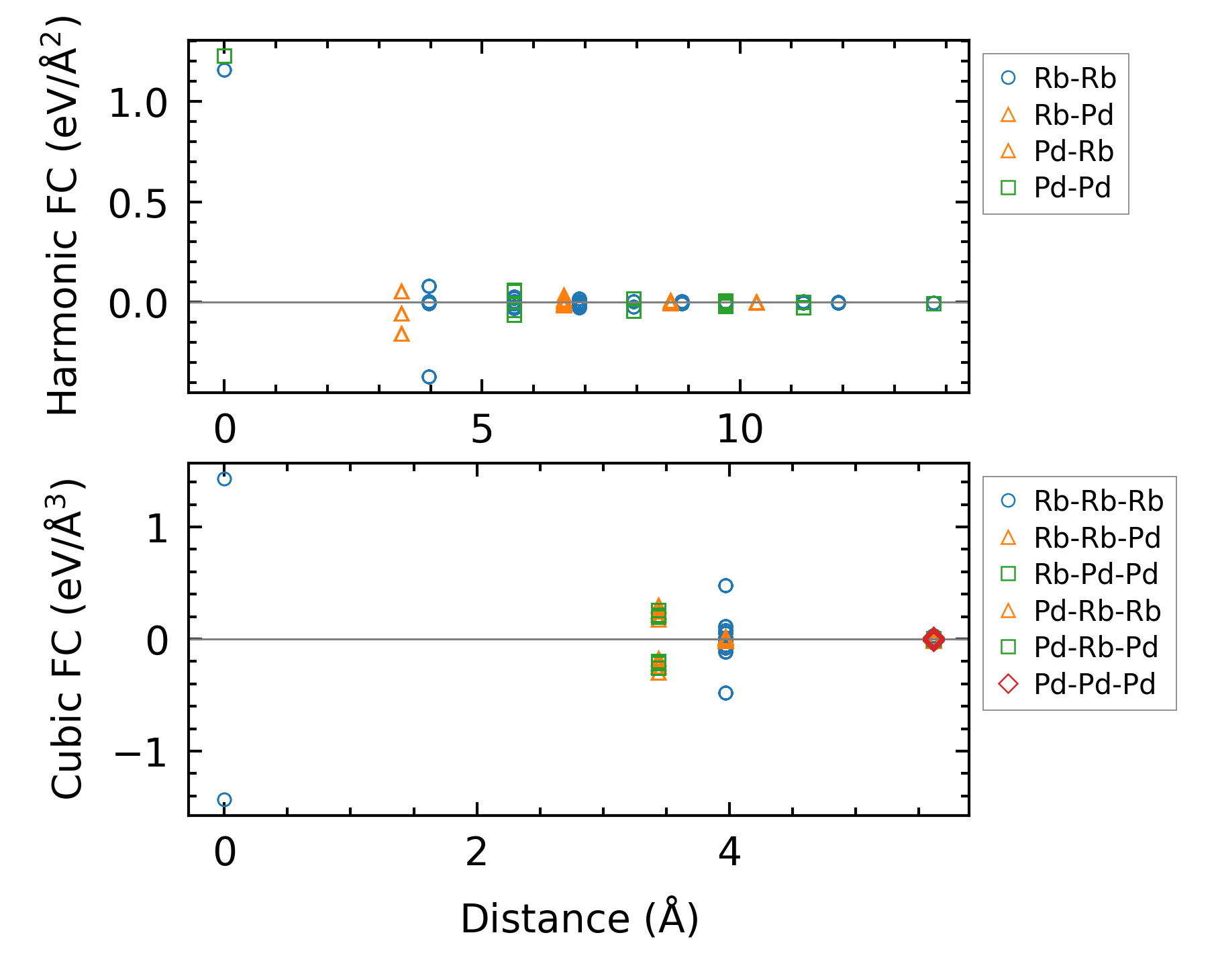

../../_images/fig_fc3452.png — (a) Force constants w.r.t atomic distance

Summary

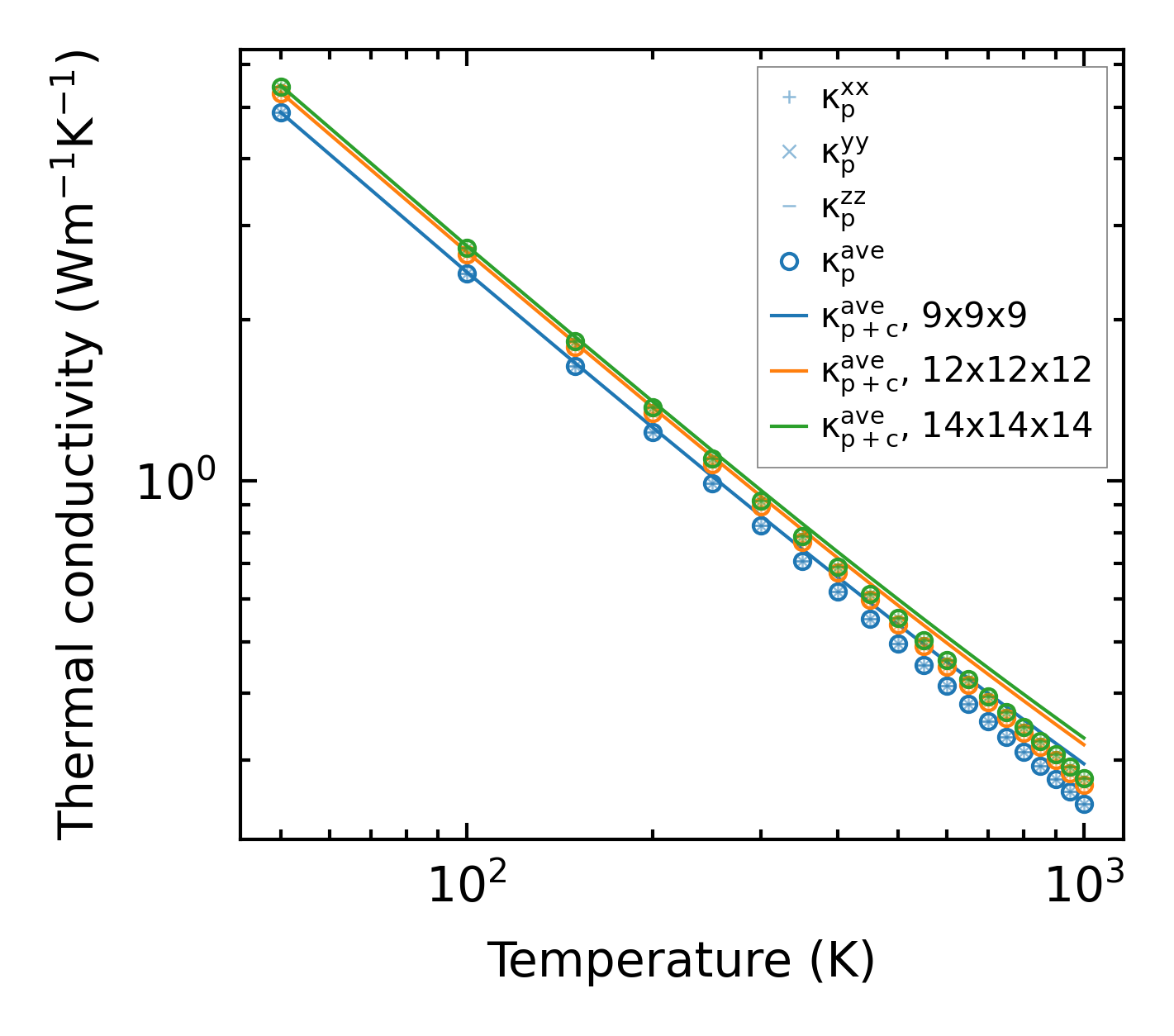

../../_images/fig_kappa14099.png — (a) Temperature-dependent lattice thermal conductivity

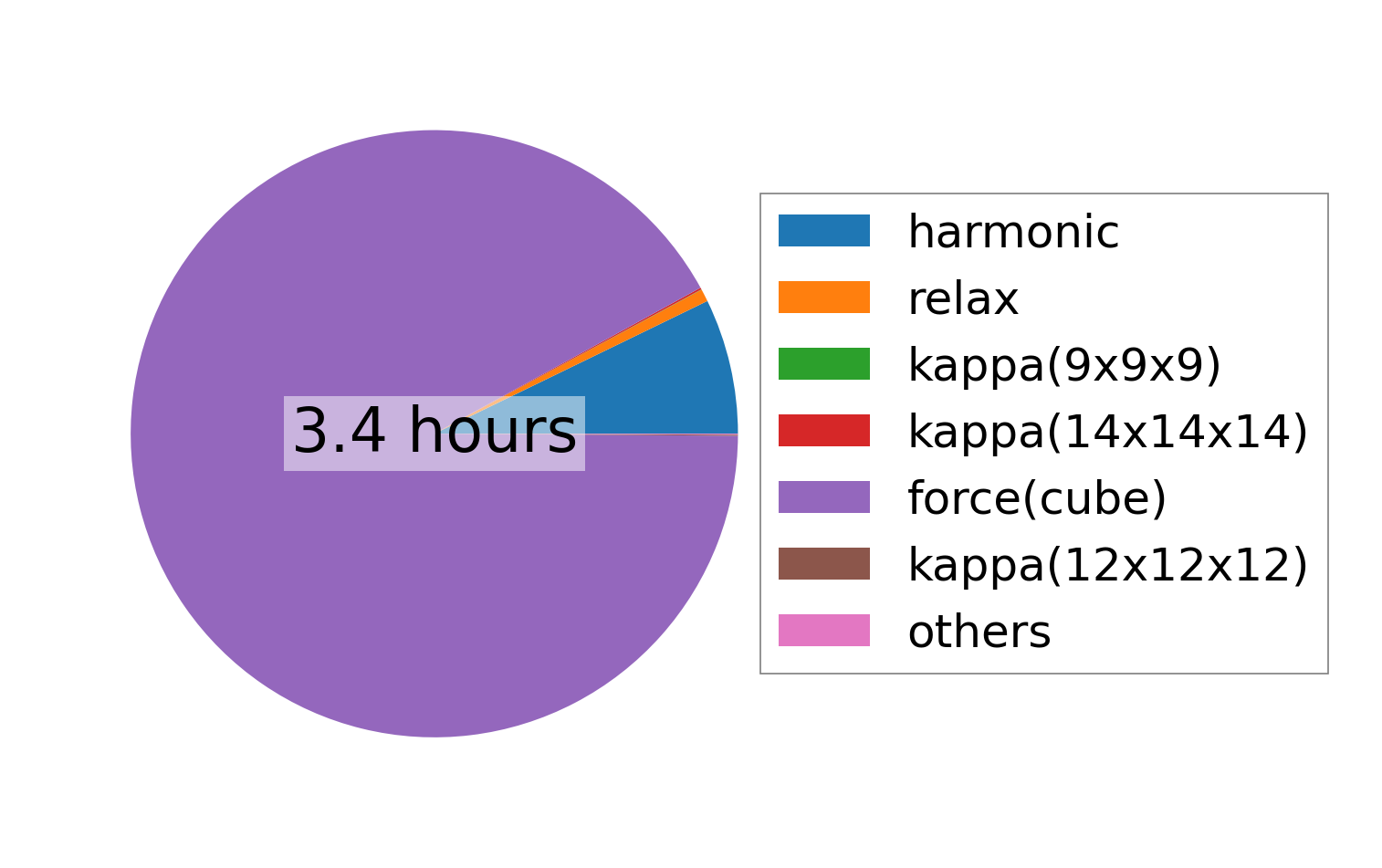

../../_images/fig_times27926.png — (b) Computation time
