mp-1056920/CsI/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-1056920.tar.gz

Harmonic properties

../../_images/fig_bandos_pr17109.png — (a) Phonon dispersion with participation ratio and DOS

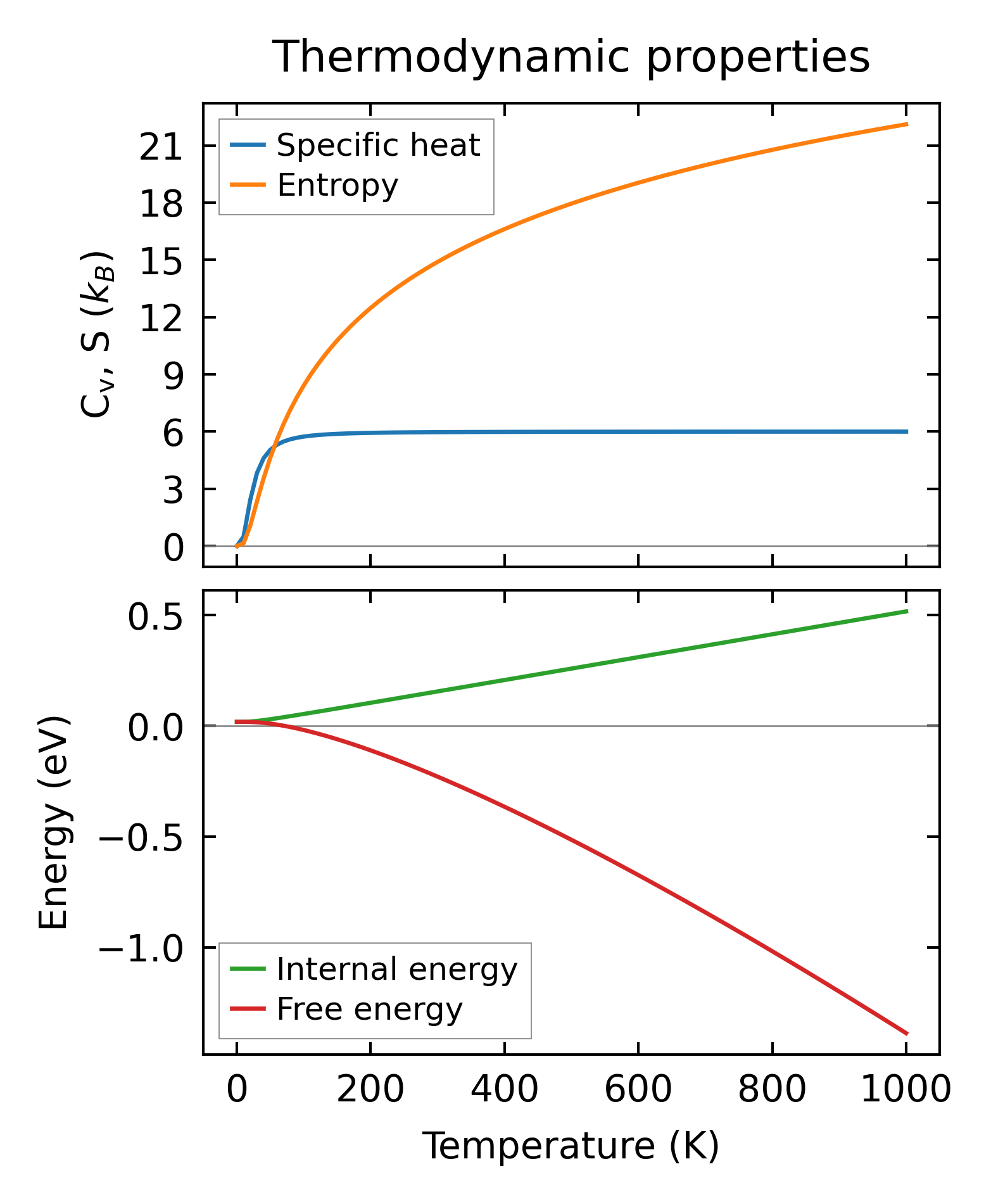

../../_images/fig_thermo17108.png — (b) Thermodynamic properties

Grüneisen parameters

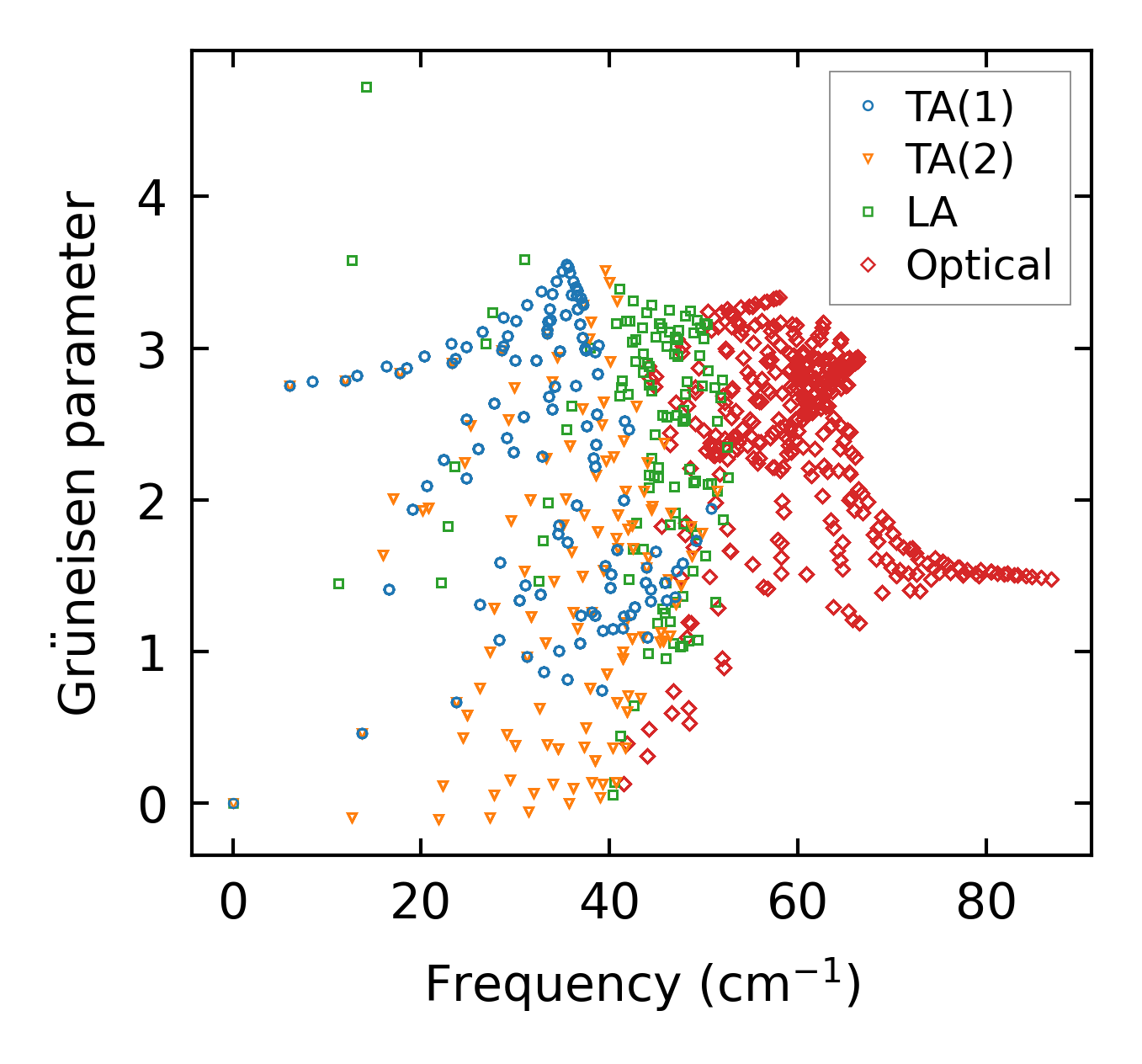

../../_images/fig_gru_all7471.png — (a) Grüneisen parameters

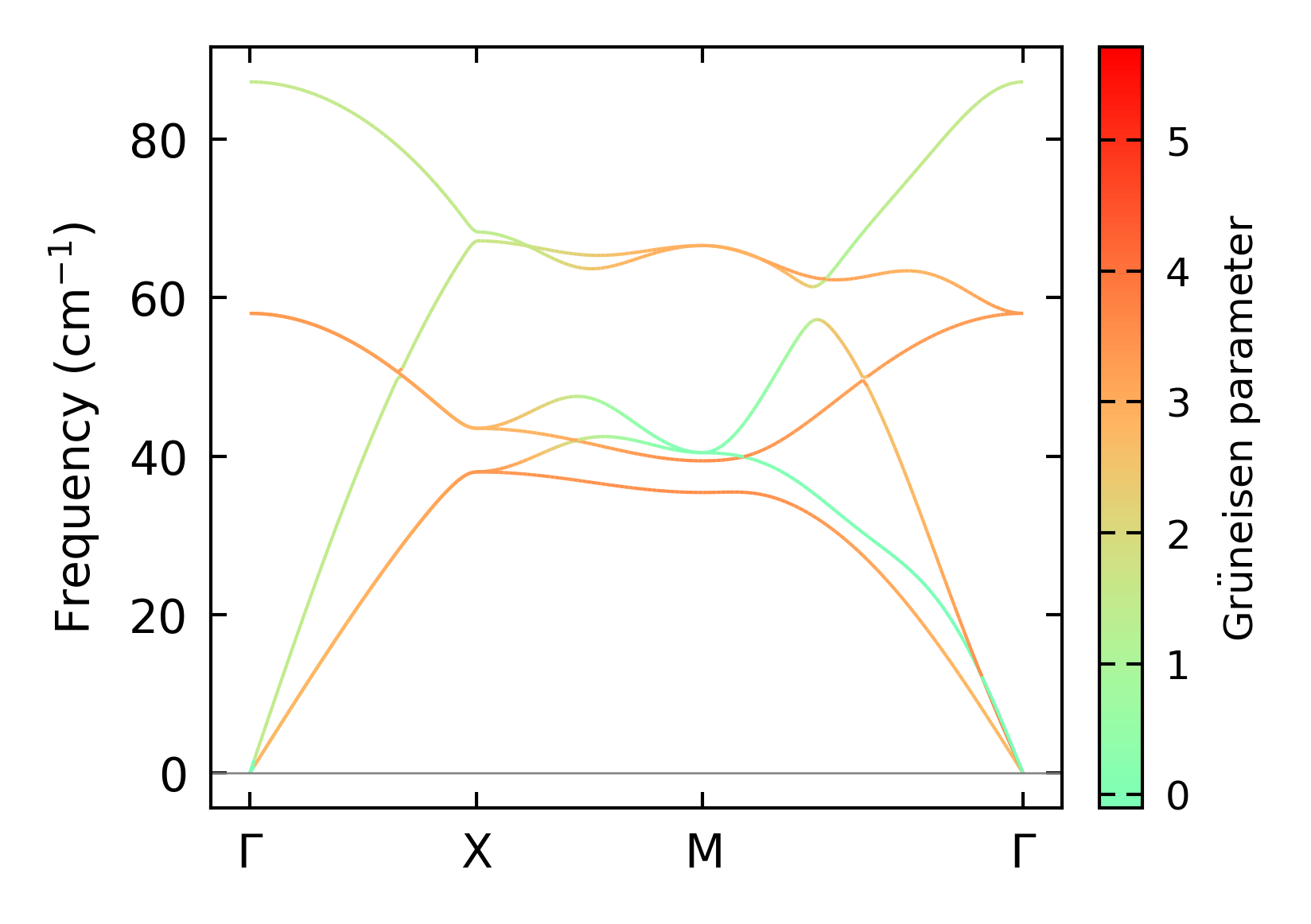

../../_images/fig_gruneisen7471.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 15x15x15, supercell: 4x4x4

../../_images/fig_kappa14092.png — (a) Temperature-dependent lattice thermal conductivity

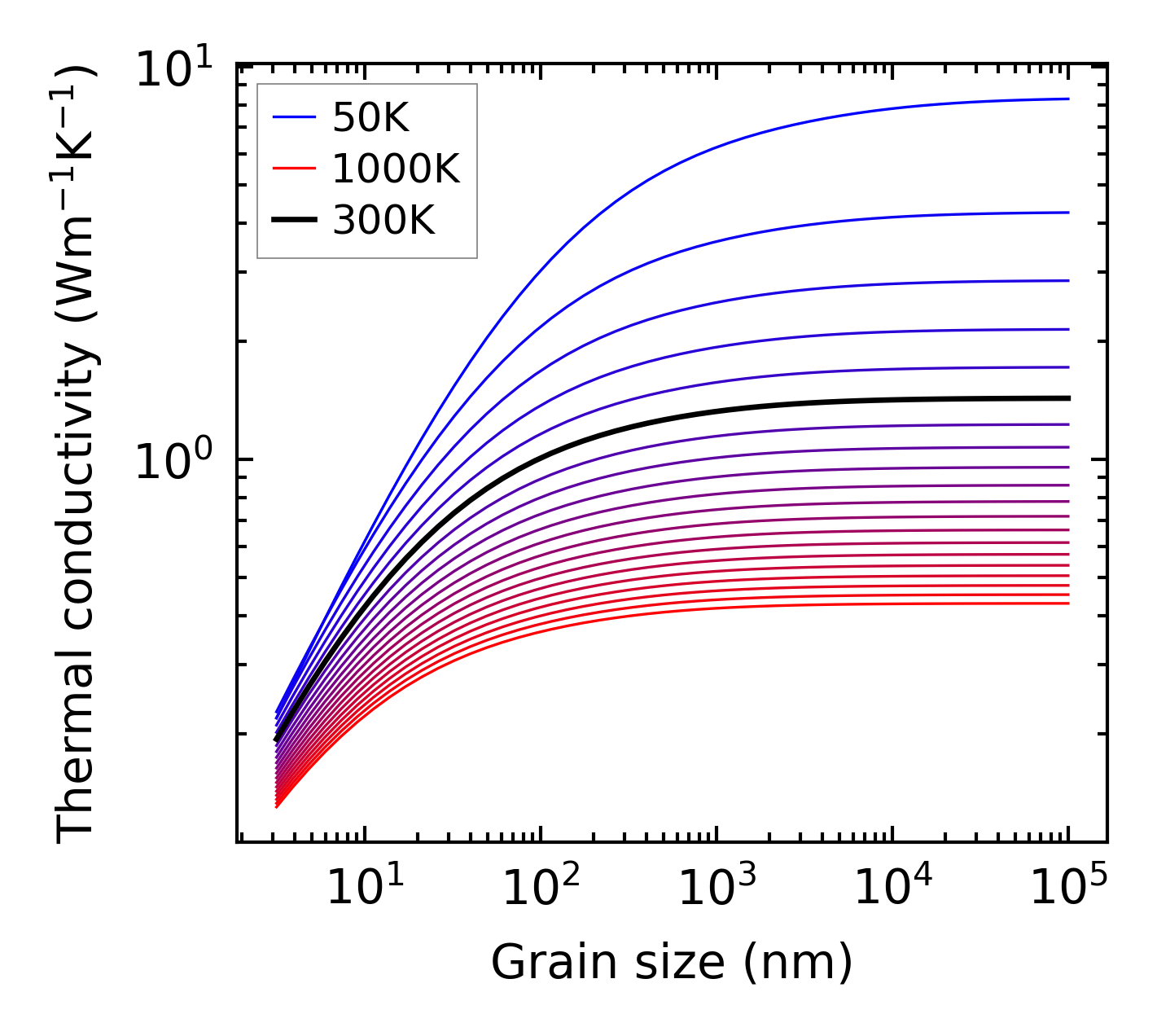

../../_images/fig_kappa_vs_grain_size7559.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7404.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7403.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

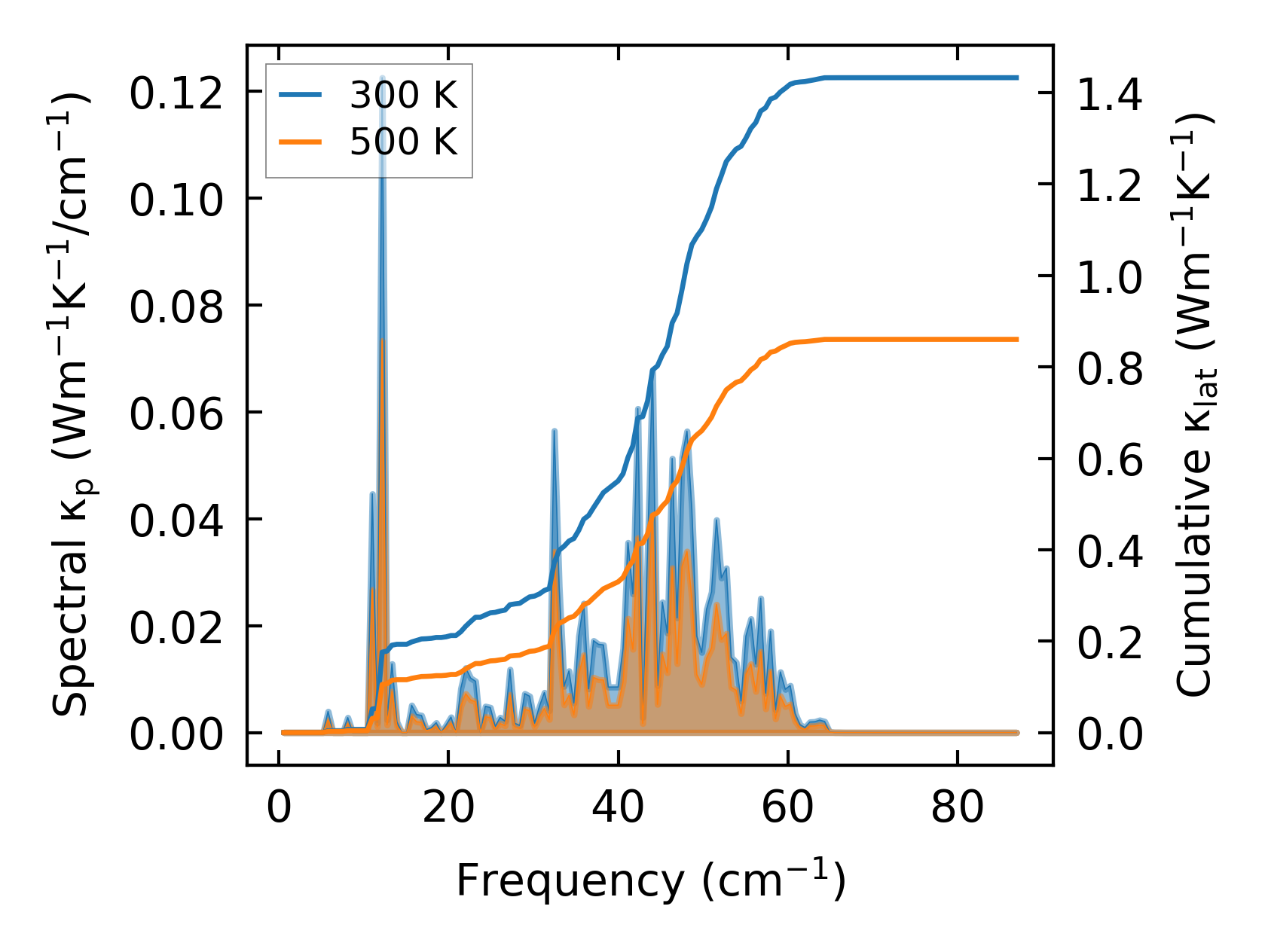

../../_images/fig_cumu_frequency7404.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

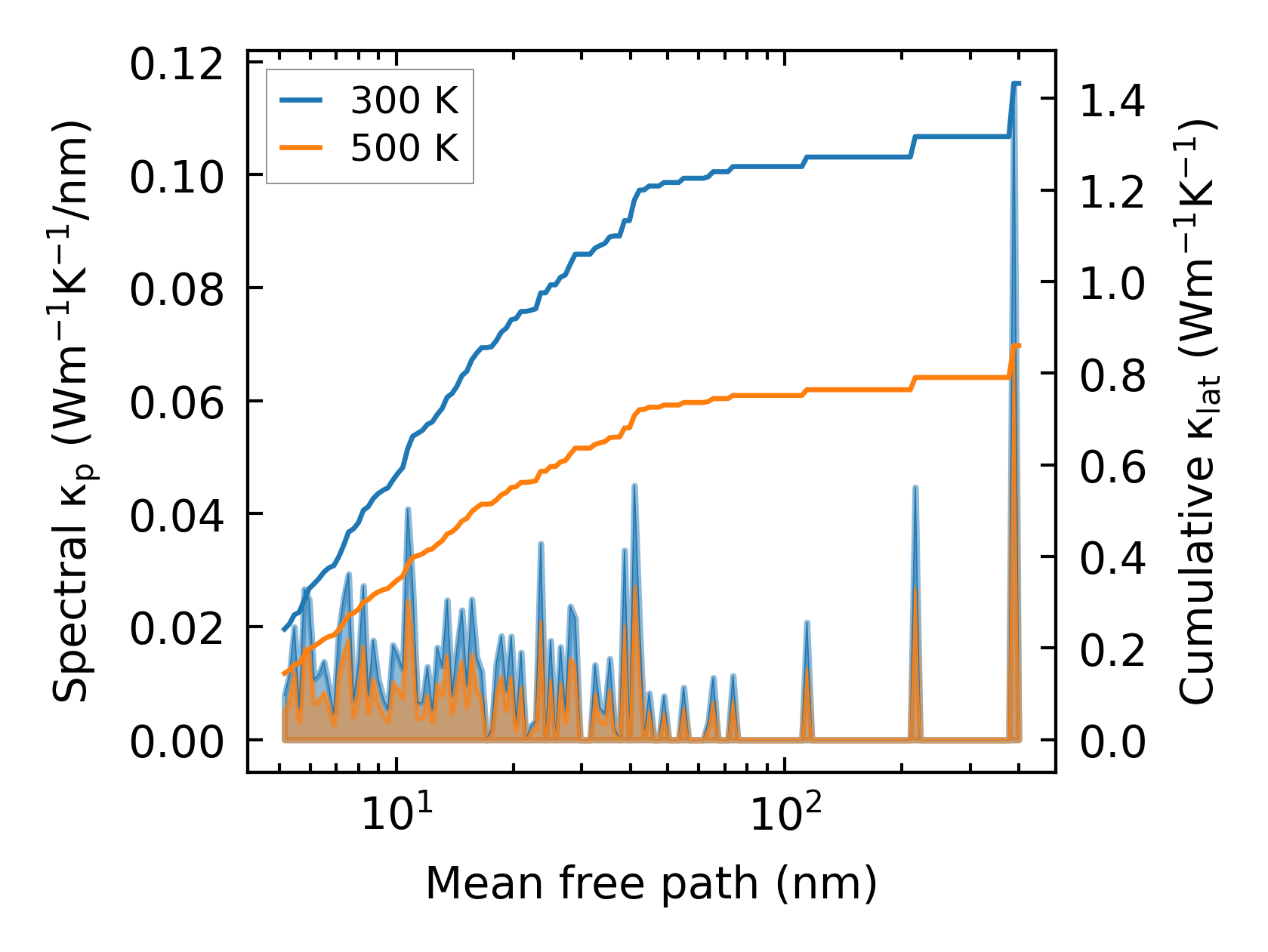

../../_images/fig_cumu_mfp7403.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

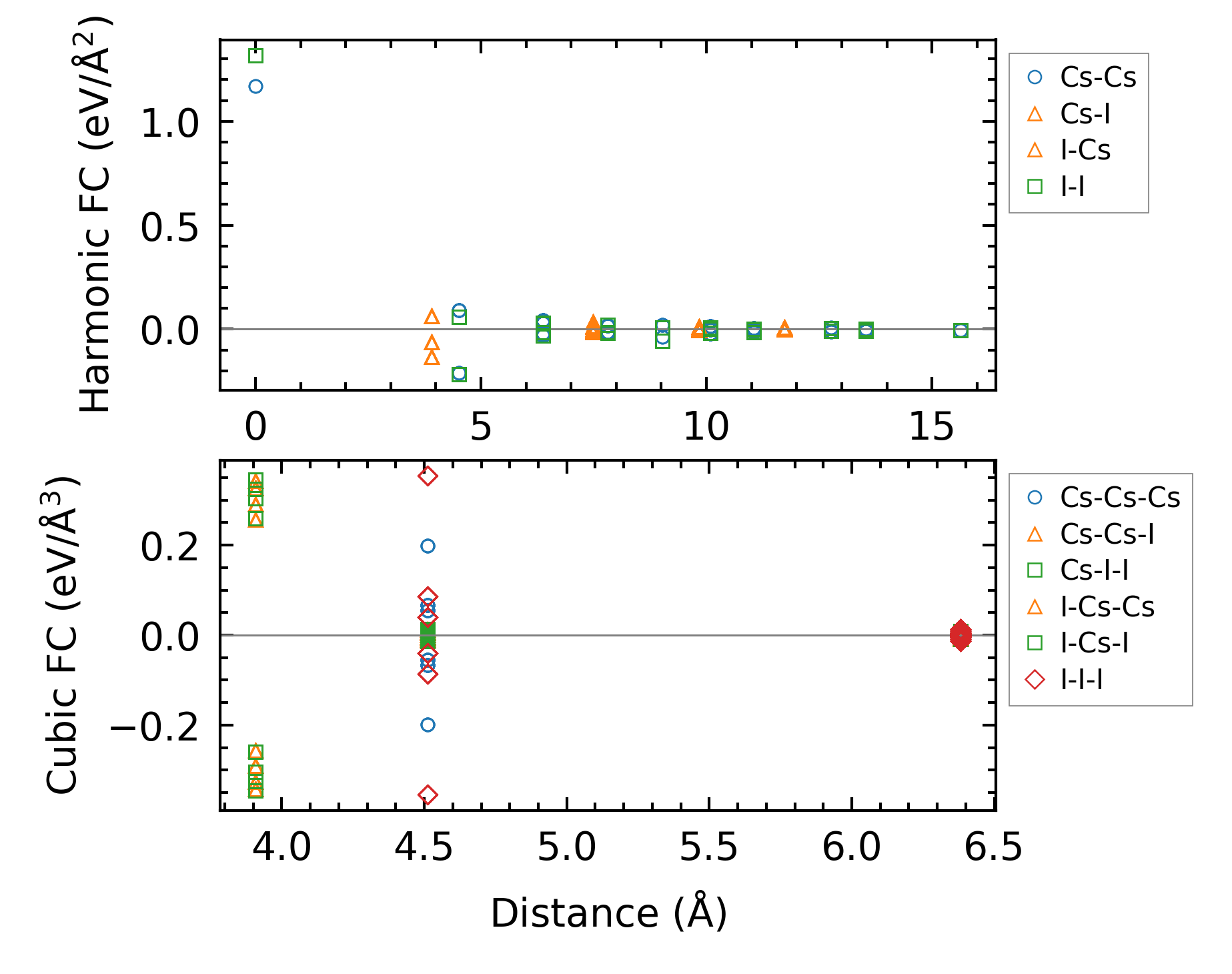

../../_images/fig_fc3449.png — (a) Force constants w.r.t atomic distance

Summary

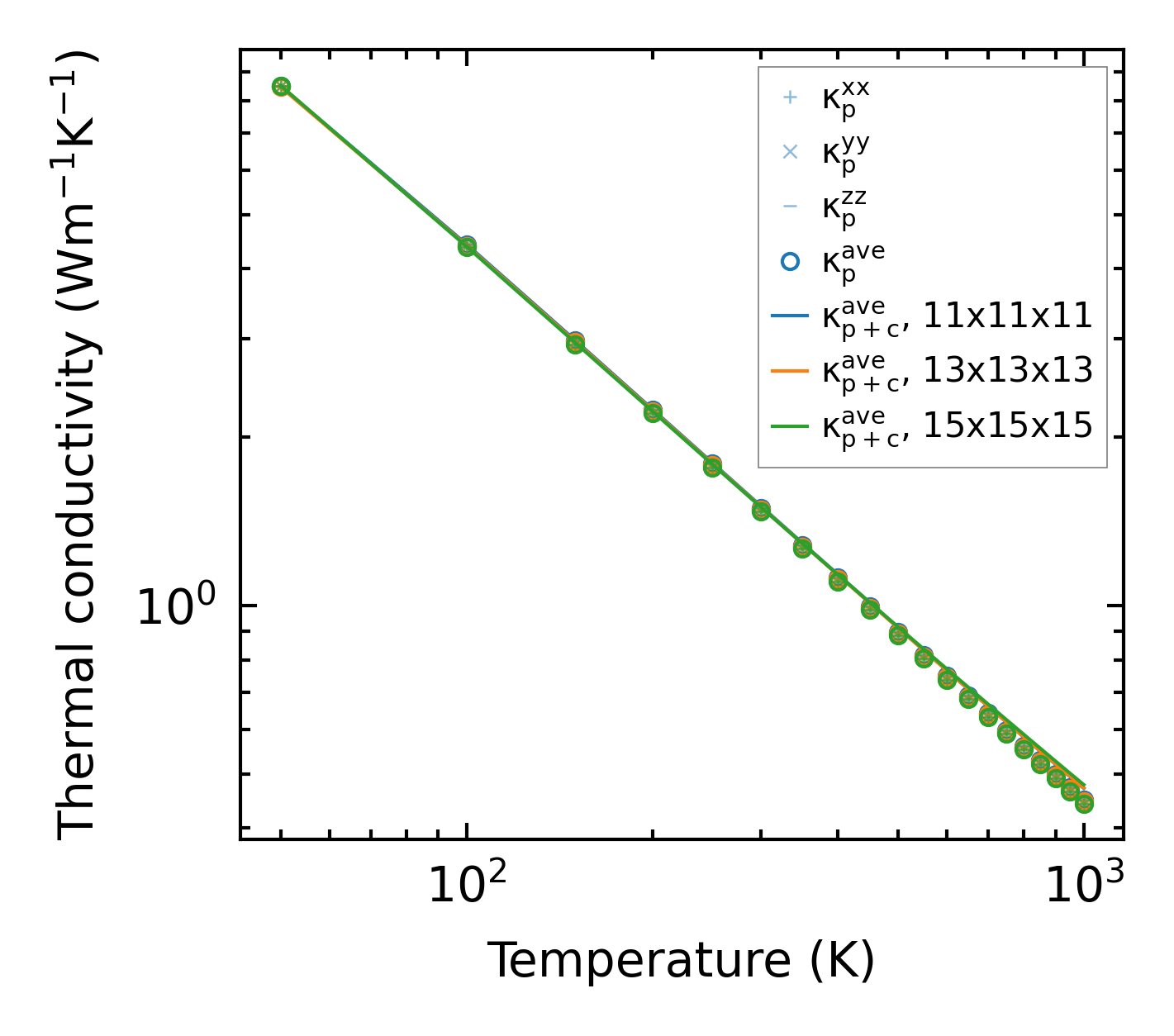

../../_images/fig_kappa14093.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27921.png — (b) Computation time
